Warning, because different countries have different import regulations, our price does not include any taxes. Buyers are responsible for customs clearance. We do not accept orders that are unwilling to clear customs by themselves. ,Thank you for your cooperation.
System Physical Standard Configuration: |
||||||
Type |
Details |
Descriptions |
||||
Product Form |
Form Factor |

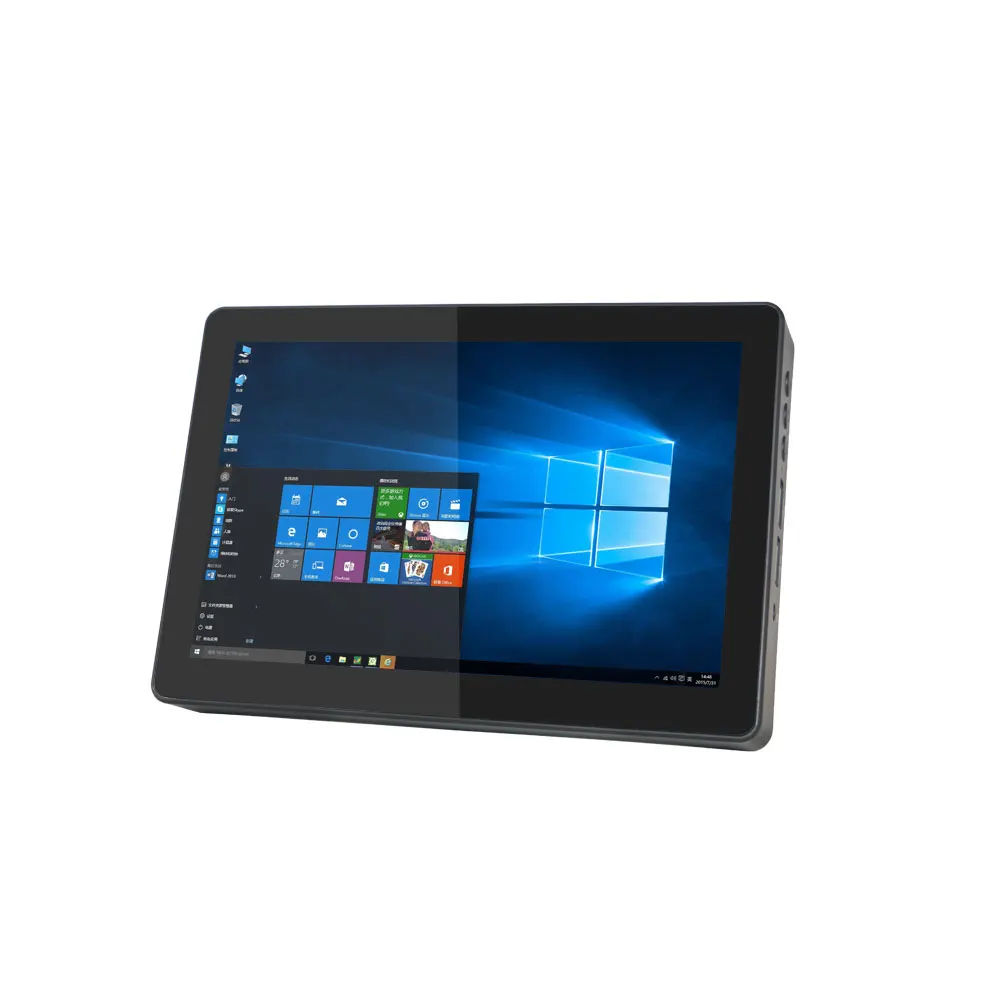

8″ mini Aio PC |
||||

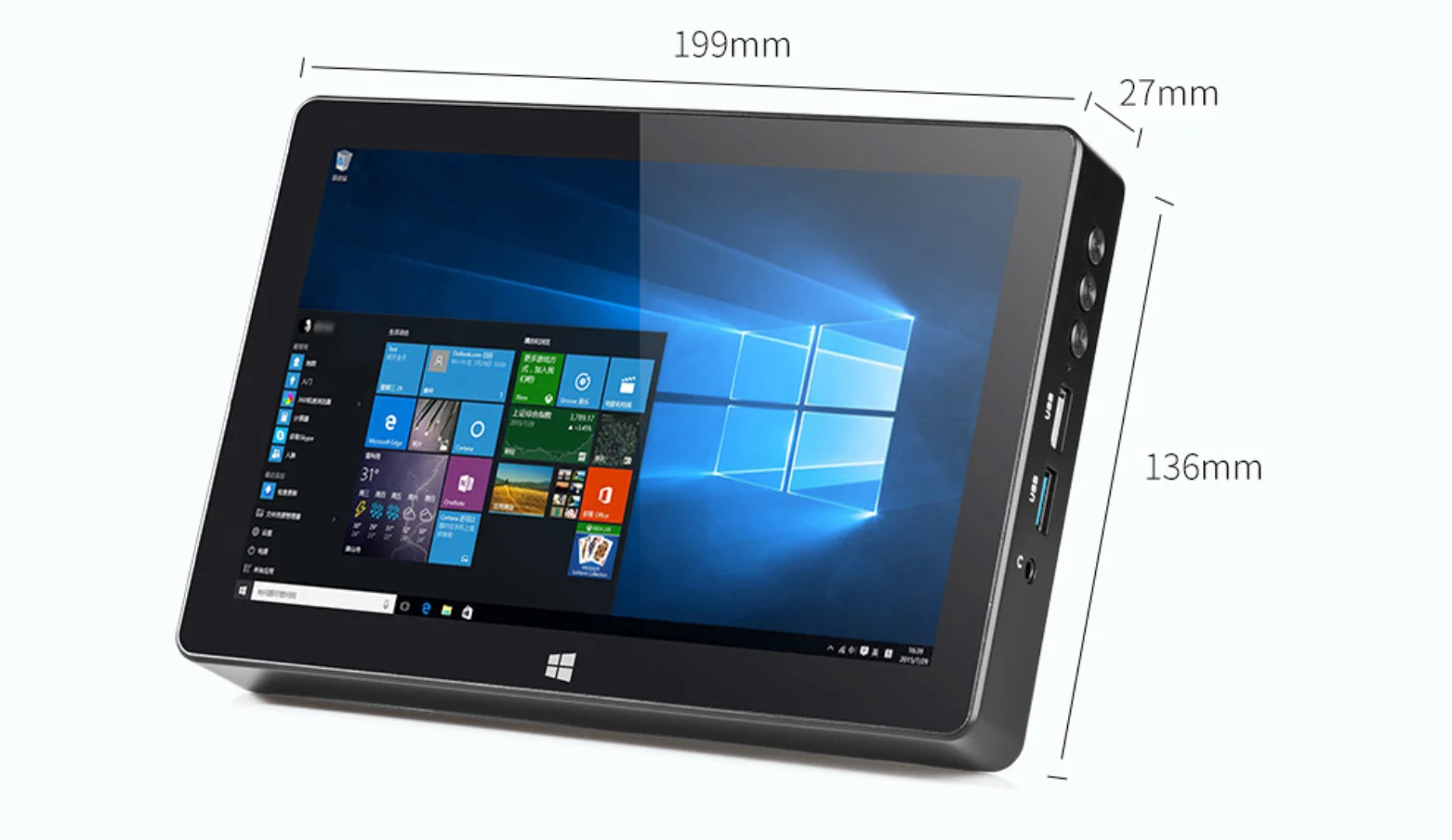

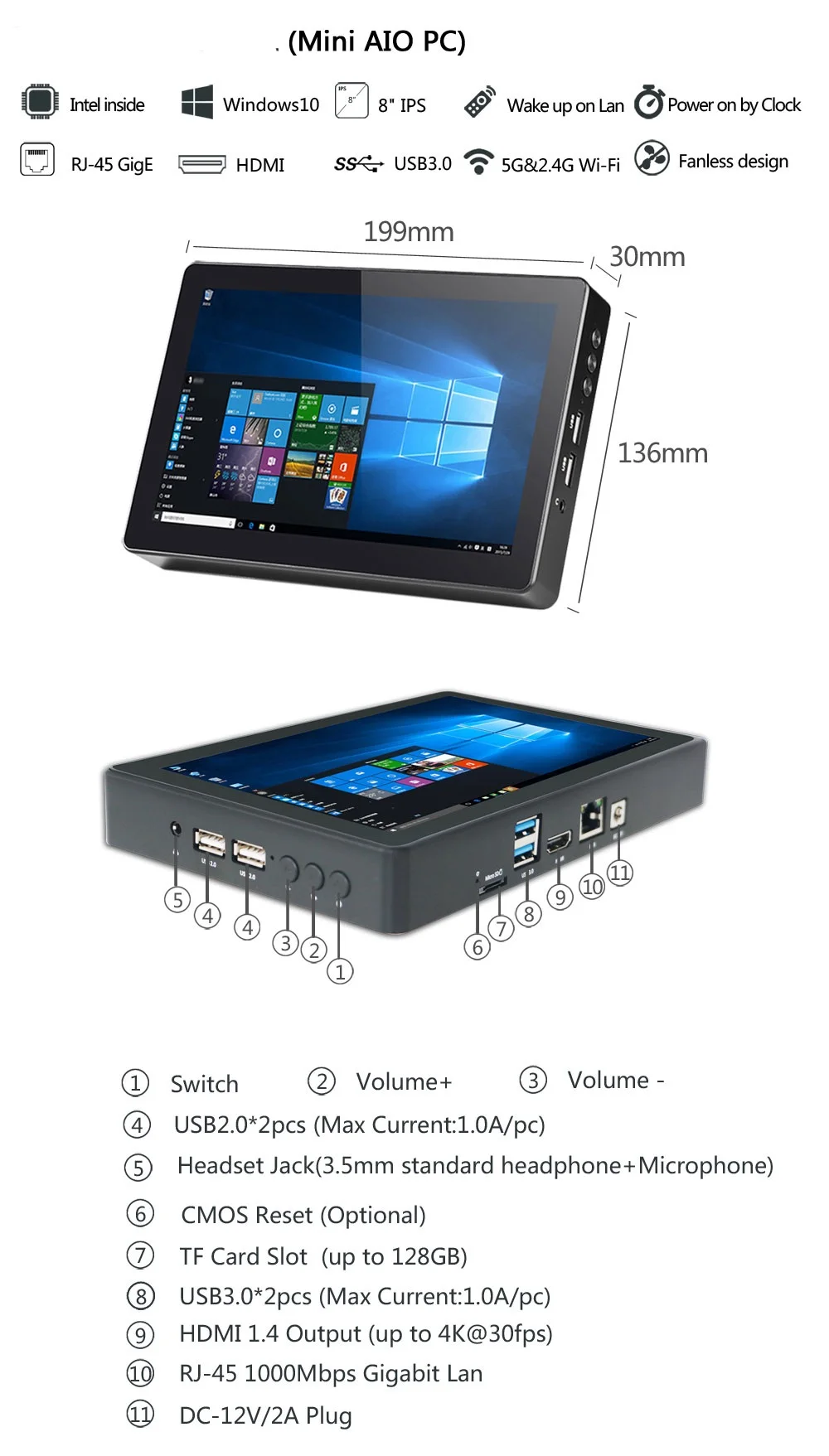

Dimensions |
199 x 136 x 27mm |
|||||
Weight |
0.7KG |
|||||
LCD |
Screen Size |
8″ |
||||
Screen Resolution |
1280×800 (IPS + 250ANSI) |
|||||
TP |
Touch Module |
G+G Multi-Touch |
||||
Battery |
Recharge Li-ion battery |
Optional |
||||
System Hardware Configuration: |
||||||
Type |
Details |
Descriptions |
||||
CPU |
Type |
Intel Apollo Lake N3450 Quad-Core |
||||
Speed |
1.10GHz ~ 2.20GHz |
|||||
GPU |
Type |
Intel HD Graphics 500 |
||||
Memory |
Capacity |
4GB (LPDDR4) |
||||
Storage |
eMMC |
64GB |
||||
SSD (M.2; 22×42mm) |
Optional |
|||||
SATA 2.5“ HDD |
Optional |
|||||
Speaker |
Built-in |
8Ω/1W |
||||
Micphone |
Built-in |
Optional |
||||
G-sensor |
Built-in |
Yes |
||||
Network Connections: |
||||||
Type |
Details |
Descriptions |
||||
WIFI |
WIFI Module: Intel AC3165 |
WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
||||
Bluetooth |
BT Module: Intel AC3165 |
Bluetooth4.2 |
||||
Ethernet Network |
RJ-45 |
100/1000Mbps Gigabit Lan |
||||
4G LTE |
M.2 4G module |
Optional |
||||
Interface Configuration: |
||||||
Type |
Details |
Descriptions |
||||

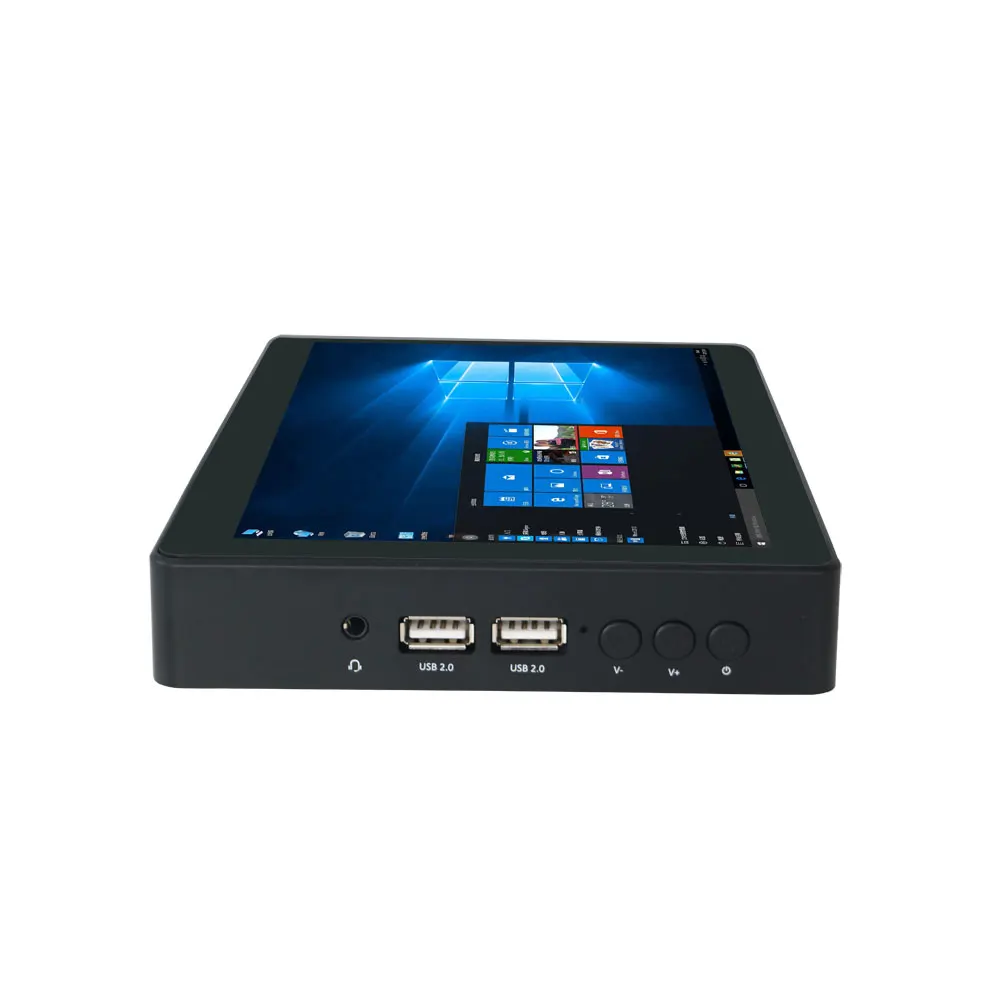

USB Interface |
USB3.0 Host |
×2pcs |
||||
USB2.0 Host |
×2pcs |
|||||
SD / TF Card reader |
TF Card reader |
×1pc |
||||
Audio Jack |
3.5mm headphone |
×1pc |
||||
HDMI |
HDMI 1.4 |
×1pc |
||||
Video output through HDMI |
Up to 4K |
|||||
Button Switch: |
||||||
Type |
Details |
Descriptions |
||||
Power |
On/Off |
×1pc |
||||
Volume |
Down/UP |
×1pc |
||||
CMOS Reset |
Reset by Short Press |
Optional |
||||
Main Accessories: |
||||||
Type |
Details |
Descriptions |
||||
Power adapter |
DC 12V/2A |
×1pc |
||||
User’s Manual |
User’s Manual |
×1pc |
||||
Software Configuration: |
||||||
Type |
Details |
Descriptions |
||||
Power on Function |
By Power Button or Auto Power on |
Optional |
||||
Wake up on Lan |
Wake up on Lan by RJ45 |
Support |
||||
PXE |
Preboot Execution Environment |
Support |
||||
Operating System |
Windows 10 |
Optional |
||||
Linux |
Test by end user |
|||||
Environment: |
||||||
Temperature |
Operation Temperature |
-10oC ~ 50oC (1080p or 4K local video display) |
||||
Storage Temperature |
-20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
|||||
Humidity |
Oprating Humidity |
35% ~ 80% relative humidity, Non-condensing |
||||
Storage Humidity |
20% ~ 93% relative humidity, Non-condensing |
|||||
Certification: |
||||||
CE |
CE |
Optional |
||||
Other |
Other |
Optional |
Product Features
2. Low power, 12V 2A, Power consumption, 576watt/day,17280watt/month
3. IPS multi touch screen
4. Quad core CPU, fast speed
5. Dual band wifi, WIFI 802.11ac/b/g/n 5G&2.4G Dual-band
6. Built in Bluetooth 4.2
7. Multi interfaces, RJ45, HDMI, RS232, USB3.0, USB2.0, TF card reader
8. Recharge Li-ion battery is optional

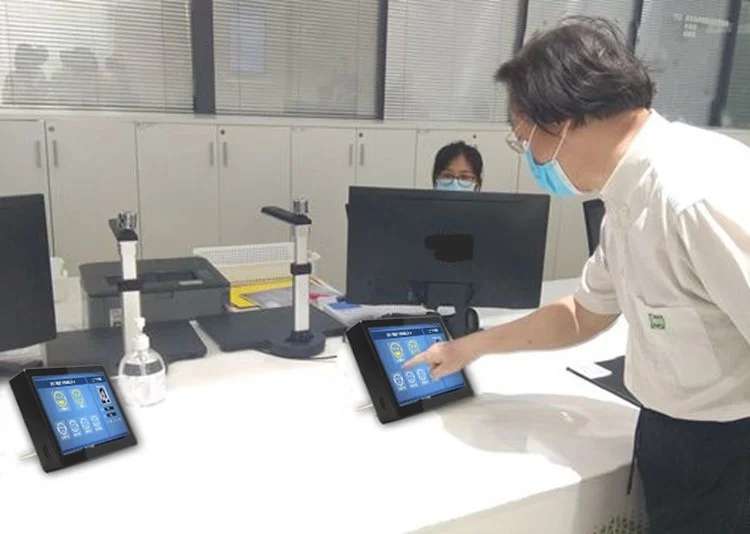

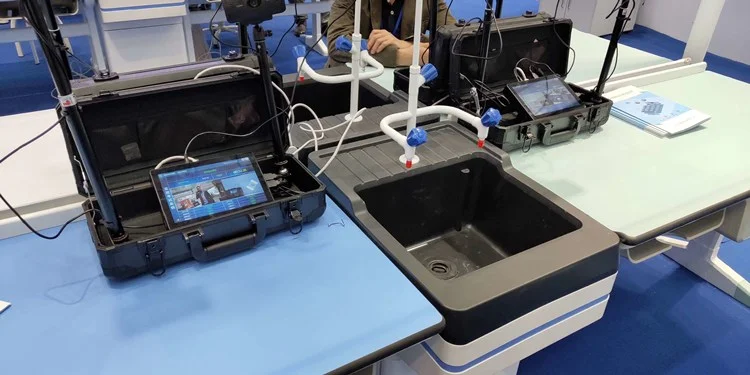

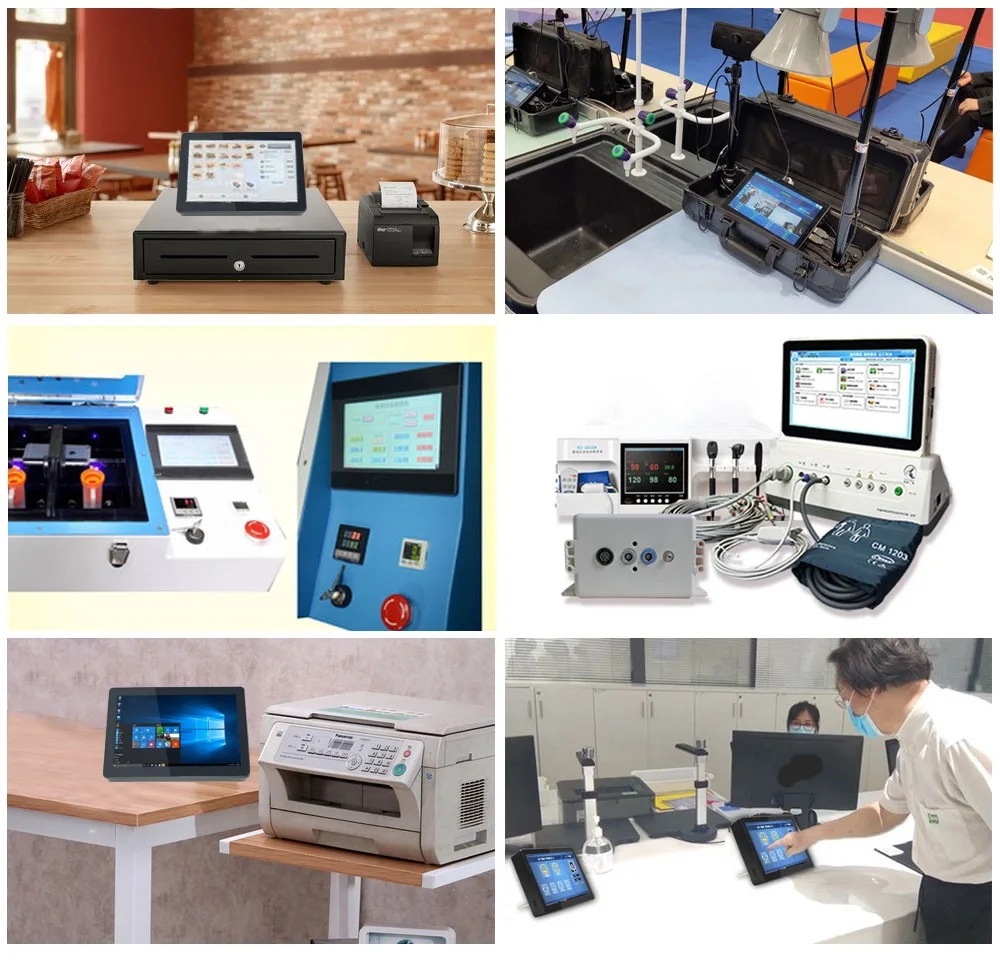

9. Wide usage, POS, education, 3D priting, video meeting, industrial control, etc
digital signage information interactive touch kiosk
digital signage information interactive touch kiosk
