Product Hightlight:
Specifications:
Basic Information: |
|
CPU |
Onboard Intel Core i3/i5/i7 |
TDP |
Refer to CPU |

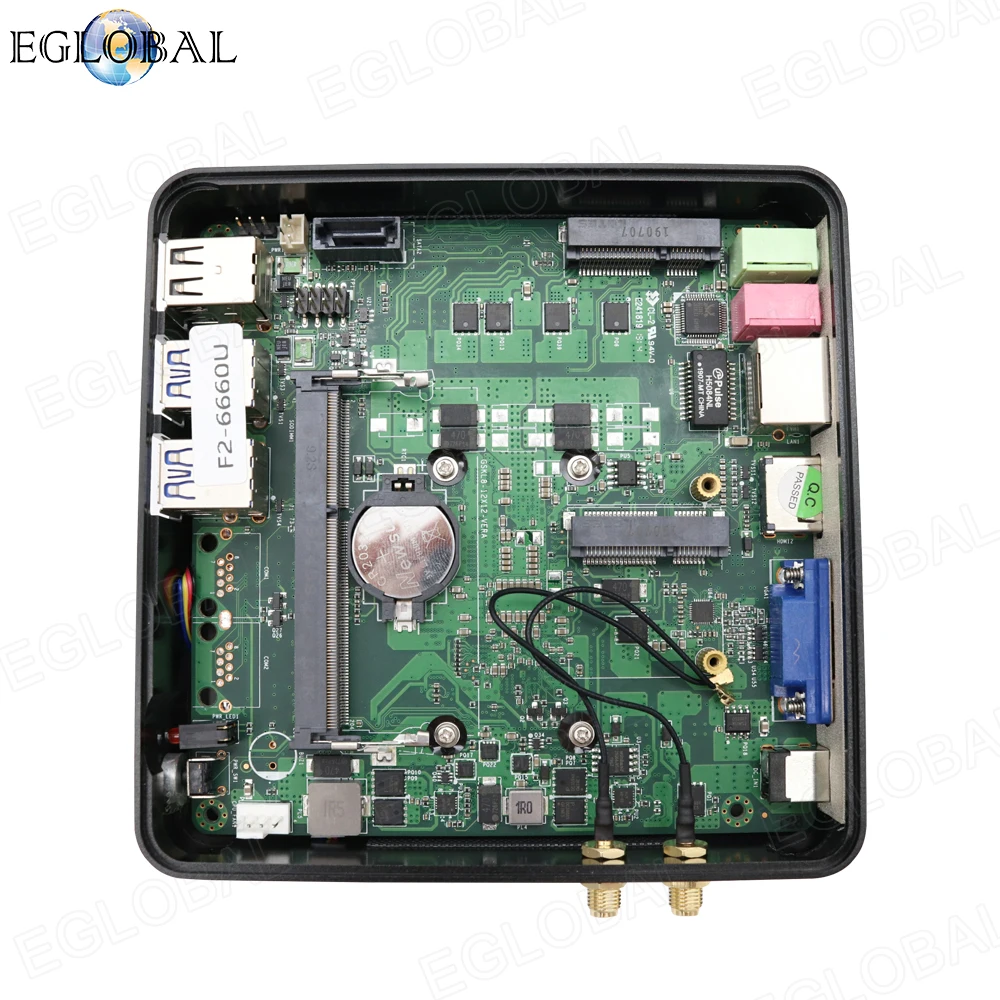

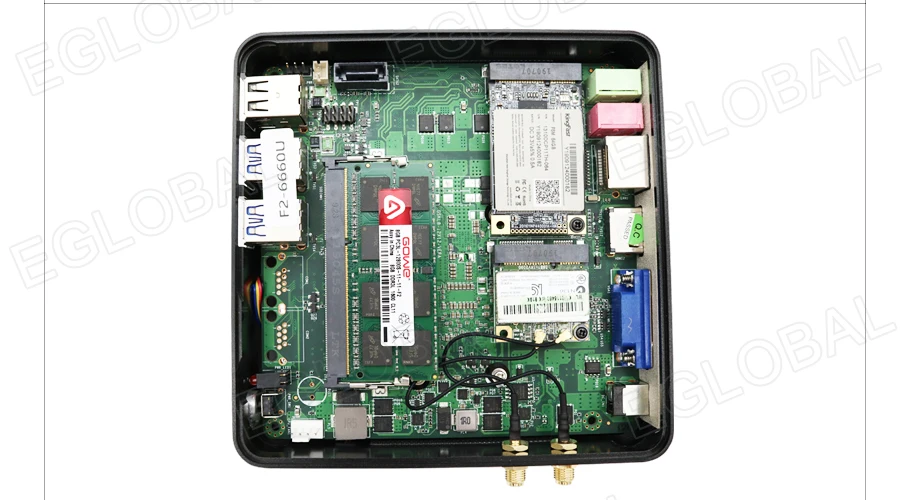

Motherboard |
120 x 120mm customized size |
BOIS |
AMI BIOS, ACPI supported |
Chipset |
Intel PCI Standard Host CPU Bridge – 100 Series Chipset Family/eSPI Controller – 9D48 |
Memory |
1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR4-2133, LPDDR3-1866, DDR3L-1600 |
OS |
Windows 8/Windows 10/Linux |

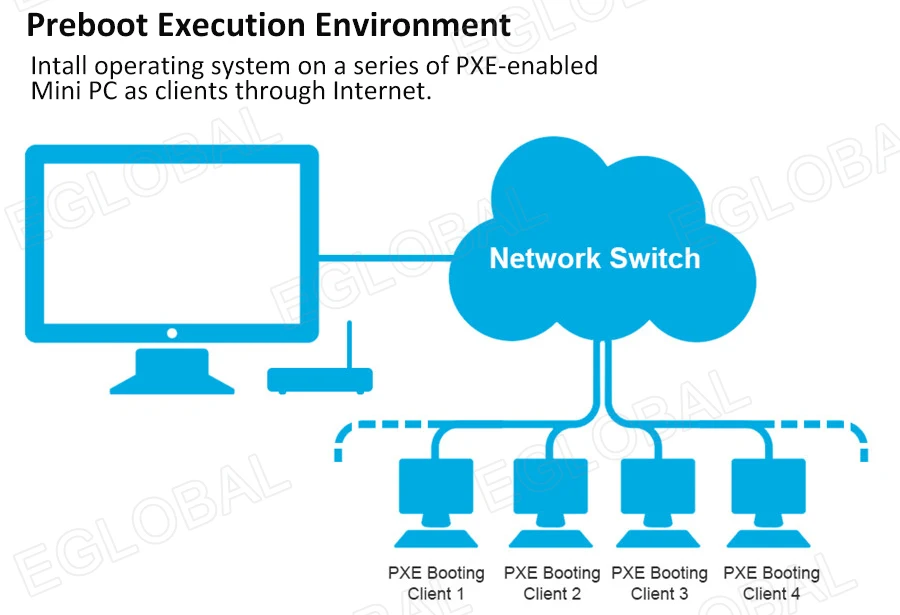

PXE |
YES |
Audio |
Intel High Definition Audio Controller |
Network |
Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
Video |
Refer to CPU |

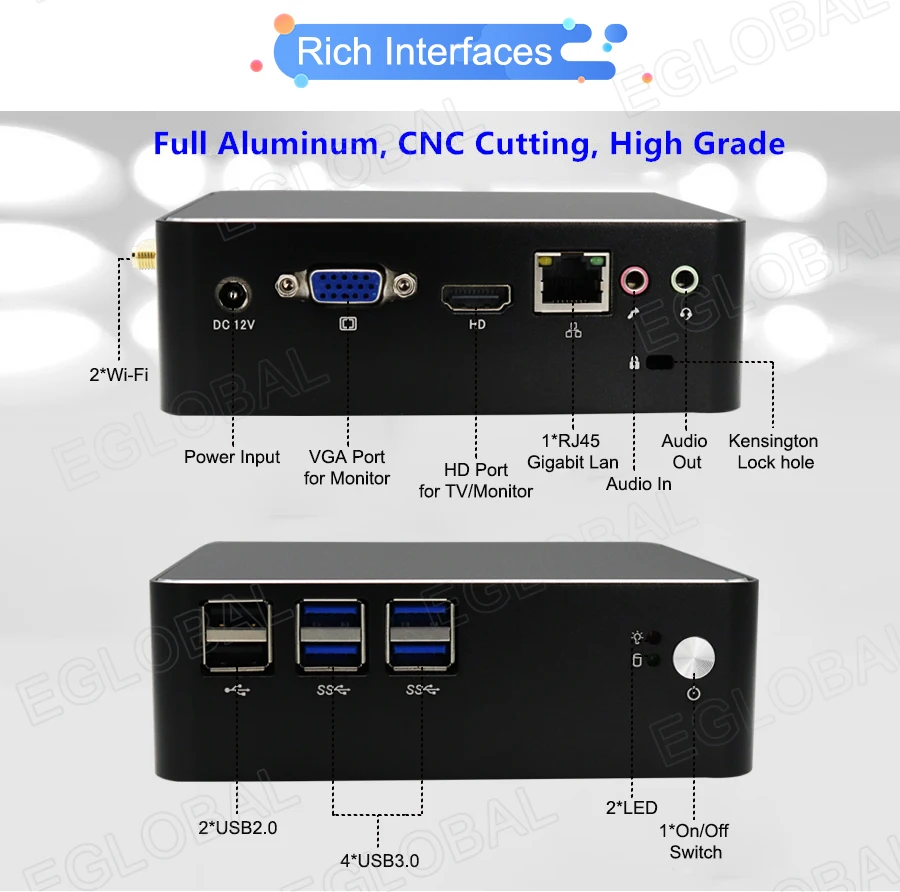

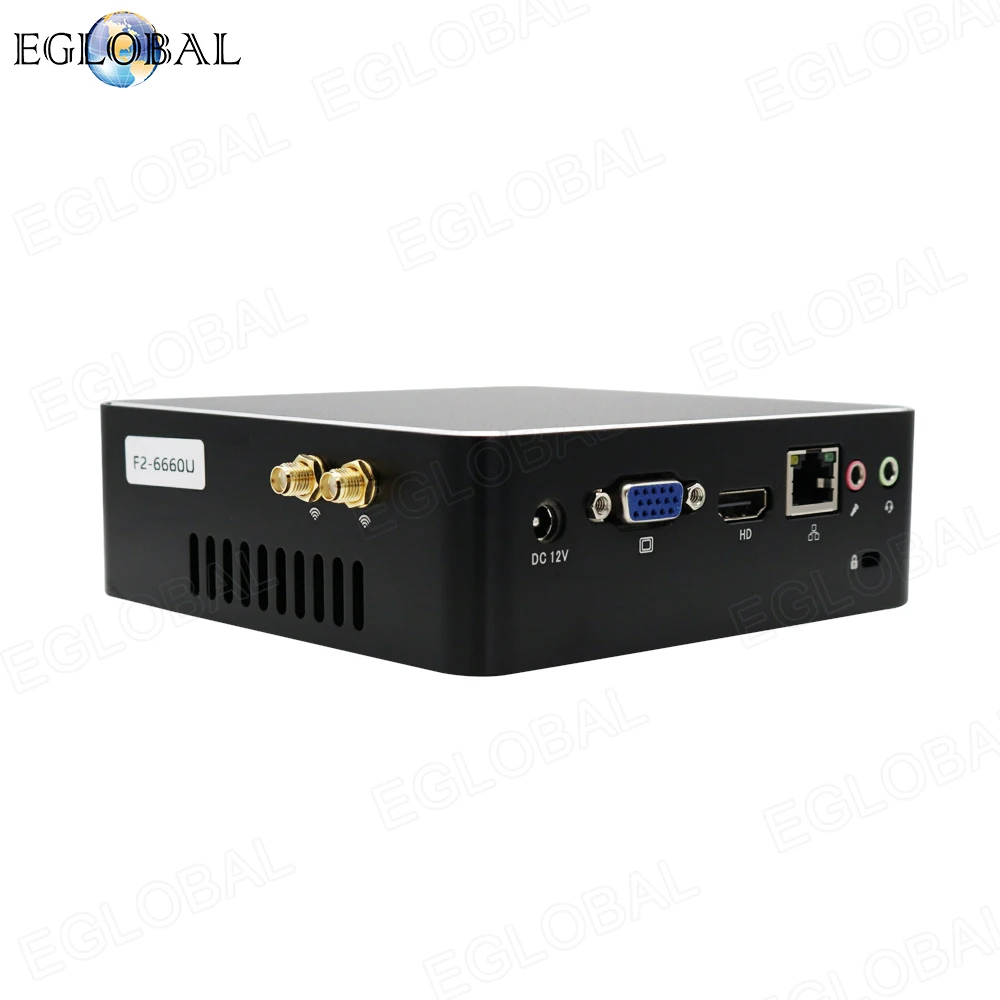

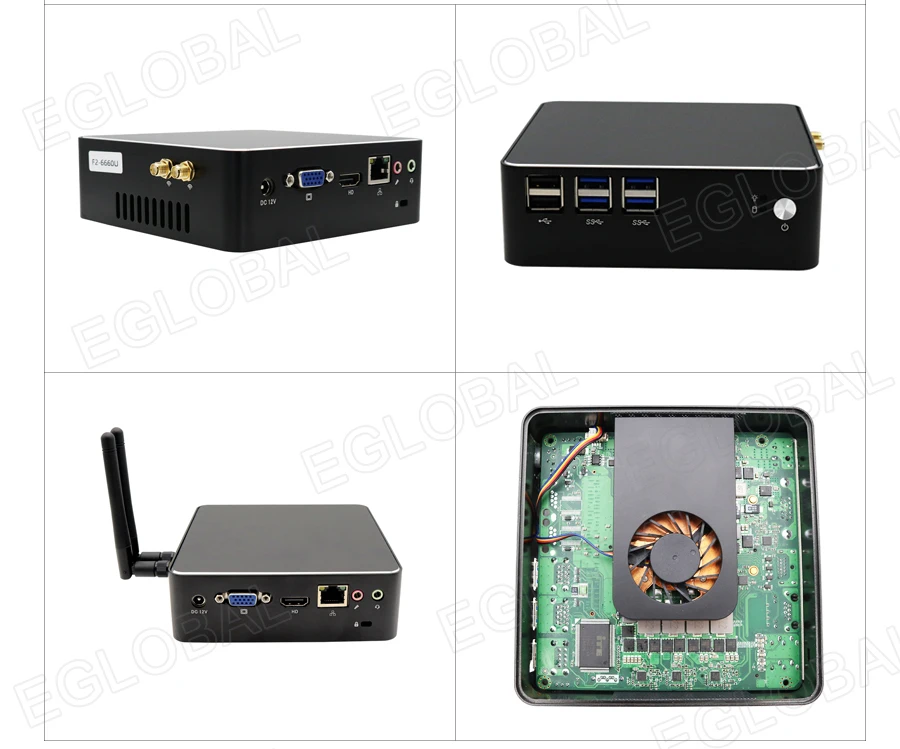

Input/output port |
|
Switch |
1 x Power On/Off Switch |
Power |
1 x 12V DC In |
LED |
2 x LED |

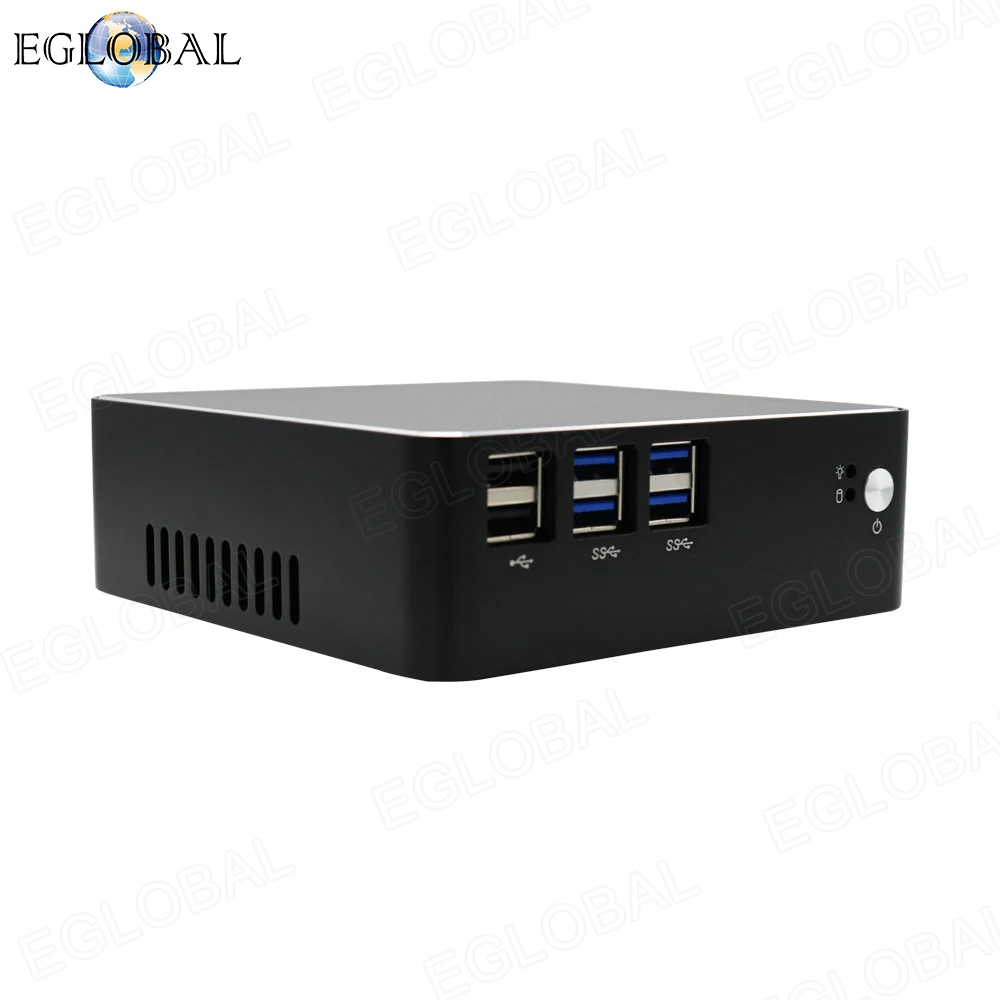

USB |
2 x USB2.0, 4 x USB3.0 |
Display |

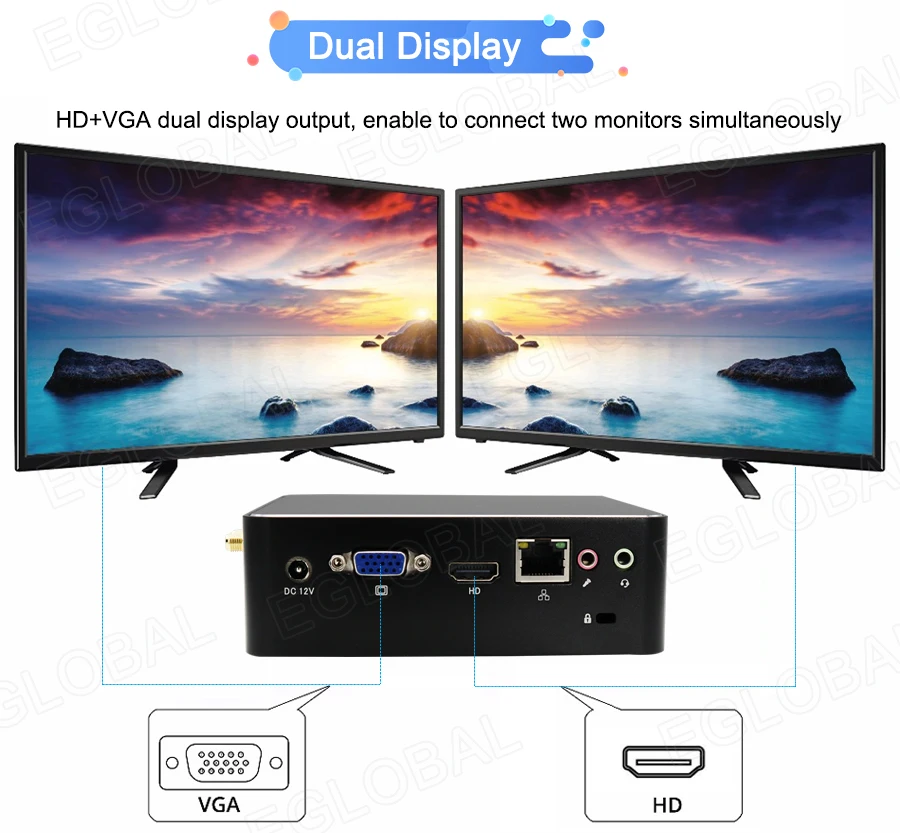

1 x VGA, 1 x HDMI |
LAN |

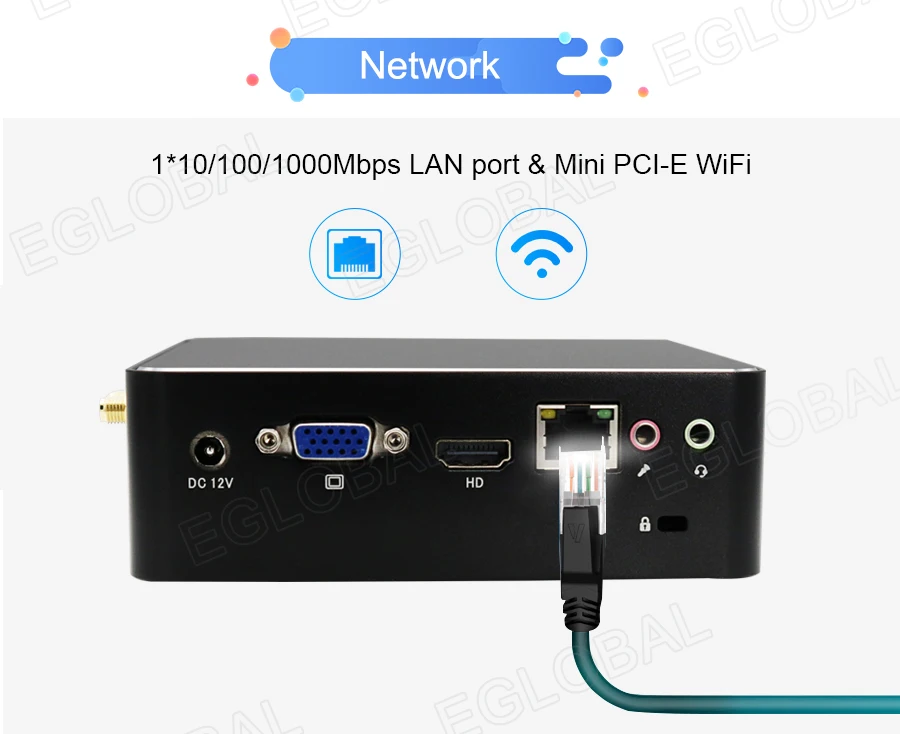

1 x RJ45 Giga LAN |
Audio |
1 x MIC, 1 x SPK |
Others |

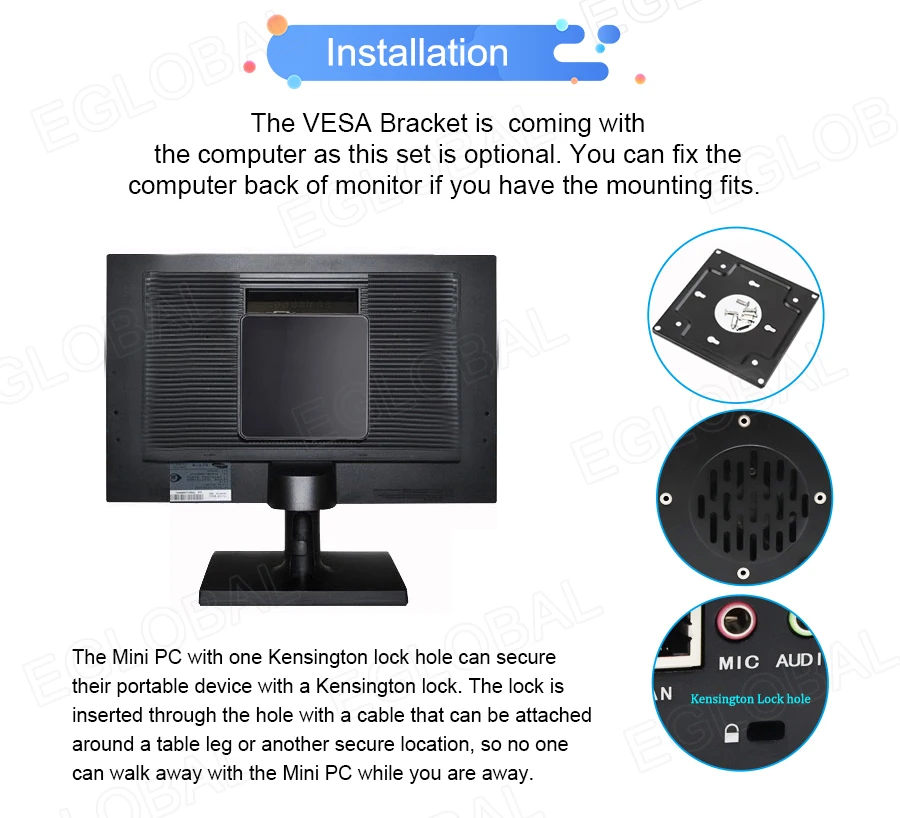

1 x Kensington Lock hole |

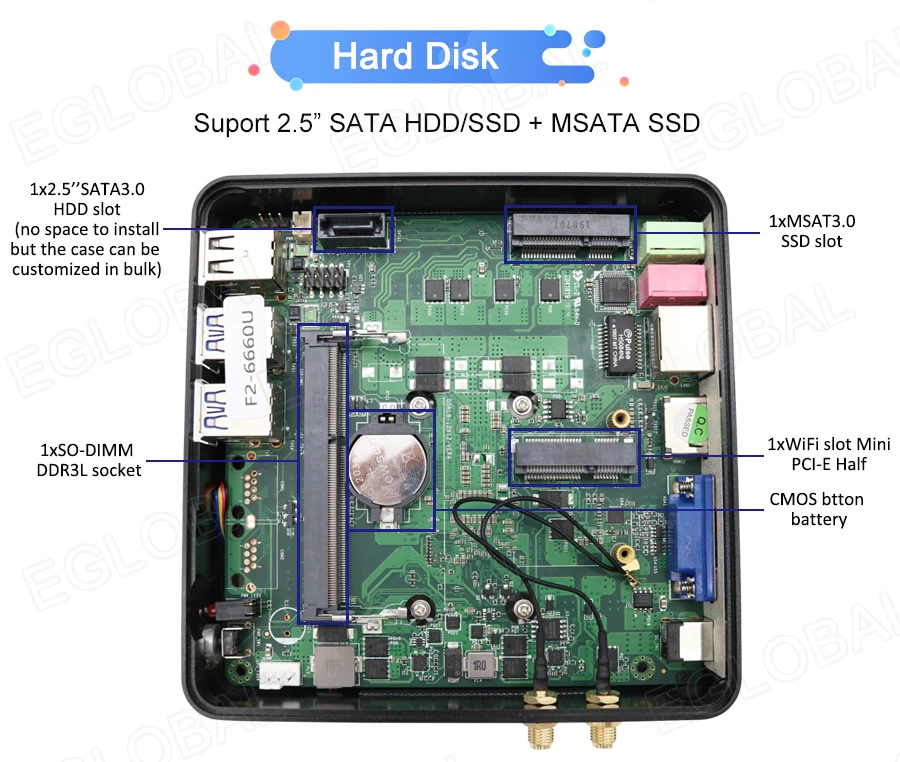

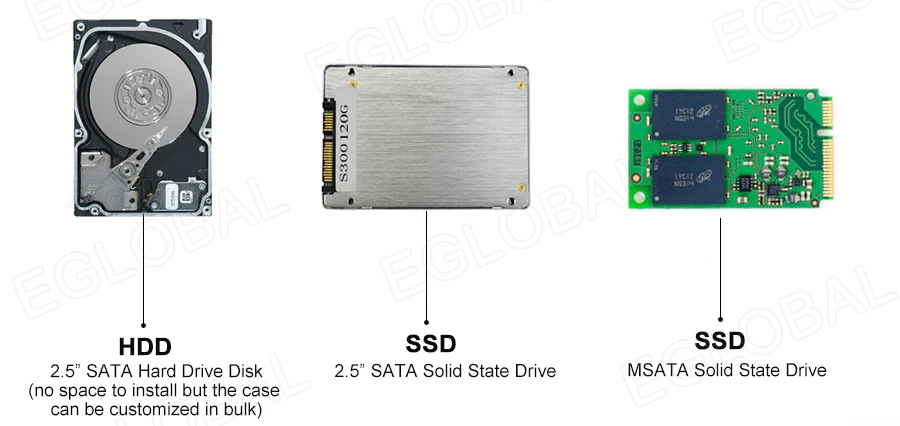

Storage |
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install) |
Wi-Fi |
|
Module |
1 x mini PCIE-half port for Wi-Fi module |

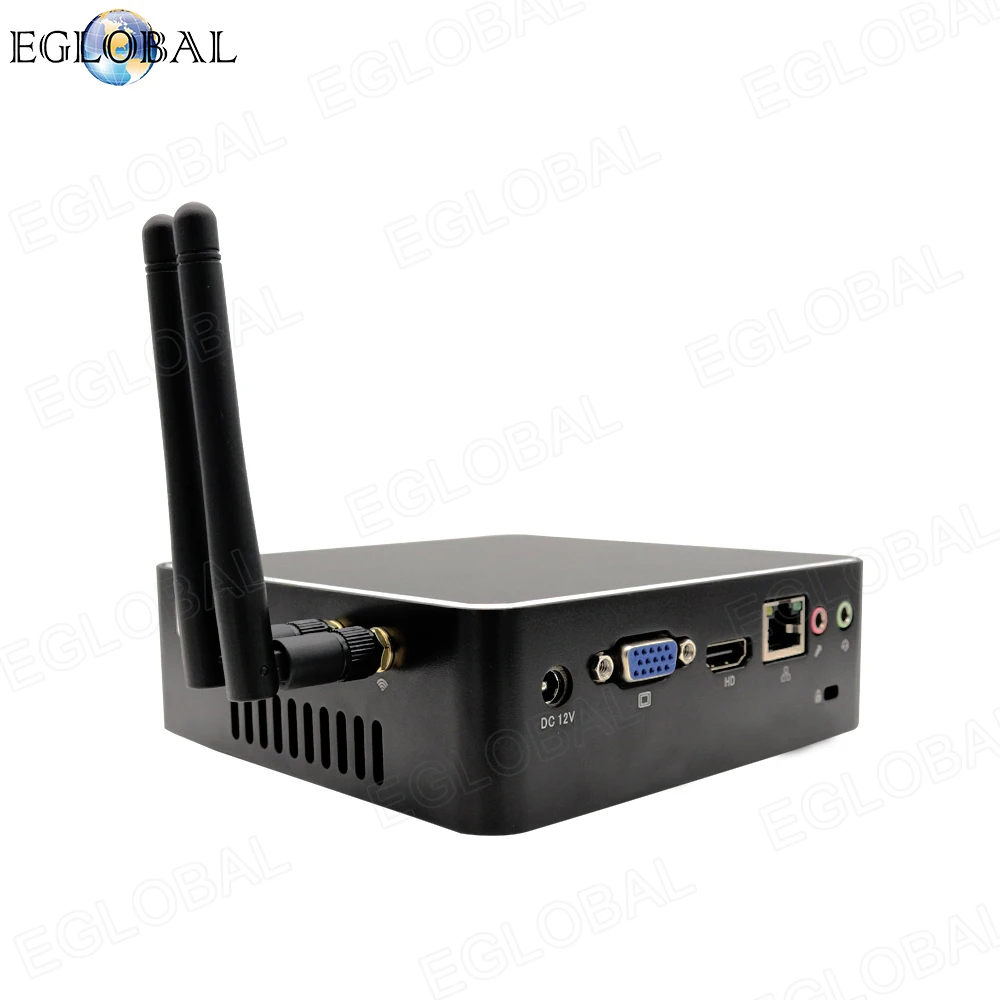

Antenna |
2 x inner RF cables and 2 x external antennas |
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
Output |
DC +12V~+19V, recommend 12V/5A |
Operating Temperature |
0/+70 Centigrade |
Storage Temperature |
-20/+85 Centigrade |
Relative Humidity |
0%~90% (non-condensing) |

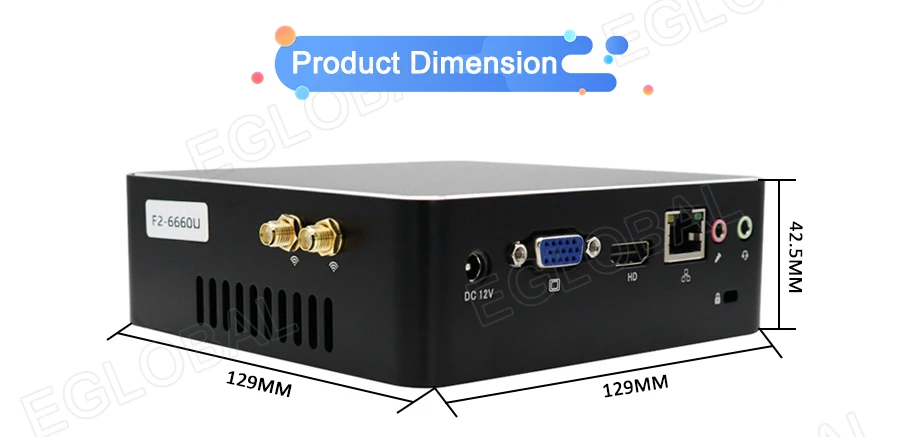

Product Dimension & Details |
|
Size |

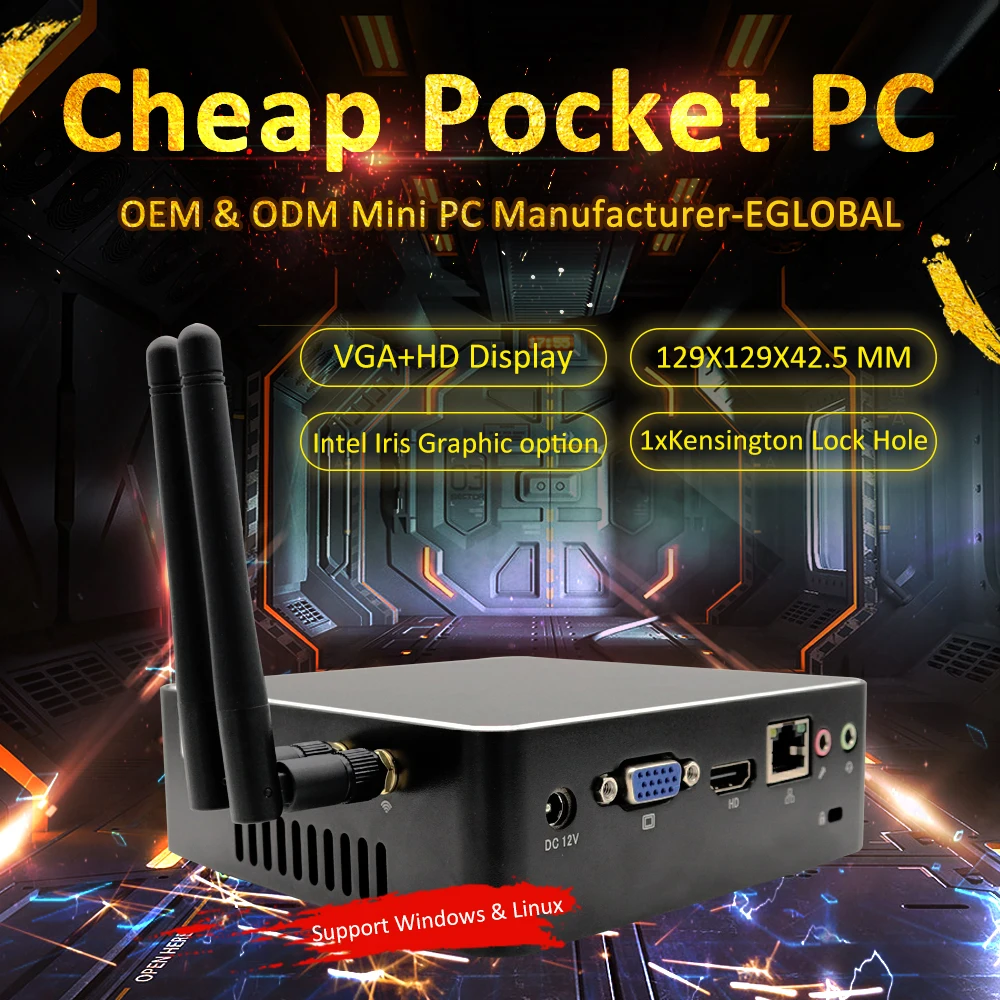

129*129*42.5mm |
Weight |
Net 0.65kg, Gross 1.5kg |
Shell |
Black color aluminum alloy(any customized color for bulk order) |

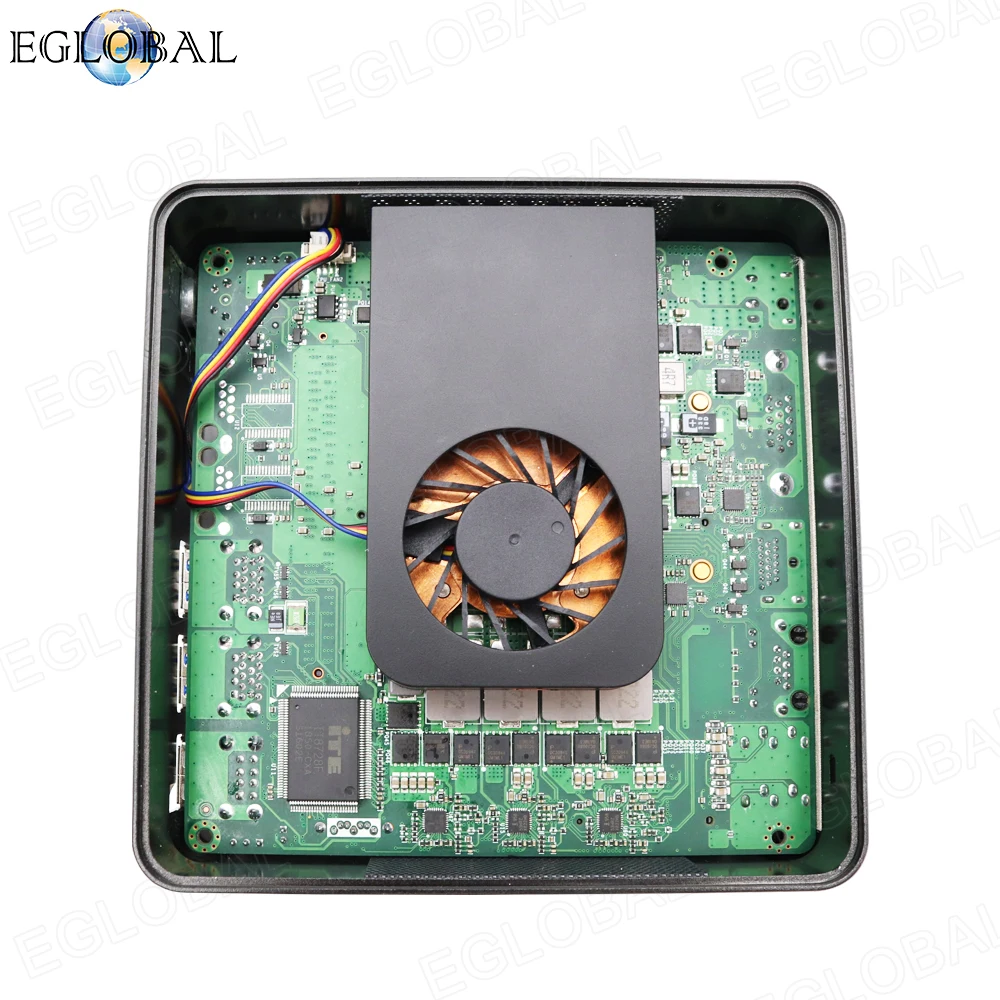

Cooling Mode |

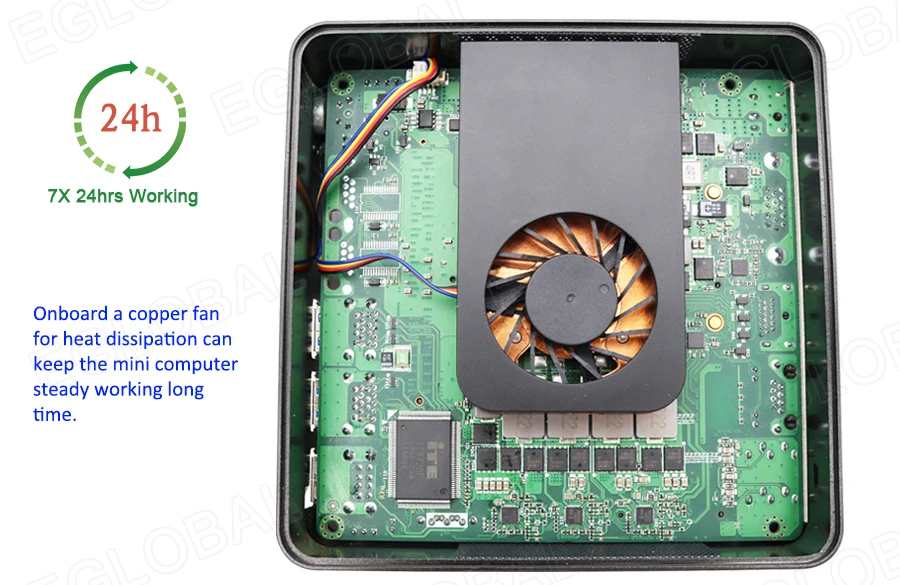

With a copper cooling fan |
Functions |
AWAL, WOL, RTC, Kensington Lock |

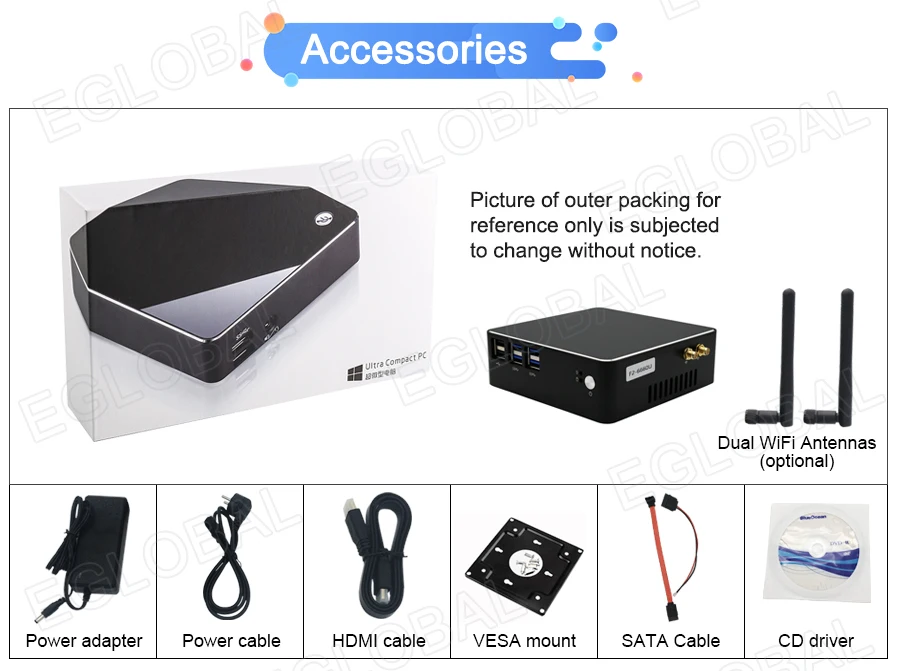

Package Content |
|
Standard |

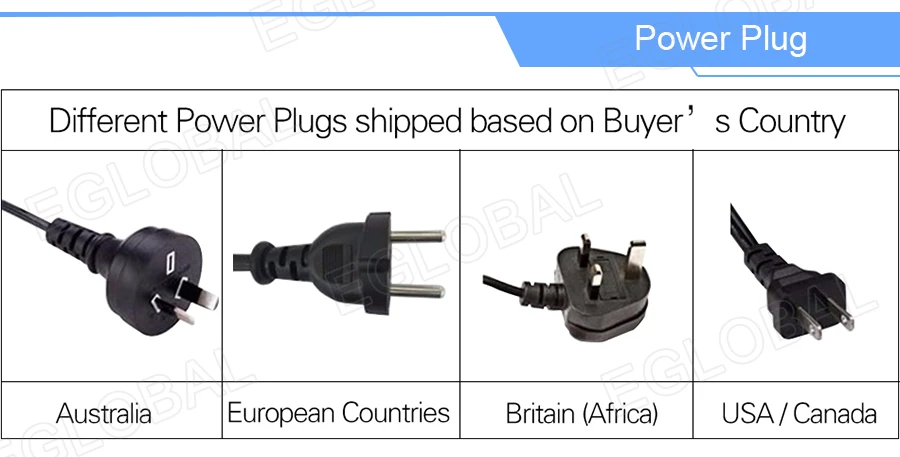

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount |
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual |
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i7-6560U 2.2GHz Max 3.2 GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.
Kindly Remind:
Tips:
System:
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.
