Product Highlight:
1. 2 Intel i211 Gigabit RJ45 LAN and 2 COM can change to RS485 from BIOS.

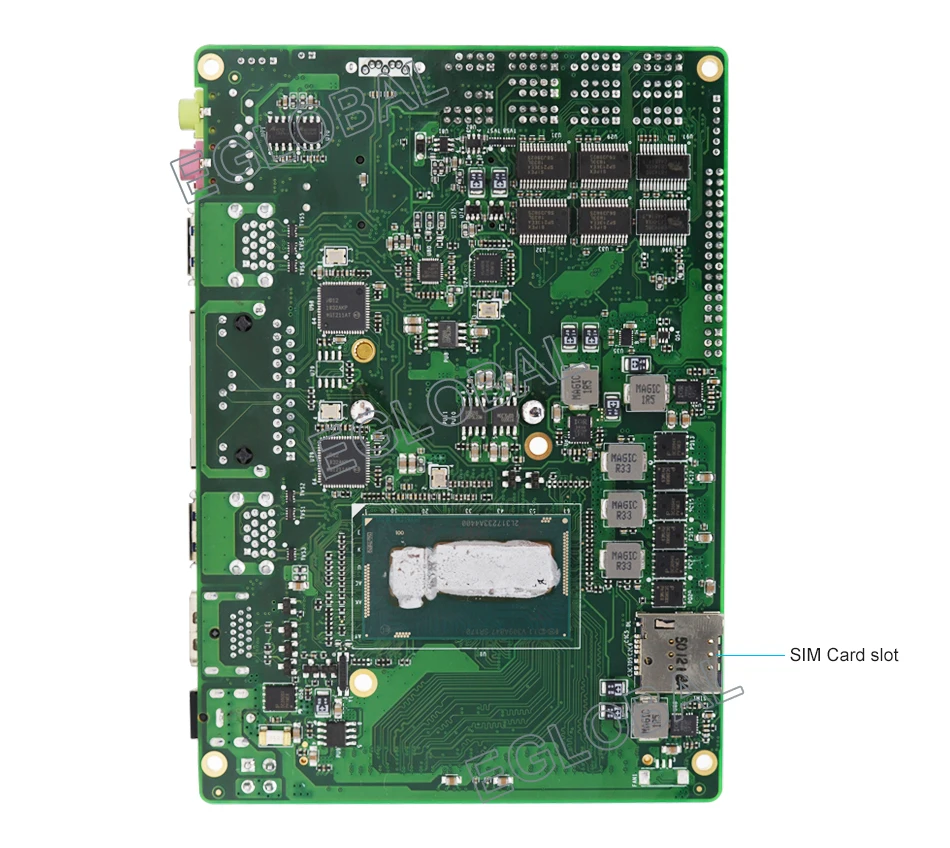

2. Built-in one SIM card slot for 3G/4G Module.

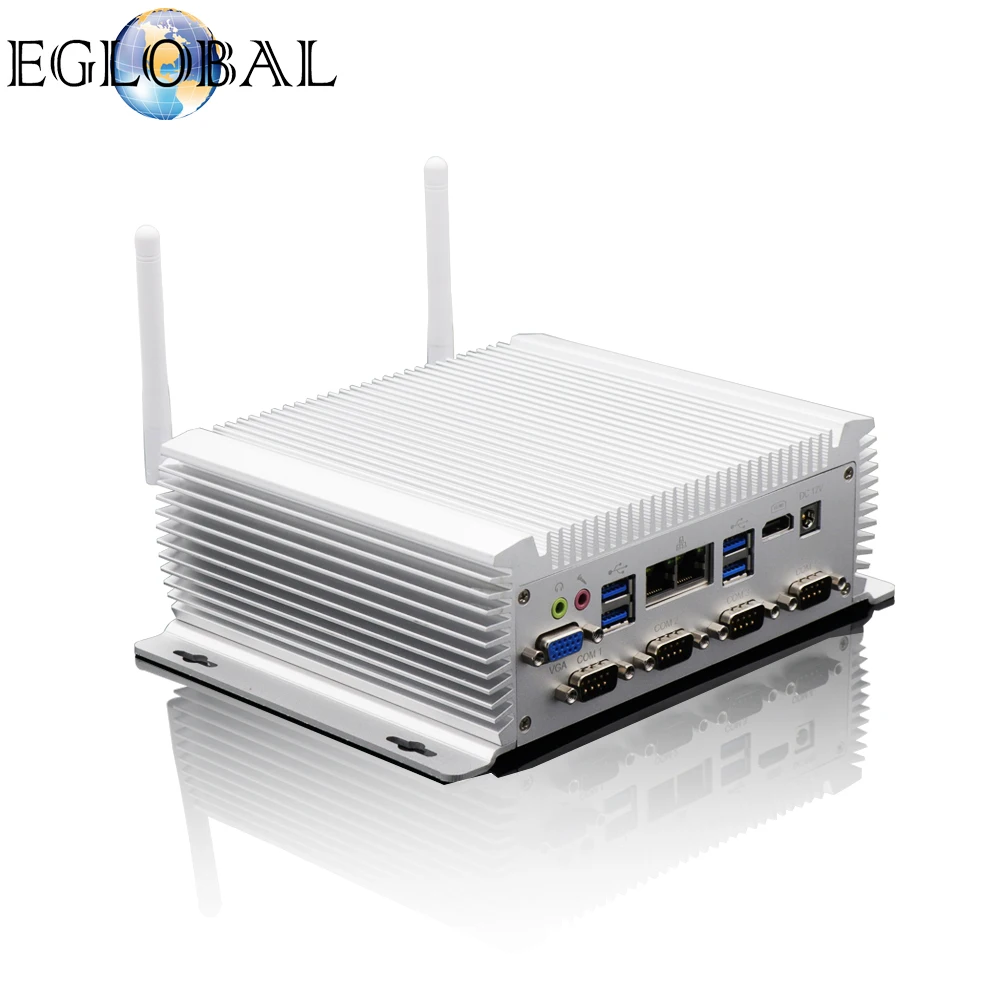

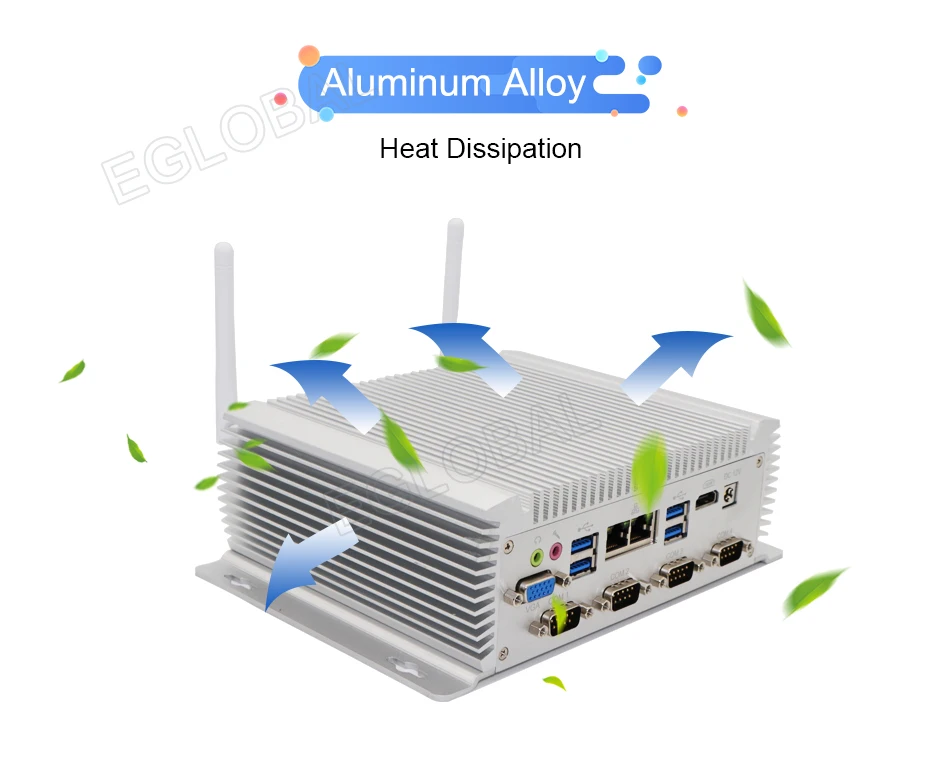

3. Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.
4. Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
5. Support Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, Trigger switch(wafer 1*2).
6. Low consumption TDP only 15W and can be mounted on the wall.
Specifications:
Basic Information: |
|
CPU |
Intel Core i5-4200u / Intel Core i7-4500u |
TDP |
15W |
Motherboard |
Intel CRESCENTBAY ( Lynx Point-LP ) |
BOIS |
American Megatrends Inc. 5.6.5 |
Chipset |
Intel Haswell |
Memory |
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600 |
OS |
Windows 7/Windows 8/Windows 10/Linux |
PXE |
YES |
Audio |
ALC662 HD Audio(Line-in, Line-out, Mic-in) Intel Lynx Point-LP HD Audio Controller |
Network |
Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Video |
Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics 4400 |

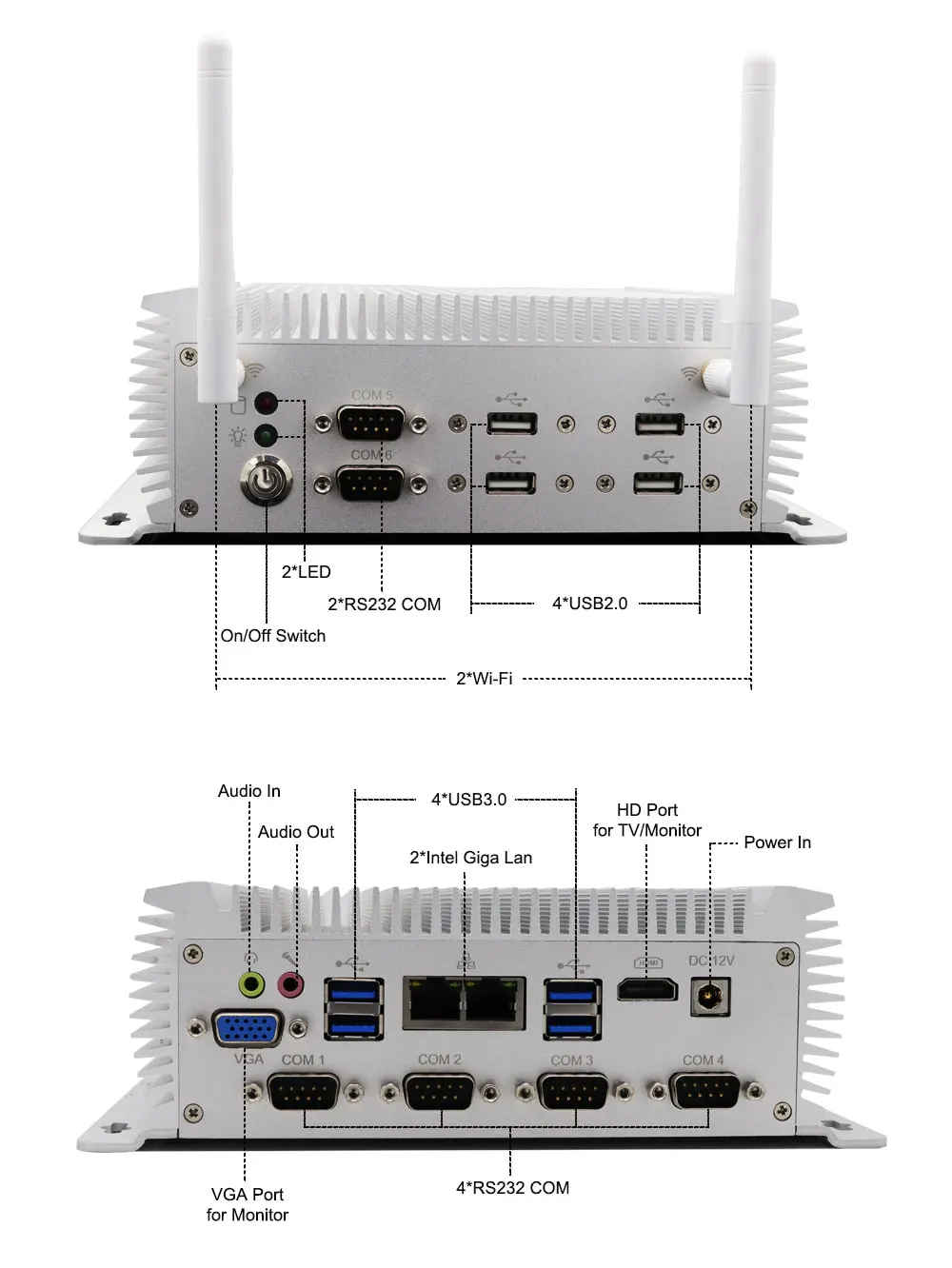

Input/output port |
|
Switch |
1 x Power On/Off Switch |
Power |
1 x 12V DC In |
LED |
2 x LED |

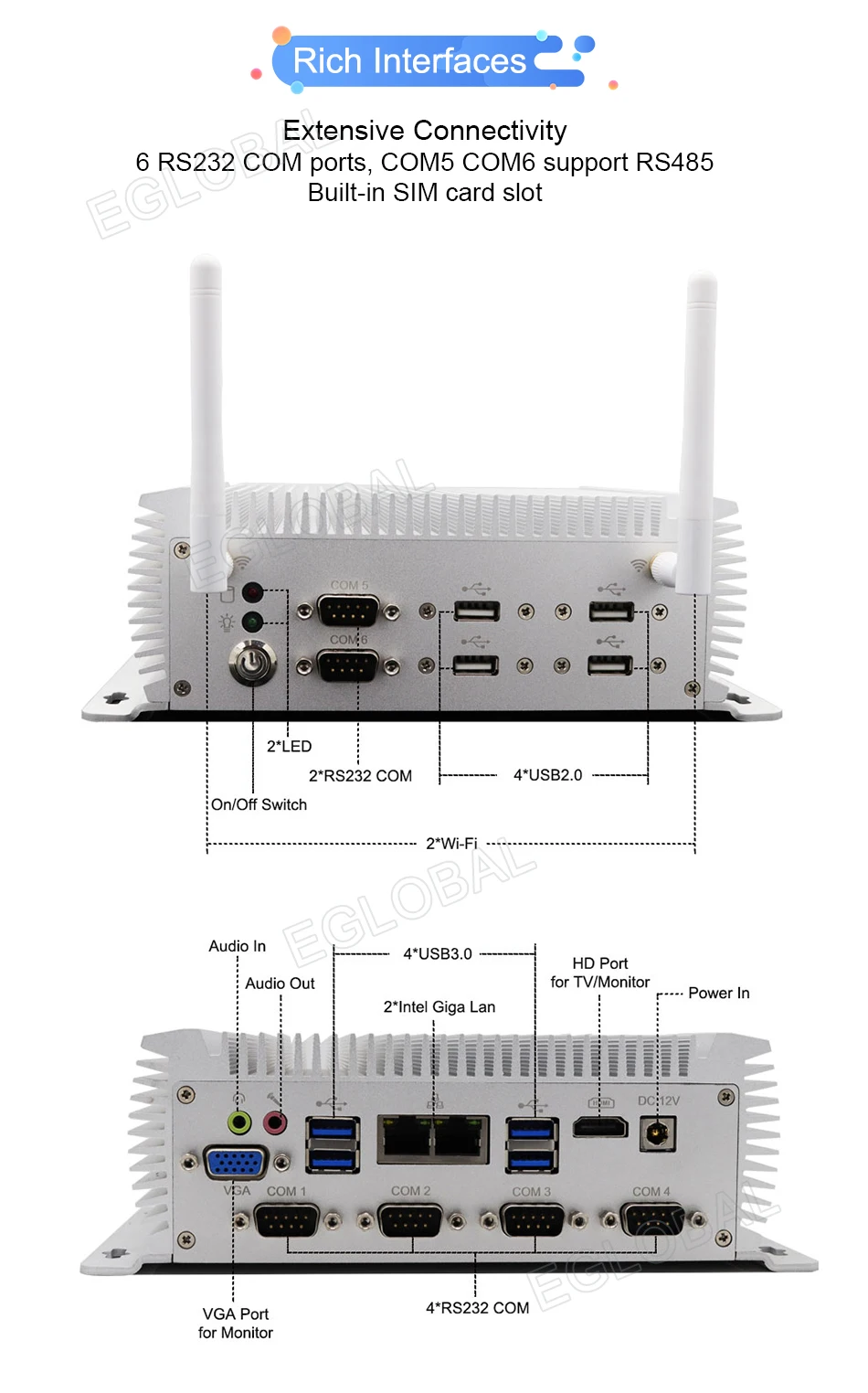

USB |
4 x USB2.0, 4 x USB3.0 |

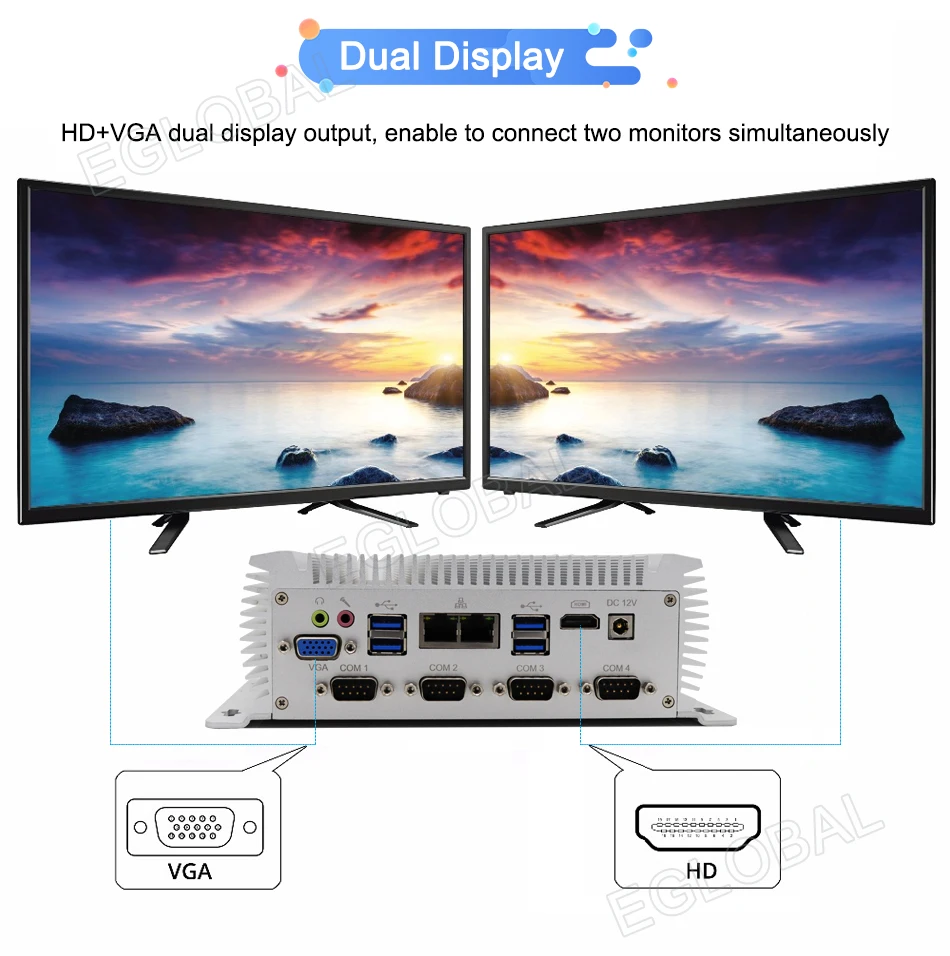

Display |
1 x VGA, 1 x HDMI |
LAN |

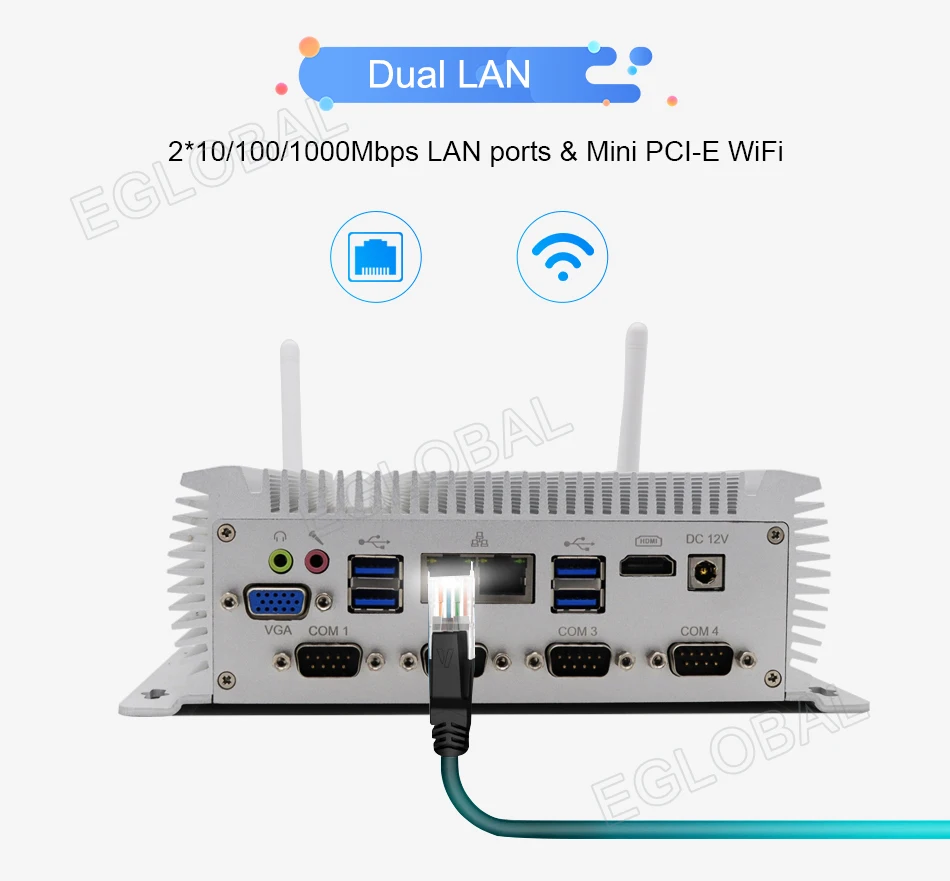

2 x RJ45 Intel Giga LAN |
COM |
6 x COM RS232(3 line) ports, COM5 COM6 can change to RS485 from BIOS |
Audio |
1 x MIC, 1 x SPK |
Others |
1 x SIM card slot built-in |
Storage |
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi |
|
Module |
1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 3G/4G module |
Antenna |
2 x inner RF cables and 2 x external antennas |
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
Output |
DC +12V~+19V, recommend 12V/5A |
Operating Temperature |
-20/+75 Centigrade |
Storage Temperature |
-40/+80 Centigrade |
Relative Humidity |
0%~90% (non-condensing) |

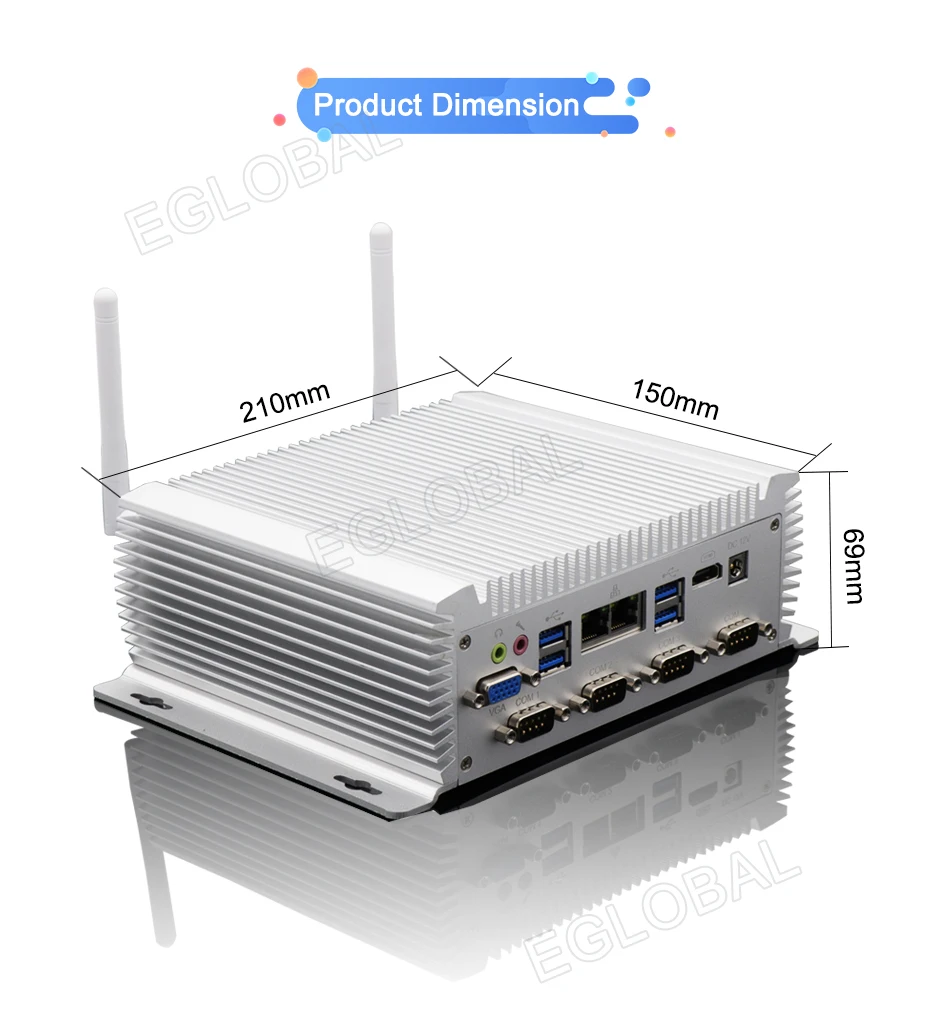

Product Dimension & Details |
|
Size |
210*150*69mm |
Weight |
Net 1.6kg, Gross 2.5kg |
Shell |

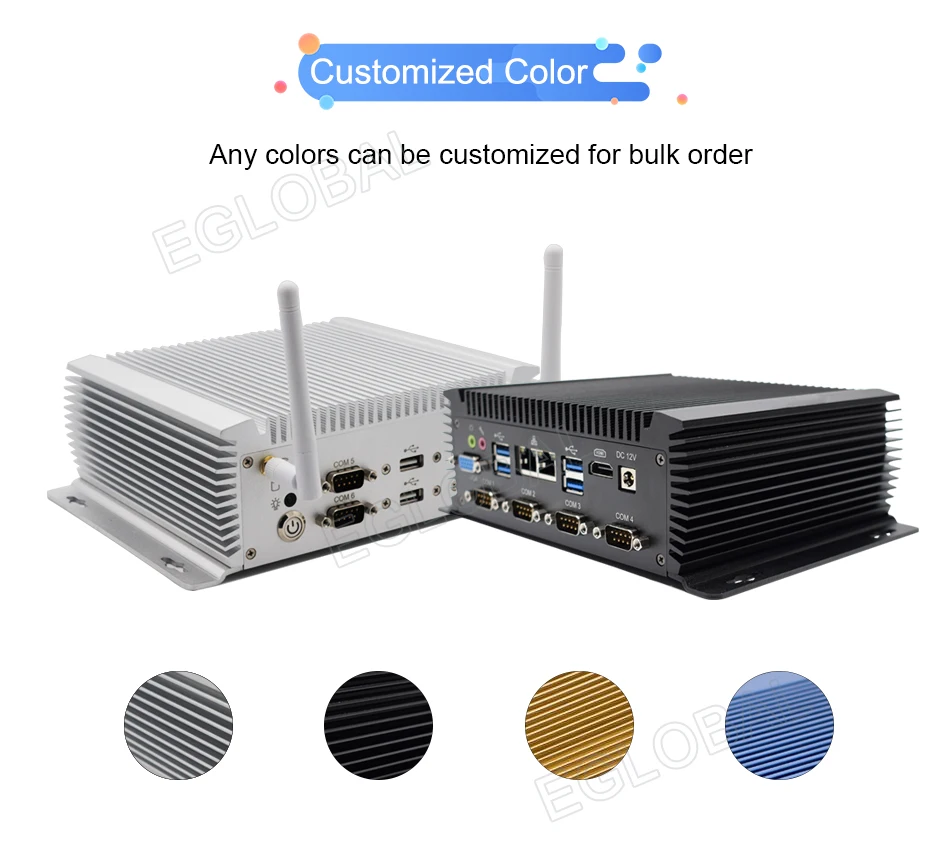

Black/Silver color aluminum alloy(any customized color for bulk order) |

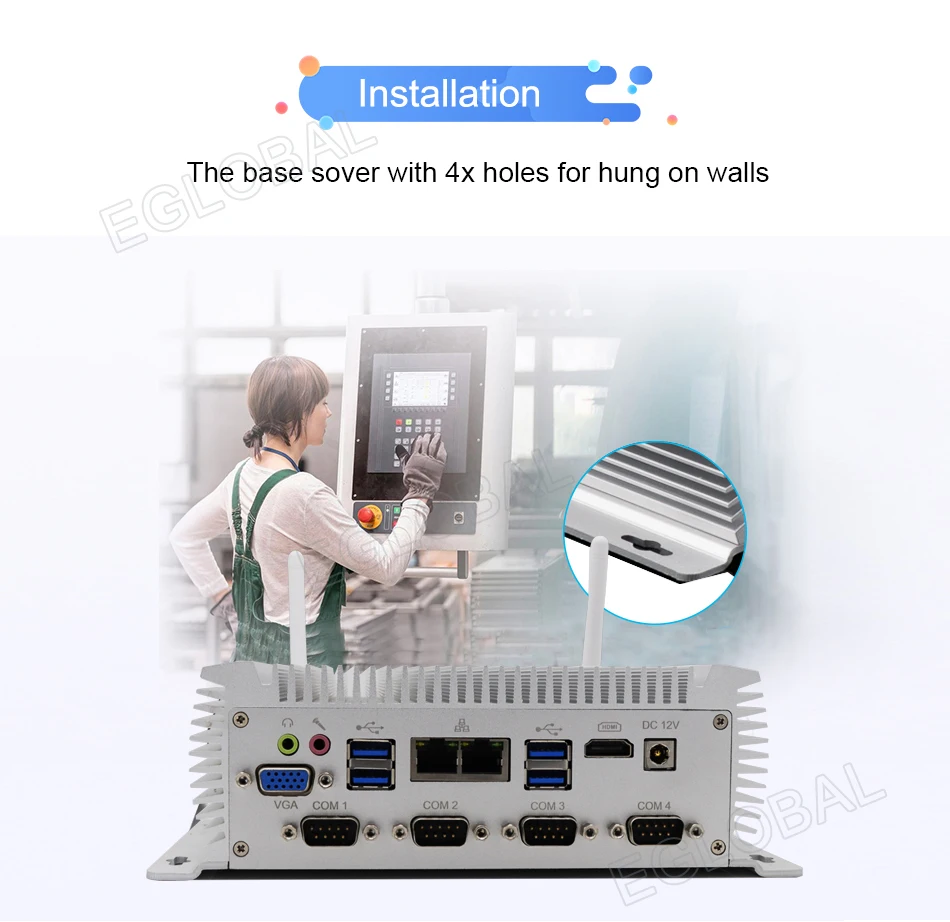

Mounting |
4 Mounting holes on case |
Cooling Mode |
Fanless |
Functions |

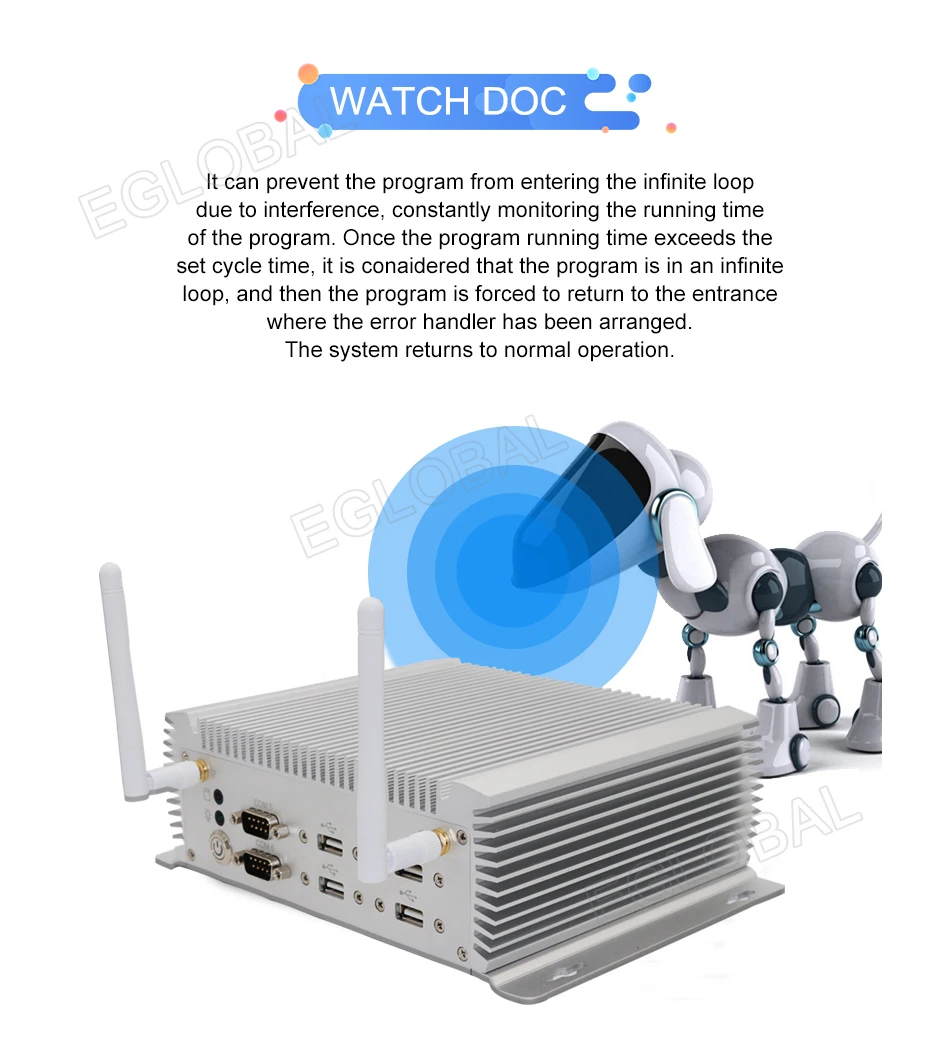

Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, Trigger switch(wafer 1*2) |

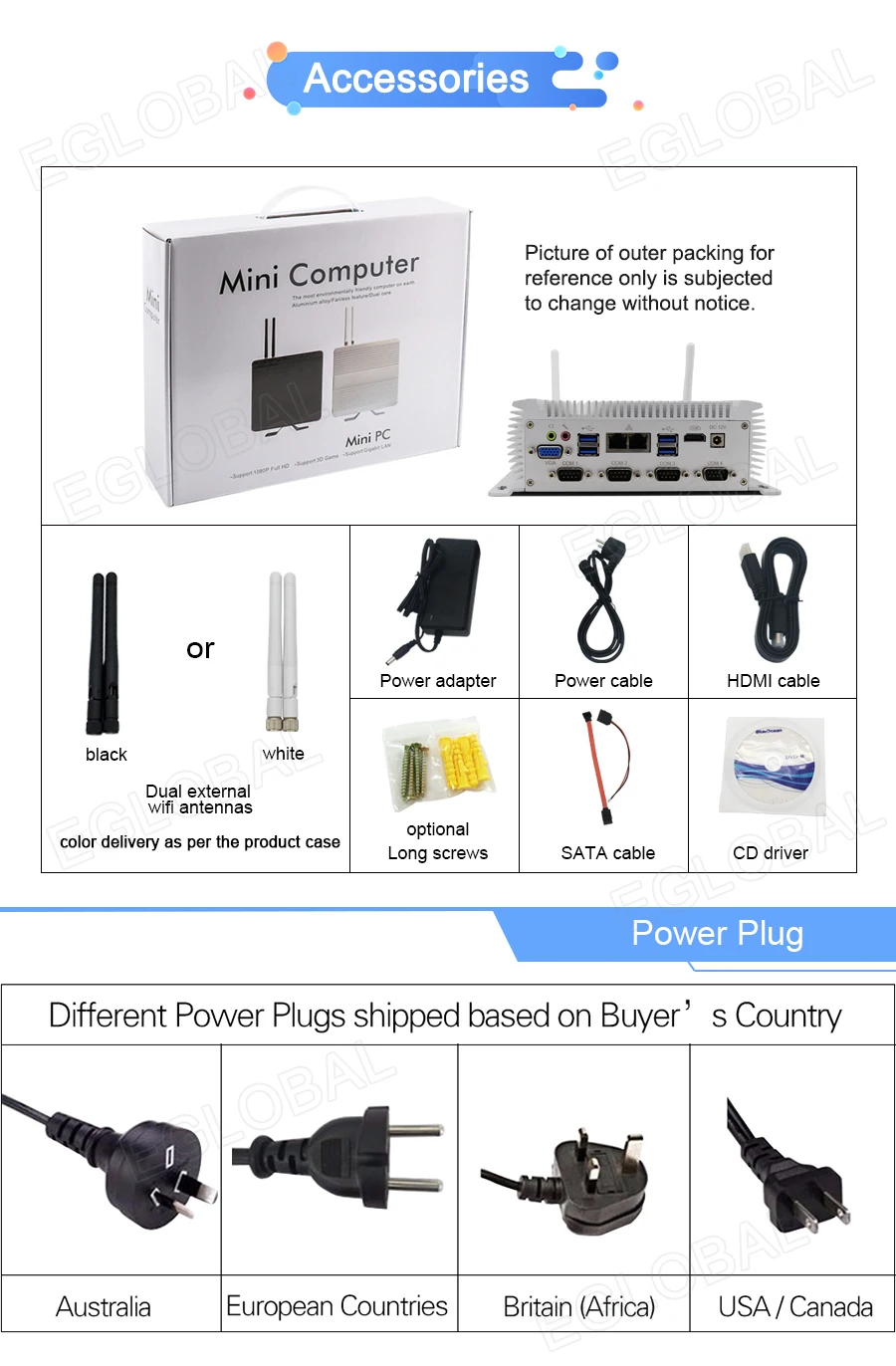

Package Content |
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
Kindly Remind:
Tips:
System:
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.
