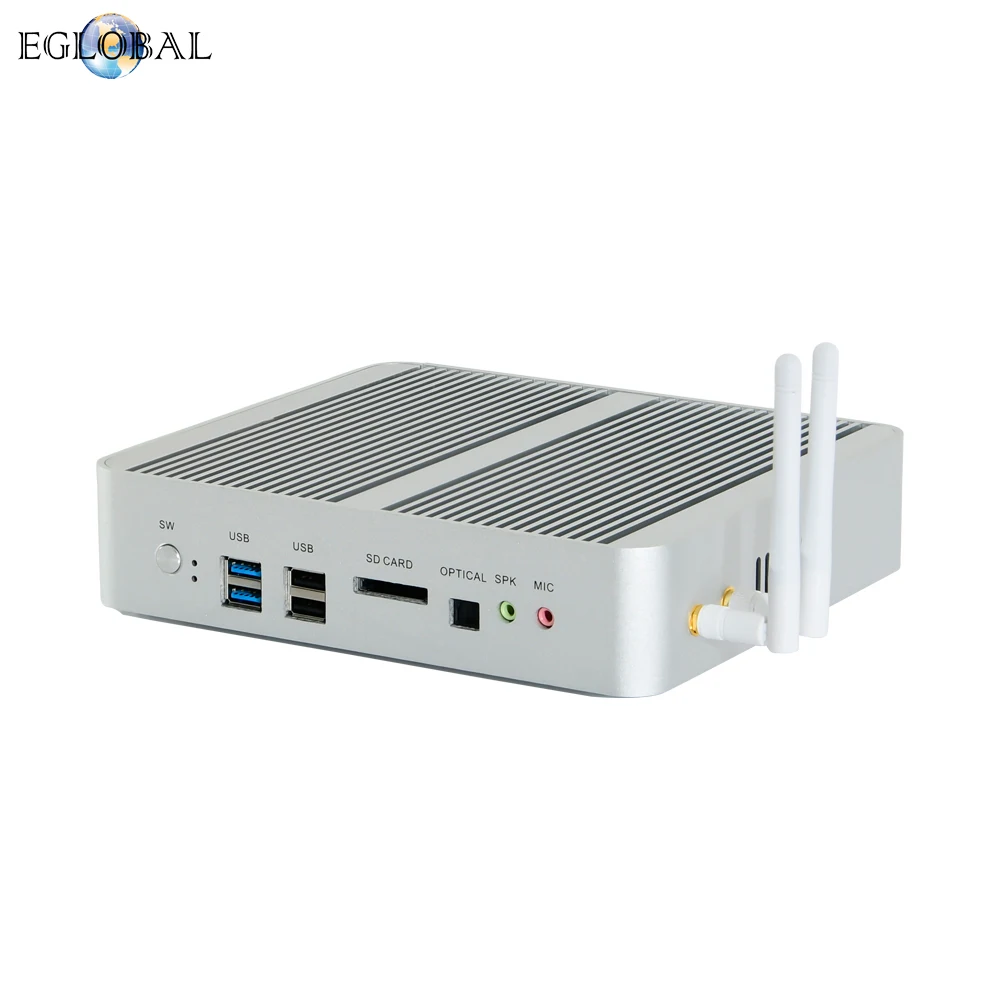

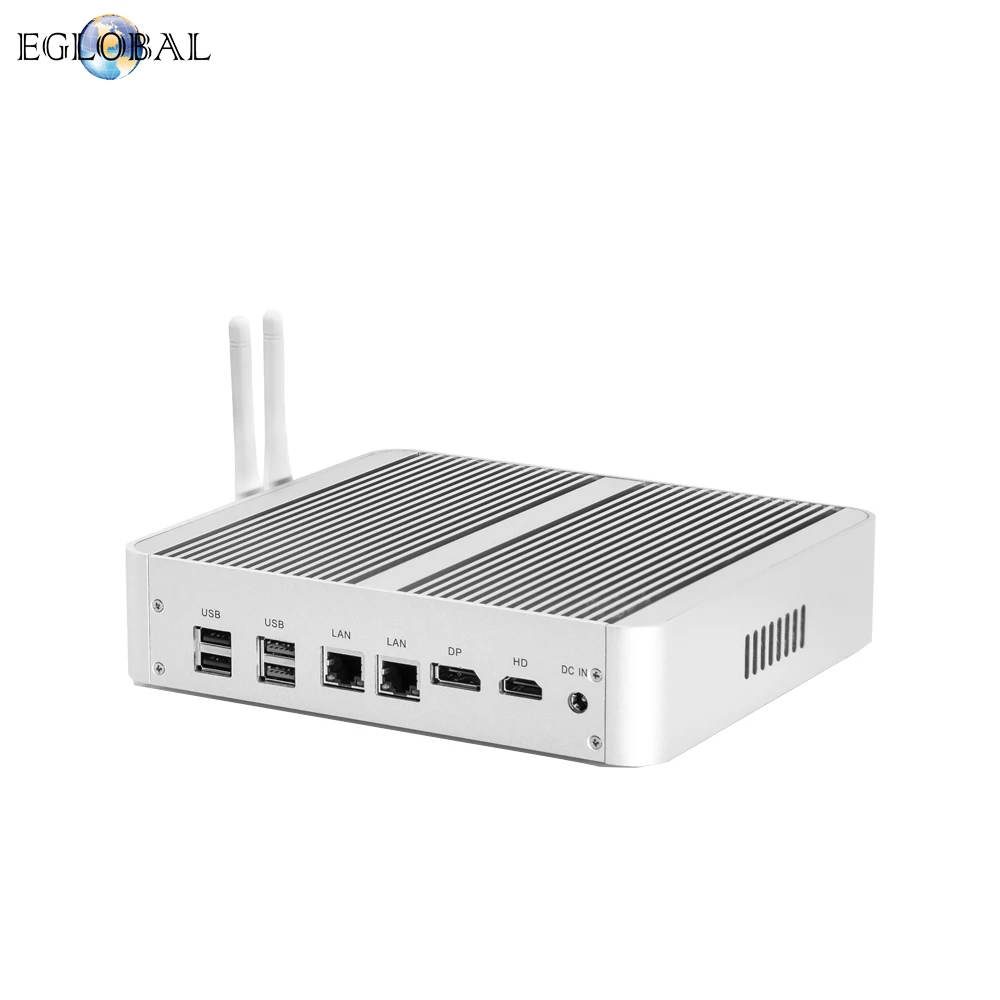

Latest fanless mini pc Kaby Lake Intel Core i5 7260U smart computer Win 10 Pro HDMI VGA 2*DDR4 Msata+M.2 SSD HTPC barebone 4K HD Product highlight:
– Full Aluminum Alloy Silver color shell, Exquisite production craft on outside design.

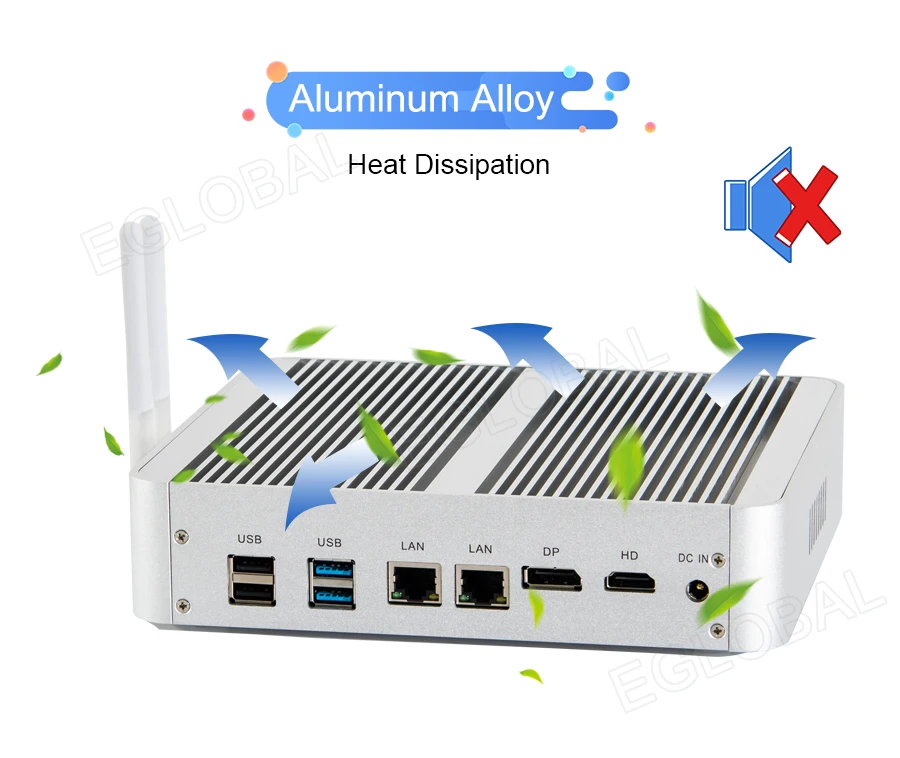

– Fanless system without cooling fan for heat dissipation, work as long as 24 hours.
– Dual Gigabit RJ45 LAN, SD card reader, Optical ports and one embedded SIM card slot for 3G/4G Module.
– Low consumption TDP only 15W, save much energy and eco-friendly.

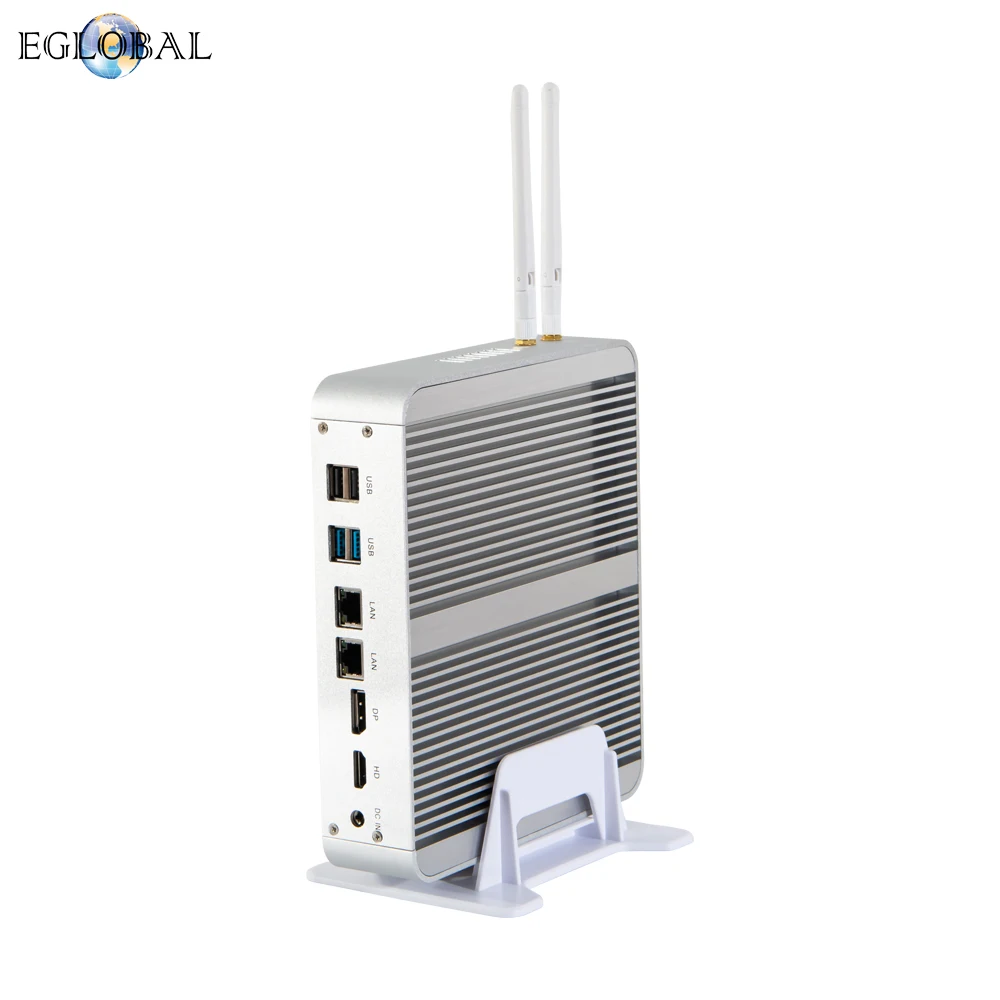

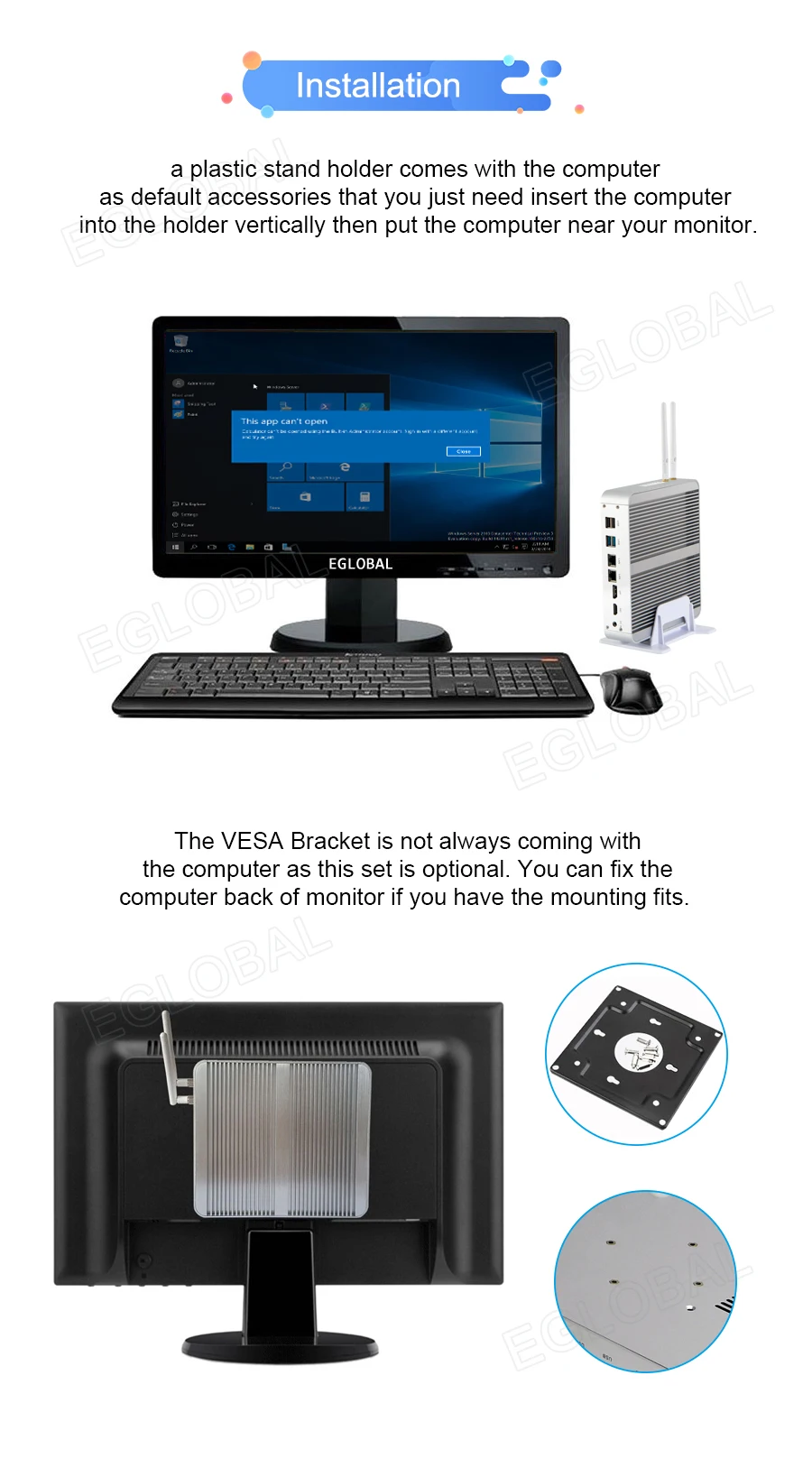

– Can stand up by free bracket or can be mounted back of monitor or wall.

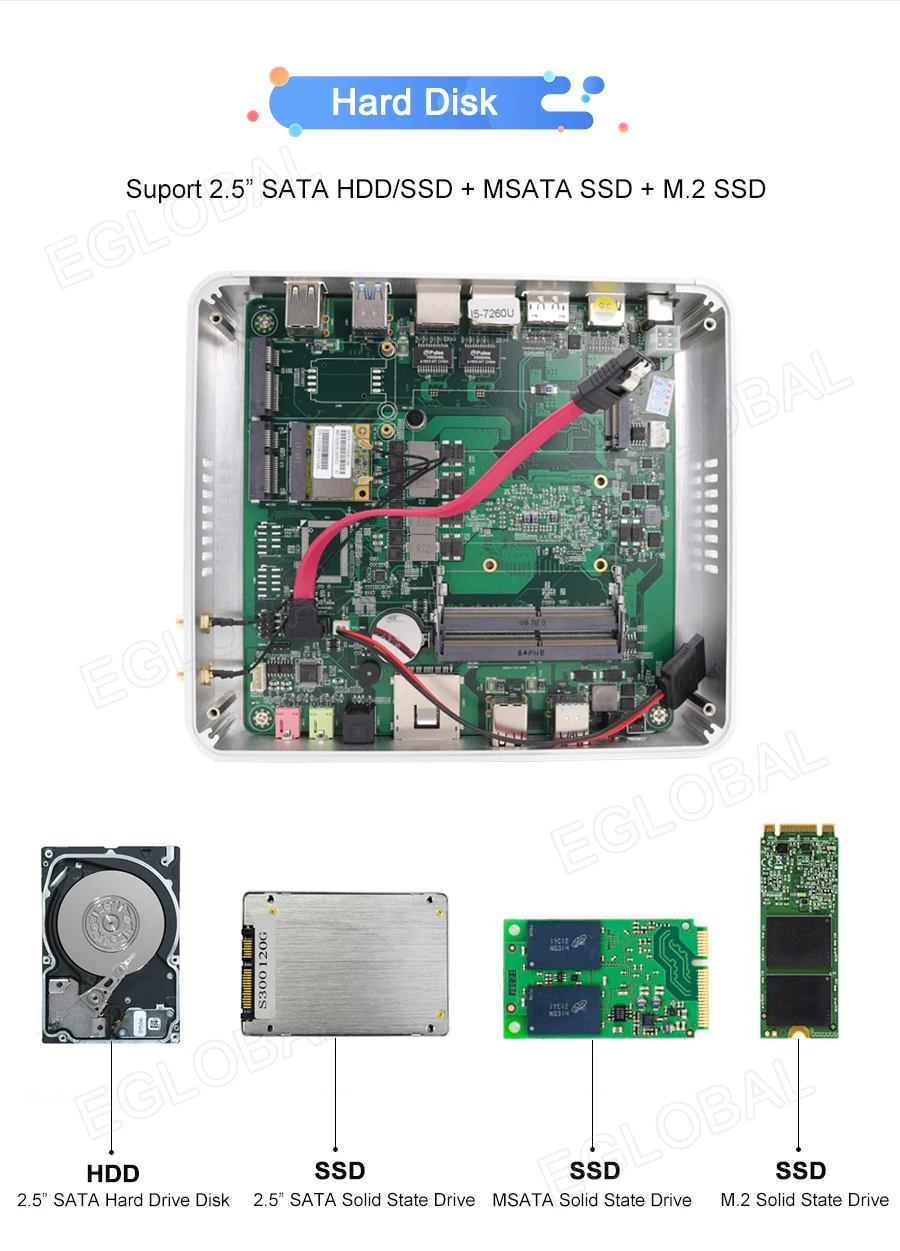

– Can install M.2 SSD+MSATA SSD+2.5” SATA HDD together.

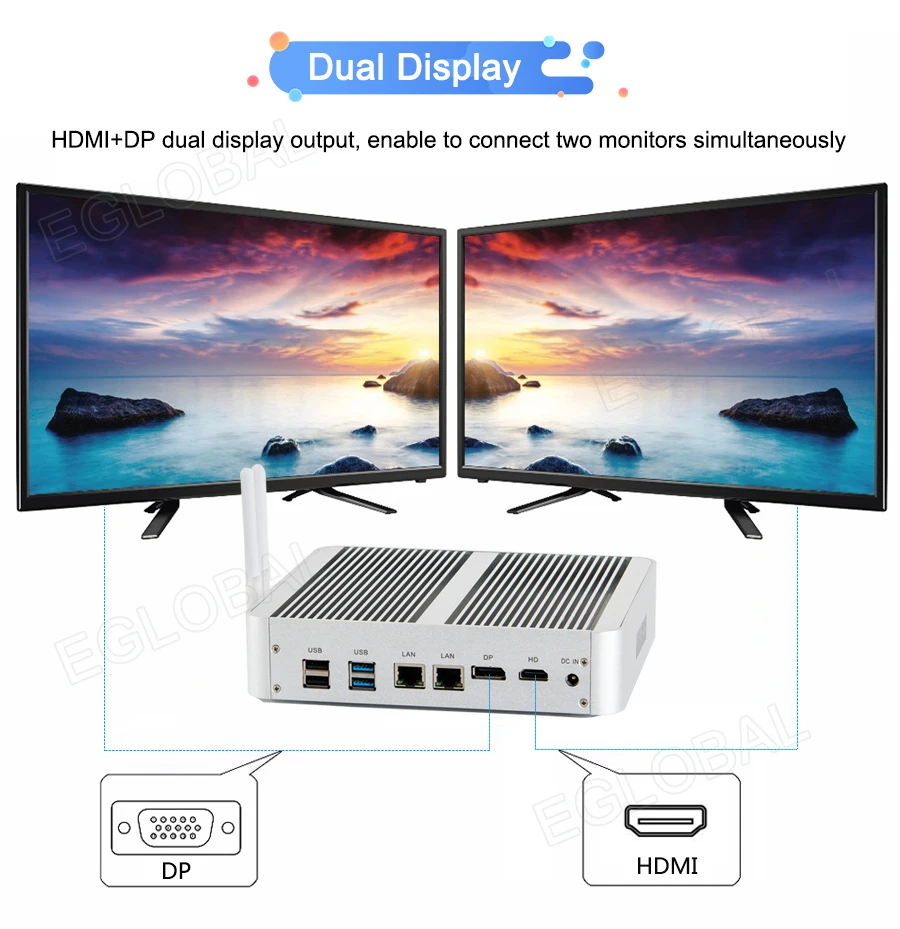

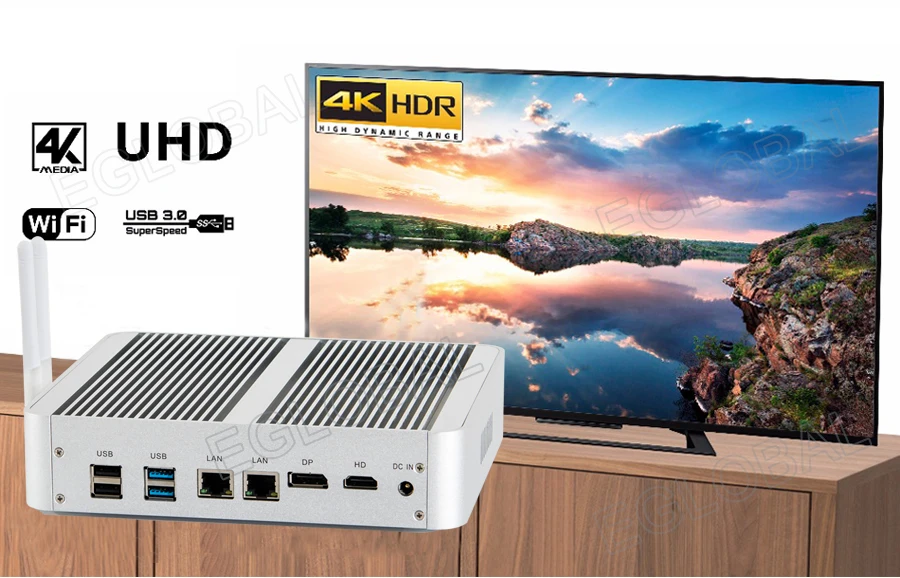

– Support DP + HDMI dual display output synchronously, 4K HD player.
Basic Information: | |
CPU | Onboard Intel Core i5 7260U 2.2GHz Max 3.4GHz Dual Core Four Threads |
TDP | 15W |
Motherboard | 170 x 170mm customized size |
BOIS | AMI BIOS, ACPI supported Support Auto power on |
Chipset | Intel Kaby Lake |
Memory | 2 x SO-DDR4 SDRAM Slot Support 4GB/8GB/16GB/32GB Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600 |

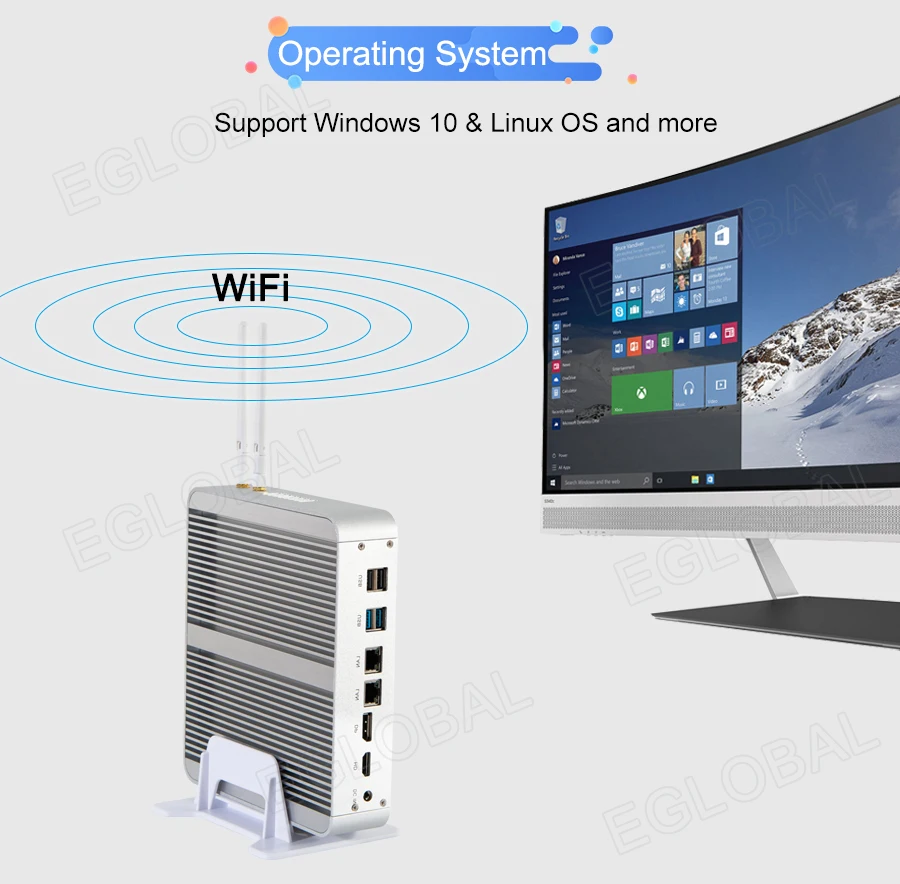

OS | Windows 7/Windows 8/Windows 10/Linux |
PXE | YES |
Audio | ALC892 chip, 6 channel sound, Intel Lynx Point-LP HDA |
Network | Onboard RTL8111DL PCI-E Gigabit Ethernet NIC Onboard RTL8111DL 10/100Mbps/1000Mbps BaseT LAN |
Video | Intel® Iris® Plus Graphics 640 |

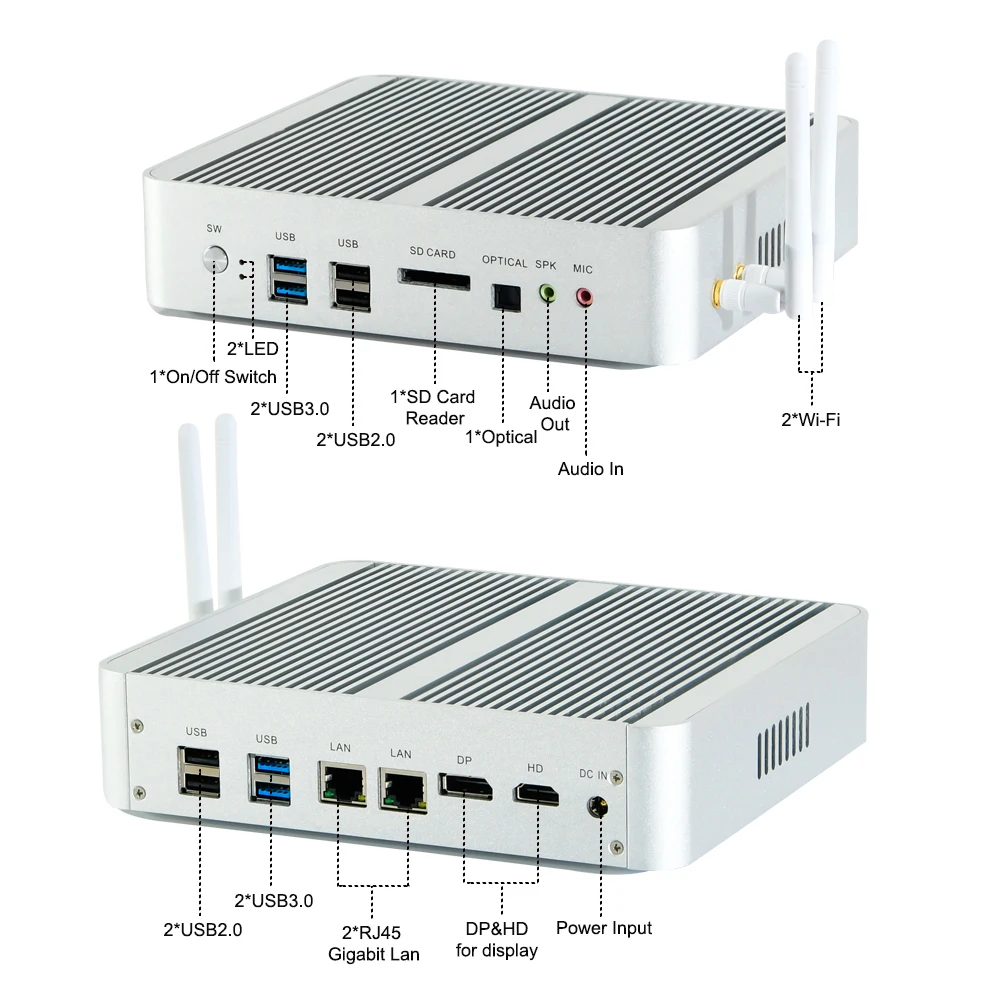

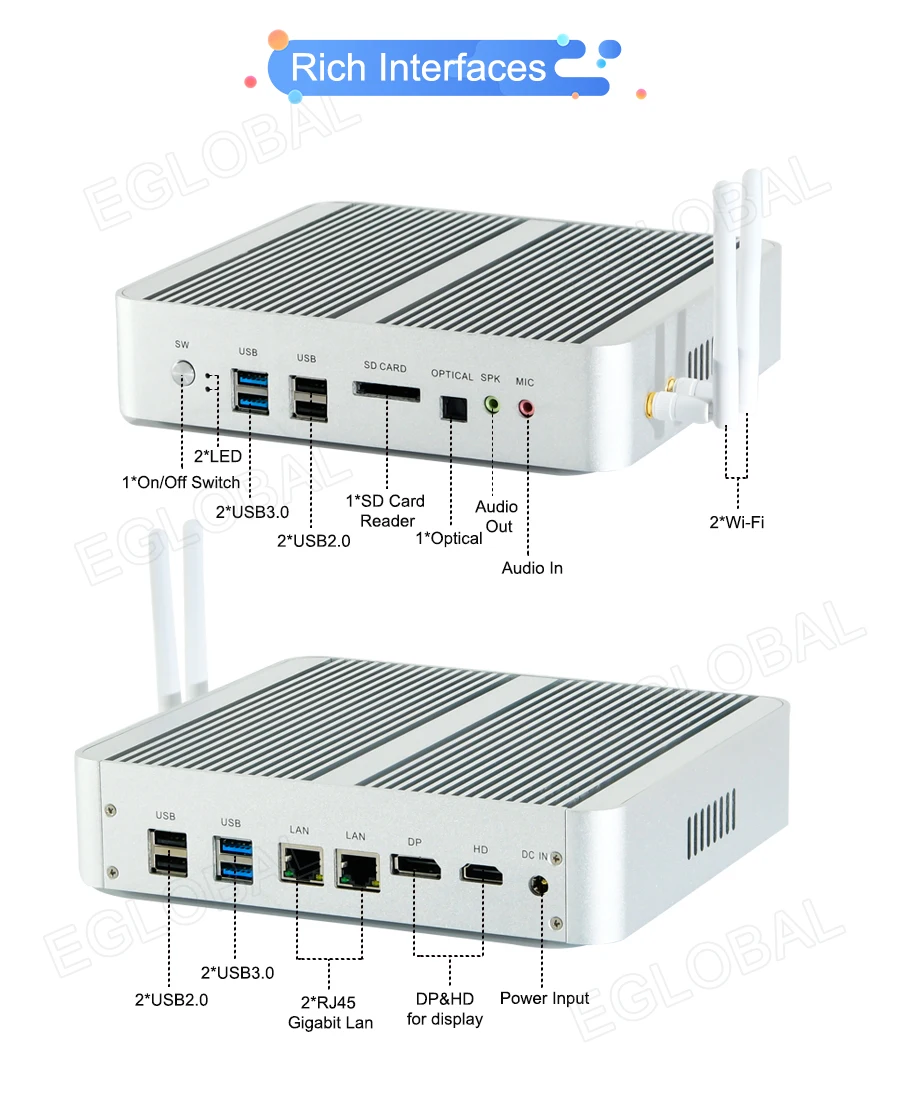

Input/output port | |
Switch | 1 x Power On/Off Switch |
Power | 1 x DC In |
LED | 2 x LED |
USB | 4 x USB2.0, 4 x USB3.0 |
SD Card | 1 x SD Card Reader |
Optical | 1 x Optical |
Display | 1 x DP, 1 x HDMI |
LAN | 2 x RJ45 Giga LAN |
Audio | 1 x MIC, 1 x SPK |
Others | 1 x embedded SIM card slot onboard(optional) |
Storage |
|
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for M.2 SSD, support 6Gb/s |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi |
|
Module | 1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 3G/4G module |
Antenna | 2 x inner RF cables and 2 x external antennas |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC +12V~+19V, recommend 12V/5A |
Operating Temperature | 0/70 Centigrade(32F~140F) |
Storage Temperature | -20/+80 Centigrade |
Relative Humidity | 0%~90% (non-condensing) |
Product Dimension & Details | |
Size | 208*180*45mm |
Weight | Net 1.5kg, Gross 3.0kg |
Shell | Silver color aluminum alloy(Black color V7 serial optional) |
Cooling Mode | Fanless |

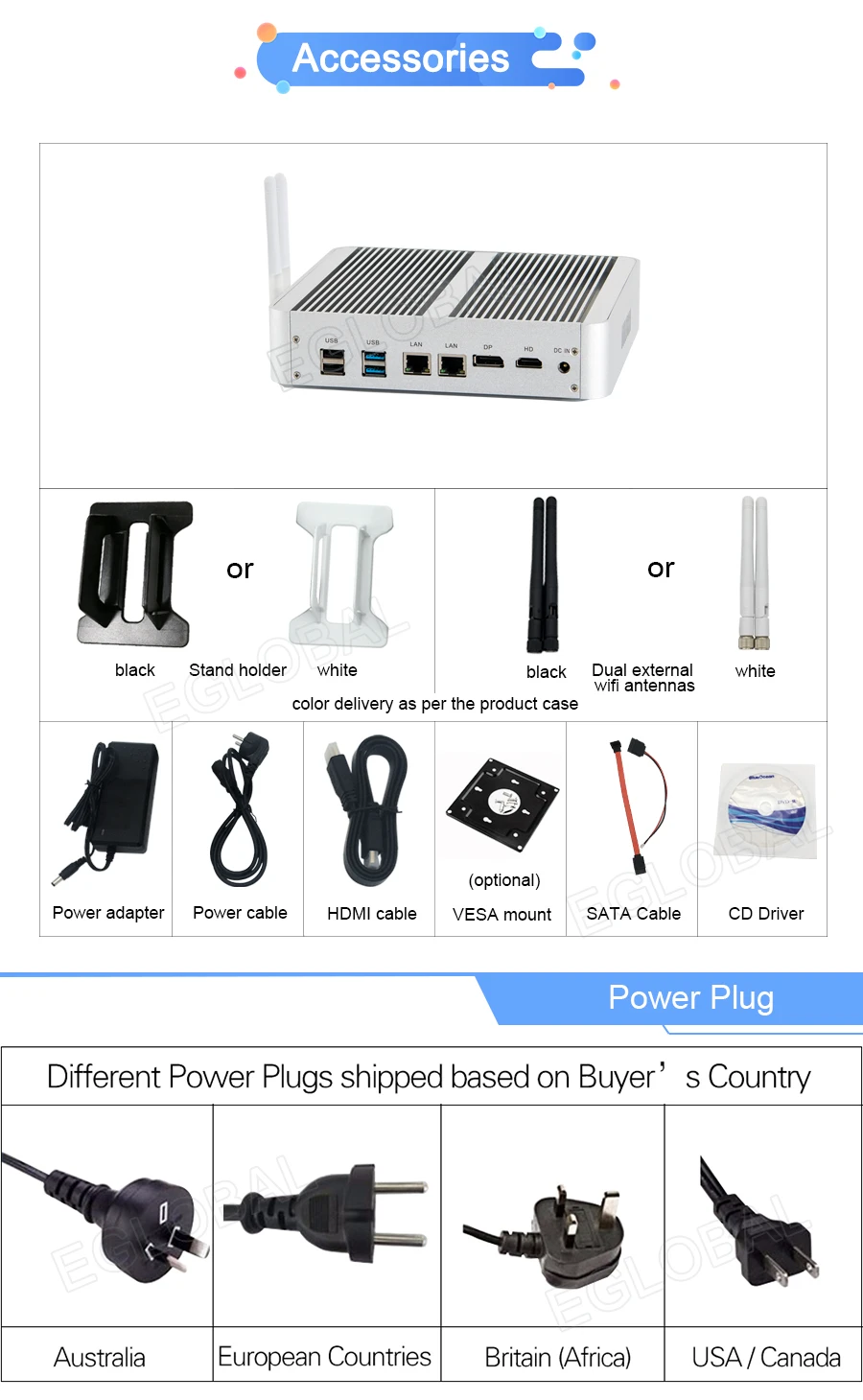

Package Content |
|
Standard | 1xMini PC, 1x Power Adapter, 1xPower Cord, 1xScrews Bag, 1xStand Holder |
Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount |
