Small computer, HTPC, Fanless PC
Intel Celeron N3160 Quad Core up to 2.24GHz, 2M Cache
4*USB 2.0,1*COM(2*USB2.0,2*COM) 2*USB3.0, 2*HDMI, 1*DP, 2*RJ45, 1000M LAN, Wifi,Intel HD Graphics400, 1920*1080, Fanless, Metal Case, Zero Noise
Kindly Reminded:
1, This computer works with lower volt at 1.35V instead of normal 1.5V RAM.
2, Warranty is 3 years for Barebone PC, 1 Year for RAM.
3, The RAM is normally Sam’sung, Elp’ida, Hynix; they will be shipped out at random for stock.
4, Please carefully read the SHOPPING GUIDELINES on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won’t take responsibility for any problems might caused except the quality problem of the product.
Thank you !
Wireless Mini Keyboard on sale for this computer:
Branded Spare Parts, Boyscott Fake Parts!!
Top Quality, 3 Year Warranty, Rest Assured!!
Quality Approval:
Product Advantages:
1. Special: 64 bits computing, Virtualization technology;
Support Wake-On-Lan; Support calls on function automatically;
Support SSD and HDD together, 1*mSATA3 SSD Slot, up to 256G SSD or 1TB Hardisk large volume;
Support Max 8GB DDR3 RAM; I/O port: 2*HDMI, 1*DP, 2*NIC, 4*USB2.0, 2*USB3.0,1*com
2. Stable: Intel Broadwell +Intel HD Graphics +Fanless
3. Smart: Fanless system, smart design, zero noise, work 24hrs working
4. Slim: Only 2.9mm body thickness, brushed aluminum alloy case
5. Smooth: Support 3D games, and HDMI full 1080P playback
6. Strong: Work for multiple application. For example: integrated with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projector, Hotel.
Product Specifications:
|
Model
|
NC50 Celeron N3160 Mini PC
|
|
General
|
|
CPU
|
Adopt Intel Celeron quad core N3160(14nm,1.6GHz,2MB Second Cache,turbo boost 2.24GHz)
|
|
Operating System
|
Default: Windows 7, Optional: Windows 7, 8, Linux Ubuntu
|
|
Processor Graphics
|
Intel® HD Graphics 400
|
|
Memory
|
1* DDR3L SDRAM Memory Slot, Max to 8G
|
|
DDR3L 1333/1600 LPDDR 1333/1600
|
|
Storage
|
SSD: 32GB/64GB/128GB/256GB
|
|
HDD: 320GB/500GB/640GB/1TB
|
|
Chipset
|
Adopt Intel express chipset
|
|
Display
|
Integrated Intel HD Graphic card,Support 1*VGA
|
|
Expansion
|
2*Mini-PCIE,support full-size MSATA and Half-size Wifi
|
|
Audio
|
Integrated Realtek ALC662 6 sound channel
|
|
Network
|
2*Realtek 8111E Lan,support wake on lan
|
|
I/O
|
2*RJ-45,1*12V DC input ,1*DP,2*HDMI,2*USB3.0,4*USB2.0,1*Power Switch,1*RS232 COM,1*Audio
2*RJ-45,1*12V DC input ,1*DP,2*HDMI,2*USB3.0,2*USB2.0,1*Power Switch,2*RS232 COM,1*Audio
|
|
BIOS
|
AMI 64M DPI Flash ROM
|
|
WDT
|
Support hardware reset (256 level,0~255 sec)
|
|
Power Supply
|
DC-12V,12V 4A power adapter
|
|
Temp
|
-20℃～60℃
|
|
Humidity
|
0～95% Relative humidity,non-condensing
|
|

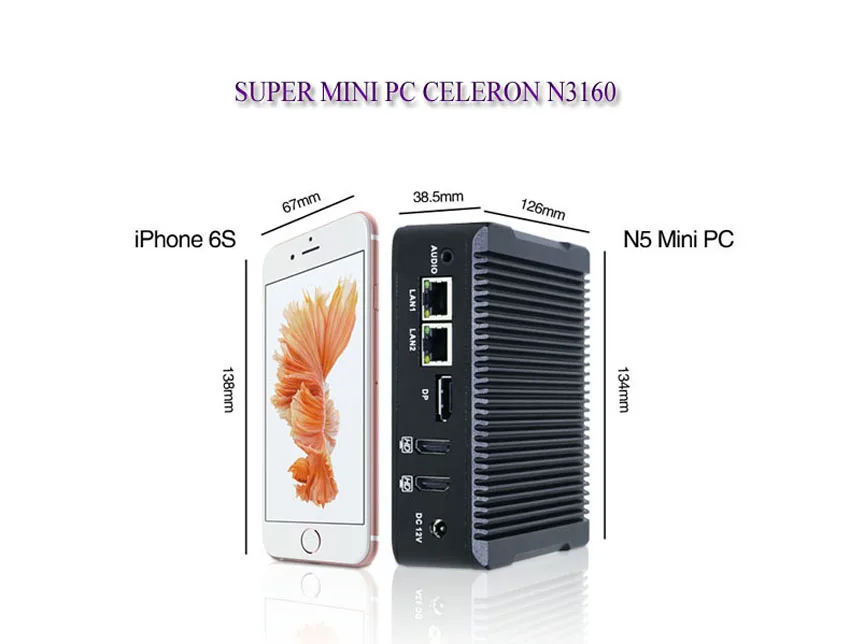

Dimension
|
134*126*38mm
|
|
Weight
|
0.65kg
|
Application:
– used as HTPC(Home Theater Personal Computer). Connect HDTV with the HDMI cable, you can enjoy education online and play internet movies or games.
-used as Personal Computer, high configuration and fast speed, zero noise.
– Internet Bar. High speed Gigabit Ethernet and diskless certificate, support 3D games.
– Factory, classroom, bank, supermarket, manager rooms, stores.
– used in Library, reading room, hotel, training, call center, CCTV company.

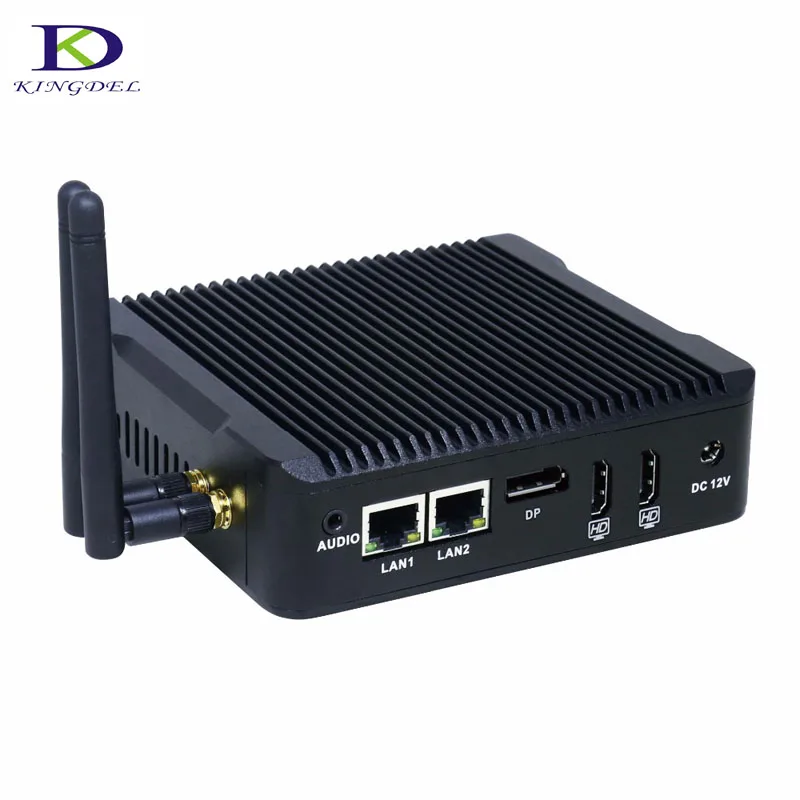

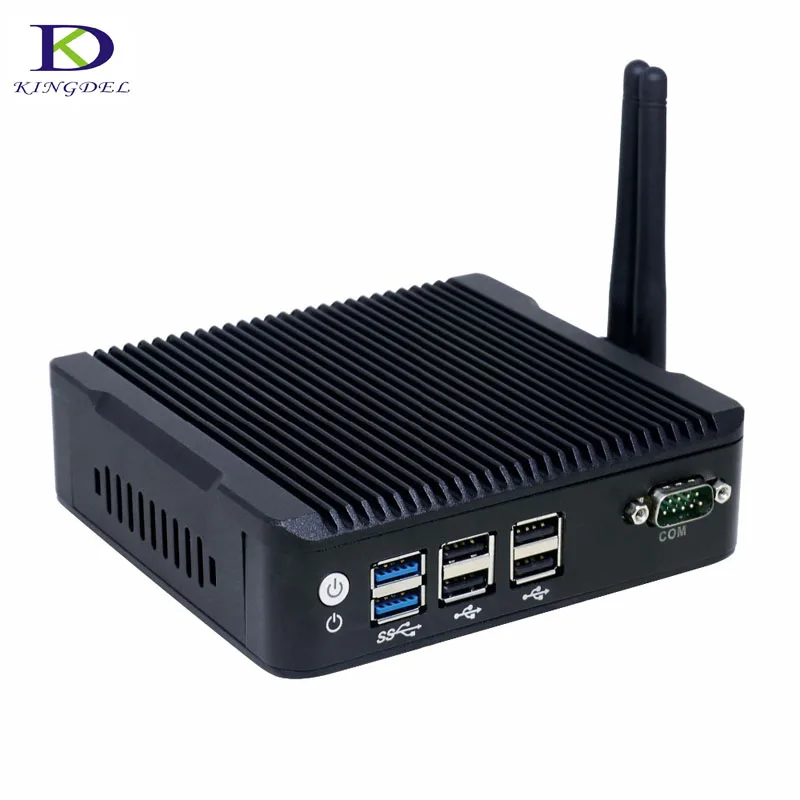

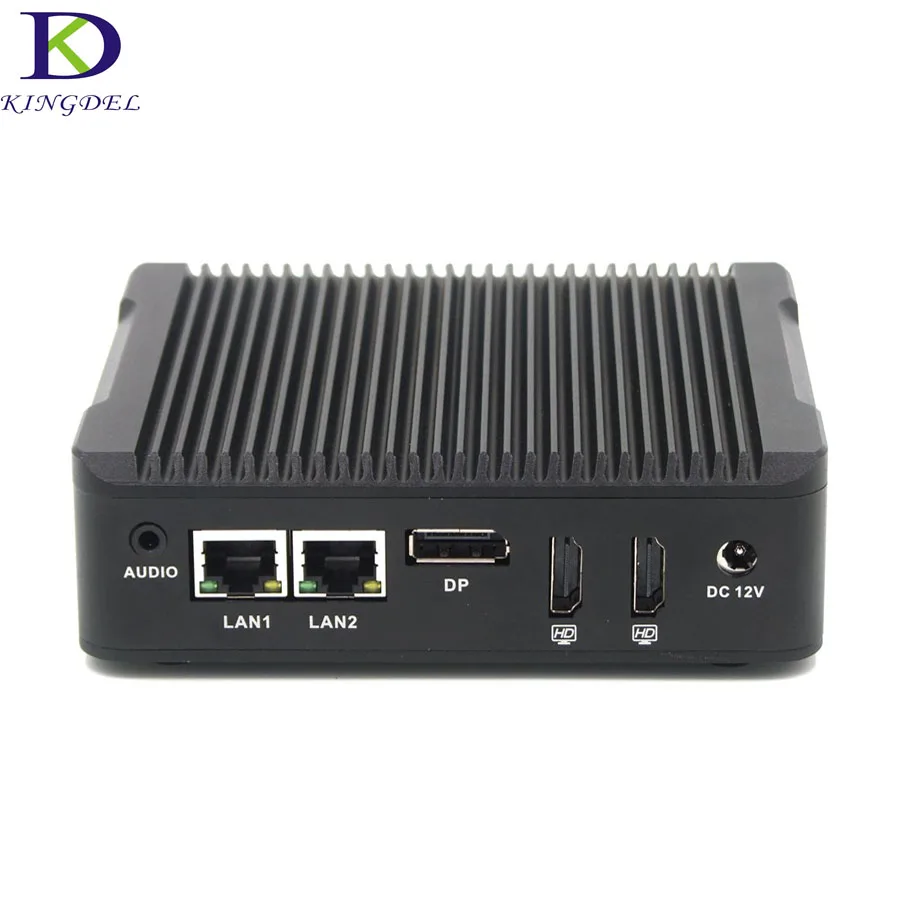

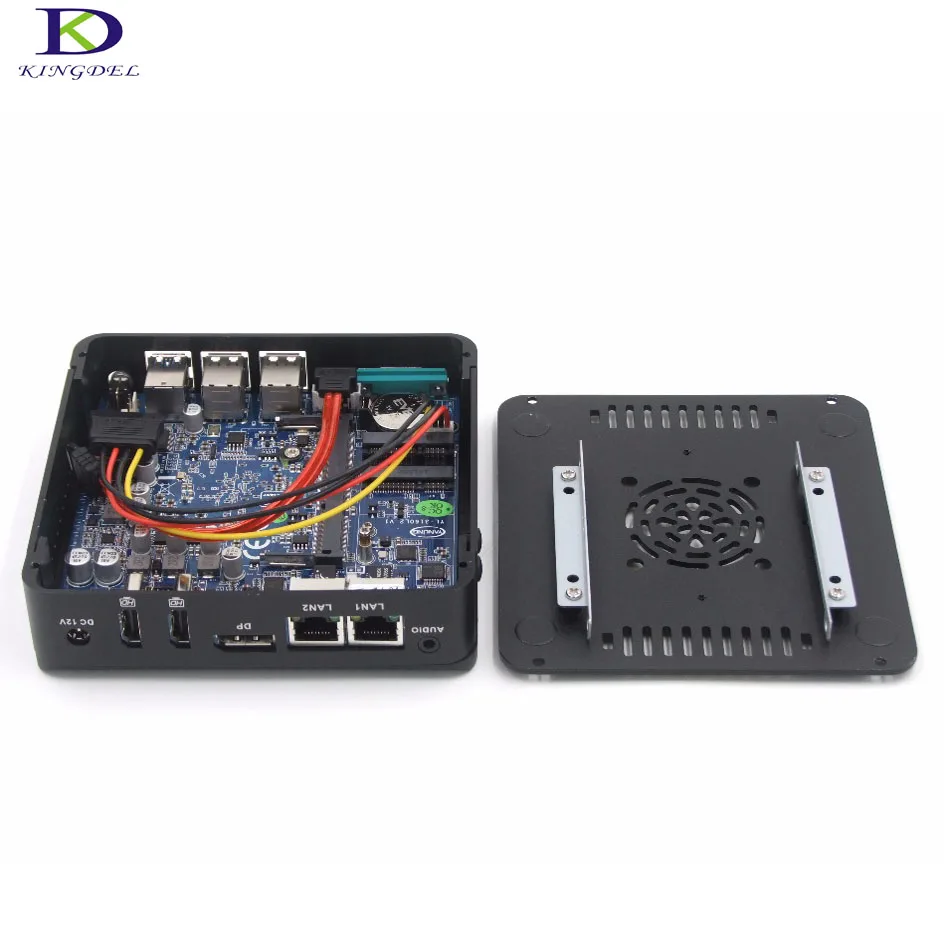

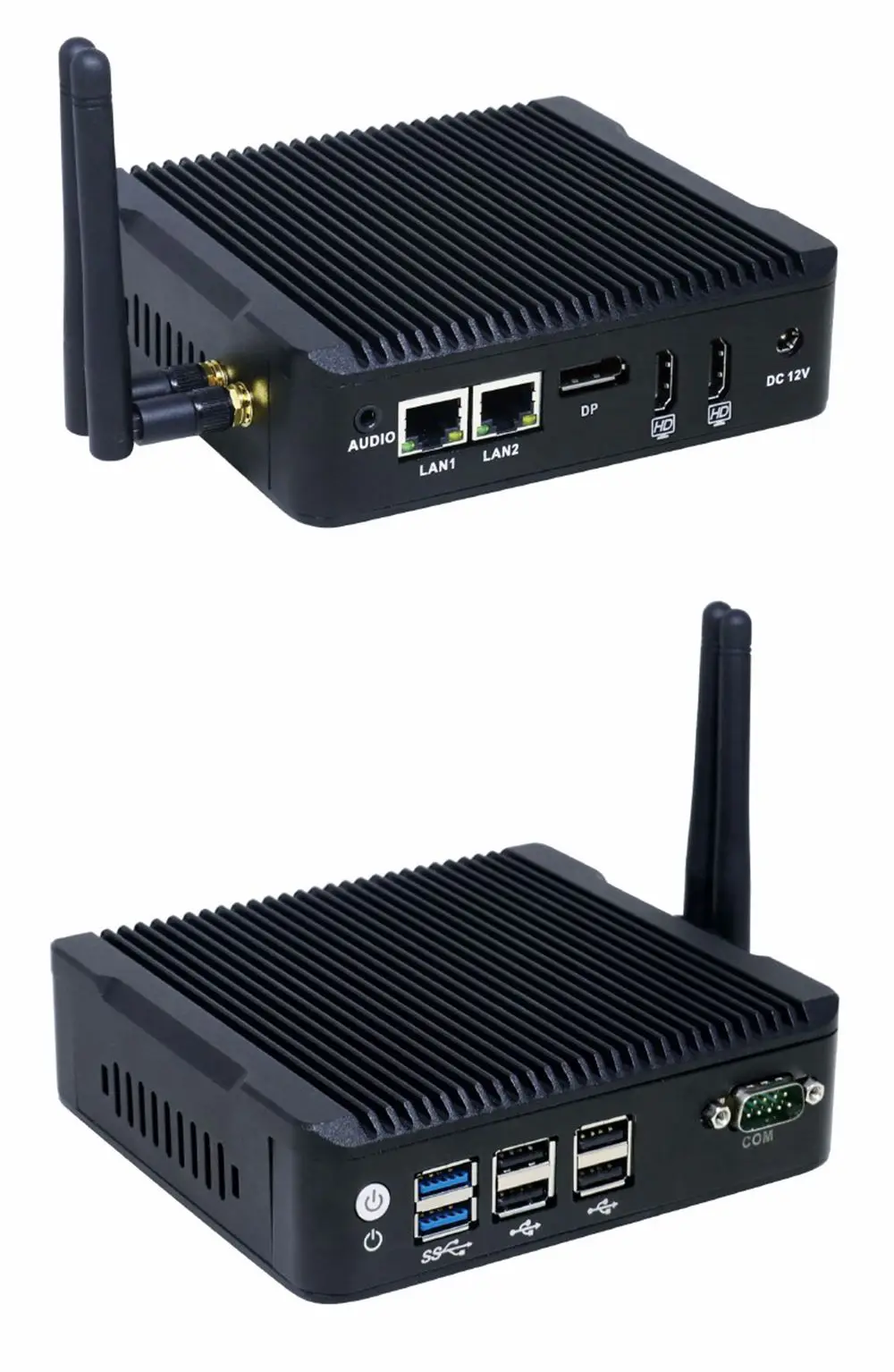

Product Photos:![]()
