Processor Proformance (All support AES-IN)
| Processors | Cores & Threads | Cache | Base Frequency | Max Turbo Frequency | Graphics |
| Core i5-9300H | 4 cores, 8 threads | 8M | 2.40 GHz | 4.10 GHz | Intel® UHD Graphics 630 |
| Core i7-9750H | 6 cores, 12 threads | 12M | 2.60 GHz | 4.50 GHz | Intel® UHD Graphics 630 |
| Core i9-9880H | 8 cores, 16 threads | 16M | 2.30 GHz | 4.80 GHz | Intel® UHD Graphics 630 |
Features:
1. Support TPM2.0, Windows 11/10, Linux, Ubuntu etc .
2. Onboard Intel Coffee Lake 9th generation powerful processor.
3. Support Dual Graphics Intel® UHD 630+NVIDIA GTX1650 4G/GTX1050 3G.
4. Support 2*HDMI + 1*Type-C for syn and Asyn 3*4K display.

|
Basic Information: |
|
|
CPU |
Intel Core i9 9880H/i7 9750H/i5 9300H |
|
TDP |
45W |
|
BIOS |
AMI BIOS |
|
BIOS support |
128M flash ROM,AMI UEFI BIOS,PXE,WOL |
|
Chipset |
Intel® QM370/HM370 etc. PCH |
|
Memory |
2 x SO-DIMM DDR4 slot, up to 64GB Dual Channel, DDR4-2666/2400/2133 |
|
OS |
Windows 11/Windows 10/Linux |
|
PXE |
YES |
|
Audio |
Onboard HD audio chip |
|
Network |
Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100/1000 BaseT LAN |
|
Video |
Intel®UHD Graphics Nvidia GTX1650 VRAM 4G/GTX1050 VRAM 3G |
|

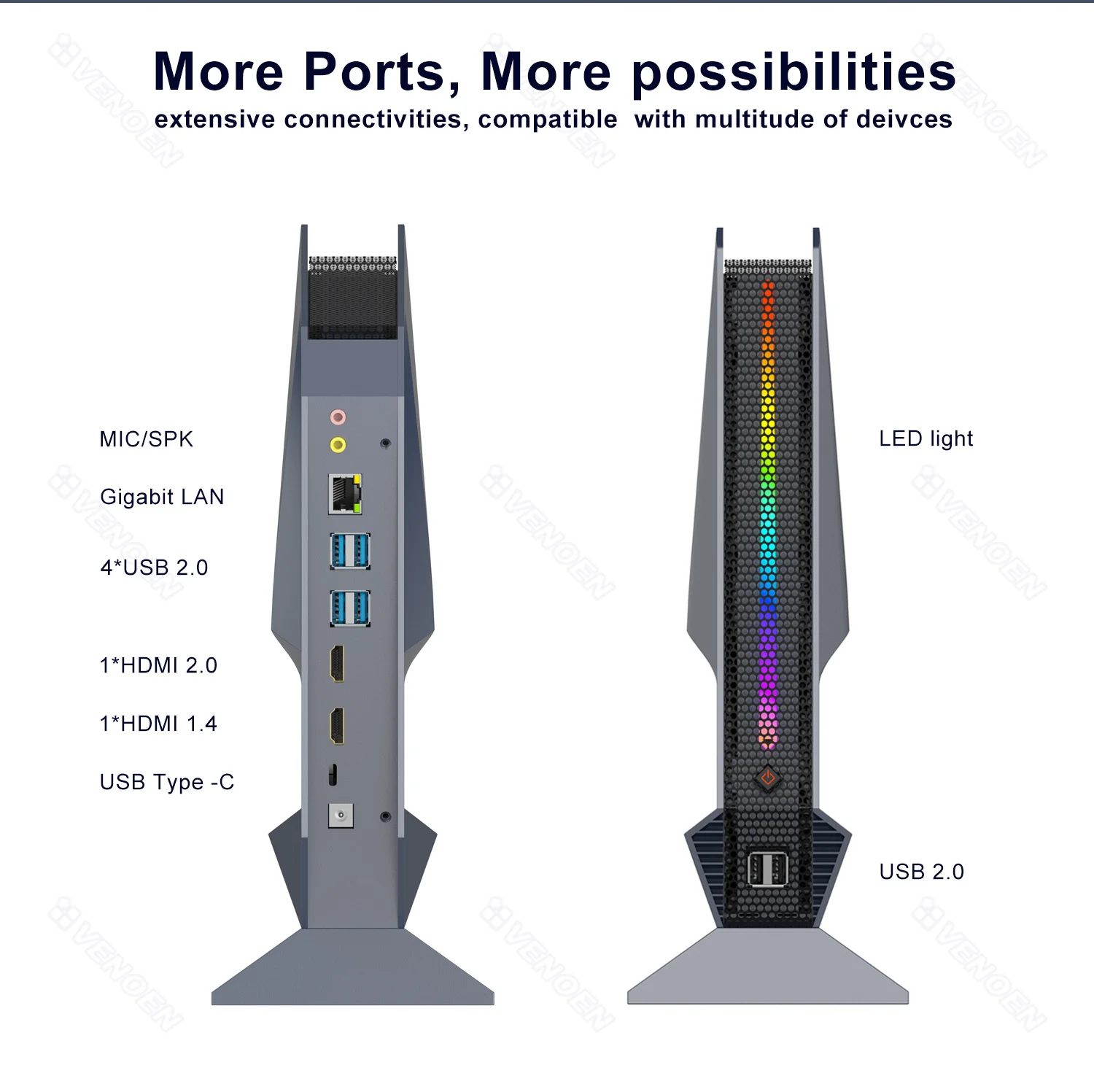

Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 19V DC In (55*25) |
|
USB |
2 x USB 2.0, 4 x USB 3.0 |
|
Type-C |
1 x Type-C (DP+USB) |
|
Display |
1 x HDMI 2.0, 1 x HDMI 1.4 |
|
LAN |
1 x RJ45 Giga LAN |
|
Audio |
1 x Line Out, 1 x MIC in |
|
Expandable |
1 x ATX 8Pin 19V (optional) |
|
Storage |
|
|
M.2 |
1 x M.2 2280 slot, support NVME PCIE x4/SATA3.0 |
|
M.2 |
1 x M.2 2280 slot, support SATA3.0 |
|
WiFi |
|
|
Module |
1 x M.2 NGFF 2230 slot, support 802.11B/G & 802.11B/G/N/AC Bluetooth 2-in-1 WIFI & BT combo card |
|
Antenna |
2 x inner RF cables without external antennas |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 19V-120W |
|
Operating Temperature |
0/+70 Centigrade (32~140°F) |
|
Storage Temperature |
-20/+80 Centigrade (-68~176°F) |
|
Relative Humidity |
10%~95% (non-condensing) |
|
Product Dimension & Details |
|
|
Size |
263*303*40mm (base 110MM) |
|
Weight |
Net 1.3kg, Gross 2.5kg |
|
Shell |
Dark gray color aluminum alloy |
|
Cooling Mode |
Full copper turbo fan |
|

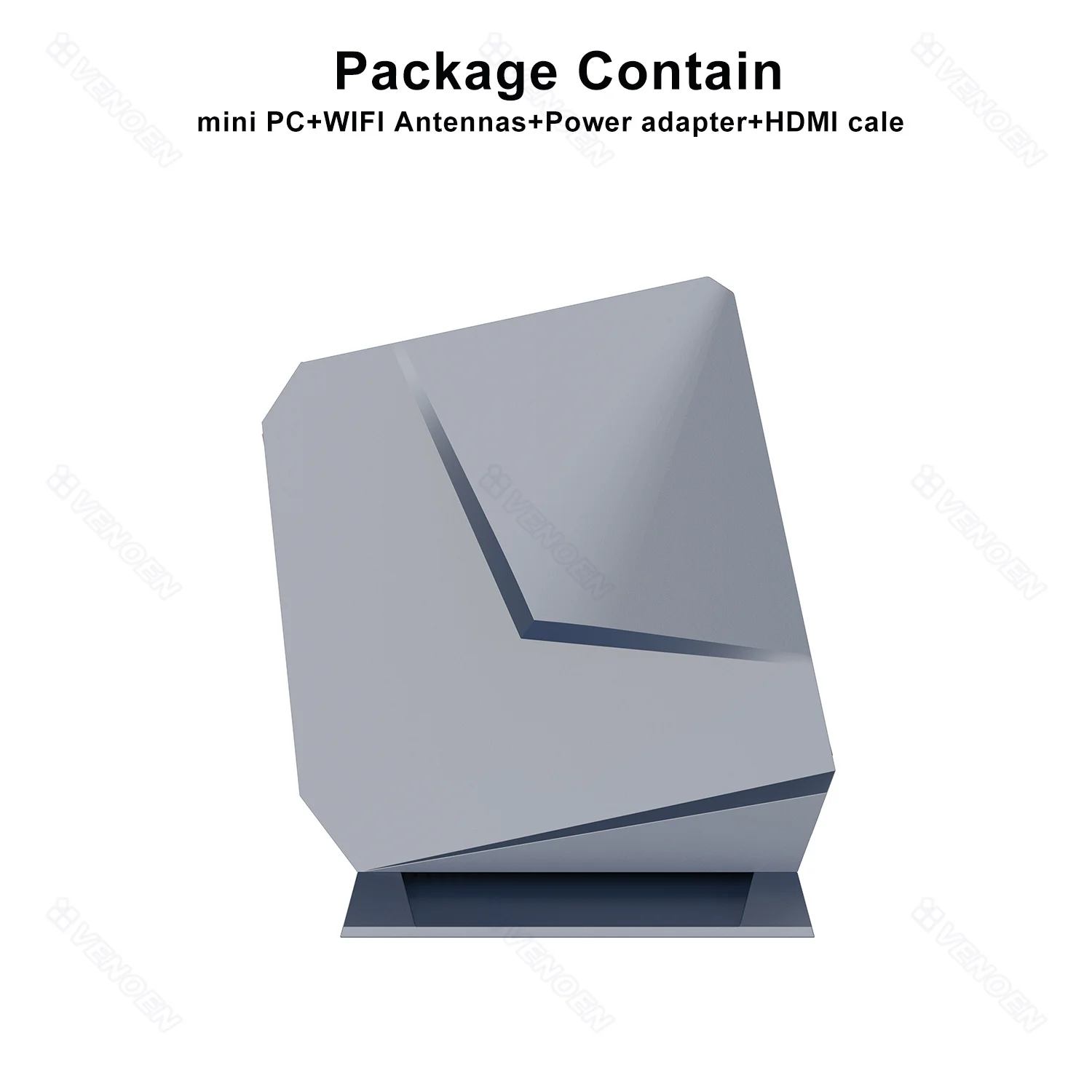

Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables |
|
Optional |
1xUser Manual |
