Intel Broadwell Core I3 4005U 5005U Dual Core Mini PC with Windows 10 Graphics 4K HDMI VGA Fanless Pocket PC Barebone Computer
Item Description:
-
Beautiful: Industrial aesthetic design and Reasonable interface layout;
-
Noiseless: Fanless system, low consumption, 0.00dB noise;
-
Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pcs 2.5”HDD+1pcs MSSD(5CMx3CM), highest speed up to 6GPS;
-
Stable: Newest Intel Core i3 5005U/i3 4500U+Haswell structure+ Intel HD 5500 Graphics+Fanless professional passive cooling by alloy case, be able to work 24hours per day;
-

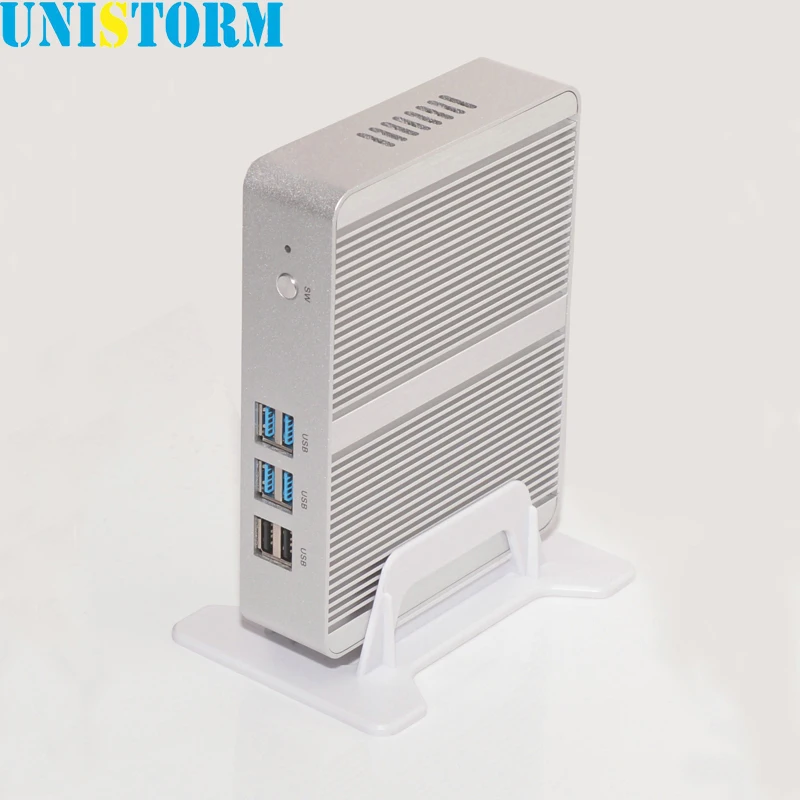

Slim: Only 37mm body thickness, can stand on desk by free bracket we supply;
-
Smooth: High-end Intel Graphics HD 5500, fight again dedicated Graphics! Support all online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, 2*HDMI dual monitor display;
-
Strong: Work with any brand monitors; 1*Gigabit Lan Nics++1*HDMI+1*VGA+4*USB3.0+2*USB2.0 Fit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;
-
Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.
-
Certification: CE, FCC & RoHS.
Specification:
| General | |
| Processor | Onboard Intel Core i3 4005U/4005U 2GHz Dual Core 4 thread |
| Operating System | Windows 10/ Windows 7/ Windows 8/ Linux |
| Storage | SSD: 8GB/16GB/32GB/64GB/128GB/256GB/512GB |
| Memory | 2GB/4GB/8GB DDR3L 1.35V Voltage |
| Memory Type | DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
| Motherboard | Intel SHARKBAY(Intel Broadwell/Haswell-ULT) |
| Processor details | |
| CPU | Intel Core i3 4005U/5005U/14nm N3150 Quad Core |
| Clock Speed | 2.0GHz(100MHz x 20) |
| Processor Number | 2 core/ 4 threads |
| Core code | Broadwell |
| Technique | 14nm |
| L1 data cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L2 code cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L3 cache | 3 MB, 12-Way, 64 byte lines |
| Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT… |
| BIOS | AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN |
| Function | Hyper-Threading, Virtualization technology, 64 bit computing |
| Graphic Cards | Intel Broadwell- ULT Integrated Graphics Controller |
| Intel HD Graphics 5500 | |
| Audio Cards | ALC662 sound chip, 6-channel |
| Intel Panther Point HDA | |
| Network card | RTL8168E PCI-E Gigabit Ethernet NIC |
| Ethernet | 10/100/1000 BaseT LAN |

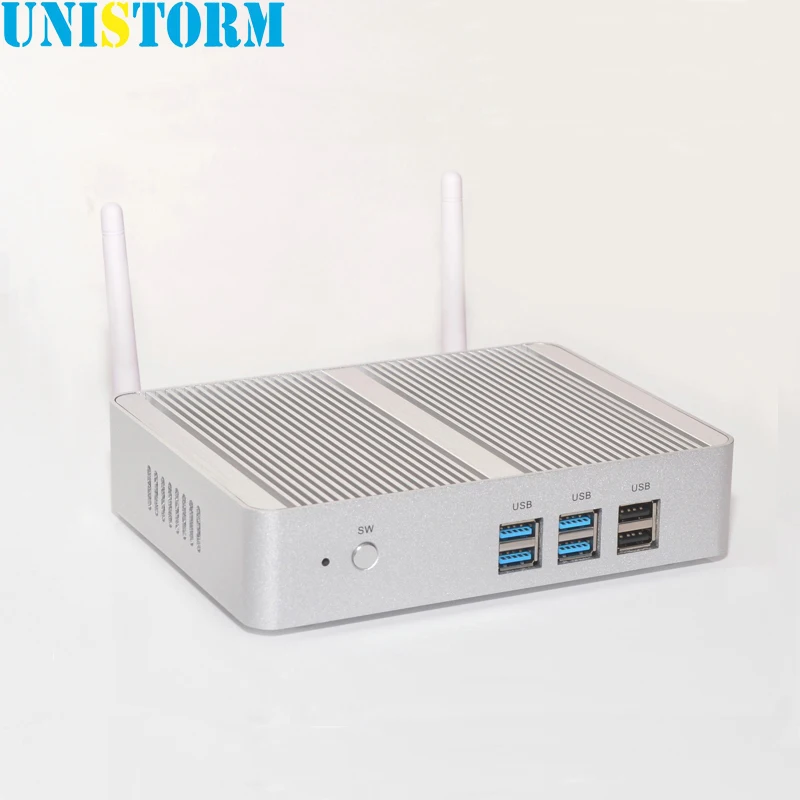

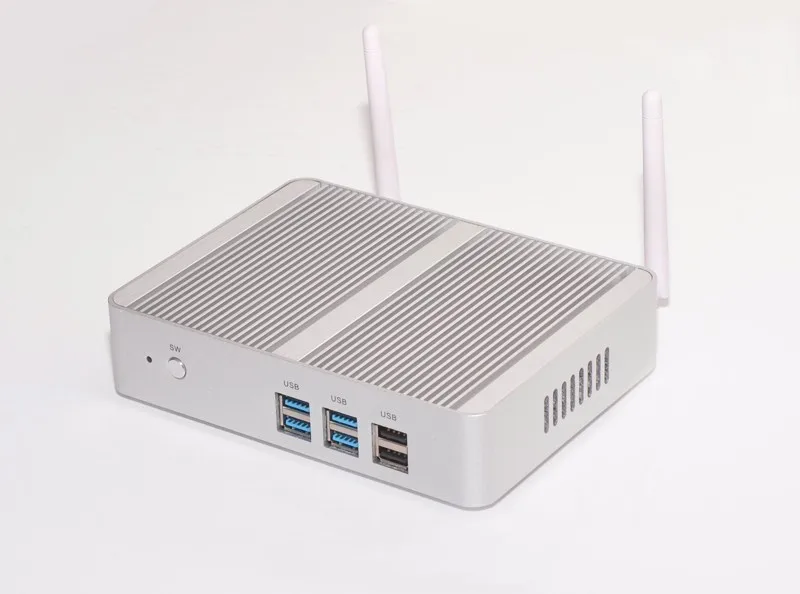

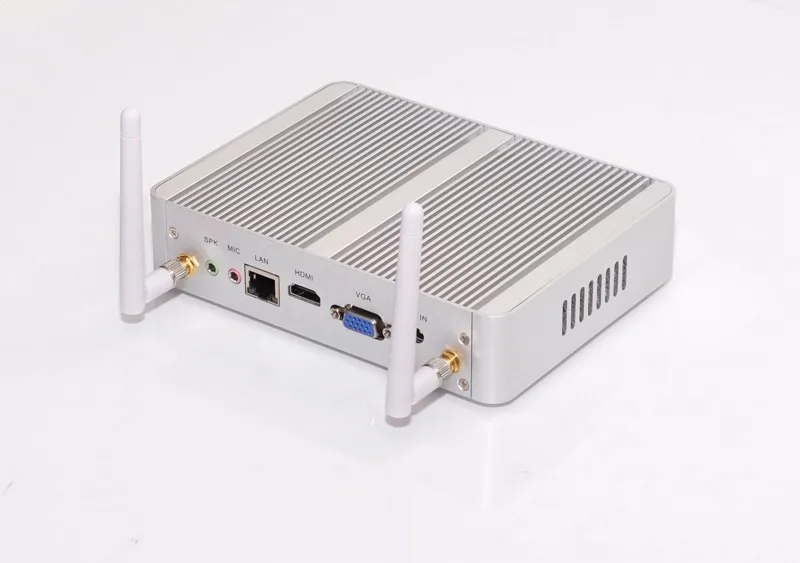

| WIFI | With dual antenna, 802.11.b/g/n(300M or optional bluetooth) |

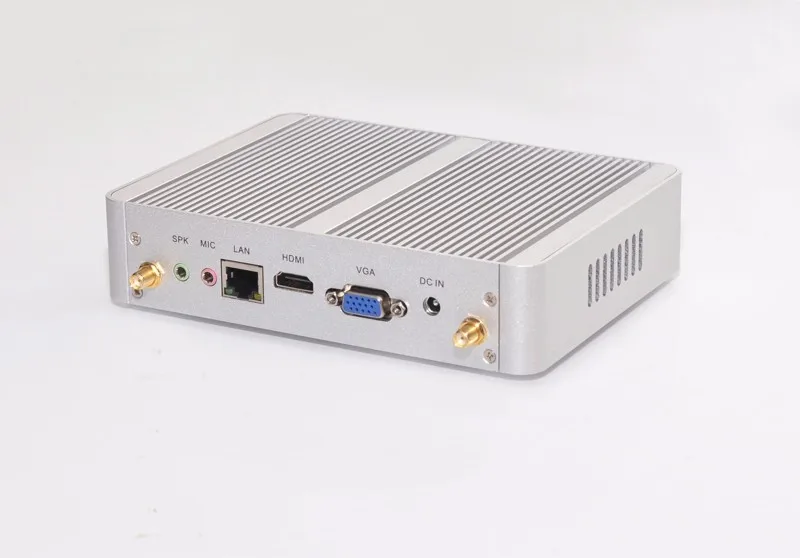

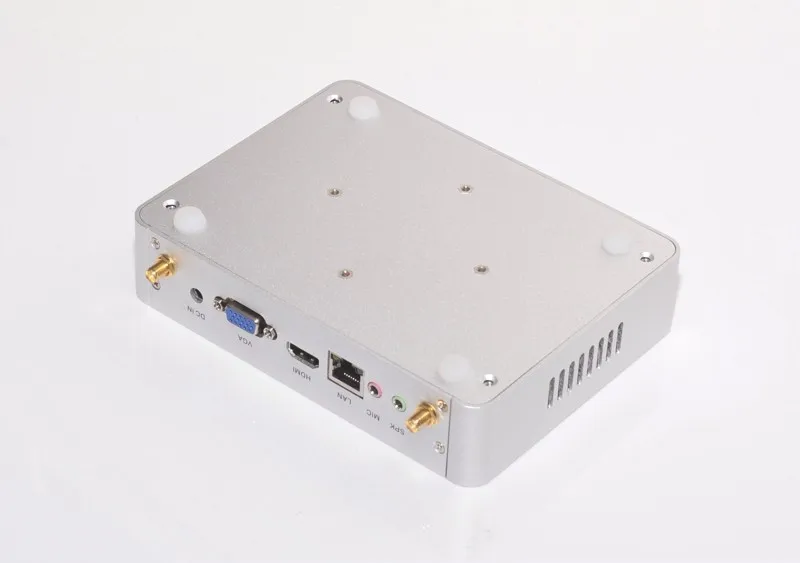

| I/0 Port | |

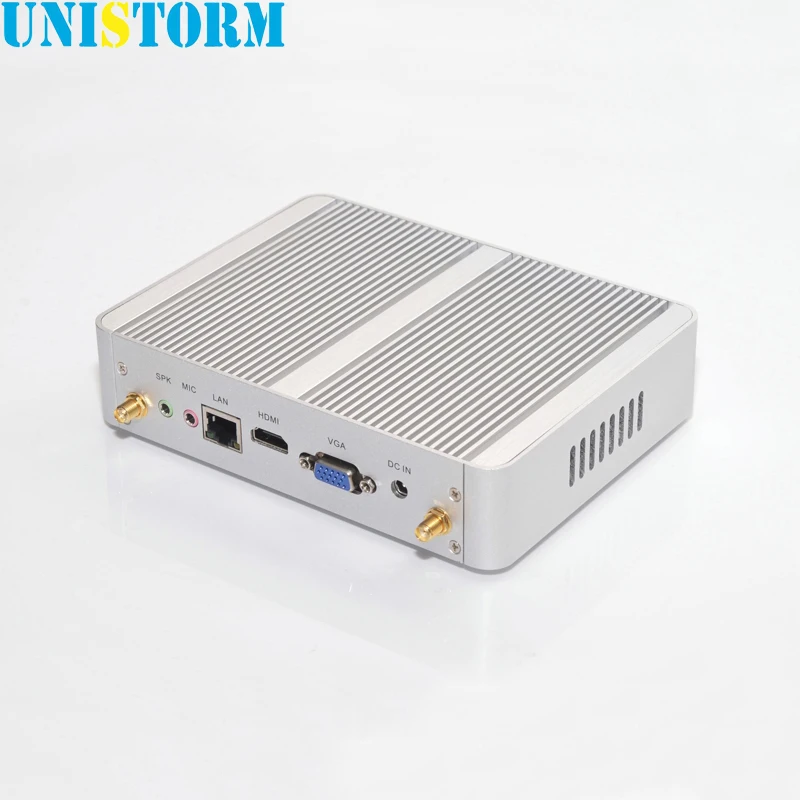

| Display port | 1* VGA + 1 * HDMI |

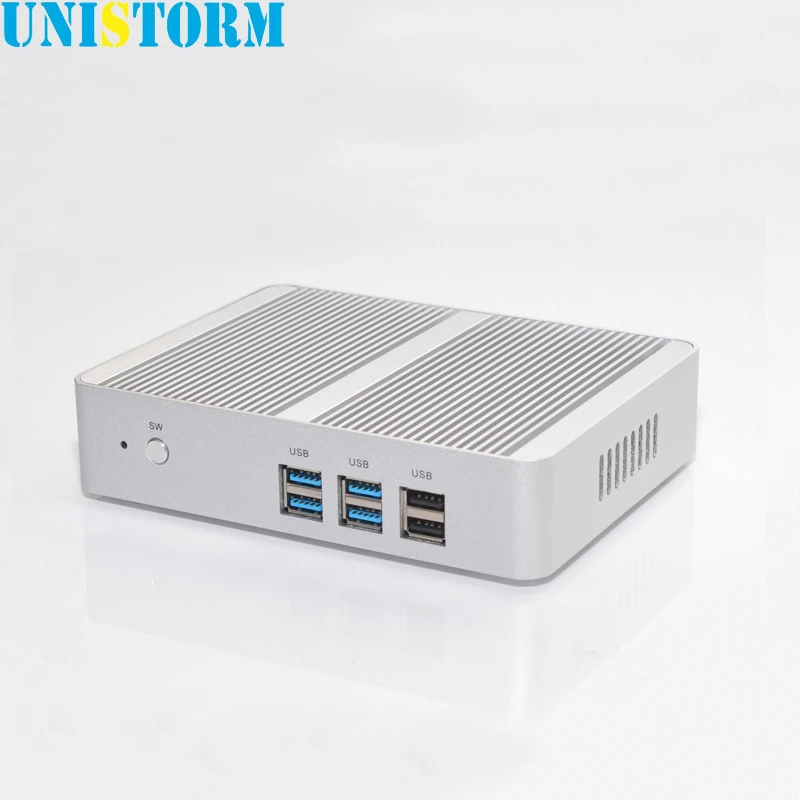

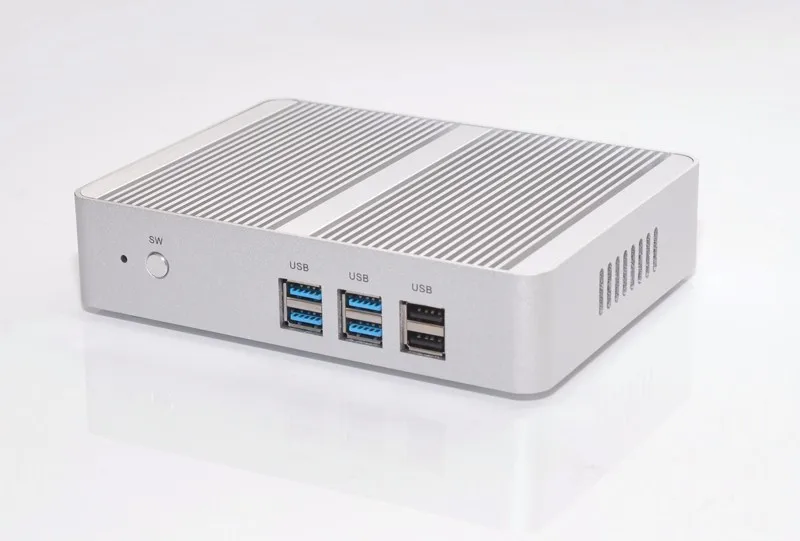

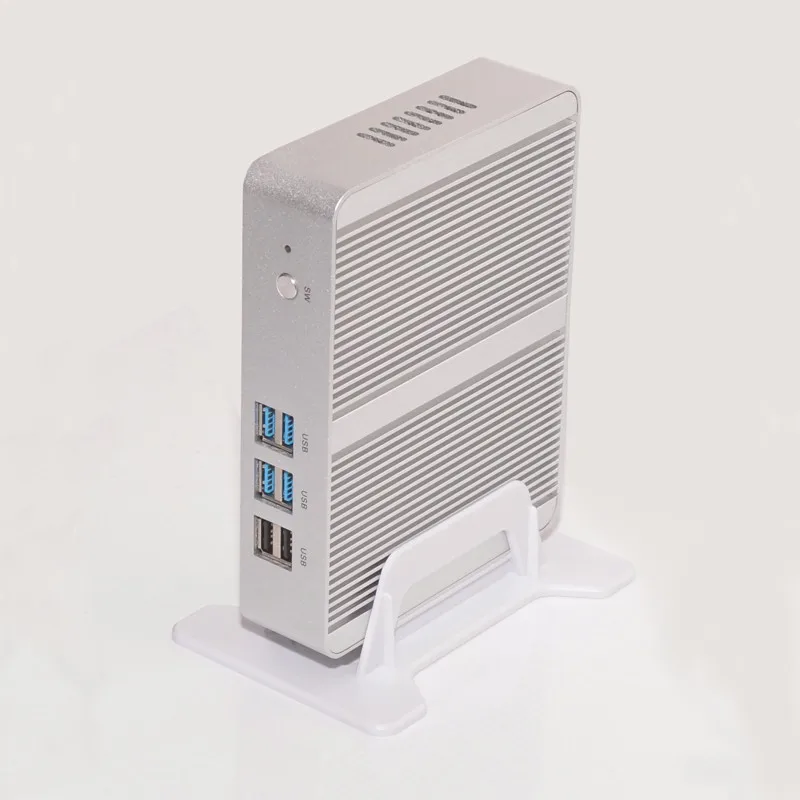

| USB port | 4* USB 3.0, 2 * USB2.0 |
| SATA port | 1 * MSATA3.0, 6Gb/s; |
| MINI PCIE | 1 * MSATA SSD, 1 * WiFi module |
| Ethernet port | RJ45 10/100/1000 Mbps Adaptive |
| Power input port | 1 inner diameter 2.5mm,external diameter 5.5mm |
| Audio port | Standard 3.5 Audio input and output |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 12V/3-6A |
| Consumption | 15W |
| Noise | Fanless System |
| Temperature | 0-70 Centigrade |
| Humidity | 10%-90% |
