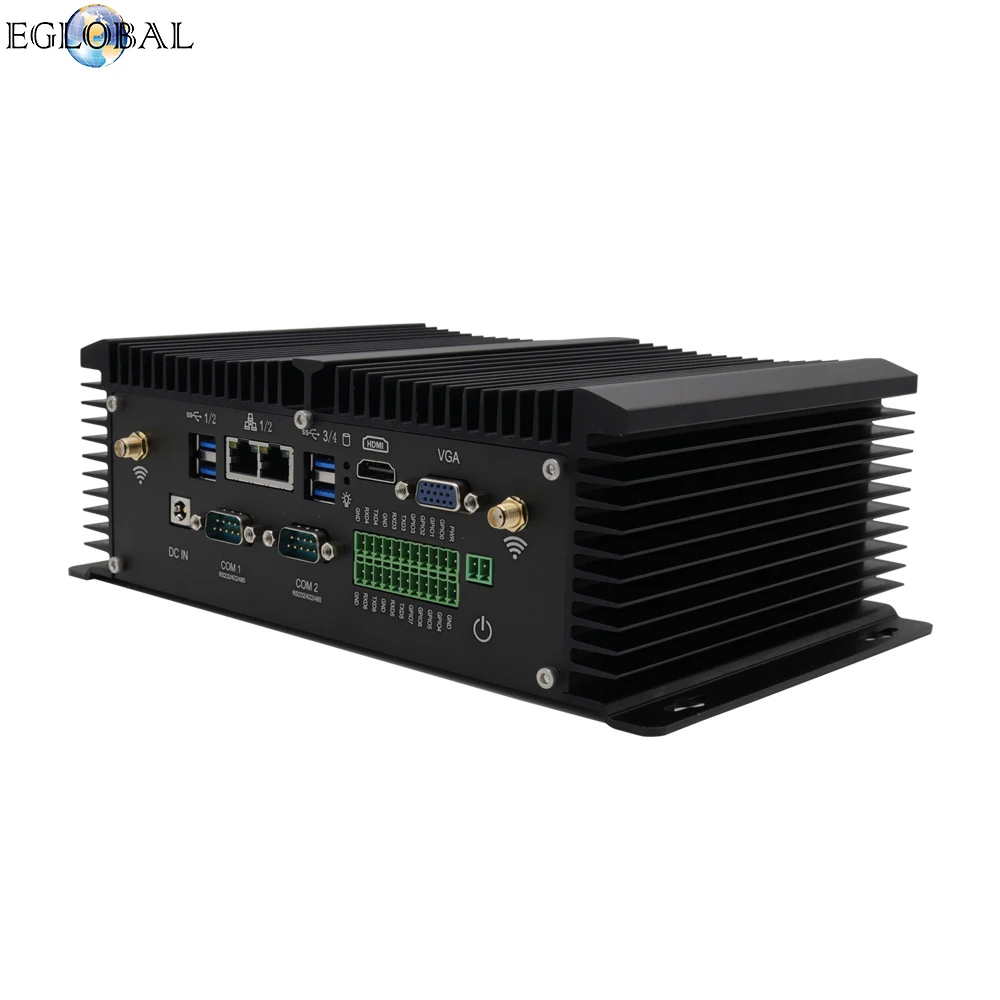

Industrial Mini PC Intel Core i5 8250U i7 7500U Barebone System 3G/4G SIM 2 RS485 COM GPIO 2 RJ45 Lan 8 USB Wifi Bluetooth

0 orders
()
Total Price:
Best price guarantee
Quantity:
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Product Hightlight:

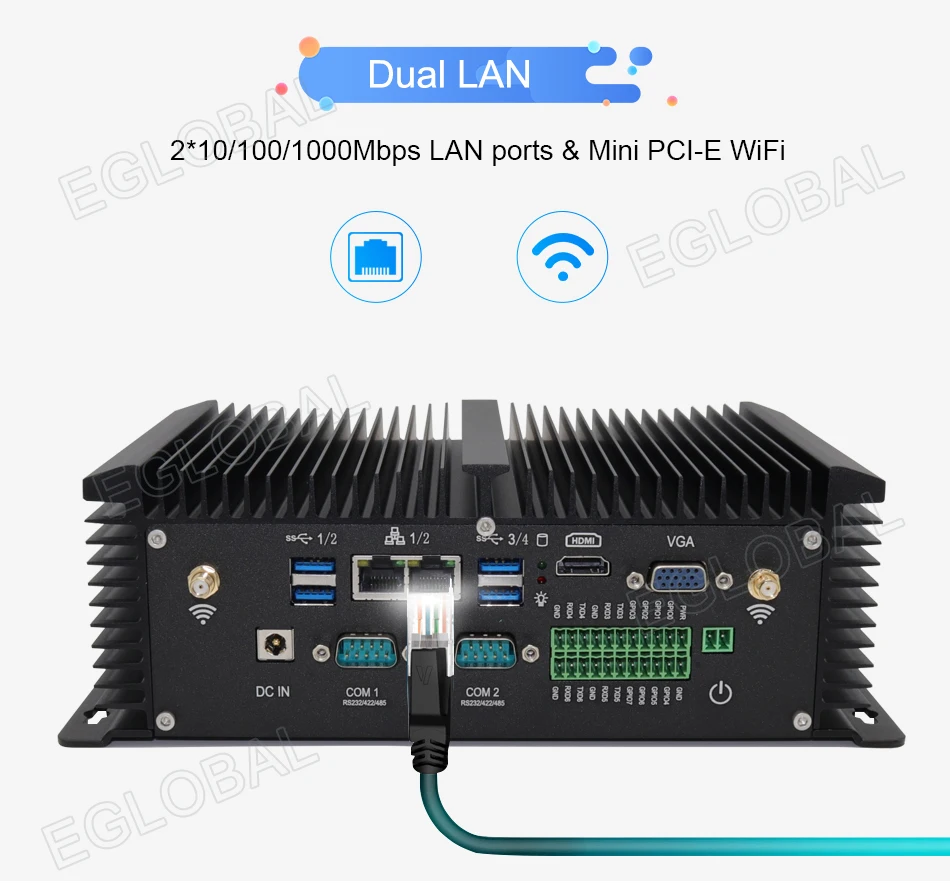

– 2 Intel i211 Gigabit RJ45 LAN and 2 COM can change to RS232/422/485 from BIOS.
– One SIM card slot with PUSH function for 3G/4G Module.

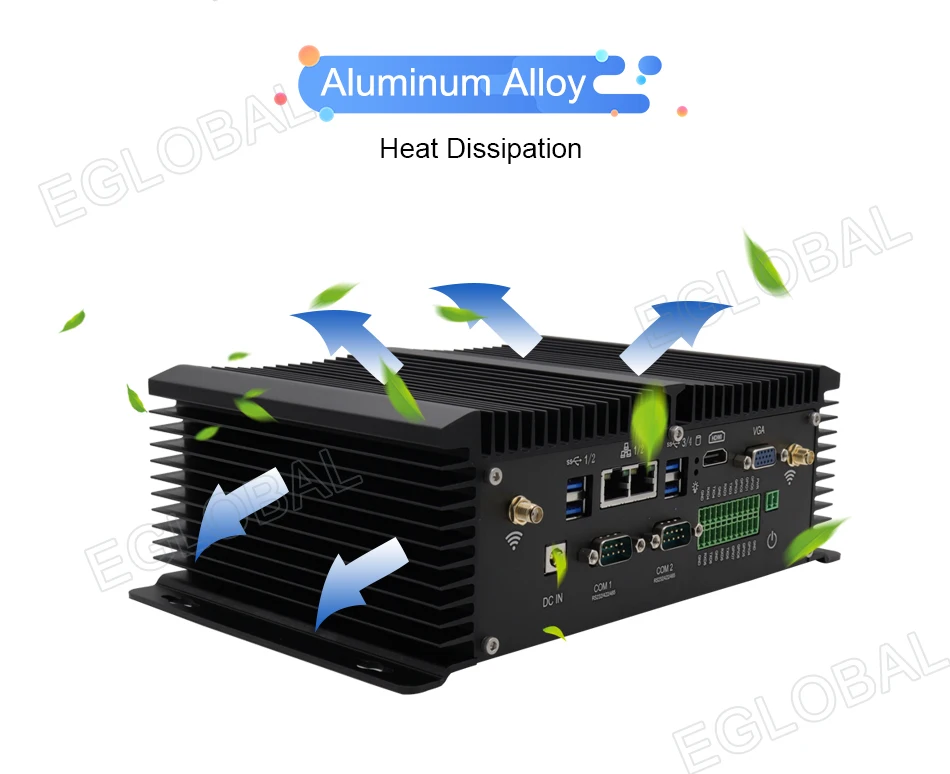

– Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.
– Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.

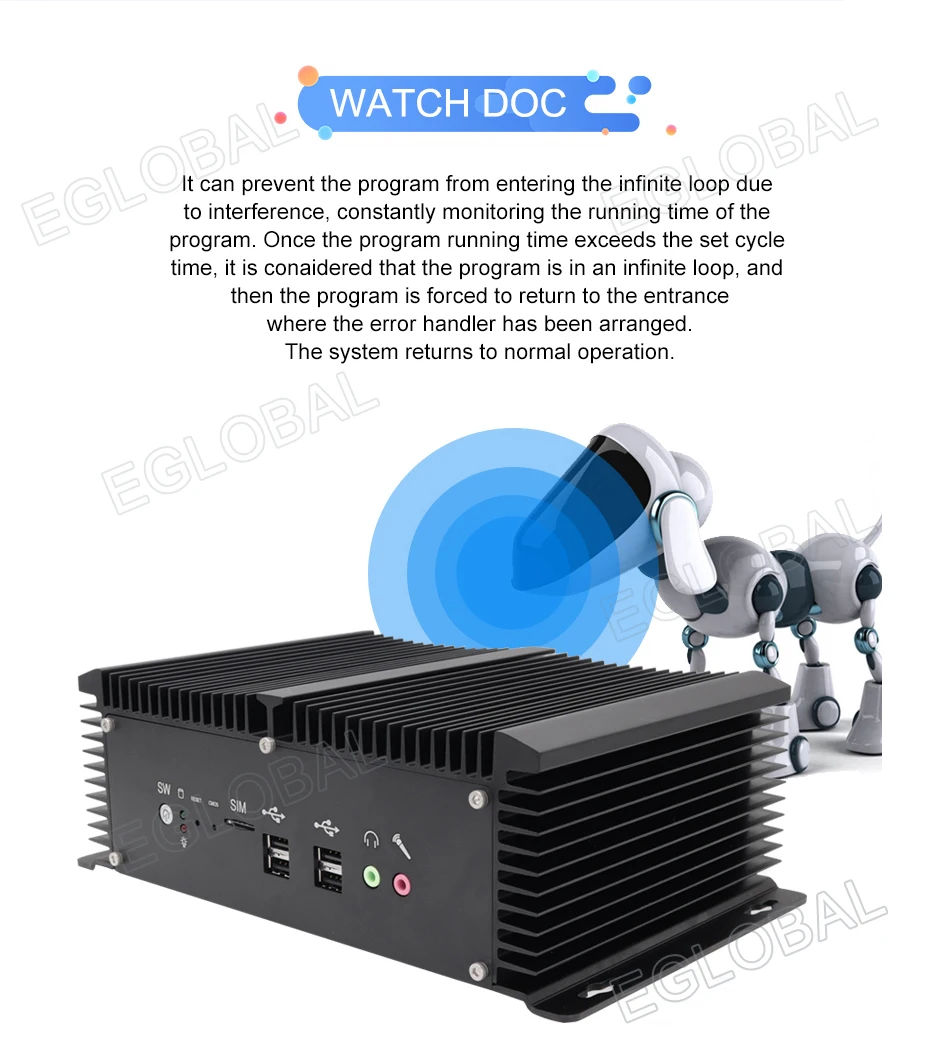

– Support Watchdog, Auto power on, RTC Wake Up, Non-disk boot, State lamp interface, Trigger switch(wafer 1*2).
– Low consumption TDP only 15W and can be mounted on the wall.


Specifications:


Basic Information:

CPU

Intel Core i5-8250u / Intel Core i7-7500u

TPD

15W



Motherboard

Xeon E3-1200 v6/7th Gen Intel Core/DRAM Registers – 5914 – 7th Gen Intel CPU Fami

BOIS

American Megatrends Inc. 5.12

Chipset

Intel KABYLAKE

Memory

2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB,

Dual channel, DDR4-2400, LPDDR3-2133

OS

Windows 10/Linux

PXE

YES

Audio

Intel High Definition Audio Controller

Network

Onboard Intel i211 Gigabit Network Connection, 10/100Mbps/1000Mbps BaseT LAN

Video

Intel UHD Graphics 620 / Intel HD Graphics 620

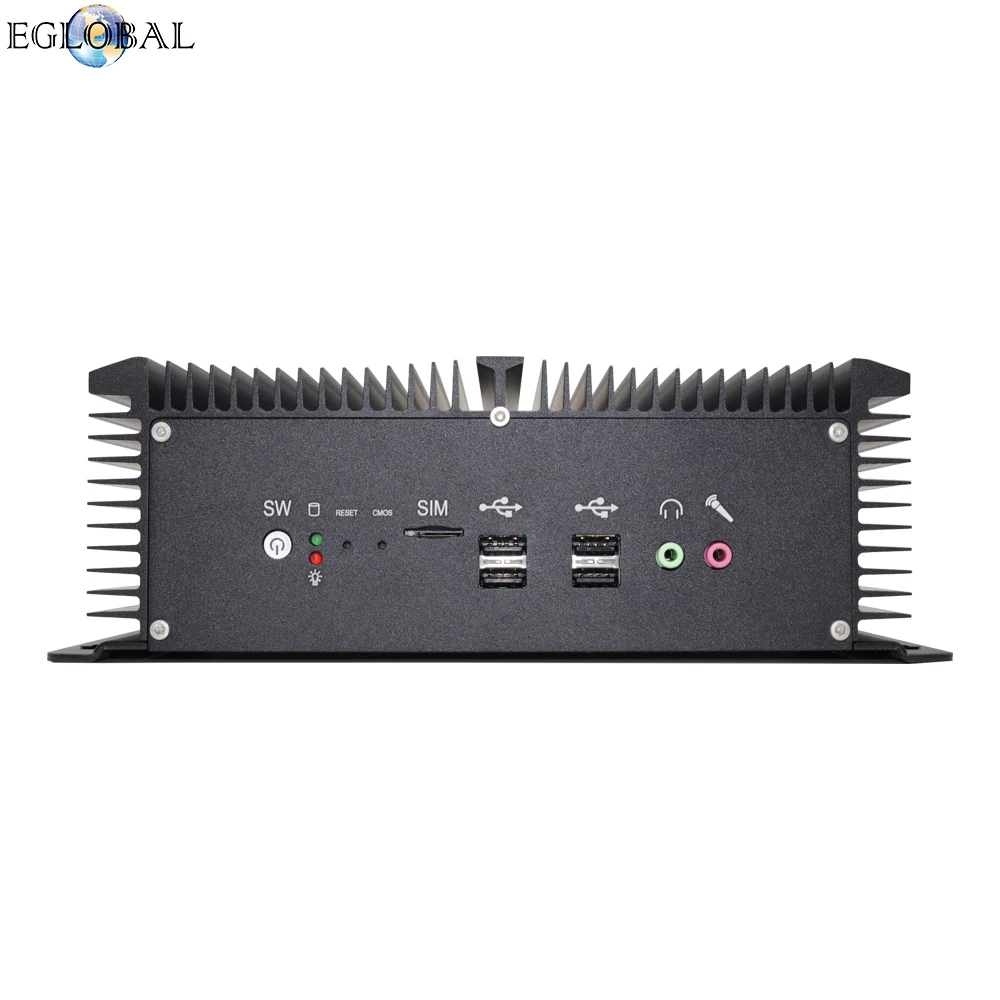

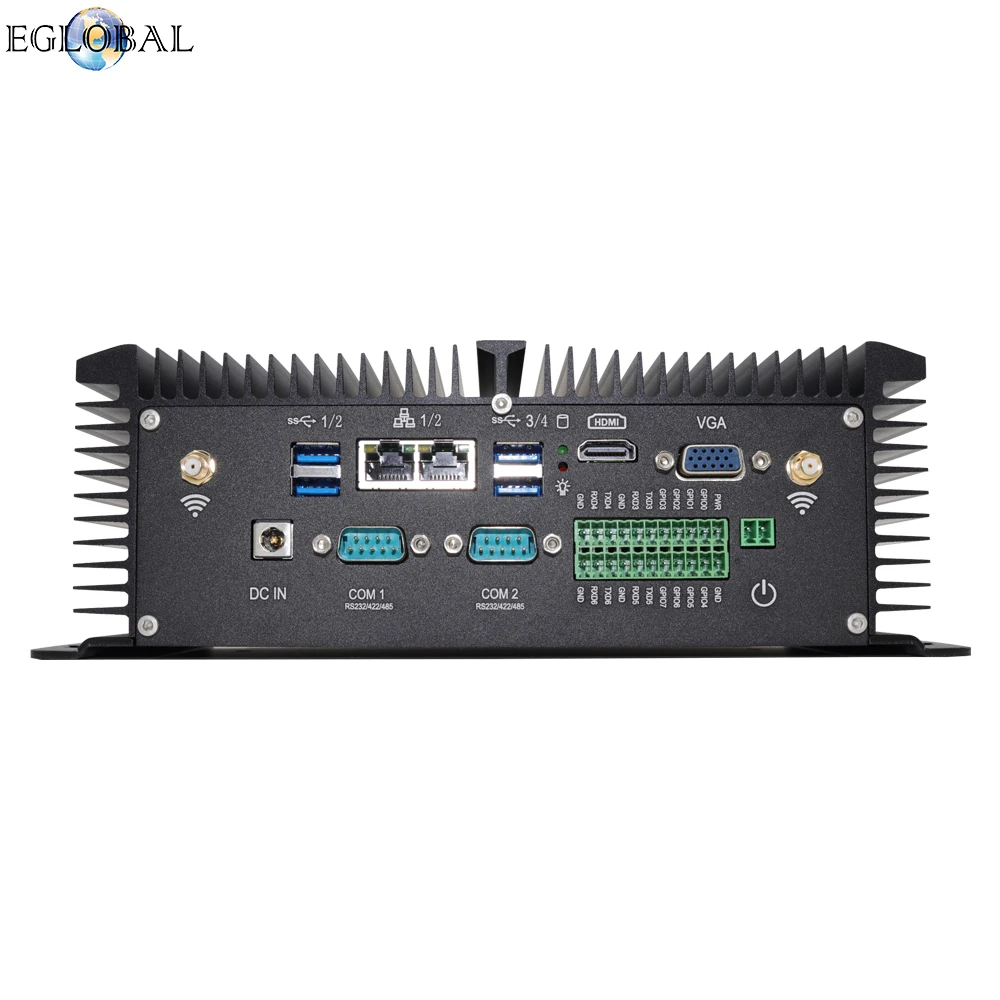

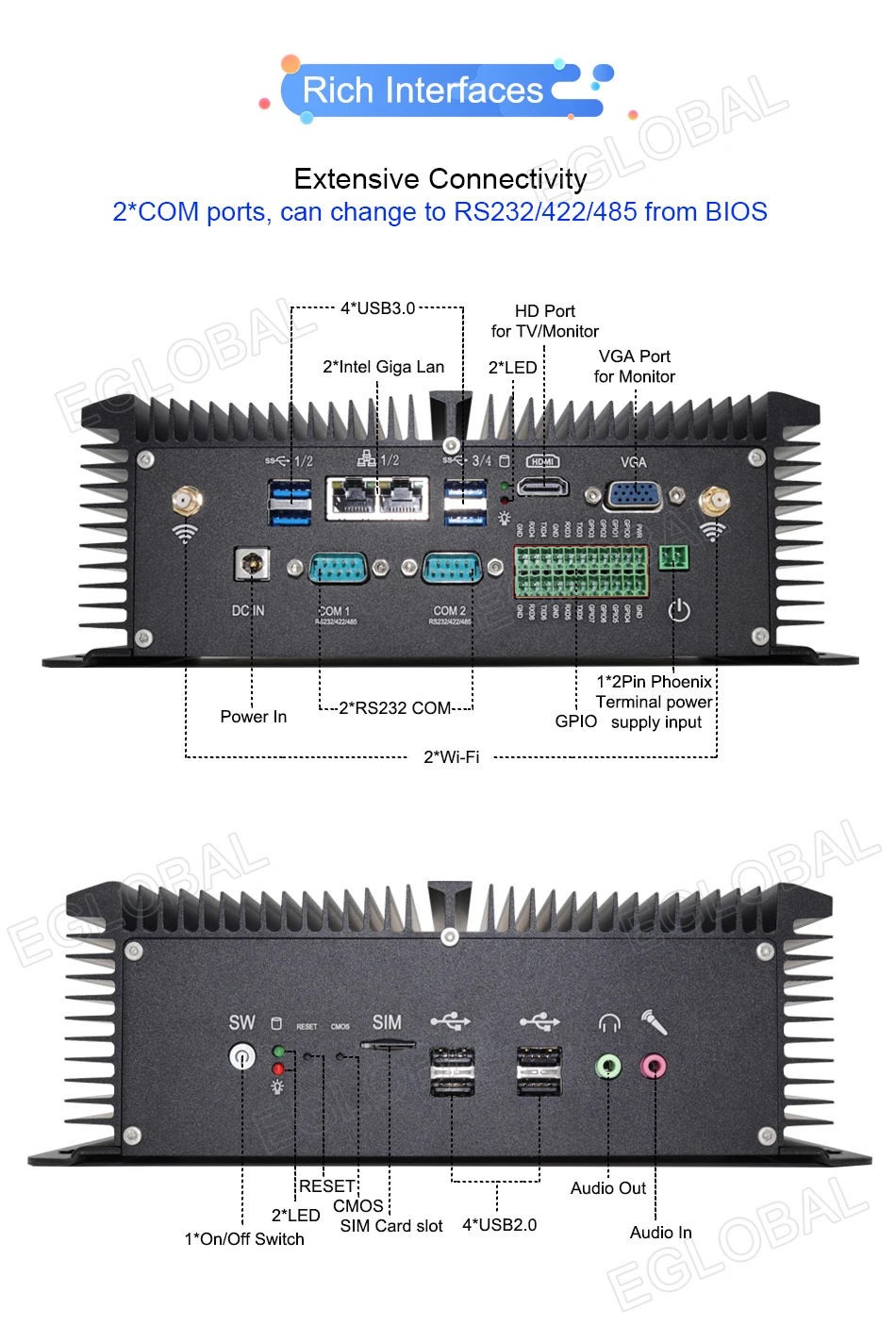

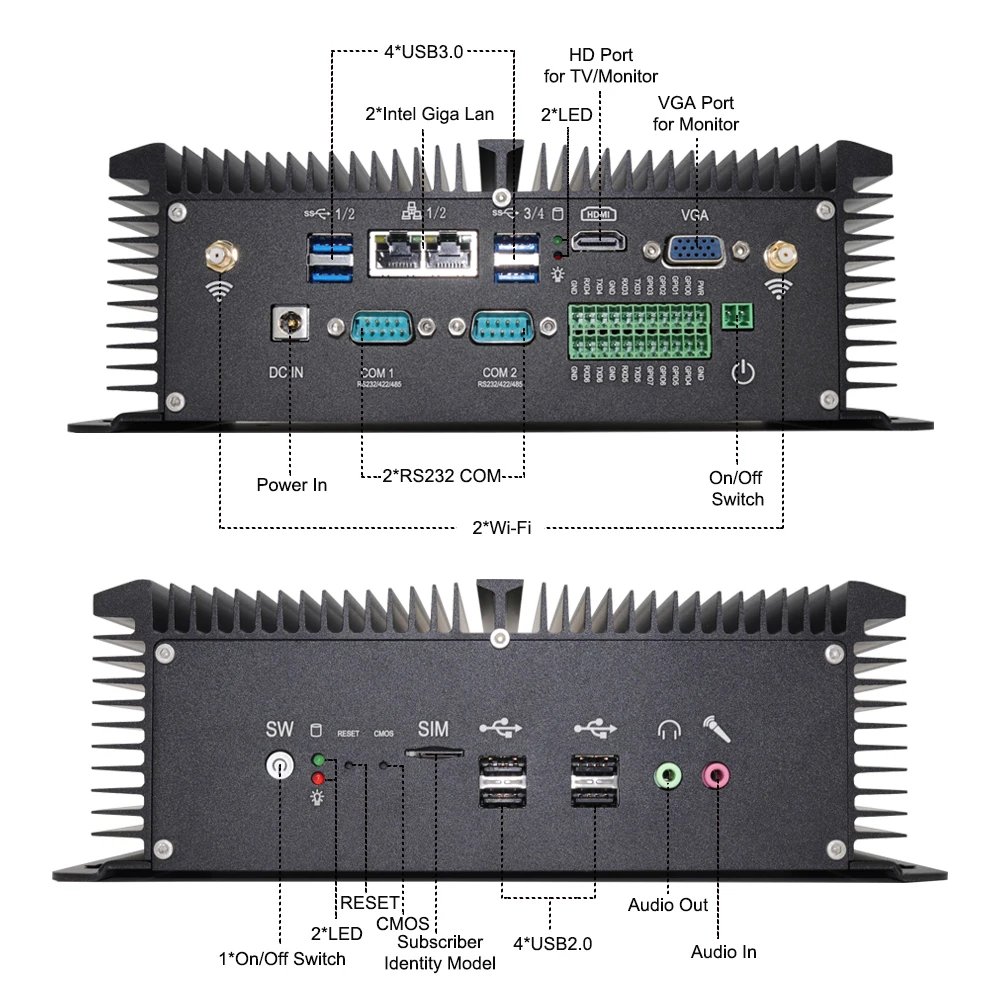

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

2 x LED

USB

4 x USB2.0, 4 x USB3.0

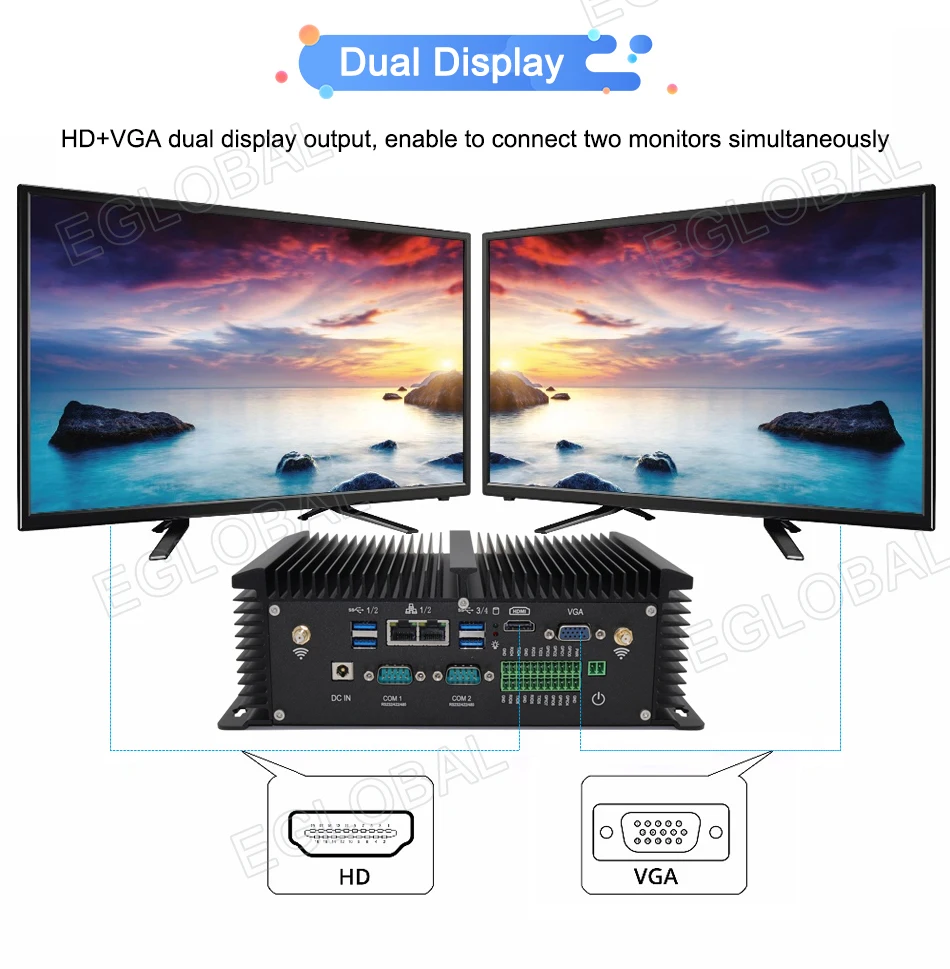

Display

1 x VGA, 1 x HDMI

LAN

2 x RJ45 Giga LAN

COM

2 x COM ports, can change to RS232/422/485 from BIOS

SIM

1 x SIM card slot with push function

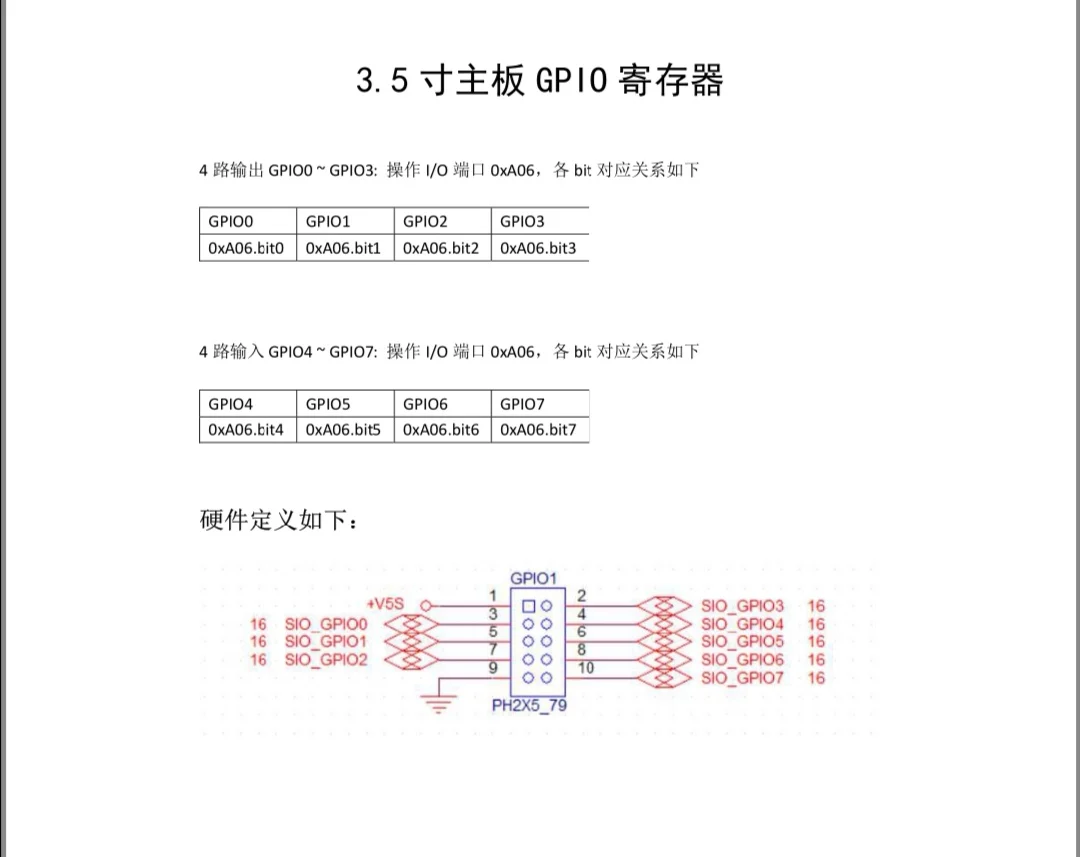

GPIO

1 x GPIO

Audio

1 x MIC, 1 x SPK



Others

1 x Reset, 1 x CMOS clear button, 1 x 2Pin Phoenix terminal power supply input

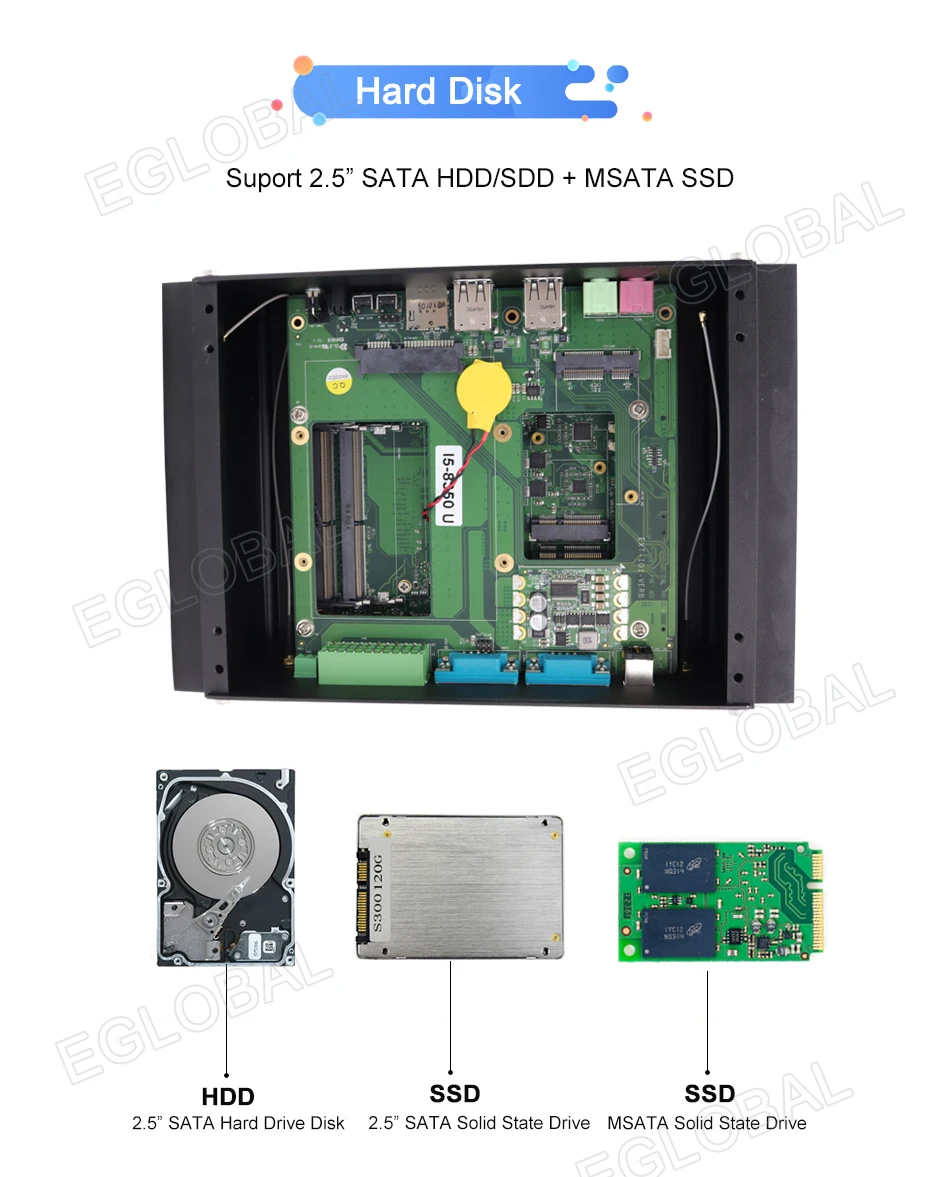

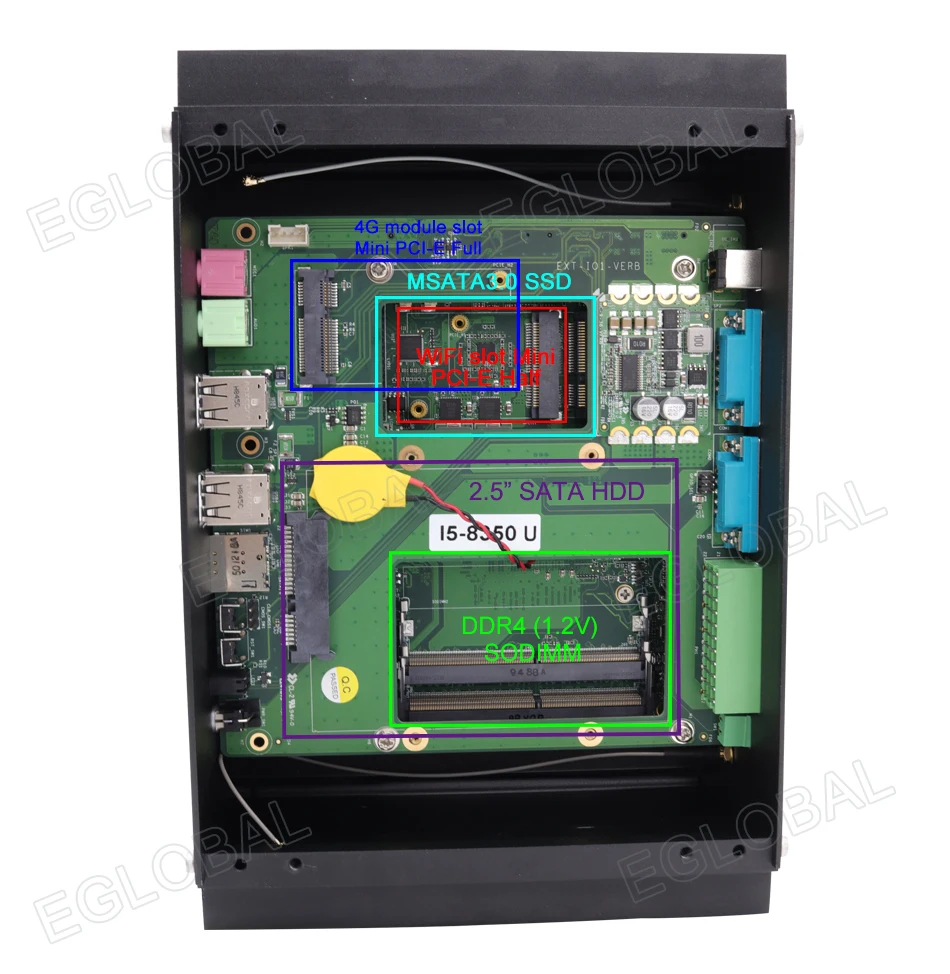

Storage



MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi



Module

1 x mini PCIE-half port for WiFi module

1 x mini PCIE-full port for 3G/4G module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +9V~+36V, recommend 12V/5A

Operating Temperature

0/+60Centigrade

Operating Humidity

0%~90% (non-condensing)

Storage Temperature

-20/+80 Centigrade

Storage Humidity

0%~50% (non-condensing)

Relative Humidity

20%~85% (non-condensing)

MTBF

MTBF = 50,000h

Vibration frequency (5~ 200 Hz)

(1g) acceleration amplitude (0.5mm)

Impact

Acceleration (10g) duration (11MS)

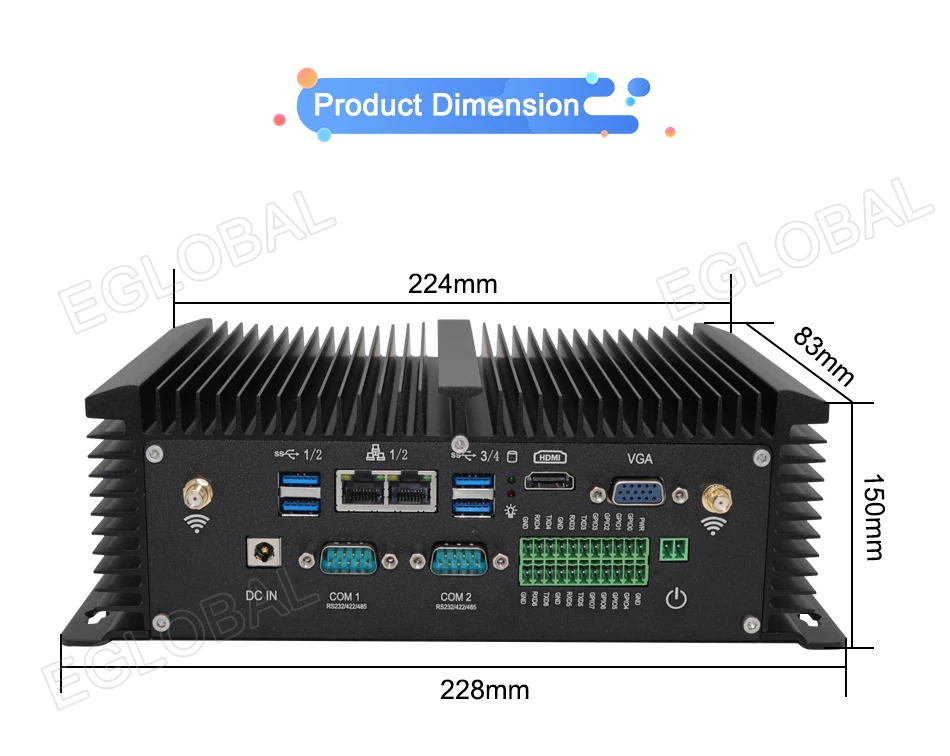

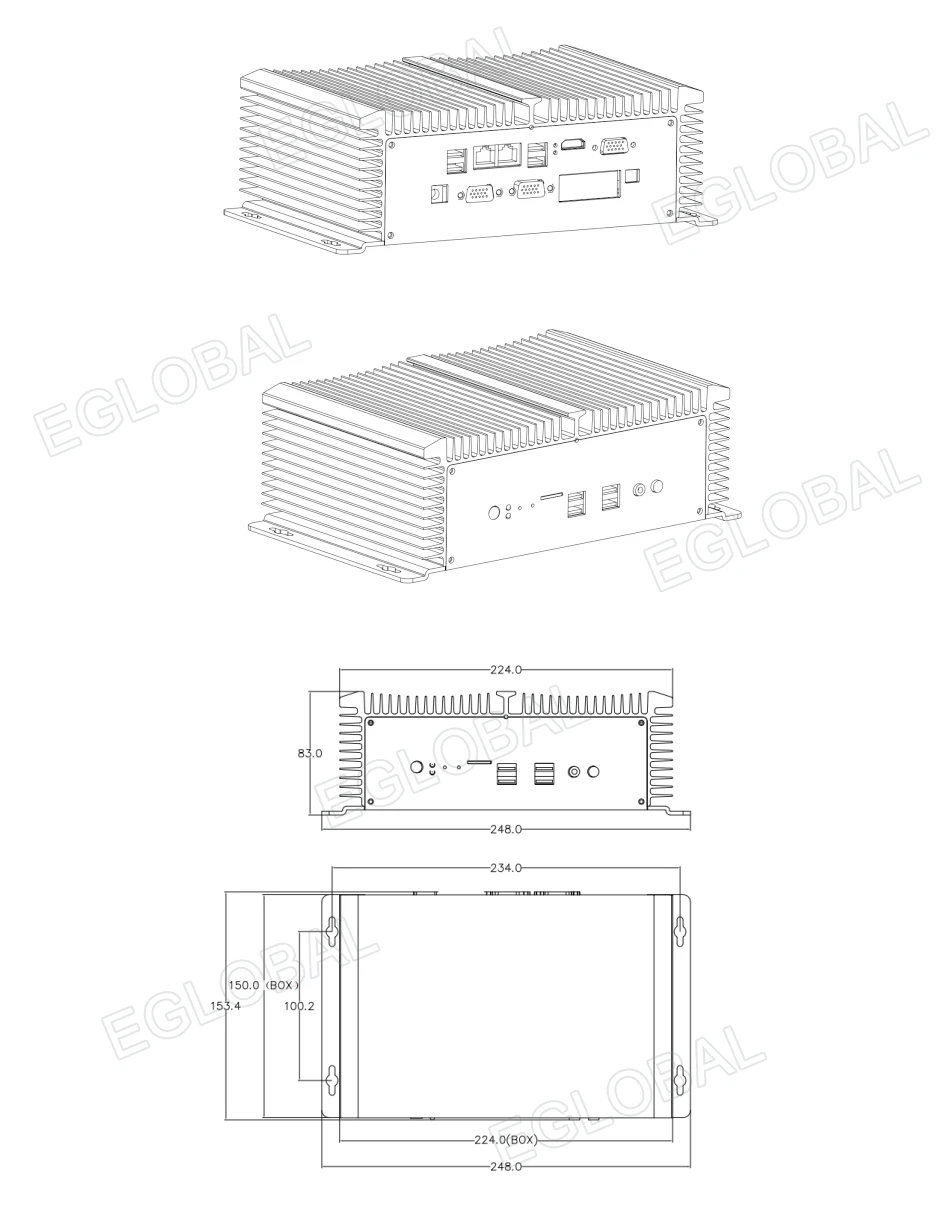

Product Dimension & Details

Size

150*83*224mm(248mm chassis)

Weight

3.5KG

Shell

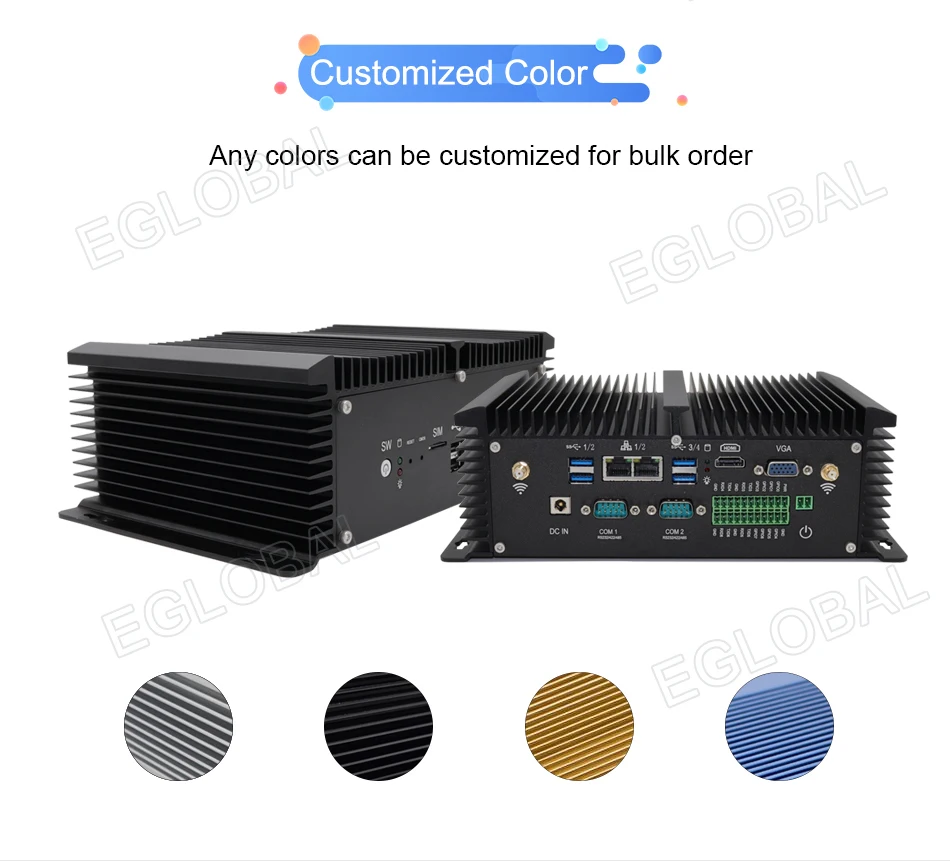

Black/Silver color aluminum alloy(any customized color for bulk order)

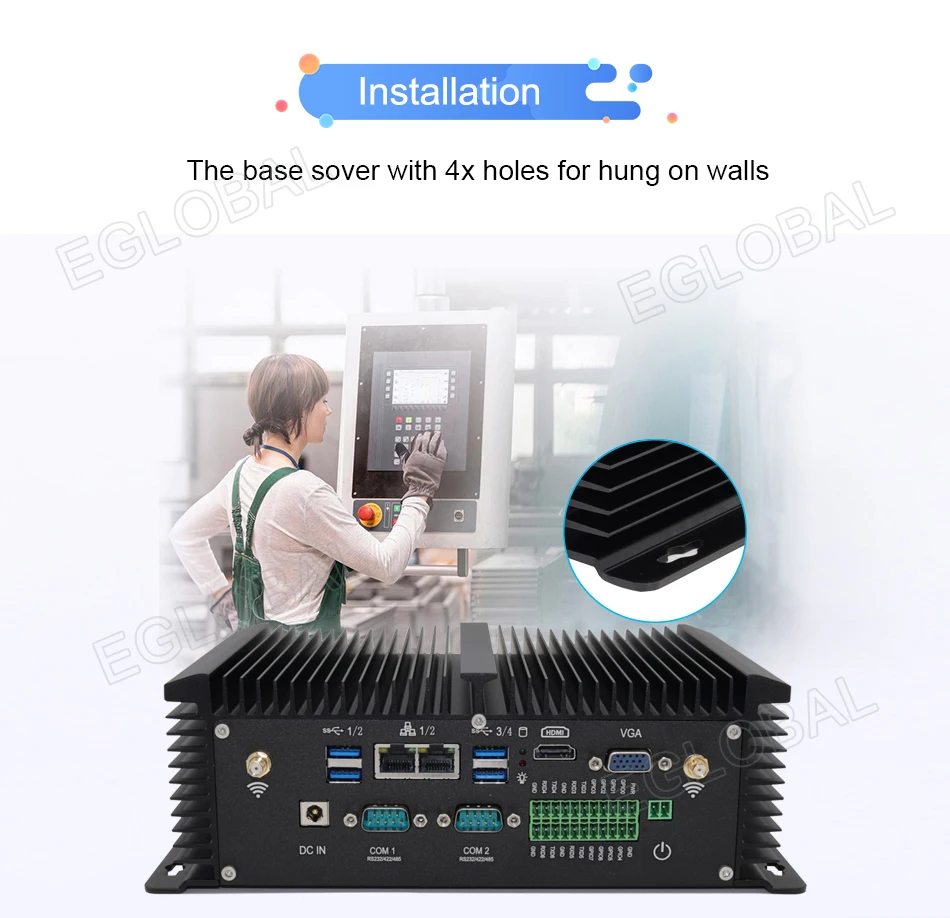

Mounting

4 Mounting holes on case

Cooling Mode

Fanless

Functions

Watchdog, Auto power on, RTC, State lamp interface, Trigger switch(wafer 1*2)

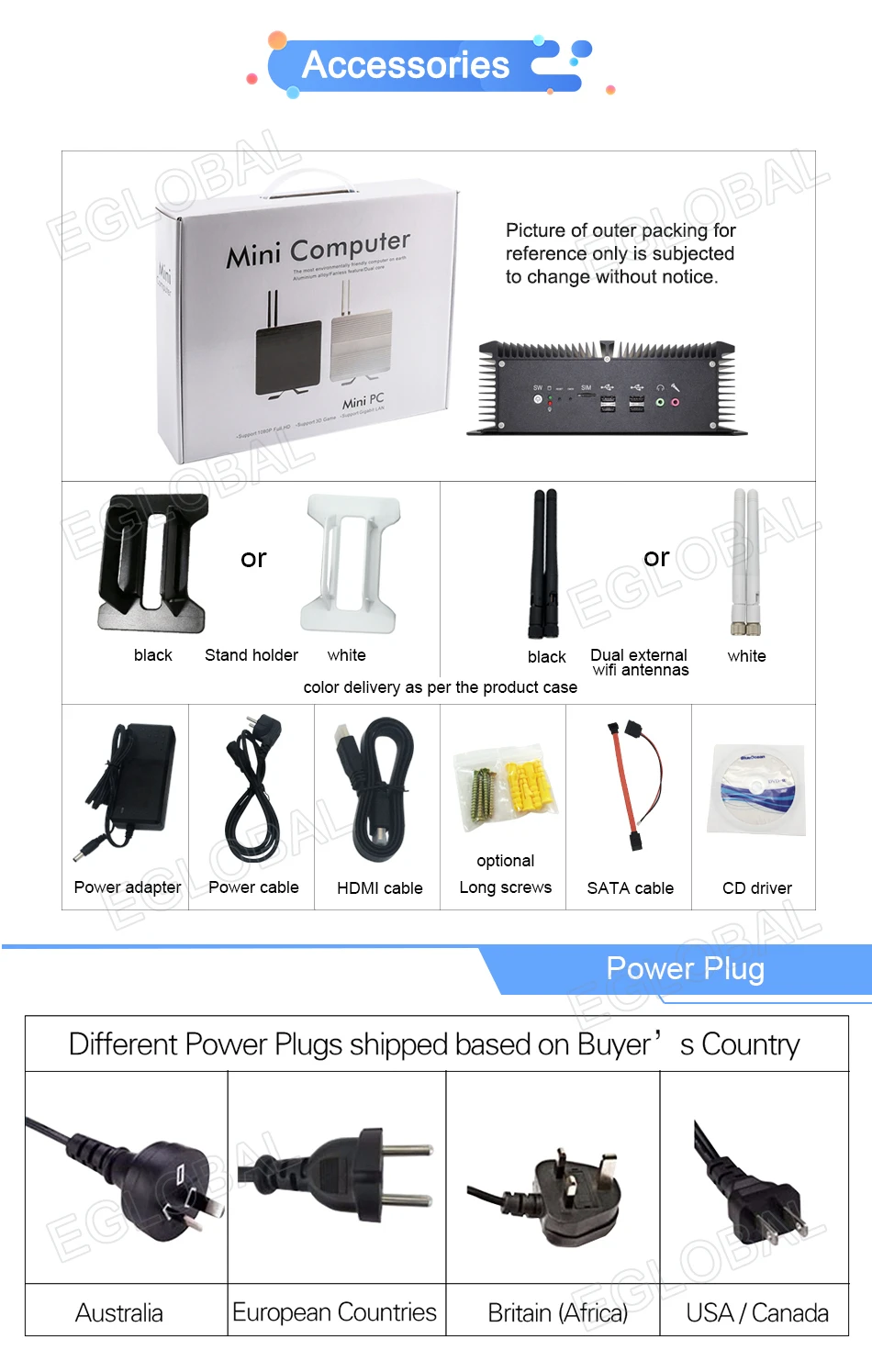

Package Content



Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Optional

1xWiFi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag

CPU: Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads processor

CPU: Onboard Intel Core i7-7500U 2.7GHz Max 3.5GHz Dual Core Four Threads processor



Kindly Remind:

1. Please note the Operating System you need when ordering.
2. If you have any requirment about Commercial Invoice, please let us know.
3. If you need printe logo in your mini pc, please send us the HD picture.
4. If you choose the “NO RAM NO SSD HDD”, it’s belong to barebone system, it can’t install the OS if there are no SSD.
5. Please note the PLUG used in your country when ordering.
6. Please make sure the shipping address, zip code and tel-number are correct before payment.
7. The buyers are responsible for all additional custom fees, brokerage fees, duties, and taxes for importation into your country.
8. All SIM-enabled mini PCs need to purchase additional 3G / 4G modules.




Tips:

1. USB Infrared remote (can turn power off but not on) add extra cost US$14.
2. 300M WiFi uprade to 5GHz AC WiFi&bluetooth, only add extra cost US$5.
3. Bluetooth4.0 USB Dongle add extra cost US$5.
4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
6. Genuine OEM windows license sticker add extra cost 35$.
7. 500GB 2.5” HDD add extra 50$, 1TB 2.5” HDD add extra 65$, 2TB 2.5” HDD add extra 100$.
8. 3G Module add extra $13, 4G Module add extra $43.
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for…)

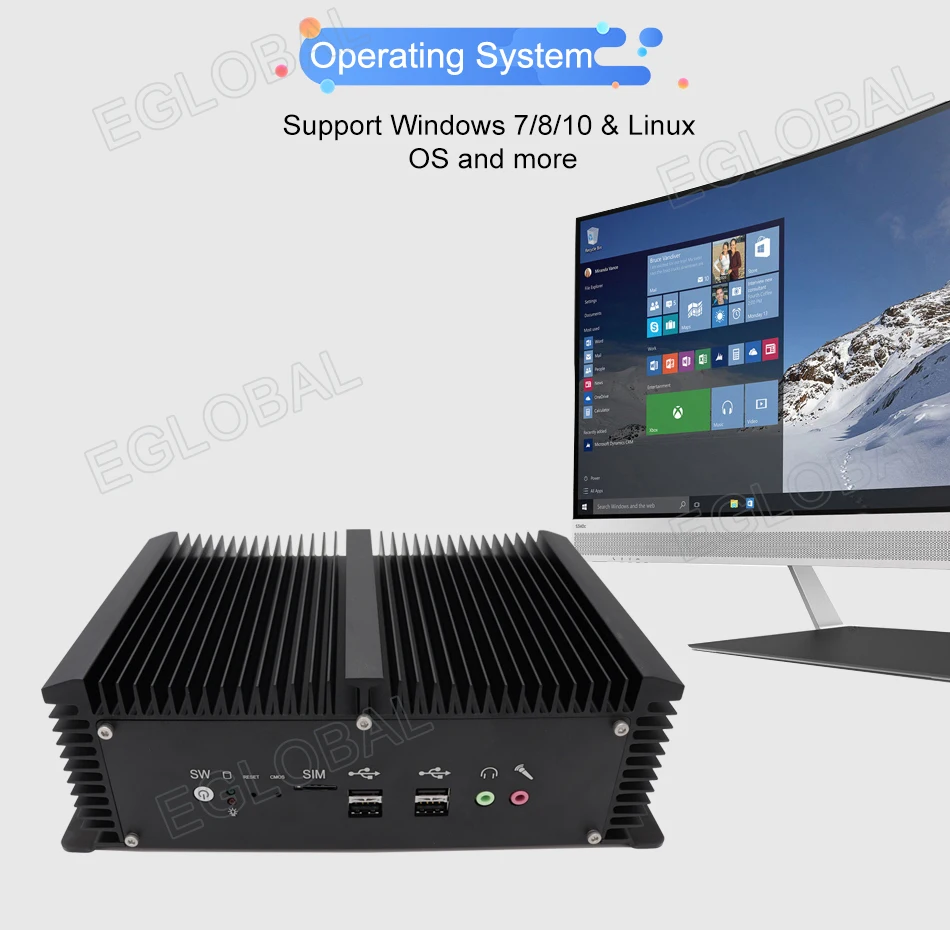

System:

Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among:  Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install.  Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.

Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5” SSD/HDD.

Brand Name:
EGLOBAL
Processor Model:
Intel Core i5 8250U
Memory Capacity:
≤ 128MB
Hard Drive Capacity:
≤ 40GB
Type:
Mini Desktop
Model Number:
G4
Use:
Commercial
Processor Main Frequency:
1.6GHz up to 3.4GHz
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Type:
MINI PC
Operating System:
Windows, Linux, Ubuntu
Feature:
Fanless System, Noiseless
Color:
Black/Silver
Memory Type:
2*DDR4/DDR3L Non-ECC SO-DIMM
Ethernet port:
2*Intel i211 Gigabit RJ45 Lans
Case Material:
All aluminum alloy
Storage Capacity:
1 pcs Msata SSD+1pcs 2.5''SATA
Graphic Cards:
Intel HD Graphics
Function:
Watchdog, Auto power on
