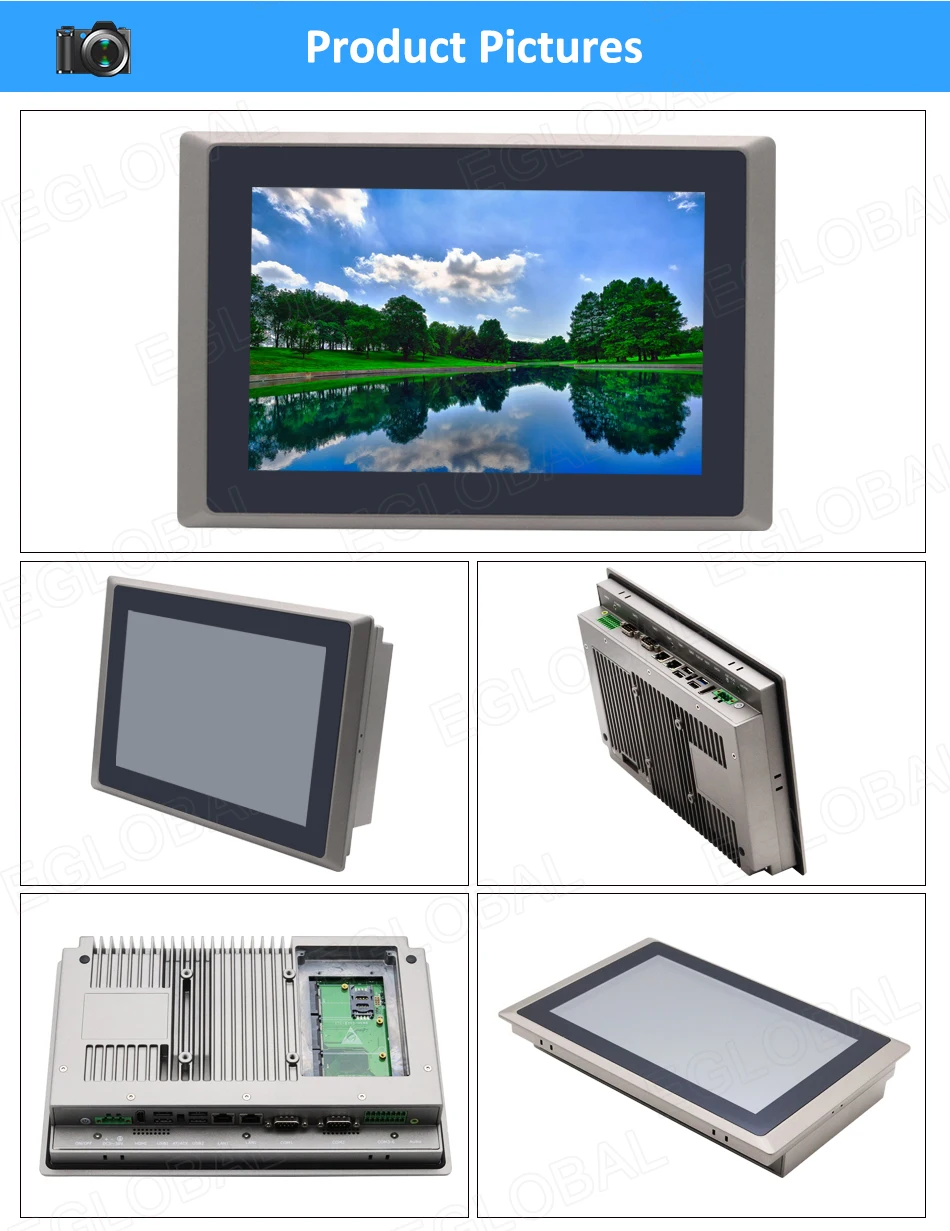

Industrial All in One PC Core i5 7200U i7 7500U Onboard 8GB DDR3L RAM Barebone System Touch Screen Desktop Computer 17” Monitor

0 orders
()
Total Price:
Best price guarantee
Quantity:
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Product Highlight:

– Onboard DDR3L 8GB Memory and optional SODIMM slot.

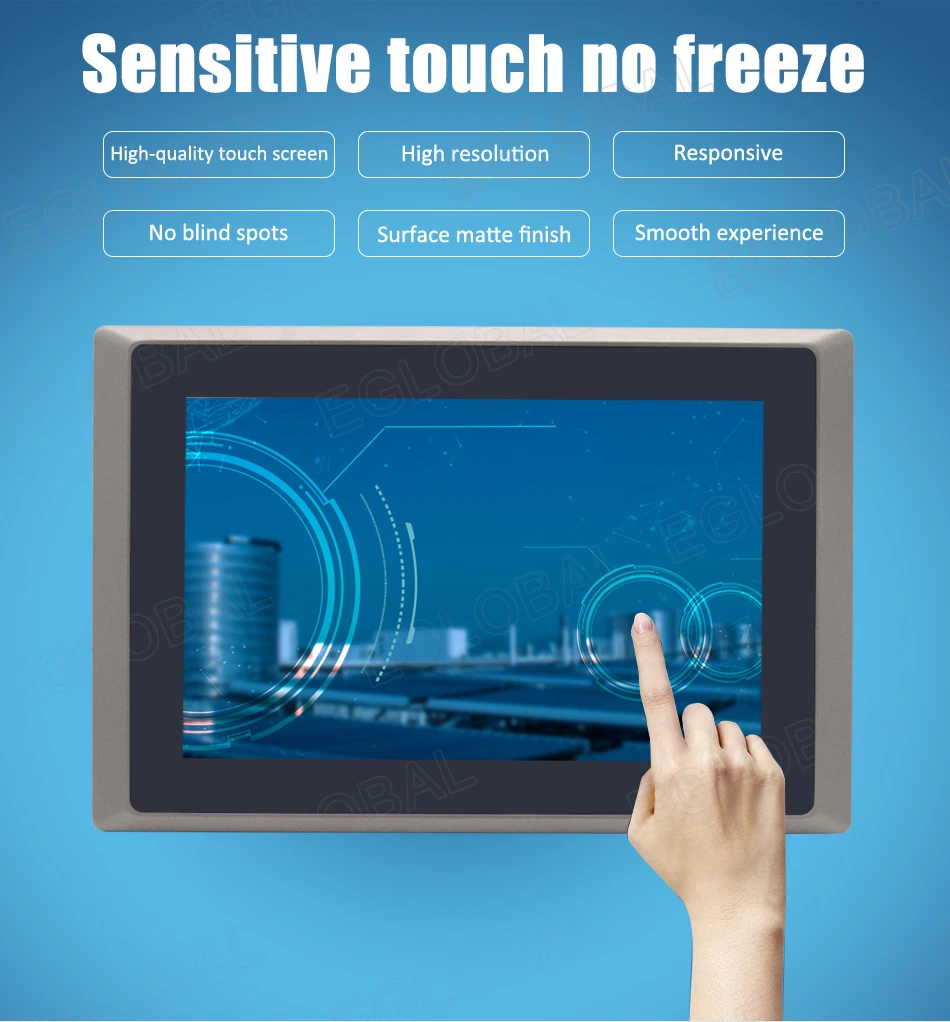

– LCD+HDMI dual display, Full-plane sensitive touch screen in synchronous/asynchronous mode.

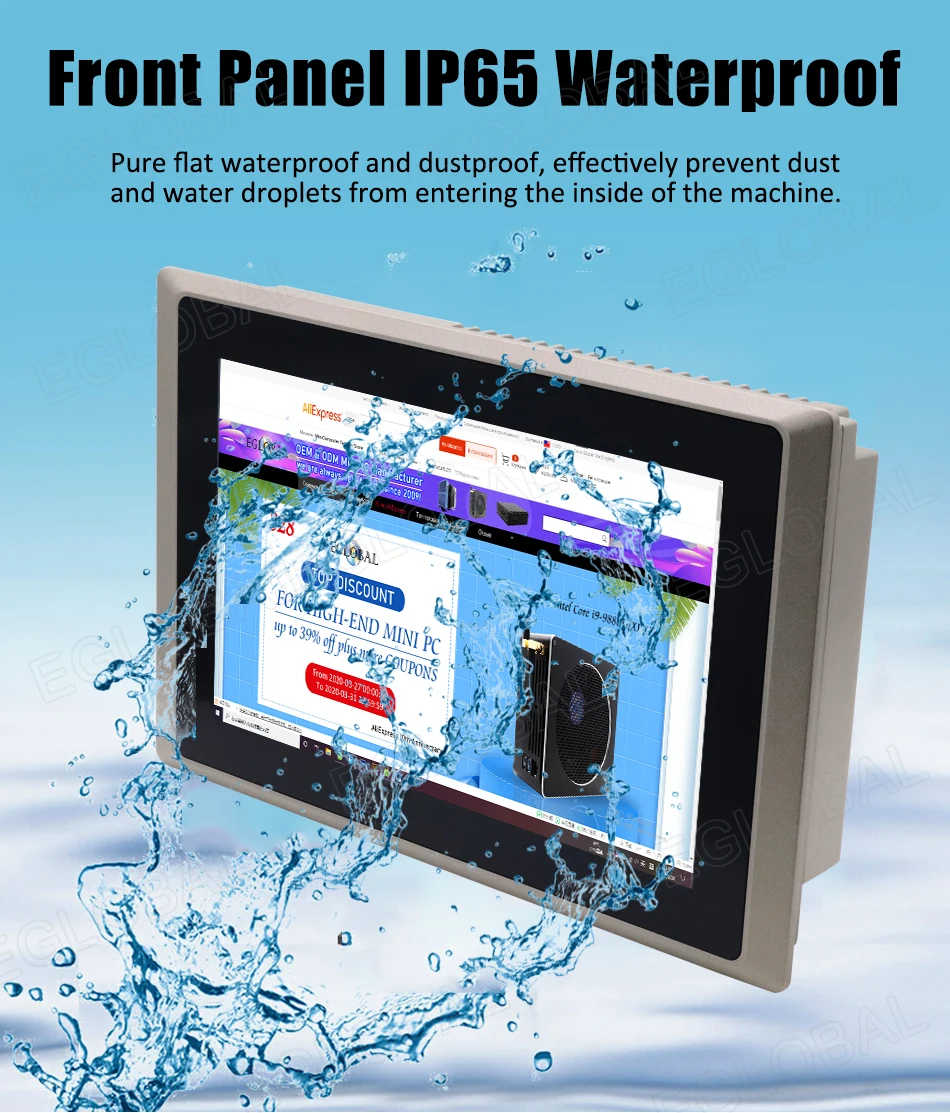

– Front Panel IP65 Waterproof.
– Low consumption 9~36V wide voltage input.
– Aluminum Alloy case and fanless system without cooling fan, no any noisy.
– Rich interfaces fit for many applications and multiple processors for your option.

Specifications:


Basic Information:

CPU

Intel Core i5-6360U/Intel Core i5-7200U/Intel Core

TDP

15W

Chipset

Refer to CPU

Memory

Onboard DDR3L 8GB RAM

OS

Windows 7/Windows 8/Windows 10/Linux/ WES7

Watchdog timer

1 ~ 255 seconds programmable

Video

Refer to CPU

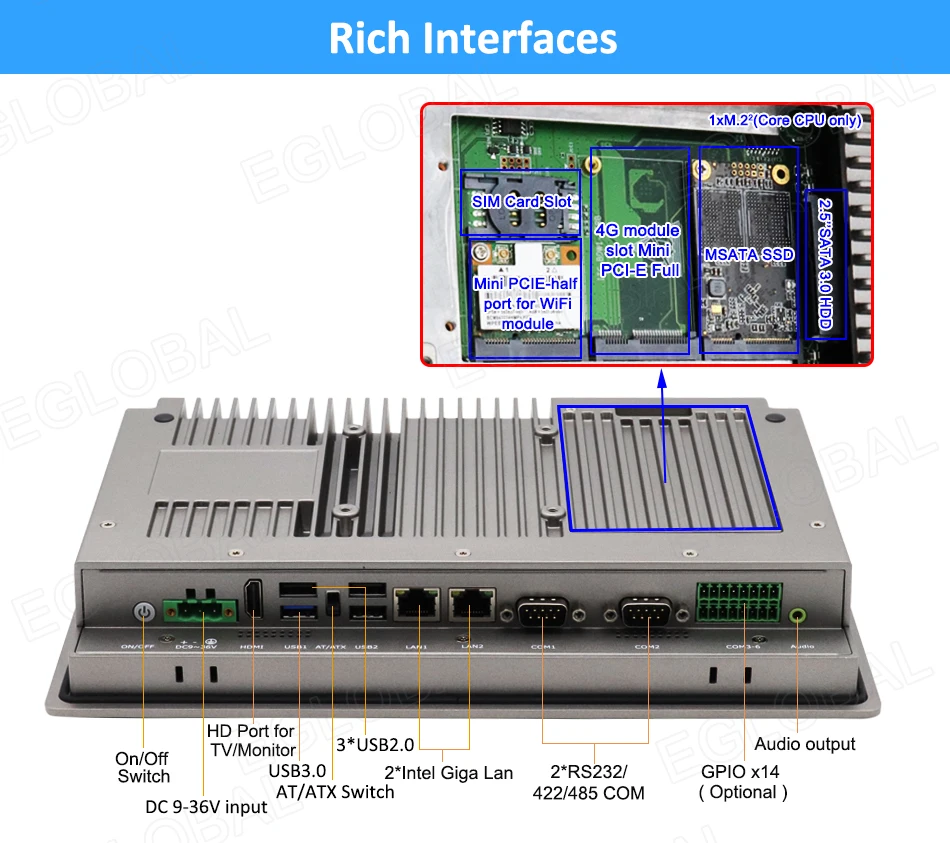

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x DC 9 ~ 36V 3-pin Phoenix Terminal

Amplifier

2 x 8Ω 1W Amplifier output (Optional)

USB

3 x USB2.0, 1 x USB3.0, Built-in 1xUSB2.0 Dongles Port

Display

1 x HDMI

LAN

2x Gigabit Ethernet RJ45 Intel i211-AT

Audio

1 x Audio Line-out

COM

2 x DB-9 COM1&COM2,RS-232/422/485

GPIO

1 x 14bit GPIO (Optional)

Others

2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal

2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal

1x Phoenix terminal remote switch interface

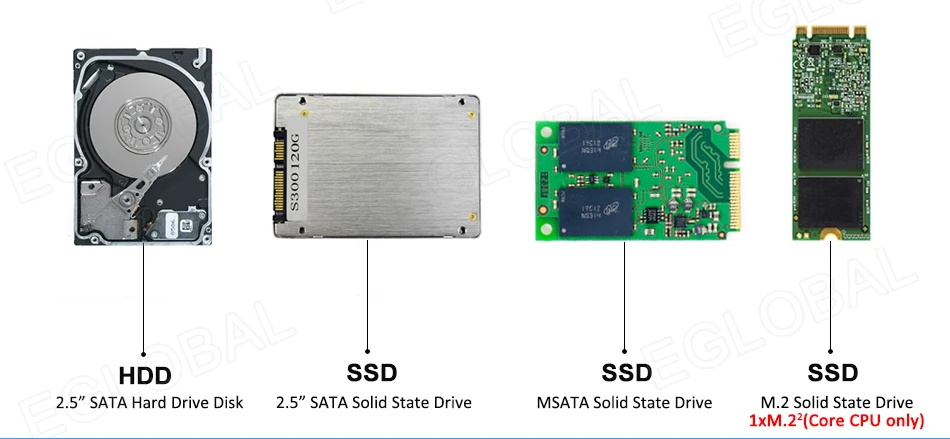

Storage



MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

1xM.2² (Core CPU only)

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi



Module

1x Mini PCIE Half port for WiFi module

1x Mini PCIE Full port for 3G/4G module

Antenna

2 x inner RF cables without external antennas,

Power and Working Environment

Input

DC 9 ~ 36V 3-pin Phoenix Terminal

Operating Temperature

-20°C ~ 60°C

Storage Temperature

-30°C ~ 70°C

Storage Humidity

10~90% @30°C, non-condensing

Display Information



LCD Type

17″ TFT-LCD

Resolution

1080×1024

Max color

16.2M

Brightness

250 cd/m²

Perspective (CR>=10)

-85~85° (H), -85~85° (V)

Backlight

LED

Backlight life (hour)

30,000

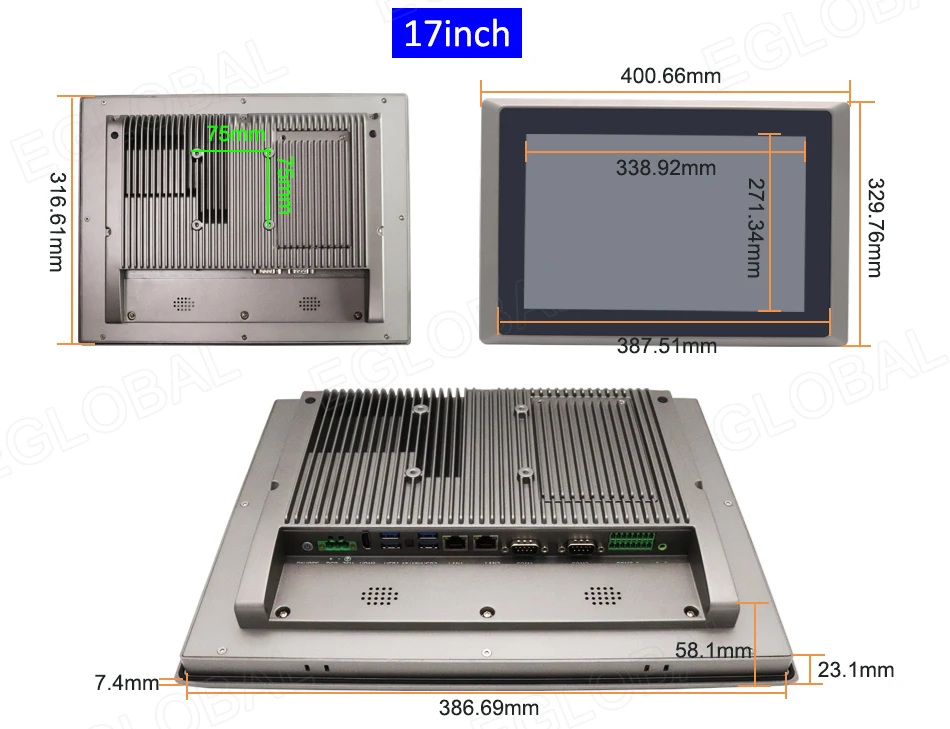

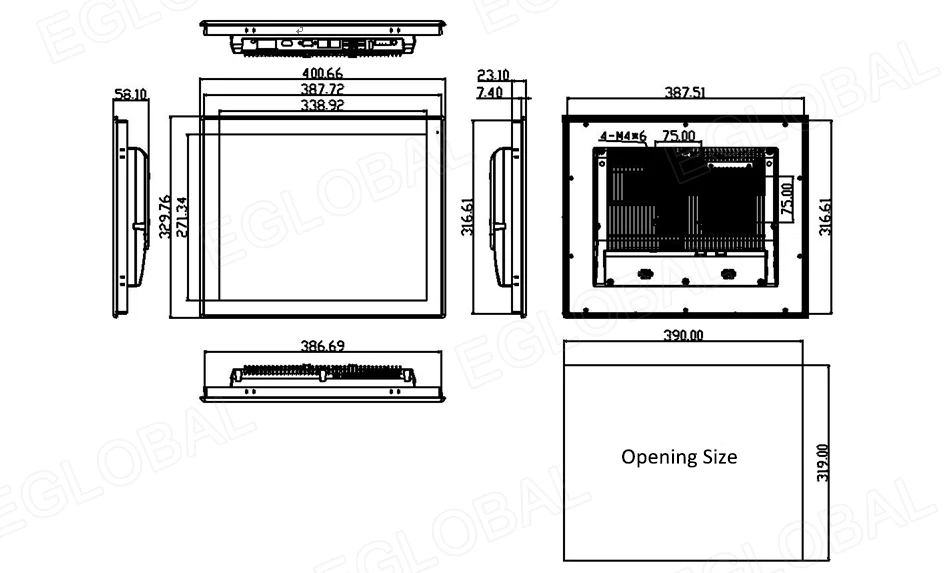

Product Dimension & Details

Size

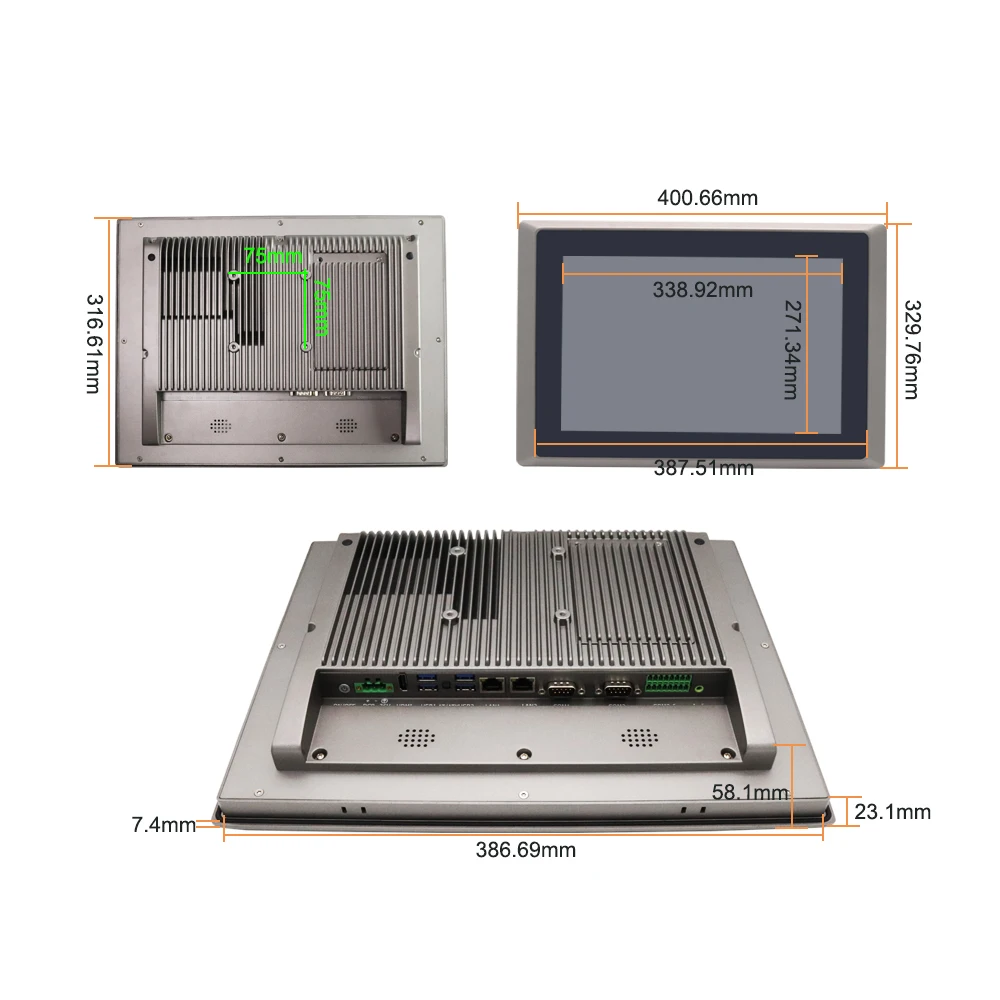

400.66*329.76*58.1 mm

Weight

Net 7kg, Gross 7.5kg

Shell

Silver color aluminum alloy(any customized color for bulk order)

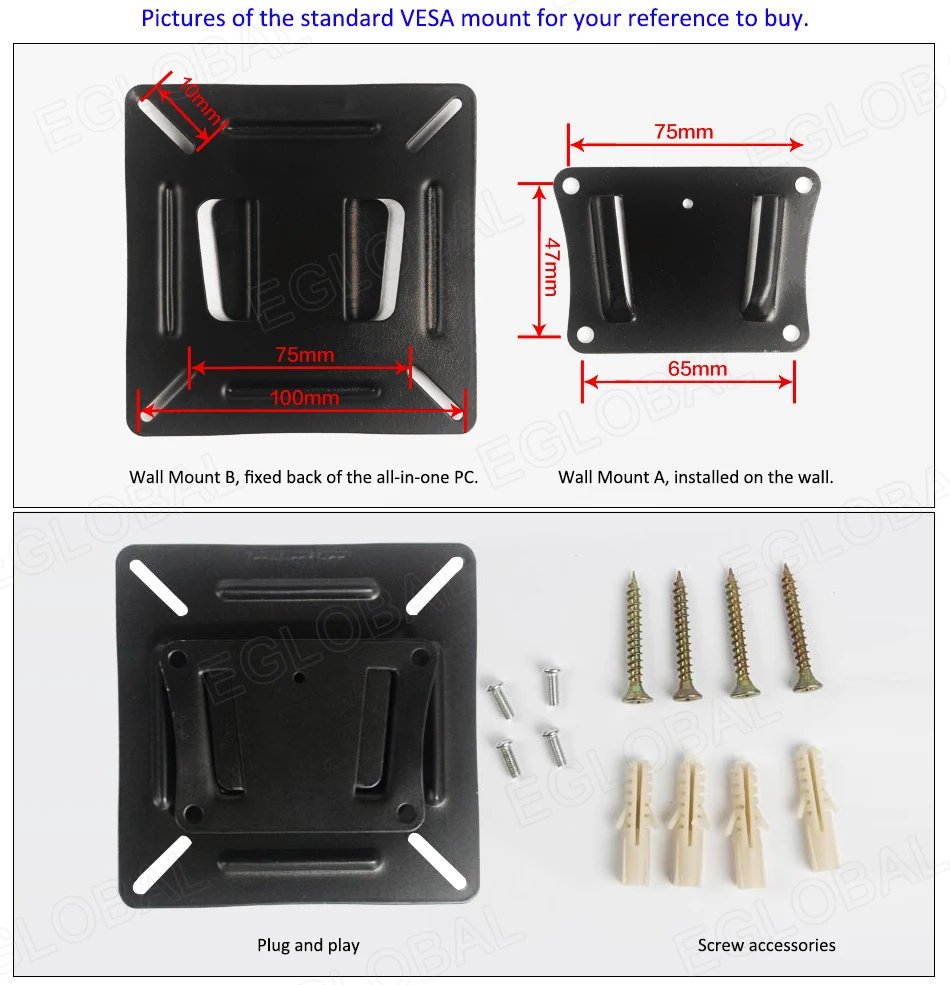

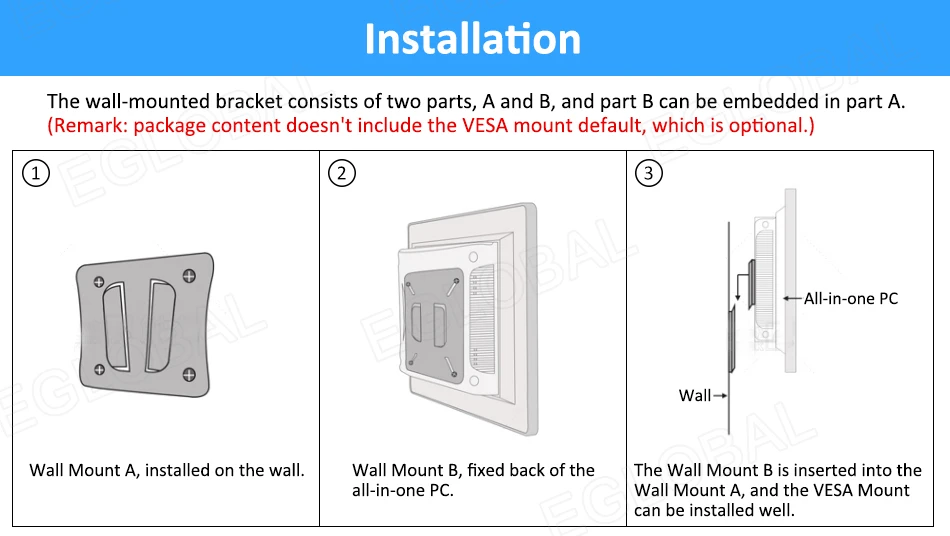

Installation method

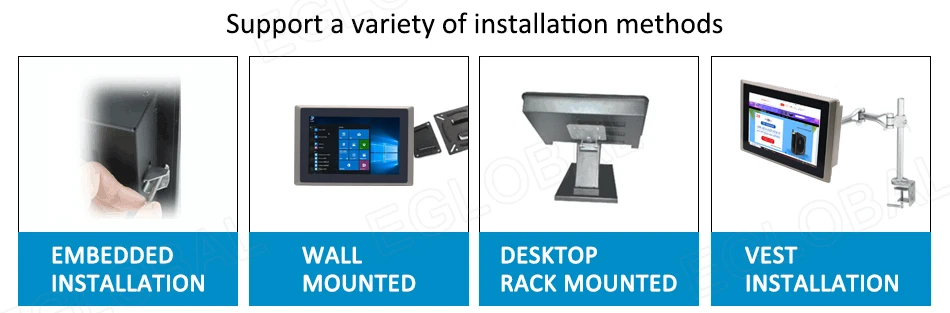

VESA 75/ Panel mounting

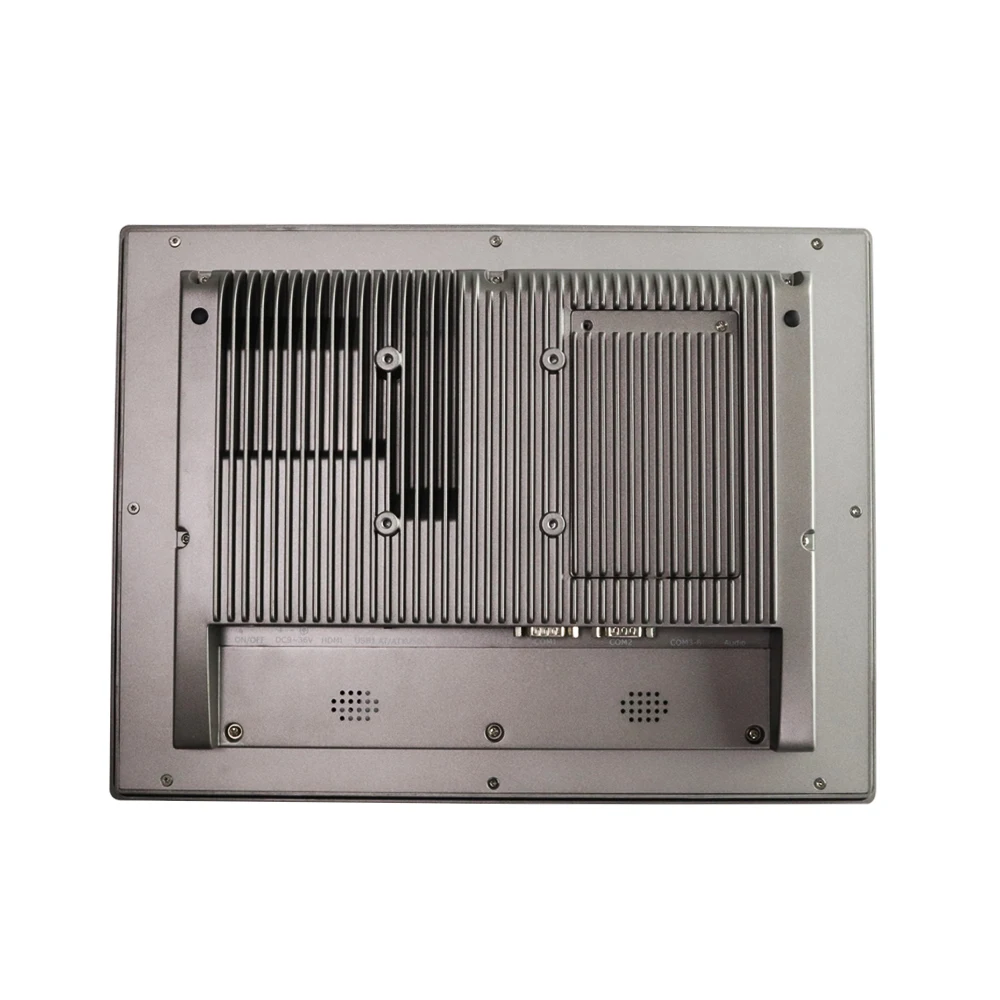

Cooling Mode

Fanless

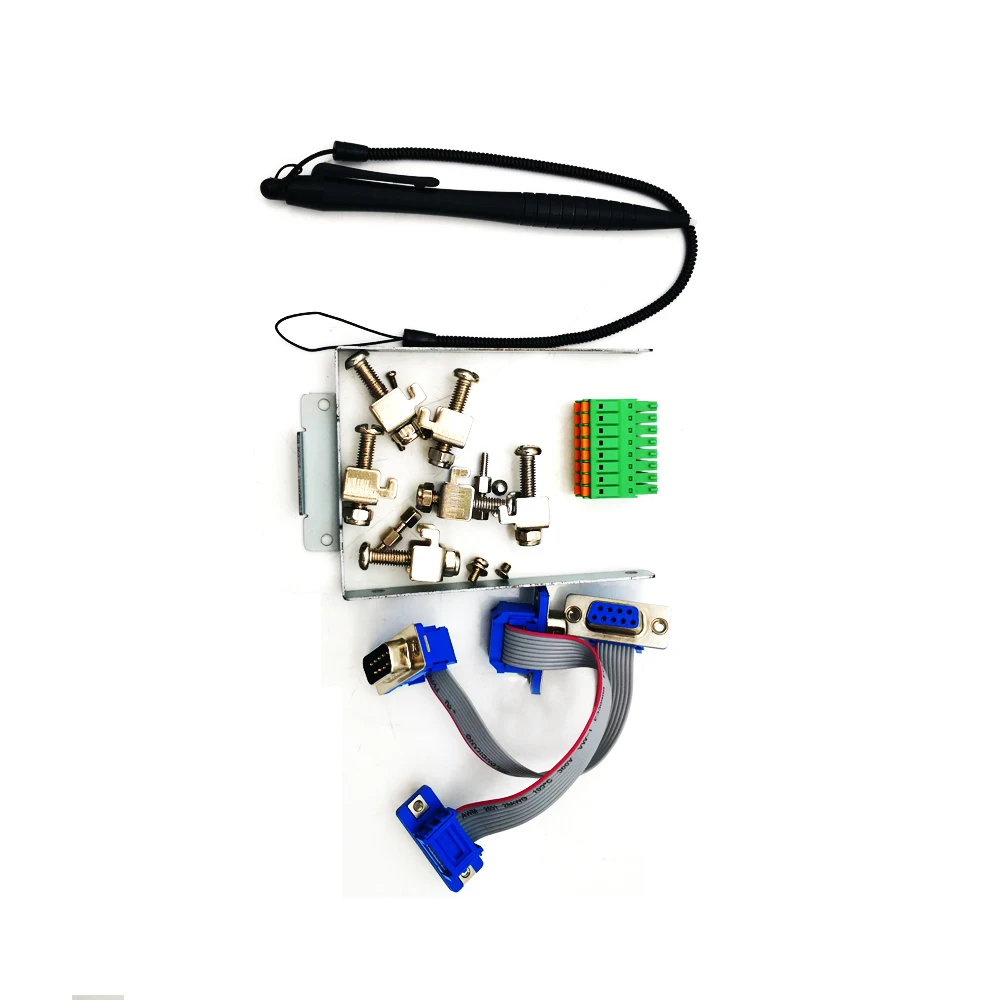

Package Content



Standard

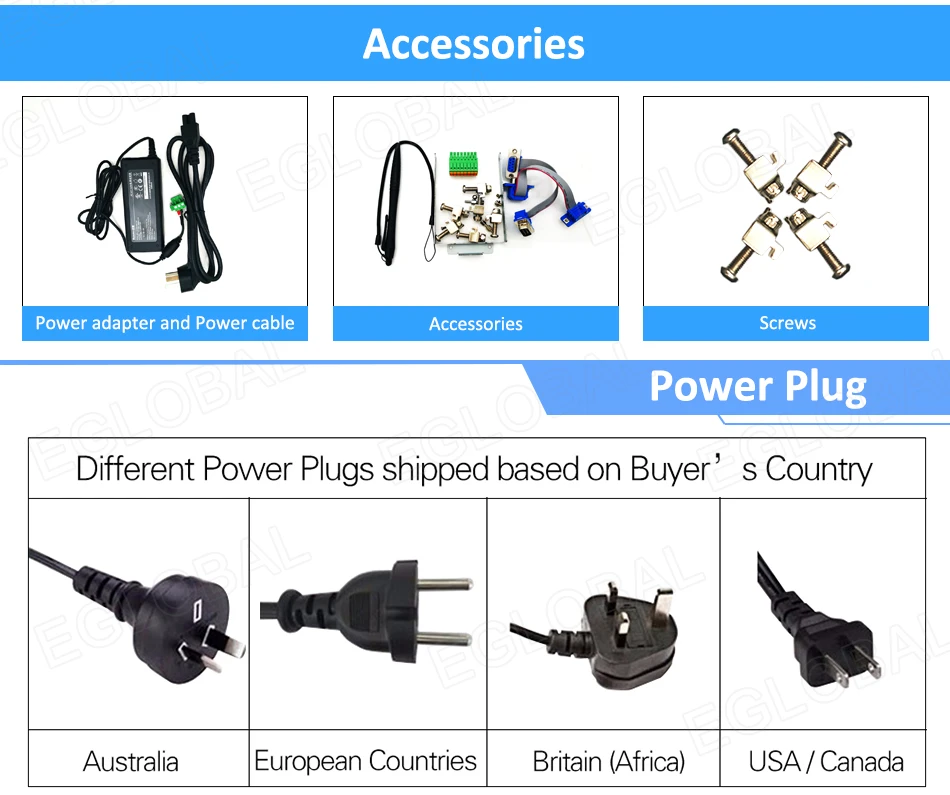

1xAll-in-one PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xTouchpen

Touch Screen Information



Type

5-wire resistive

Transmitiance

85%

Lifetime

250g clicks 10 million times



Kindly Remind:



1. Please note the Operating System you need when ordering.
2. If you have any requirment about Commercial Invoice, please let us know.

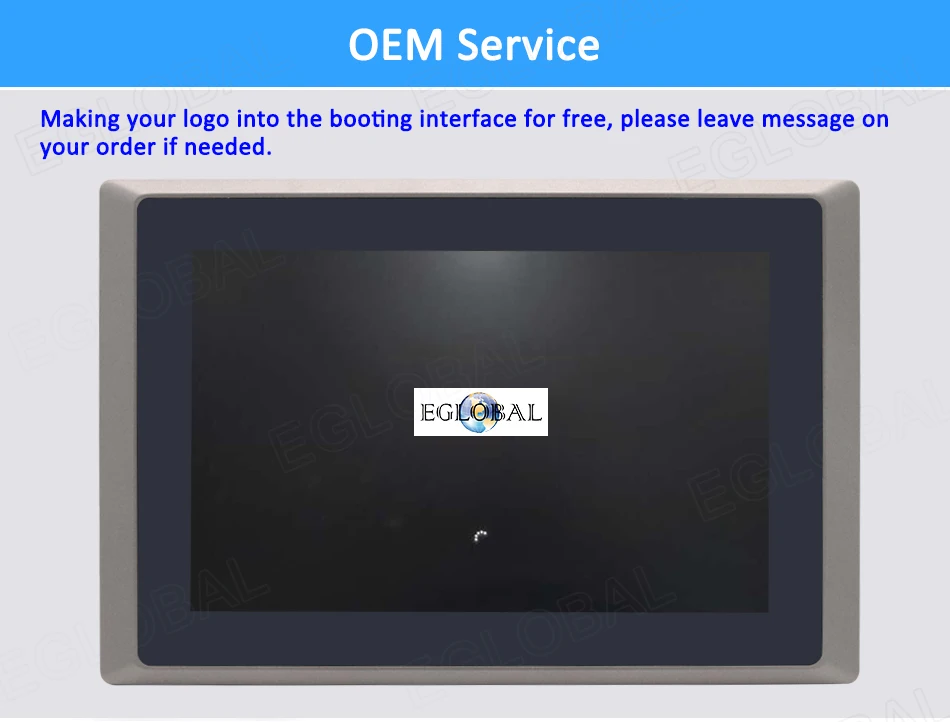

3. If you need printe logo in your mini pc, please send us the HD picture.
4. If you choose the “NO RAM NO SSD HDD”, it’s belong to barebone system, it can’t install the OS if there are no SSD.
5. Please note the PLUG used in your country when ordering.
6. Please make sure the shipping address, zip code and tel-number are correct before payment.
7. The buyers are responsible for all additional custom fees, brokerage fees, duties, and taxes for importation into your country.
8. All SIM-enabled mini PCs need to purchase additional 3G / 4G modules.




Tips:

1. USB Infrared remote (can turn power off but not on) add extra cost US$14.
2. 300M WiFi uprade to 5GHz AC WiFi&bluetooth, only add extra cost US$5.
3. Bluetooth4.0 USB Dongle add extra cost US$5.
4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
6. Genuine OEM windows license sticker add extra cost 35$.
7. 500GB 2.5” HDD add extra 50$, 1TB 2.5” HDD add extra 65$, 2TB 2.5” HDD add extra 100$.
8. 3G Module add extra $13, 4G Module add extra $43.
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for…)


System:

Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among:  Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install.  Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.

Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5” SSD/HDD.
Brand Name:
EGLOBAL
Processor Model:
Intel Core
Memory Capacity:
8GB
Hard Drive Capacity:
≤ 40GB
Type:
PC Stick
Model Number:
EG1701
Use:
Commercial
Processor Main Frequency:
refer to CPU
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Type:
MINI PC
Memory:
Onboard DDR3L 8GB RAM
Storage:
1MSATA SSD+1 2.5'' SATA HDD or SSD
Max color:
16.2M
Brightness:
250 cd/m²
Resolution:
1080*1024
Watchdog timer:
1 ~ 255 seconds programmable
Operating System:
Windows 7/8/10/Linux/ WES7
Size:
400.66*329.76*58.1 mm
Carton Size:
50.2*15.7*47.5cm
Net weight:
7KG
Lan port:
2 Gigabit Ethernet RJ45 Intel i211-AT
COM port:
2 x DB-9 COM,RS-232/422/485
USB:
3USB2.0, 1USB3.0, Built-in 1USB2.0 Dongles Port
Lifetime:
250g clicks 10 million times
