Processor parameter for referance only
AMD Ryzen 5 5625U (16M Cache, 6 Cores 12 Threads, Base Frequency 2.30 GHz Turbo Frequency 4.30 GHz)
AMD Ryzen 7 5800H (16M Cache, 8 Cores 16 Threads, Base Frequency 3.20 GHz Turbo Frequency 4.40 GHz)
AMD Ryzen 9 5800H (16M Cache, 8Cores 16 Threads, Base Frequency 3.30 GHz Turbo Frequency 4.60GHz)
Processor |
|
CPU |
AMD Ryzen 5 5625U/AMD Ryzen 7 5800H/ AMD Ryzen 9 5800H |
TDP |
45W |
CPU Lithography |
14 nm |

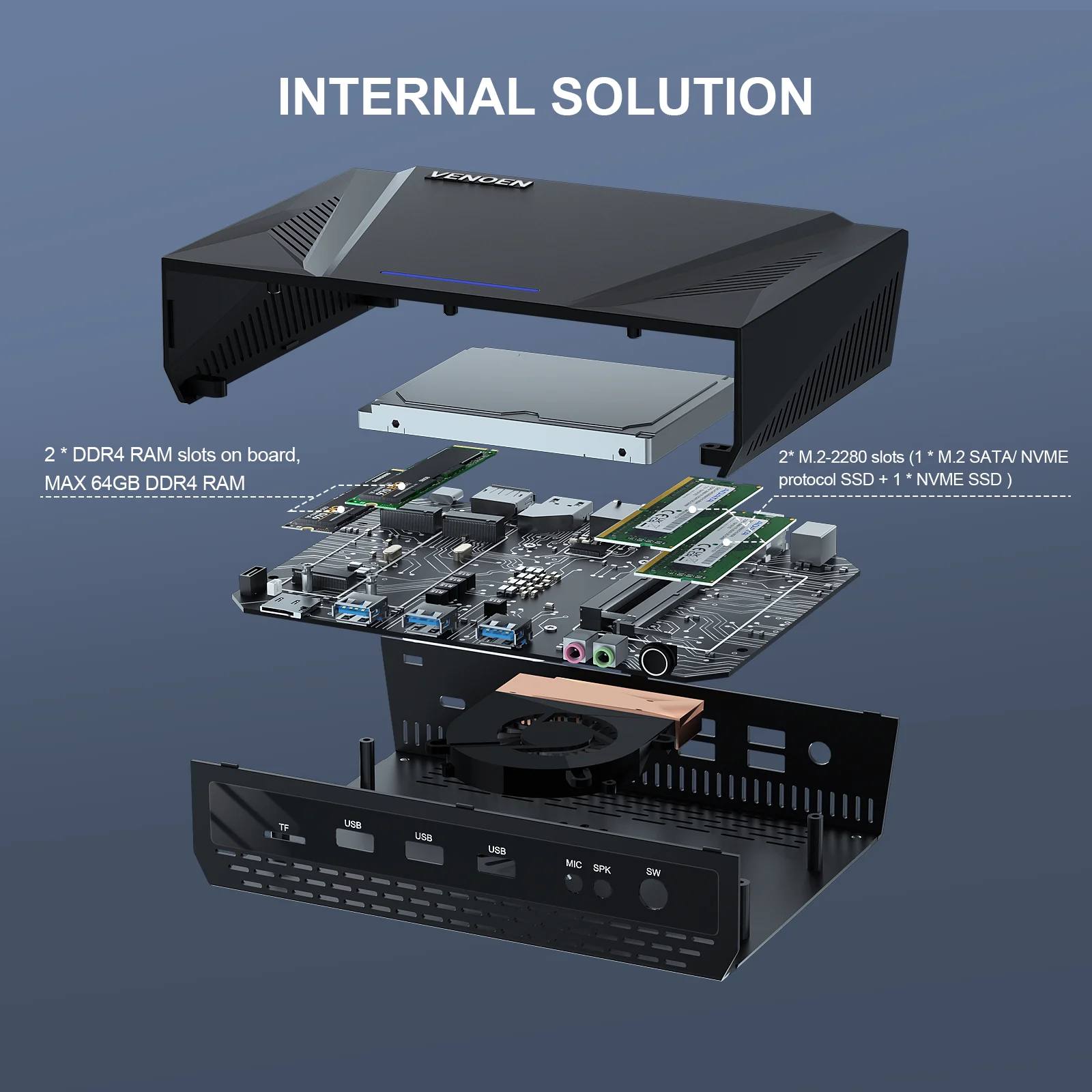

Memory Specifications |
|
Max Memory Size |
64GB |
Memory Types |
2*DDR4 SO-DIMM260 pin |
Memory Speed |
2666 MHz,2933 MHz for 10th CPU |
Memory Channels |
Dual Channels |
ECC Memory |
Don’t support |
Storage Specification |
|
m.2 SSD |
2*M.2 2280 M KEY PCIE3.0 |
SATA |
NO SATA slot |
mSATA |
NO mSATA slot |
Graphics |
|
Processor Graphics |
Radeon RX Vega 8/9 Graphics |
HDMI |
1*HDMI4096*2304@30Hz(4K) |
DP |
1*DP 4096*2304@60Hz(4K) |
Type-C |
1*Type-C 4096*2304@60Hz(4K) |
Power Specification |
|
Adapter Output |
DC 19V/6.32A |
Adapter Input |
AC 100-240V, 50/60HZ |
Consumption |
85W |
Auto Power On |
Support Auto Power On Function |

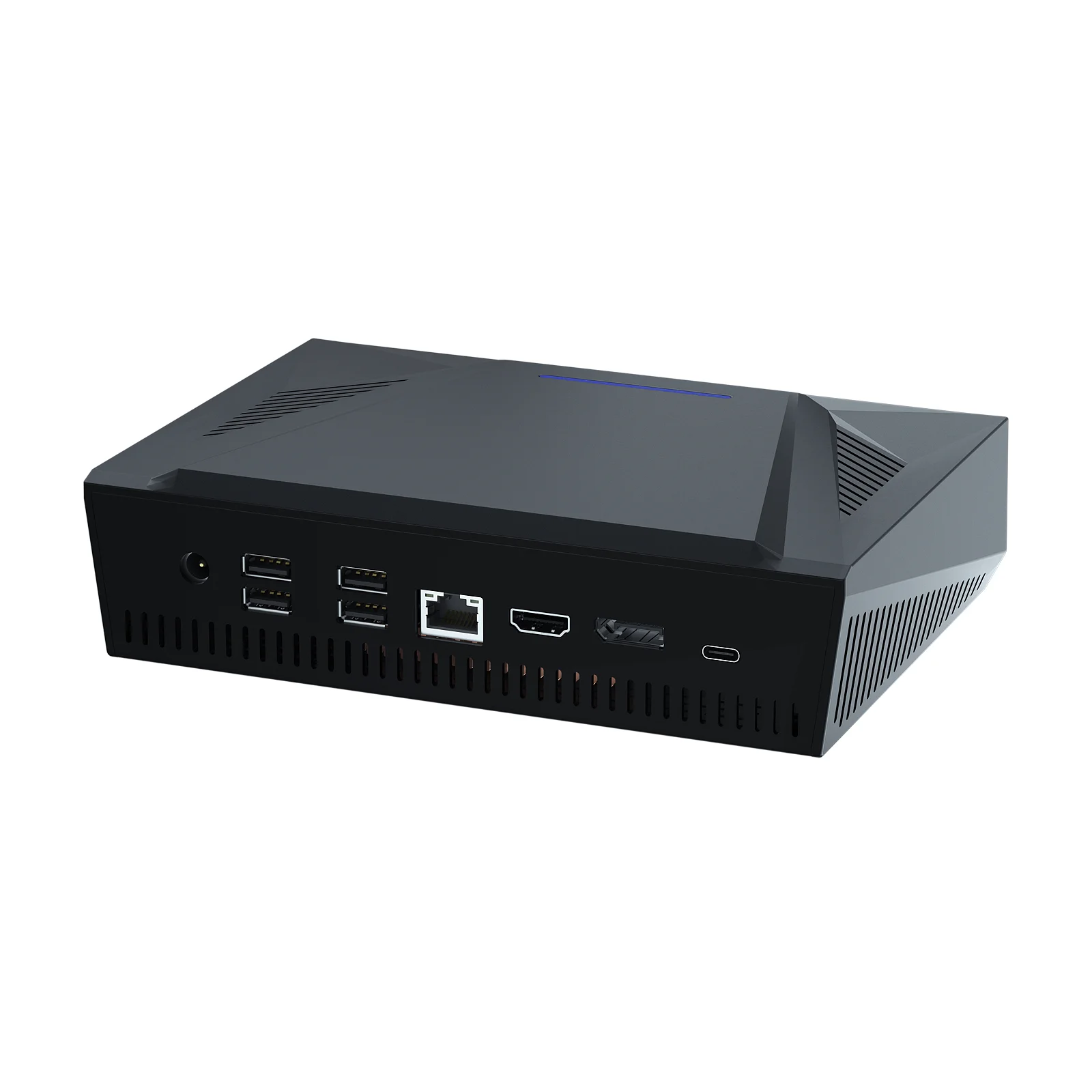

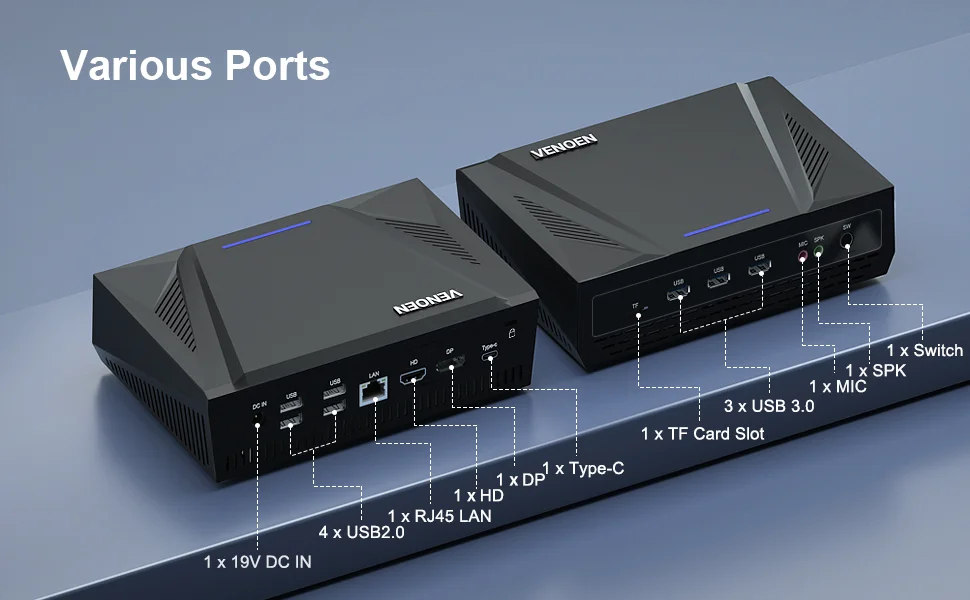

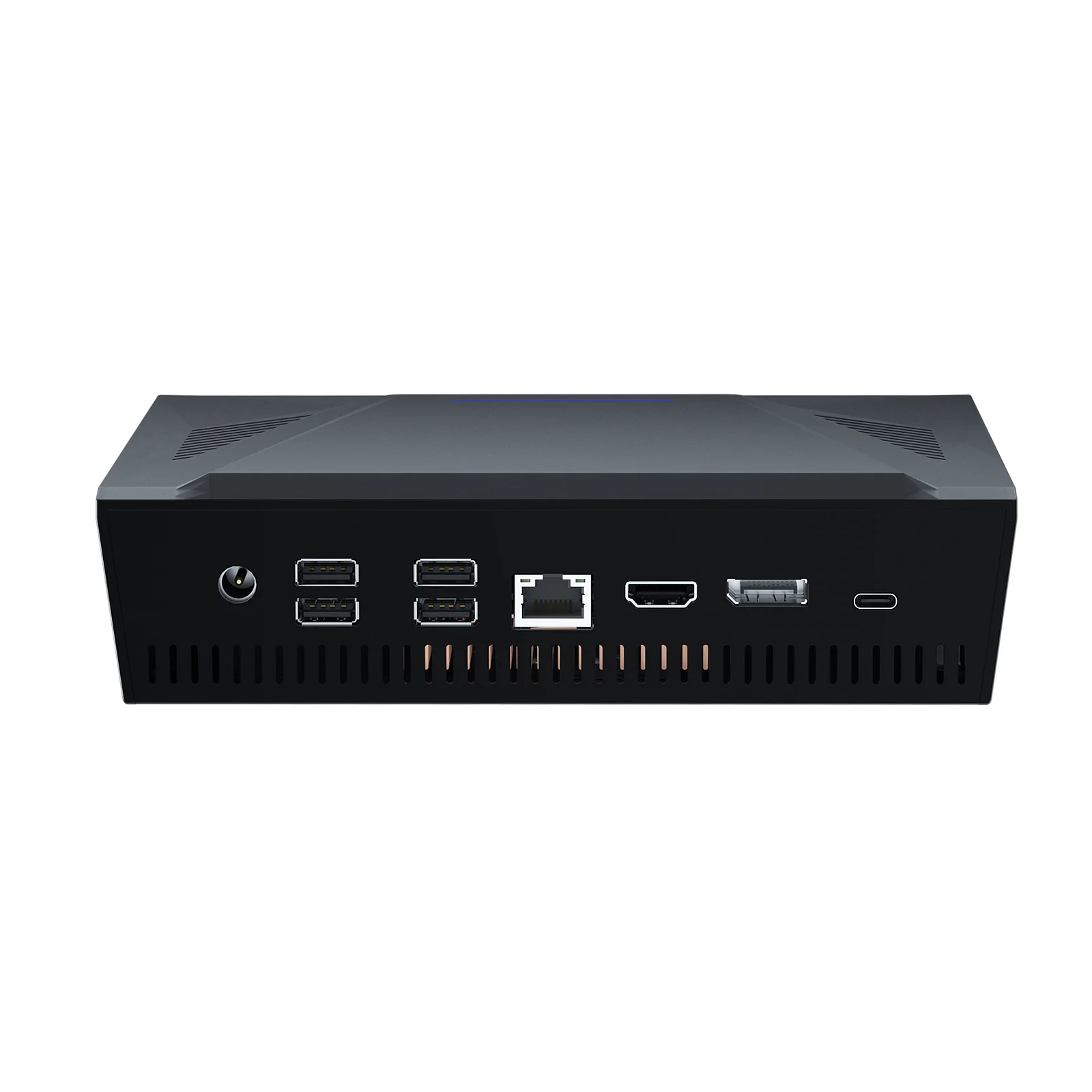

In & Out interfaces |
|
USB Port |
3*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port |
Audio |
2*3.5mm MIC in & SPK out |
Video |
1*HDMI 4096*2304@30Hz + 1*DP 4096*2304@60Hz + 1*Type-C 4096*2304@60Hz 3 Display Output |
Audio Cards |
USB Audio Device |
M.2 |
1*M.2 E KEY 2230 (NVME1 only supports M.2 SATA/NVME, NVME2 only supports NVME) |
TF |
1*TF card slot |
Lan Port |
1*RJ45 Lanintel Ethernet Controller I219-V (1G) |
Wi-Fi |
Inside Wifi & Bluetooth Combo |
Others |
|
System |
Support Windows 10/11, Linux |
BIOS |
Support TPM 2.0,Wake On LAN,PXE,Connect the power to automatically start |
Work Environment |
-10℃–50℃(14F~122F), 30%–90% Humidity |
Case Material |
ABS + Aluminum Alloy |
Dimension |
PC size 192*130*50mm Package size 308*206*75mm |
Weight |
Net 0.6kg; Gross 1.4 kg |
