Print Method ： Thermal Transfer / Thermal
Resolution ：300 dpi (12 dots/mm)
Print Speed ：4IPS (102 mm/s)
Print Width ： 4.16” (105.7 mm)
Print Length ：Min. 0.16” (4 mm); Max. 30” (762 mm)
Processor ：32 Bit RISC CPU
Memory： 8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type ：Adjustable reflective sensor. Fixed transmissive sensor, central aligned
Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. `4.64” (118 mm) Max.
Thickness: 0.002” (0.06 mm) Min. – 0.01” (0.25 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5”, 3”(25.4 mm, 38.1 mm, 76.2 mm)
Ribbon Types: Wax, wax/resin, resin
Length: 981′ (300 m)
Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max
Ribbon roll diameter.: 2.67” (68 mm)
Core diameter: 1” (25.4 mm)
Printer Language EZPL, GEPL, GZPL auto switch
Software Label design software: GoLabel (for EZPL only)
Driver: MAC , Linux Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30,16X26 and OCR A & B
Bitmap fonts 90, 180, 270 rotatable, single characters 90, 180, 270 rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts: CG TriumvirateTM (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90,180,270, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90, 180, 270 rotatable
Barcodes 1-D Bar codes:
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8,UTF16BE,UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

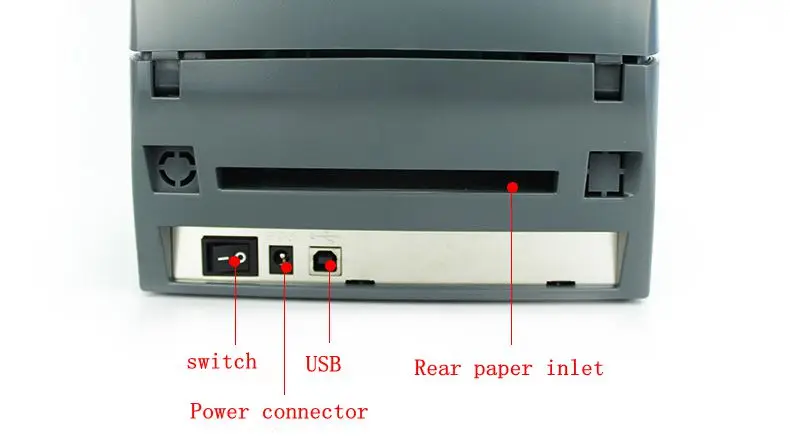

Interfaces：USB /Parallel/Serial Port
Control Panel：Two bi-color status-LEDs: Ready, Status
Control key: FEED
Power ： Auto Switching 100-240VAC, 50-60Hz
Environment Operation temperature: 41 to 104 (5 to 40)
Storage temperature: -4 to 122 (-20C to 50C)
Humidity Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
