Fan Cooling Gaming Mini PC Intel Core i9 9880H 9750H NVIDIA GTX1650 4G HDMI Discrete Graphics Card Windows 11/10 Gamer Computer
Processor parameter

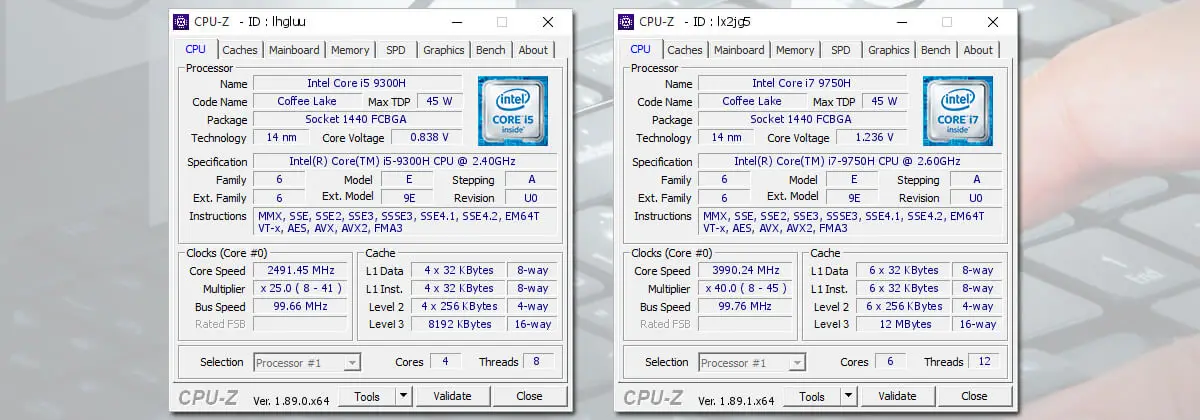

1. 9th Gen 14nm CPU Coffee Lake Intel Core i7-9750H 6 cores 12 threads 2.6GHz up to 4.5GHz 12MB cache TDP 45W UHD Graphics 630.
2. 9th Gen 14nm CPU Coffee Lake Intel Core i9-9880H 8 cores 16 threads 2.3GHz up to 4.8GHz 16MB cache TDP 45W UHD Graphics 630.
Product Highlight
– Support Windows 11/10, Linux, Ubuntu etc, TPM2.0 function is optional, please request when order.
– Fashion creative craft design with shiny LED backlight when power.
– Onboard Intel Coffee Lake 9th generation powerful processor for online games.
– 2xSODIMM DDR4 memory slot up to 64GB more powerful performance improve work efficiency and give you a smooth experience.
– Support Dual graphics Intel UHD 630 + NVIDIA GTX 1650 4GB.
– Support HDMI and DP for 4K display output synchronously.
– Support 1*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5” SATA HDD/SSD.
Basic Information: |
|
CPU |
Intel Core i9 9880H/i7 9750H |
TDP |
45W |
Memory |
2 x SO-DIMM DDR4 slot, up to 64GB Dual Channel, DDR4-2666 |
OS |
Windows 11/Windows 10/Linux |
PXE |
YES |
Audio |
Onboard HD audio chip |
Network |
Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100/1000 BaseT LAN |
Video |
Intel®UHD Graphics Nvidia GTX1650 4G |

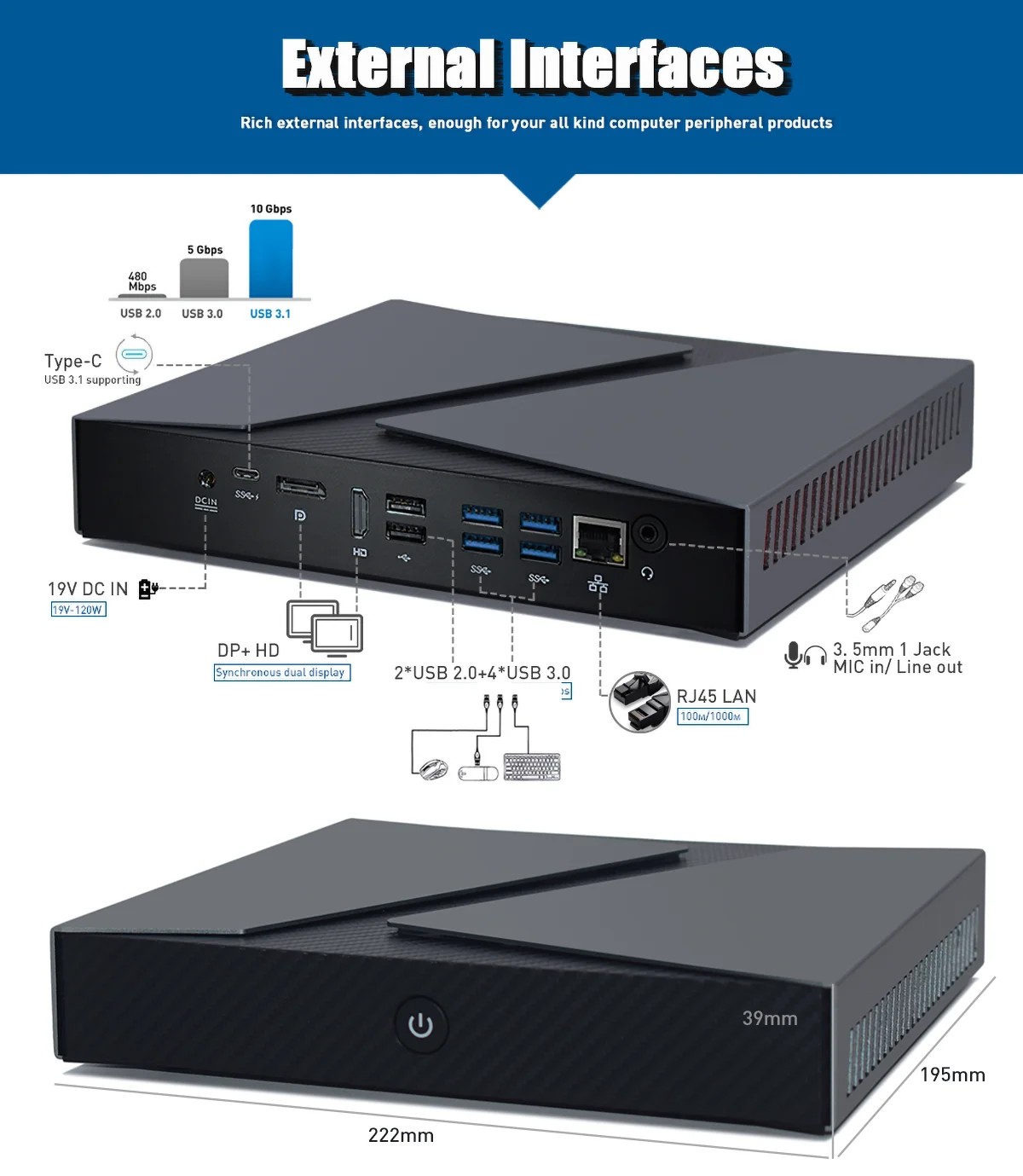

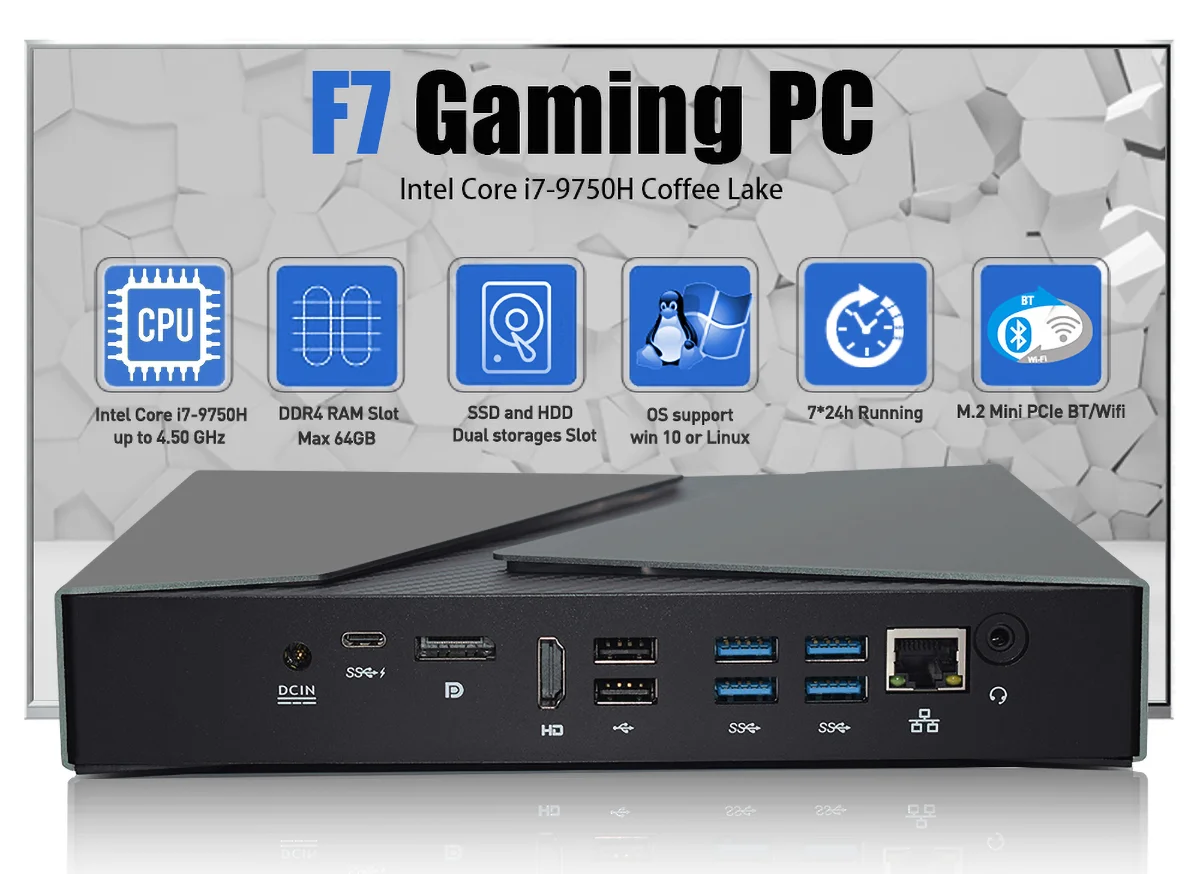

Input/output port |
|
Switch |
1 x Power On/Off Switch |
Power |
1 x 19V DC In |
USB |
2 x USB 2.0, 4 x USB 3.0 |
Type-C |
1 x Type-C |
Display |
1xHDMl 4k@30Hz 1xDP 4k@60Hz |
LAN |
1 x RJ45 Giga LAN |
Audio |
1 x Line Out, 1 x MIC in |
Storage |
|
M.2 |
1 x M.2 2280 slot, support NVME PCIE x4/SATA3.0 |
SATA |
1 x 1 x 2.5″ SATA SSD/HDD |
WiFi |
|
Module |
Dual-band 2.4G/5G WiFi/Bluetooth |
Antenna |
2 x inner RF cables without external antennas |
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
Output |
DC 19V-120W |
Operating Temperature |
0/+70 Centigrade (32~140°F) |
Storage Temperature |
-20/+80 Centigrade (-68~176°F) |
Relative Humidity |
10%~95% (non-condensing) |
Product Dimension & Details |
|
Size |
222*195*39mm |
Weight |
Net 1.5kg, Gross 2.5kg |

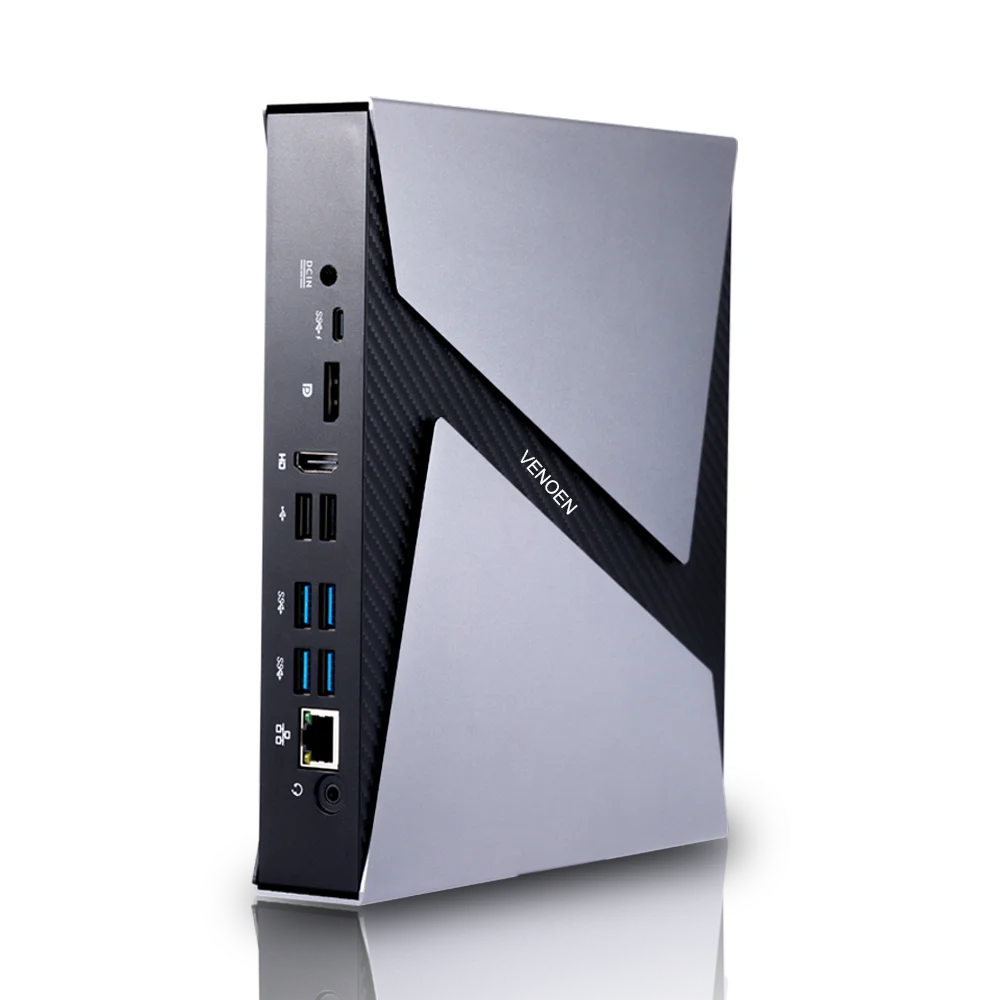

Shell |
Dark gray color aluminum alloy |
Cooling Mode |
Full copper turbo fan |
Package Content |
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables |
Optional |
1xUser Manual |
