Product details

This item you can buy it directly but notes that:

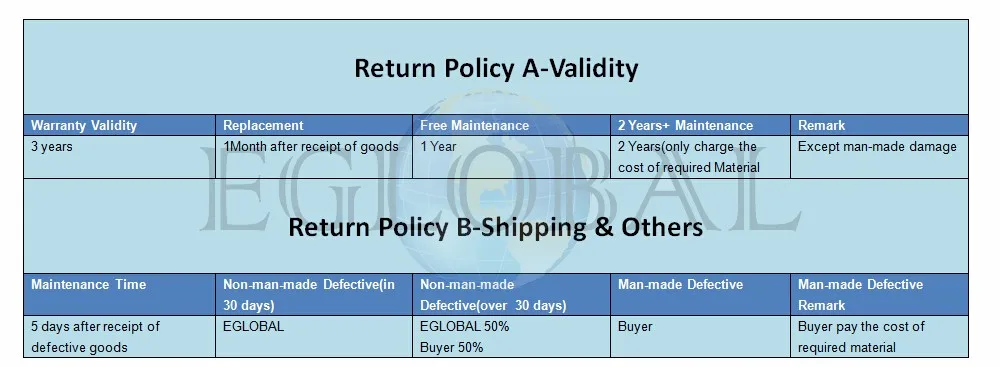

1. All mini pcs with 3years warranty.

2. If you need install operating system, pls indicate in the Remarks Column. We can provide free OEM cracked win7/8/10 os, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system. For license os, you can install it in local.

3. Customer need bear the tax when item in the process of customs clearance. About the value write on the Commercial Invoice, we will write real value on it if without additional requirements.

4. For accessories Memory and Storage, we usually use brand like: Samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison, KingFast etc. The brand is depends on our test and our stock. Any requirements about the accessories, pls contact June Kang online.

5. If order barebone system(No RAM, No Storage, No WIFI ), goods without wifi module and antenna. If product with configuration, we will install the wifi moudule for you, about the module, which can fix the product. Any requirements about the WIFI Module, pls inform us.

6. For free logo laser print, pls provide vectorgram. Usually, we will put the logo on the upper, any idea about that, pls let me know.

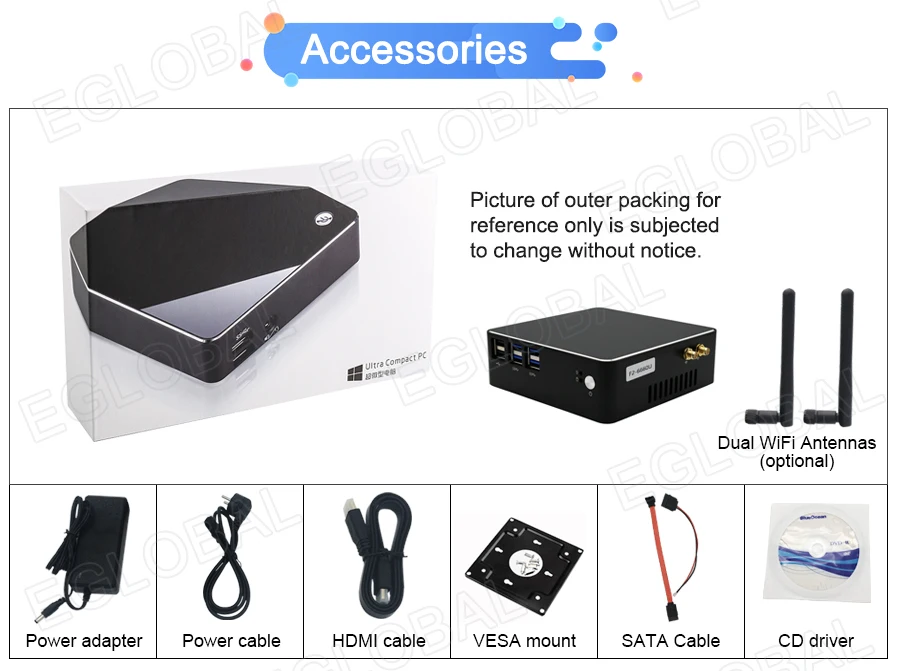

1 * Mini PC device

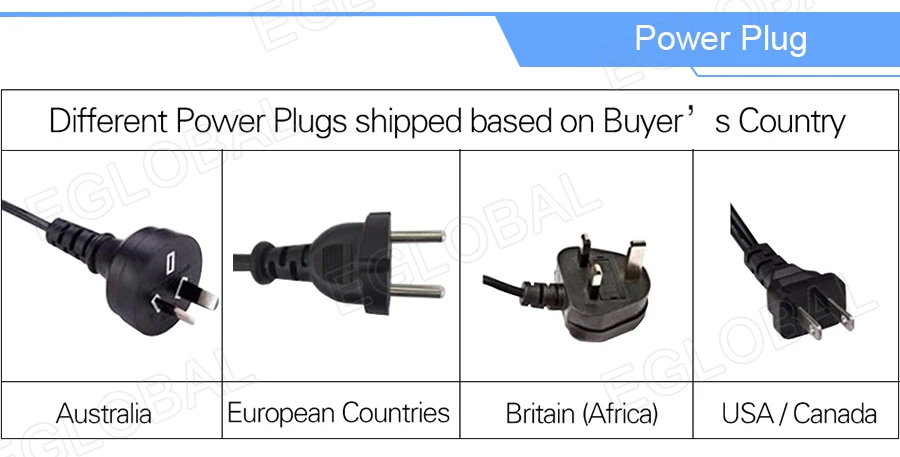

1 * EU/AM/BR/AU standard power adapter

1 * Set of SATA power and data cable(for 2.5” hard drive installation)

1 * Stand Holder

2 * WiFi antennas

1 * CD Driver

1 * Screws bag

1 * Warranty Card

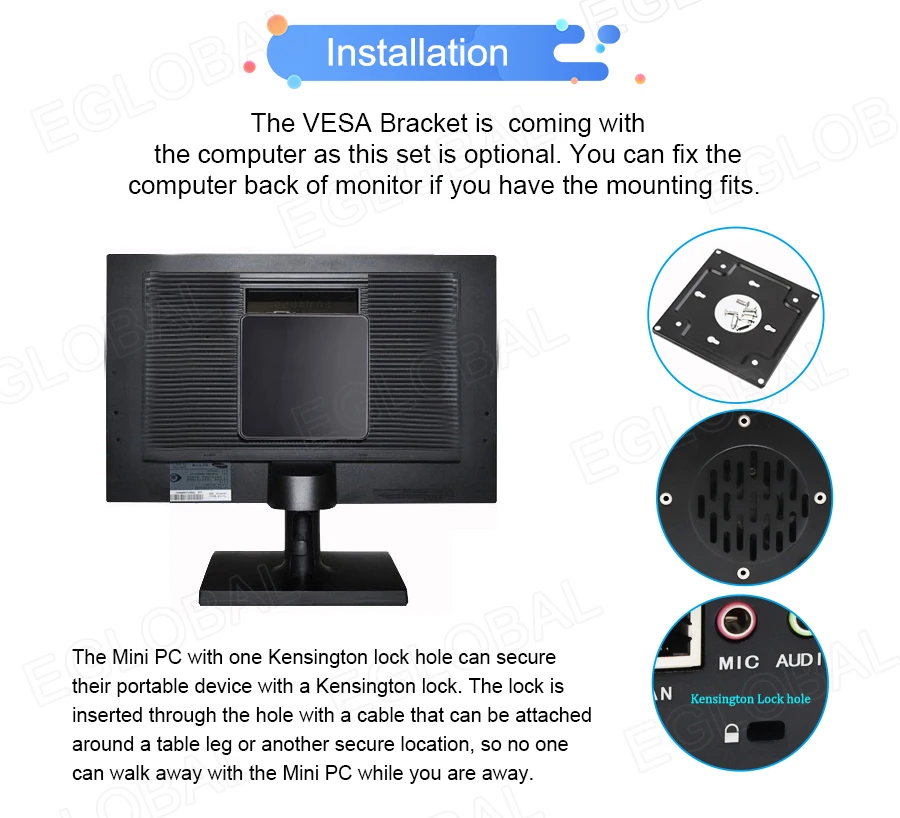

Notes: Some model only support Stand Holder, VESA mount is not available; Some with free VESA mount; Some without. Any questions, contact June Kang first, thanks for your help.

EGLOBAL MINI PC Term:

Shipment:

A. 1-7 business days for sample delivery; For bulk order depends on the circumstances.

B. Free shipping, we will choose DHL, UPS, Fedex, POST, EMS express. But for remote area, we will deliver goods by other method for free, or if you insist on express of DHL/UPS/Fedex/TNT, that will charge extra fees. In this case, pls contact June Kang.

Any questions, feel free to contact June Kang

F2N CPU support:

Model: F2N-6167U

CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i3-6167U 2.7GHz Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 550.

Model: F2N-6560U

CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i3-6560U 2.2GHz Max 3.2 GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.

Model: F2N-6660U

CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i3-6660U 2.4GHz Max 3.4 GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.

Model: F2N-7167U

CPU: Onboard Intel KABYLAKE 14nm CPU Intel Core i3-7167U 2.8GHz Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Plus Graphics 650.

Intel celeron 2955U 2 cores 2 threads 2MB cache1.4GHz

Intel Core i3 5005U 2 cores 4 threads 3MB cache 2.0GHz (maybe i3 5010U,i3 5015U,i3 5020U etc)

Intel Core i3 6167U 2 cores 4 threads 3MB cache 2.7GHz Intel® Iris® Graphics 550(maybe i3 6157U etc)

Intel Core i5 6287U 2 cores 4 threads 4MB cache 3.1GHz up to 3.5GHz Intel® Iris® Graphics 550(maybe i5 6260U, i5 6360U, i5 6267U etc)

Intel Core i7 6567U 2 cores 4 threads 4MB cache 3.3GHz up to 3.6GHz Intel® Iris® Graphics 550(maybe i7 6660U, i7 6560U etc)

Intel Core i3 7167U 2 cores 4 threads 3MB cache 2.4GHz Intel® Iris® Plus Graphics 650(maybe i3 7100U, i3 7130U etc)

Intel Core i5 7200U 2 cores 4 threads 3MB cache 2.5GHz up to 3.1GHz(maybe i5 7300U etc)

Intel Core i7 7567U 2 cores 4 threads 4MB cache 3.5GHz up to 4.0GHz Intel® Iris® Plus Graphics 650(maybe i7 7660U, i7 7560U etc)

Basic Information:
CPU	Onboard Intel Core i3-6167u / Core i7-6560u / Core i7-6660u / Core i3-7167u
TDP	Refer to CPU
Motherboard	120 x 120mm customized size
BOIS	AMI BIOS, ACPI supported
Chipset	Intel PCI Standard Host CPU Bridge – 100 Series Chipset Family/eSPI Controller – 9D48
Memory	1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR4-2133, LPDDR3-1866, DDR3L-1600

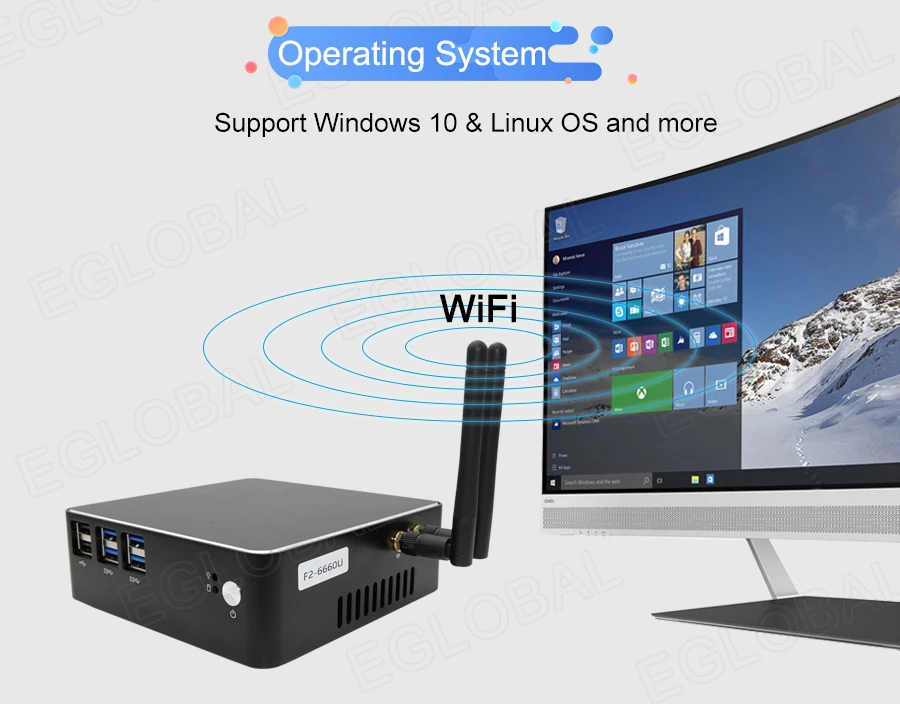

OS	Windows 8/Windows 10/Linux

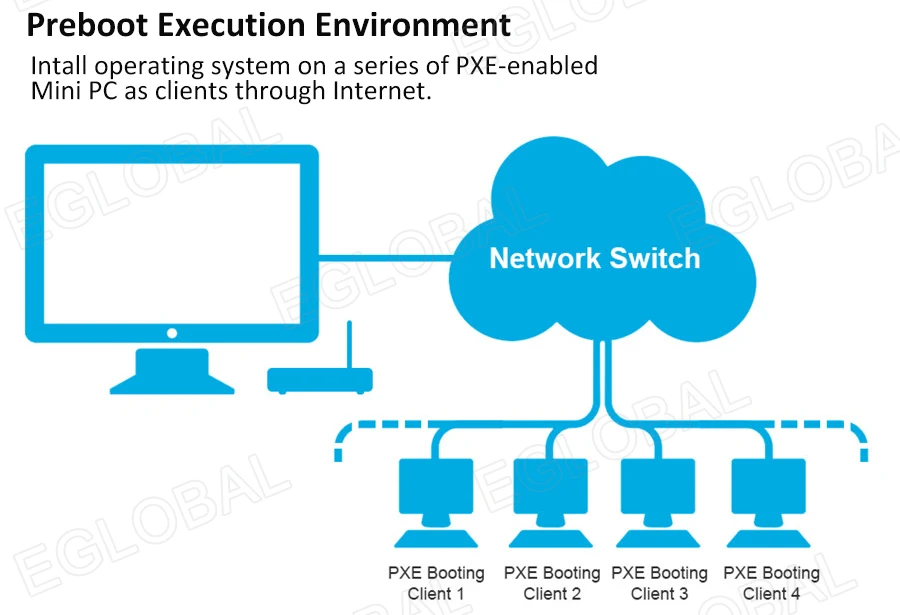

PXE	YES
Audio	Intel High Definition Audio Controller
Network	Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
Video	Refer to CPU

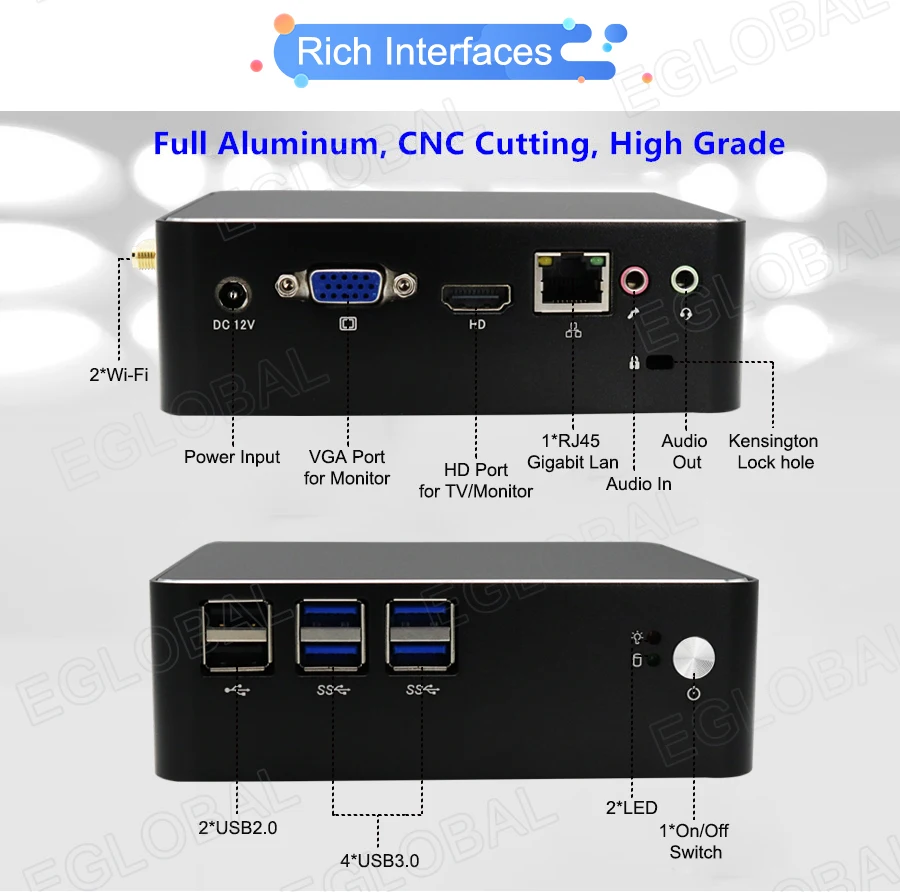

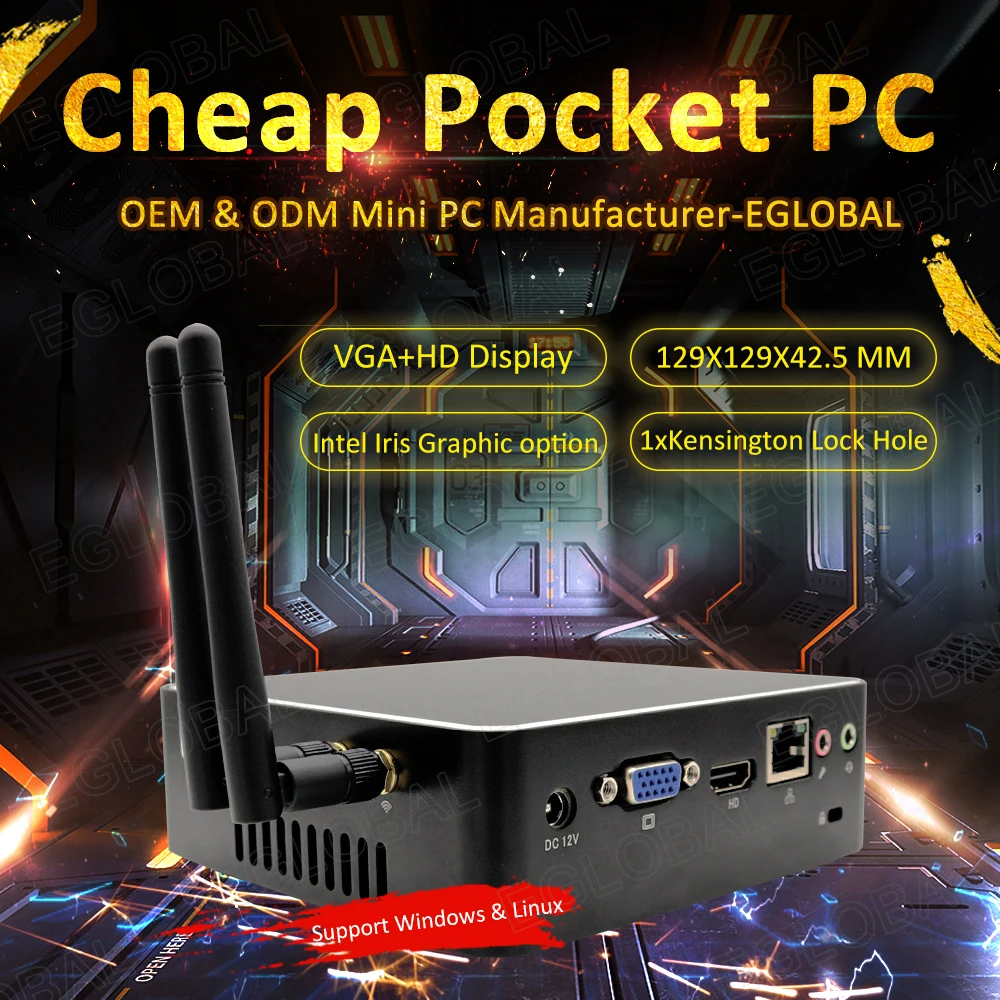

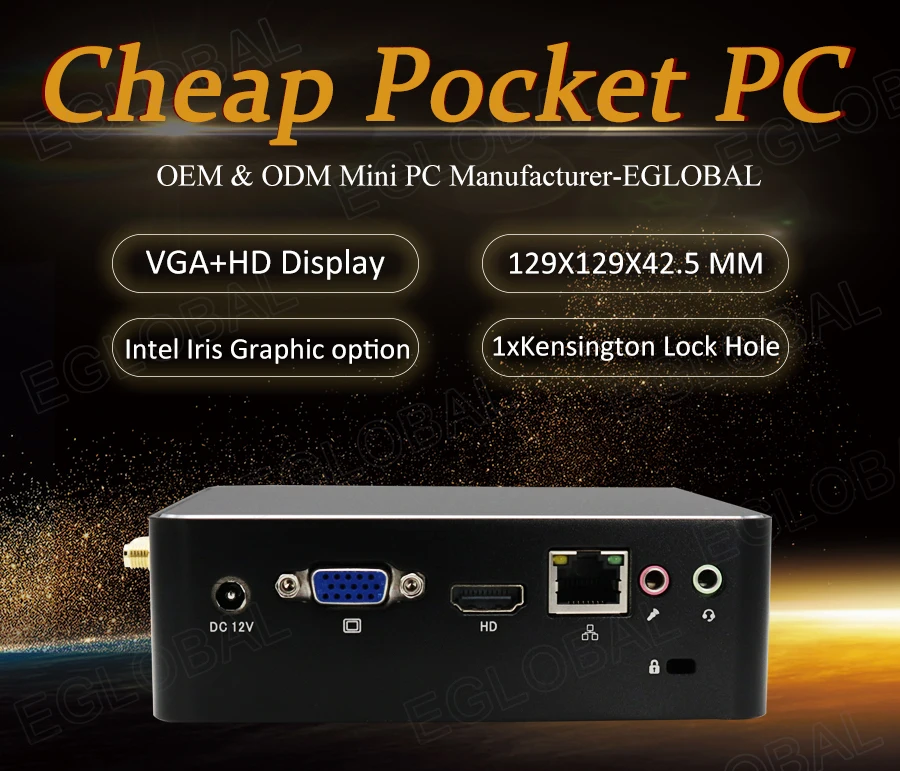

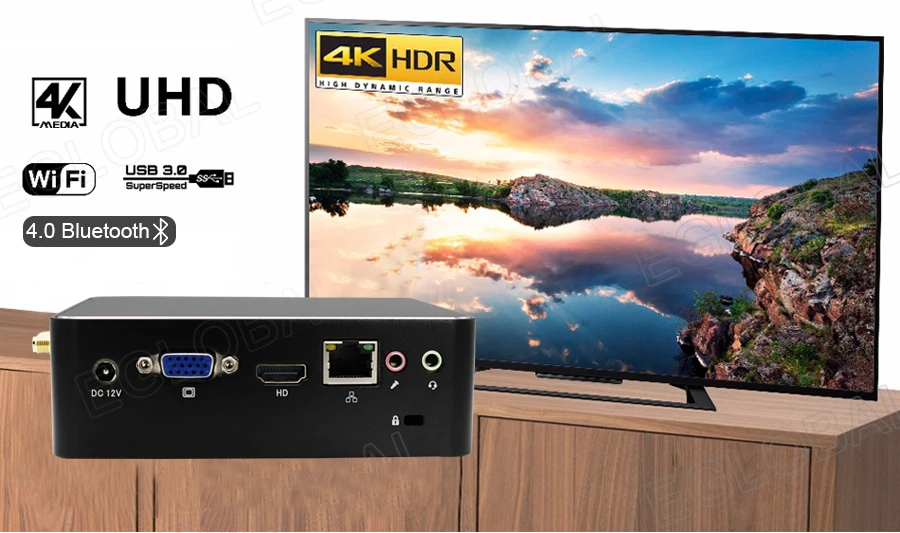

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	2 x LED
USB	2 x USB2.0, 4 x USB3.0

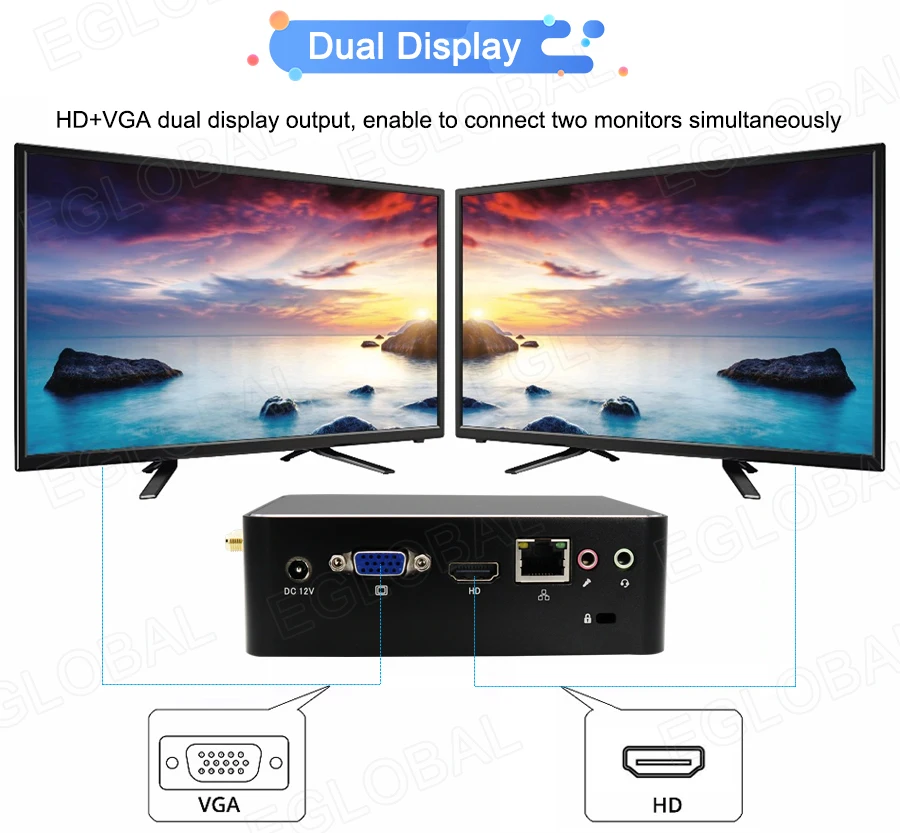

Display	1 x VGA, 1 x HDMI

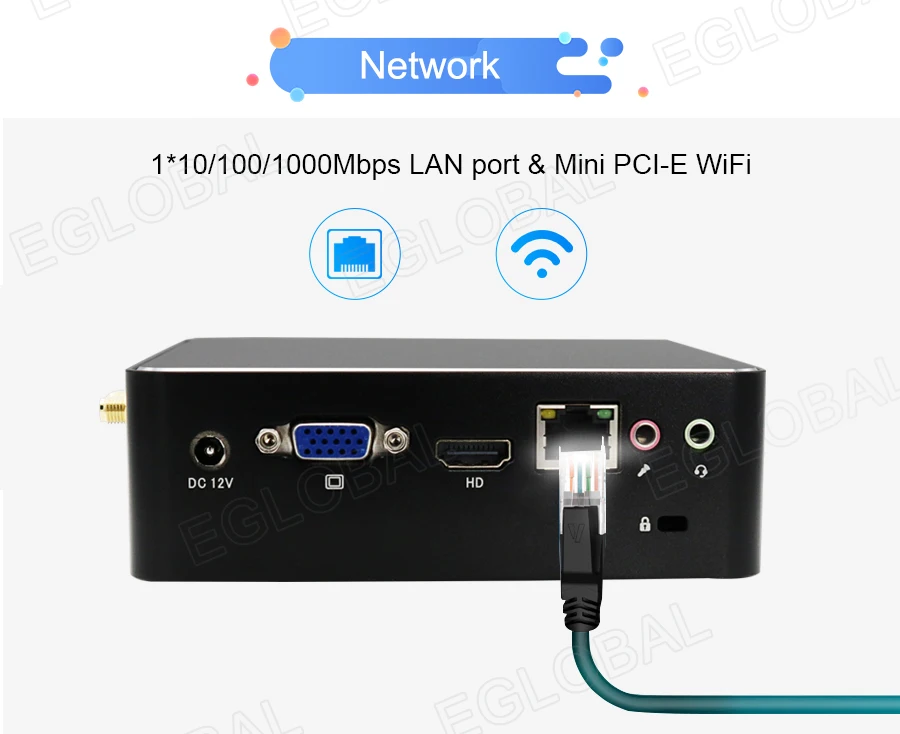

LAN	1 x RJ45 Giga LAN
Audio	1 x MIC, 1 x SPK
Others	1 x Kensington Lock hole

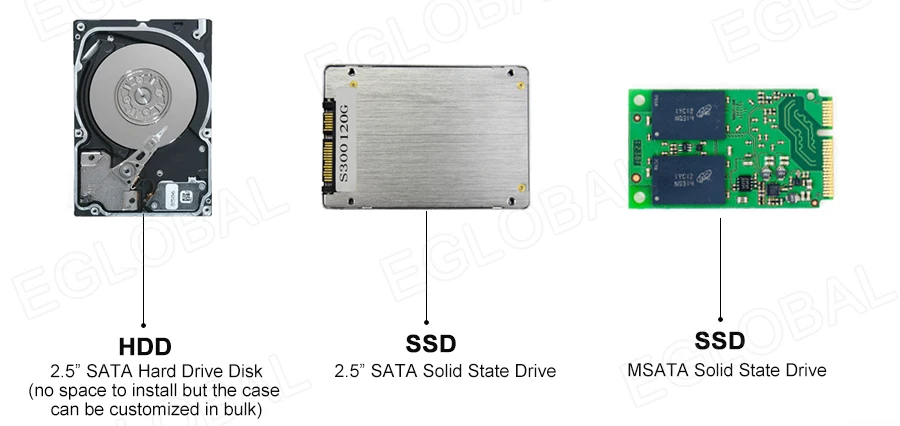

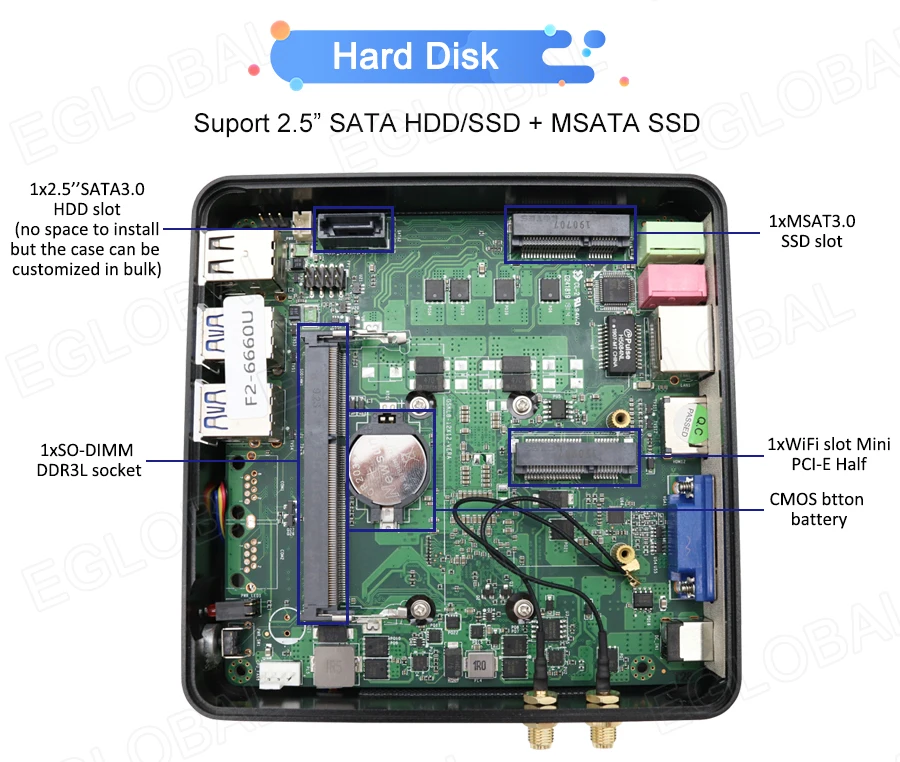

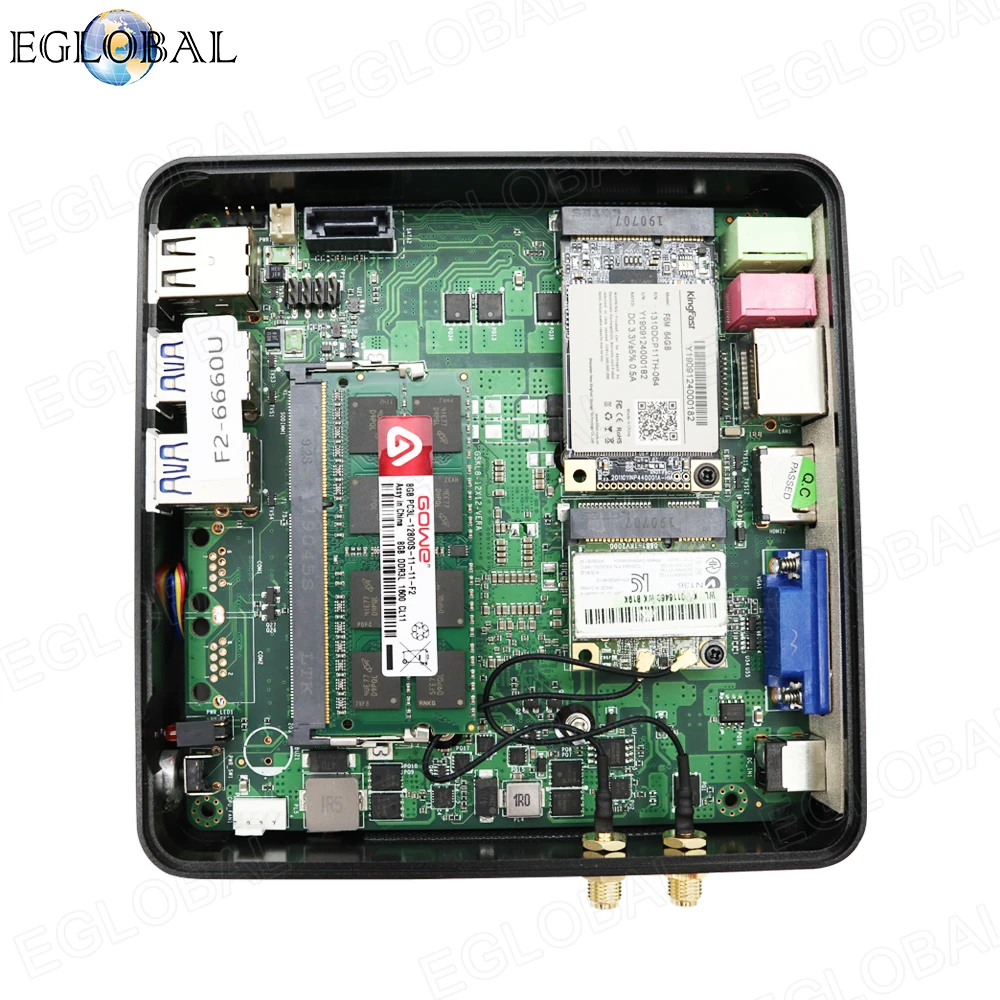

Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install)
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi module

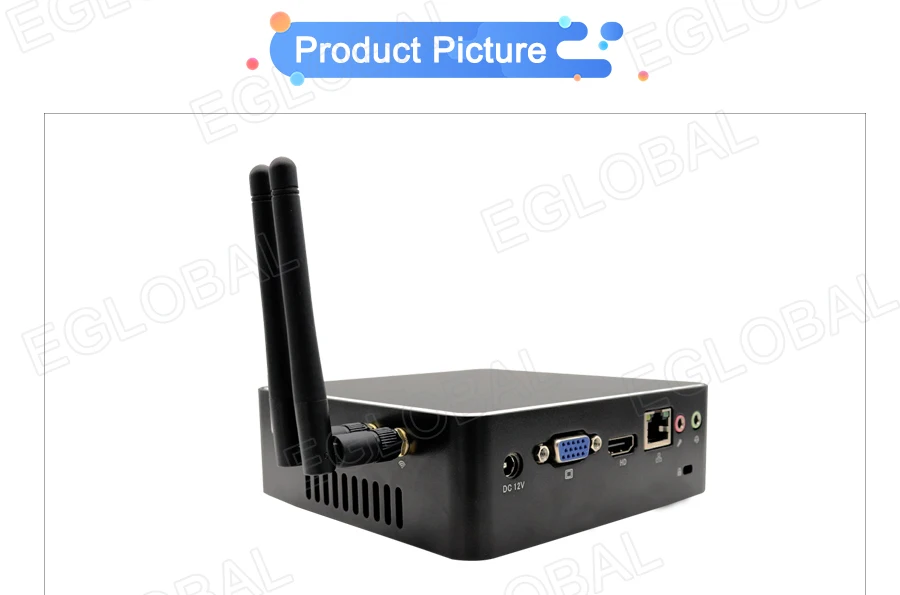

Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	0/+70 Centigrade
Storage Temperature	-20/+85 Centigrade
Relative Humidity	0%~90% (non-condensing)

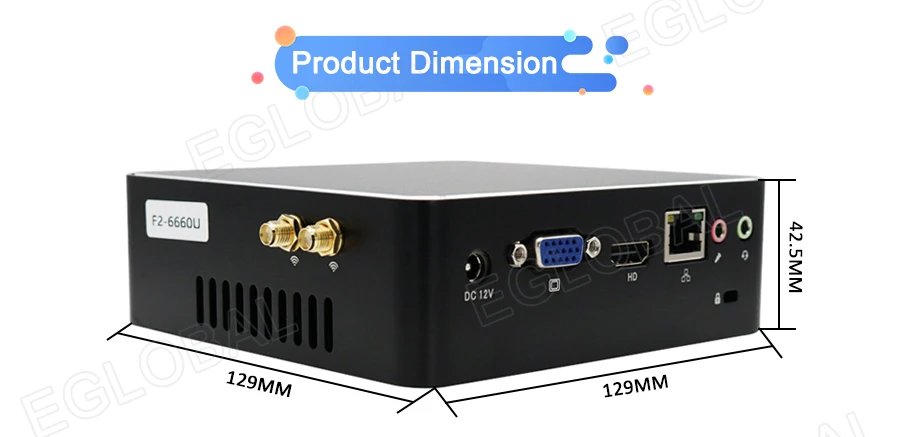

Product Dimension & Details
Size	12912942.5mm
Weight	Net 0.65kg, Gross 1.5kg

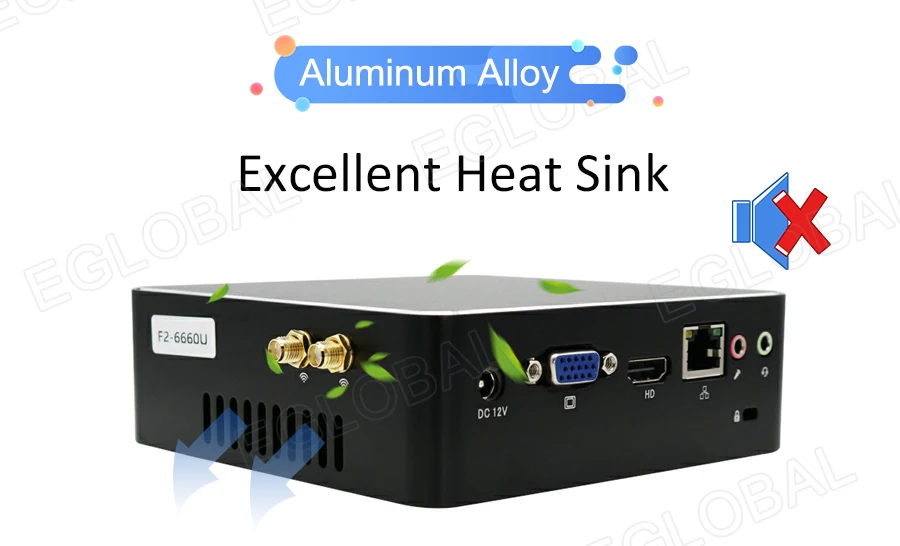

Shell	Black color aluminum alloy(any customized color for bulk order)

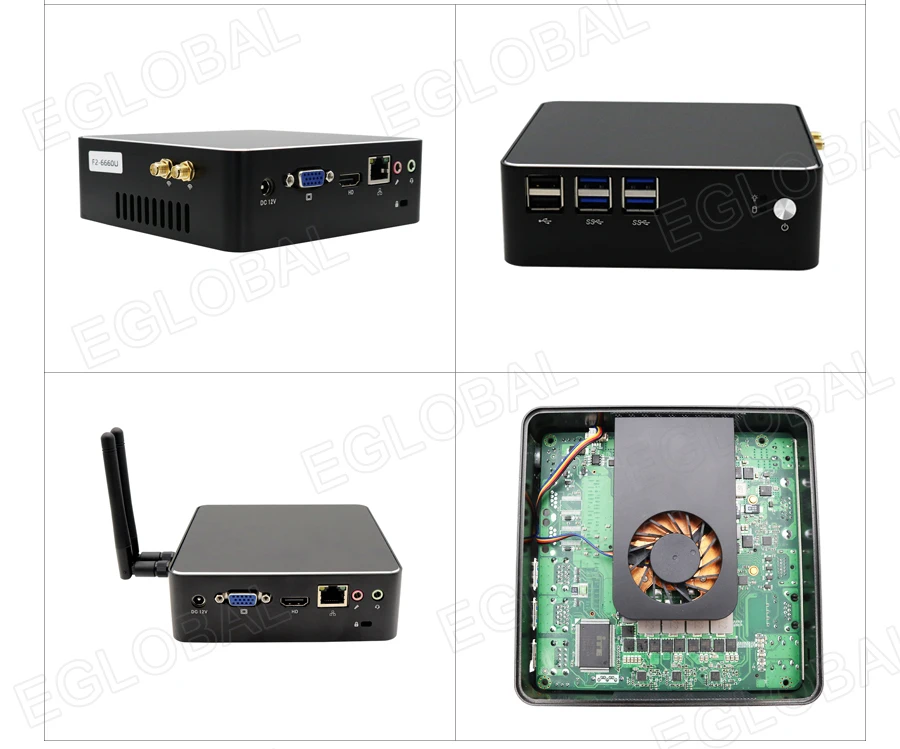

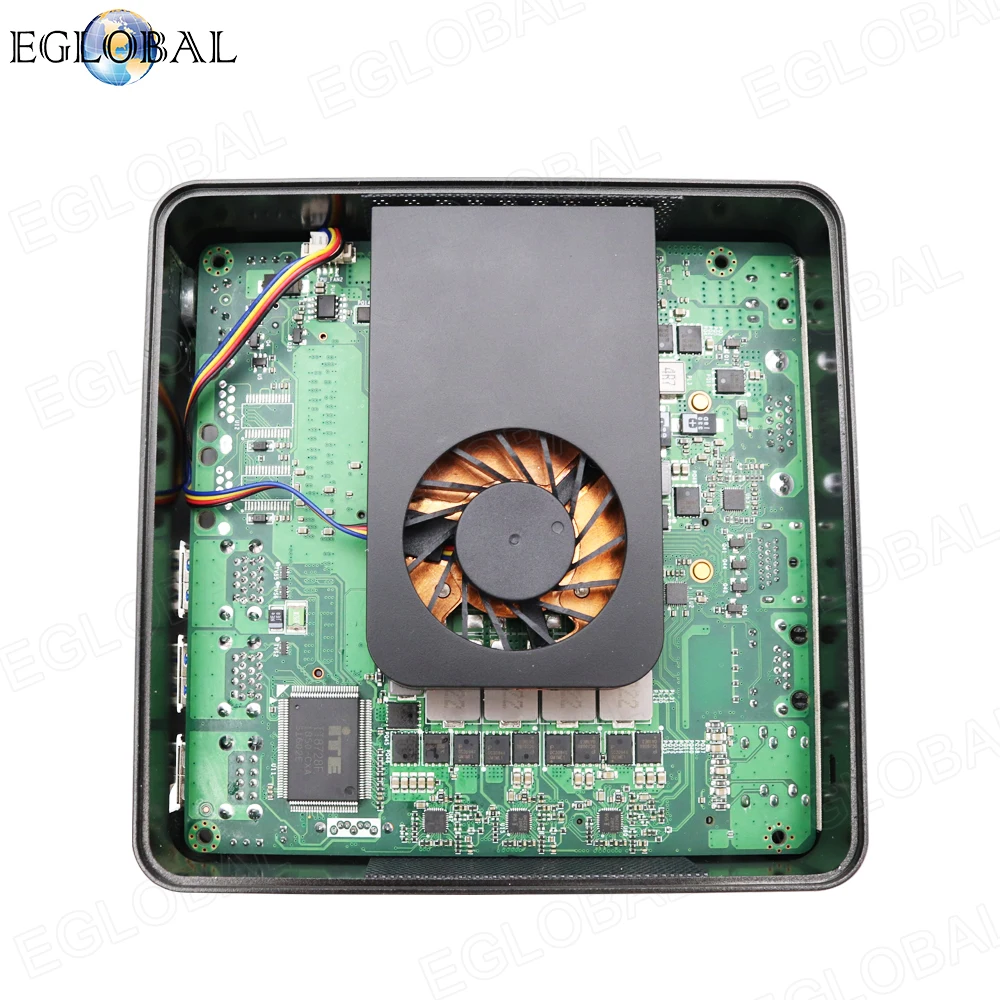

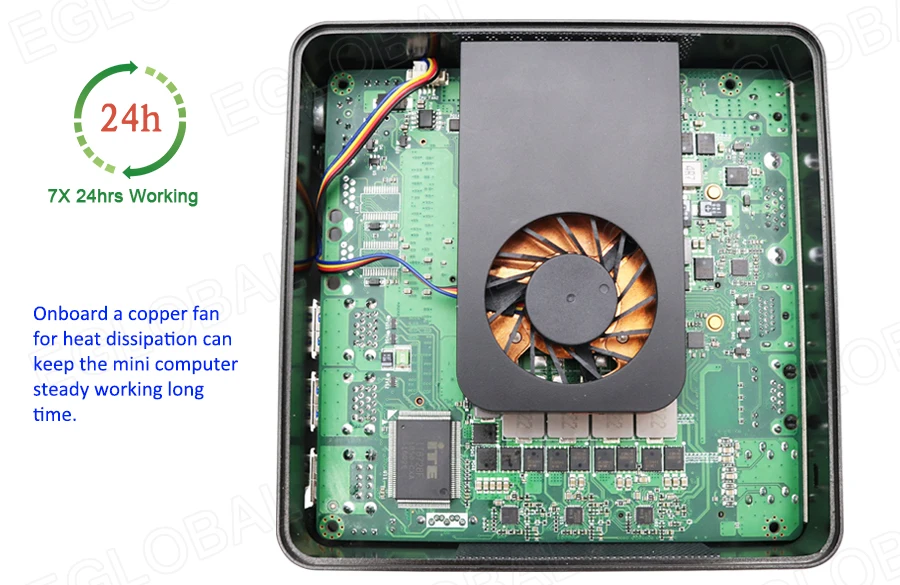

Cooling Mode	With a copper cooling fan

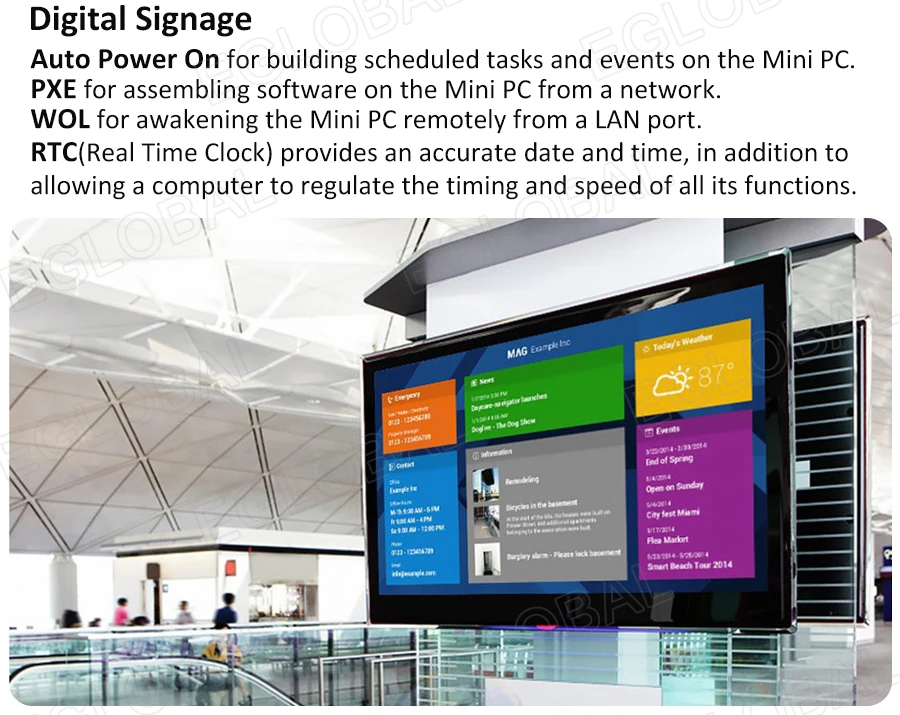

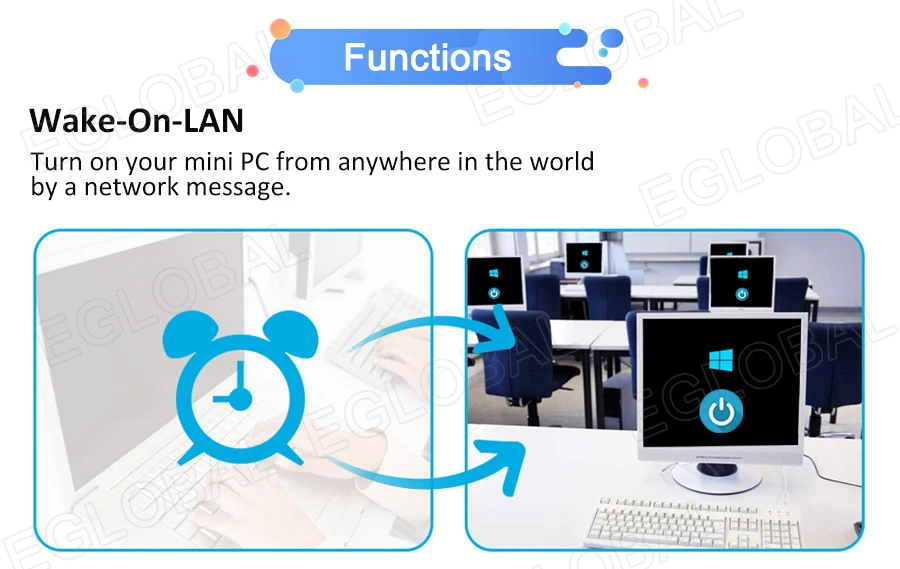

Functions	AWAL, WOL, RTC, Kensington Lock
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual

Item specifics

Brand Name:

EGLOBAL

Processor Model:

Intel Celeron Core i3 i5 i7 processor

Memory Capacity:

≥ 4GB

Hard Drive Capacity:

≤ 40GB

Type:

Mini Desktop

Model Number:

F2N

Use:

Commercial

Processor Main Frequency:

Depends on CPU

Processor Brand:

Intel

Graphics Card Type:

Integrated Card

Type:

MINI PC

Operating System:

Windows, Linux, Ubuntu

Ethernet port:

1 x LAN

USB port:

2 x USB2.0, 4 x USB3.0

Memory:

1 x SO-DIMM DDR3L Slot

Display port:

1 x VGA, 1 x HDMI

Color:

Black

Size:

129*129*42.5mm

Weight:

1.5KG

Shipping & Returns

Shipping

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location	*Estimated Shipping Time
United States	10-30 Business days
Canada, Europe	10-30 Business days
Australia, New Zealand	10-30 Business days
Central & South America	15-30 Business days
Asia	10-20 Business days
Africa	15-45 Business days

*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

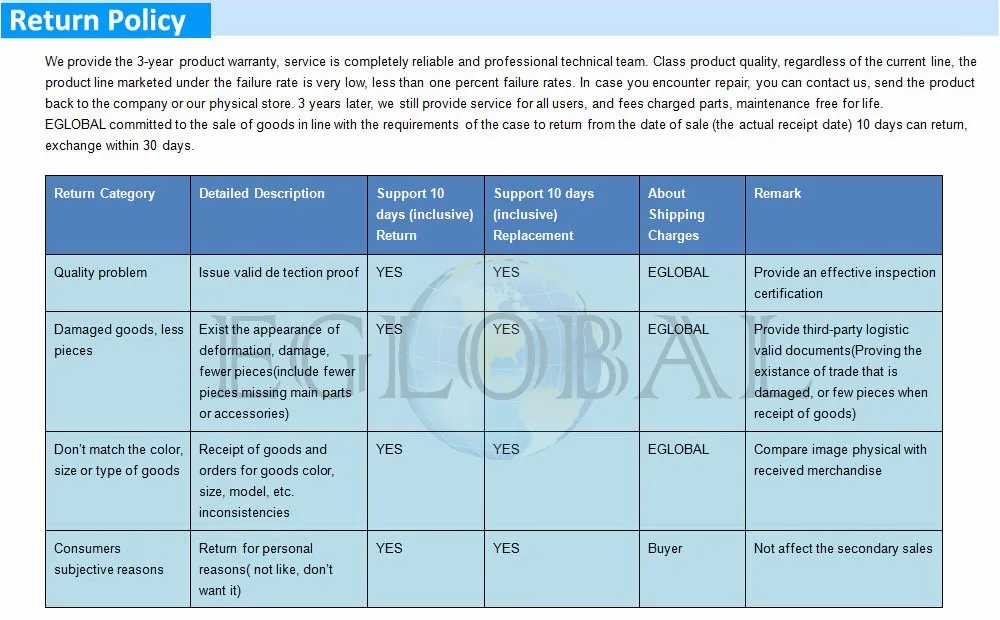

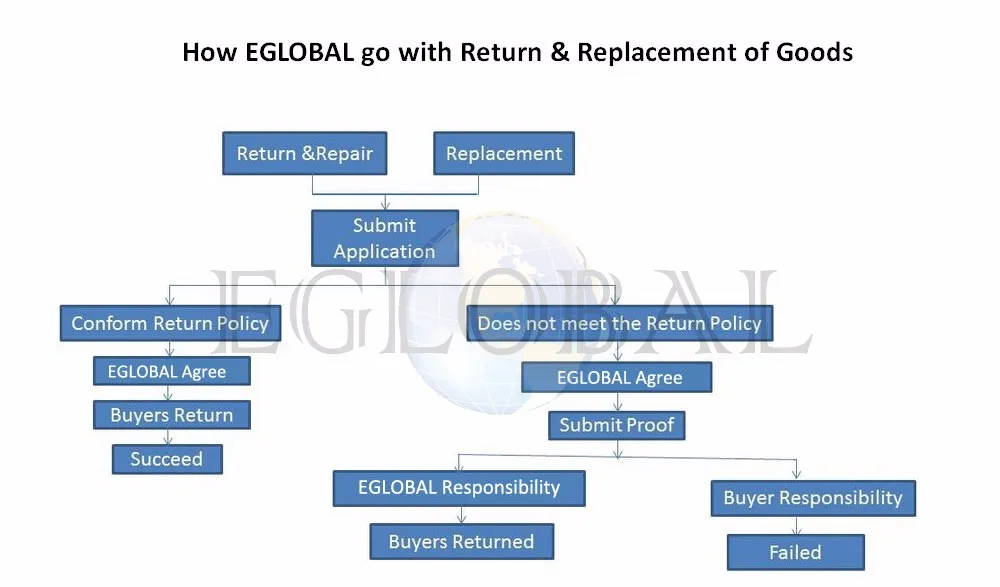

RETURNS

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.

We do not issue the refund if:

Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
Your order did not arrive due to exceptional circumstances outside the control of Online Shopping site: Shop Online for Mobiles, Clothing, Watches, Shoes and More (i.e. not cleared by customs, delayed by a natural disaster).
Other exceptional circumstances outside the control of https://ighcart.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

Categories

EGLOBAL Gaming Iris Graphics card F2N support celeron core i3 i5 i7 CPU Fan mini pc

Product details

Item specifics

Shipping & Returns

Shipping

How do you ship packages?

Do you ship worldwide?

What about customs?

How long does shipping take?

Do you provide tracking information?

My tracking says “no information available at the moment”.

Will my items be sent in one package?

RETURNS

Order cancellation

Refunds

Exchanges

Recommendations

Wireless Gaming Mouse 2.4G Wireless Charging Ergonomic Wear-resistant Mouse ND998

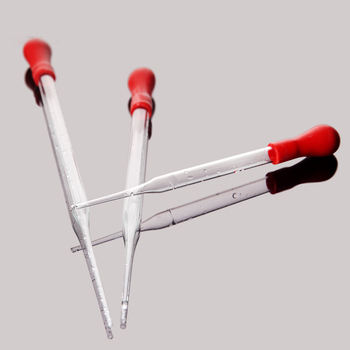

20 pieces/lot Glass Dropper with Red Cap Laboratory Pipette 10/12/15/18cm

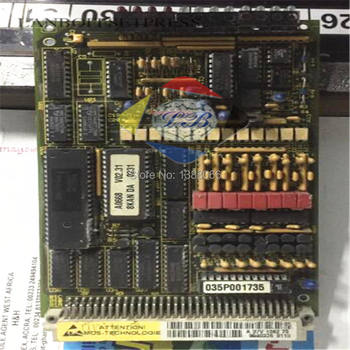

A37V108270 Roland 700 original used card roland circuit board
