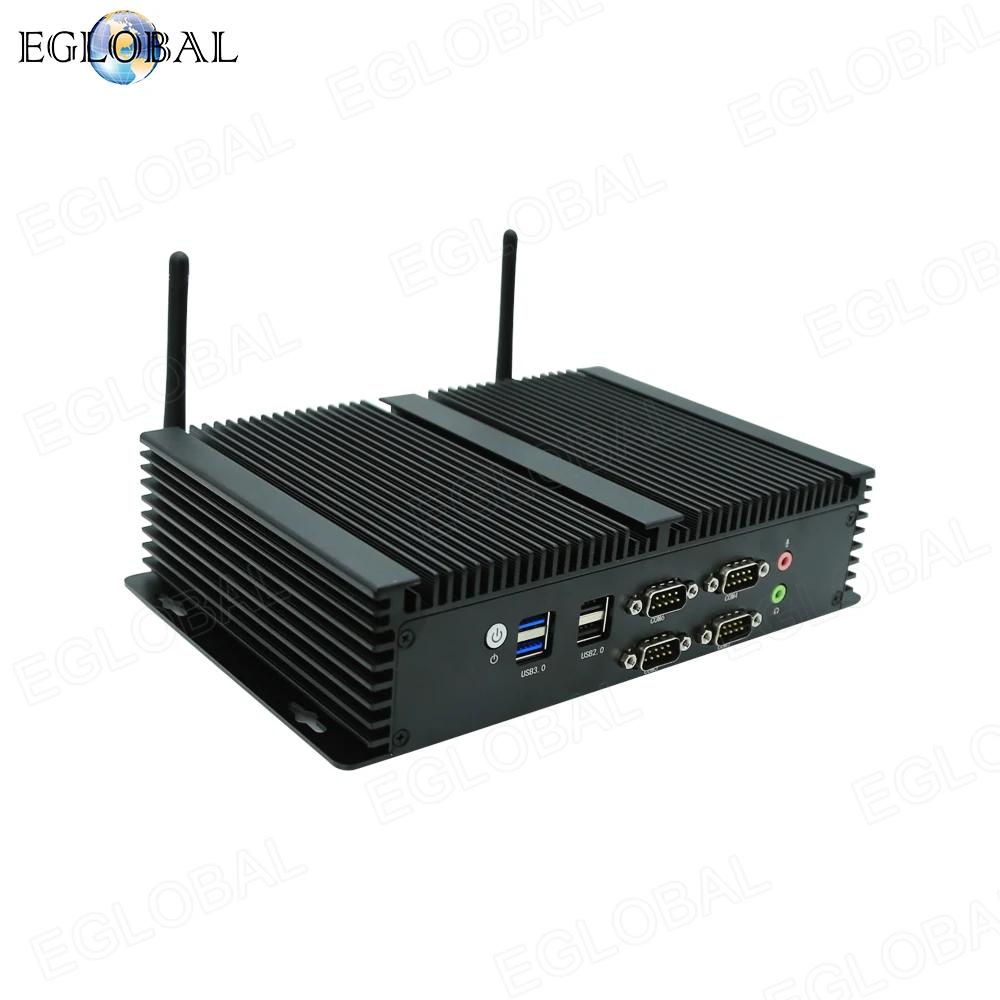

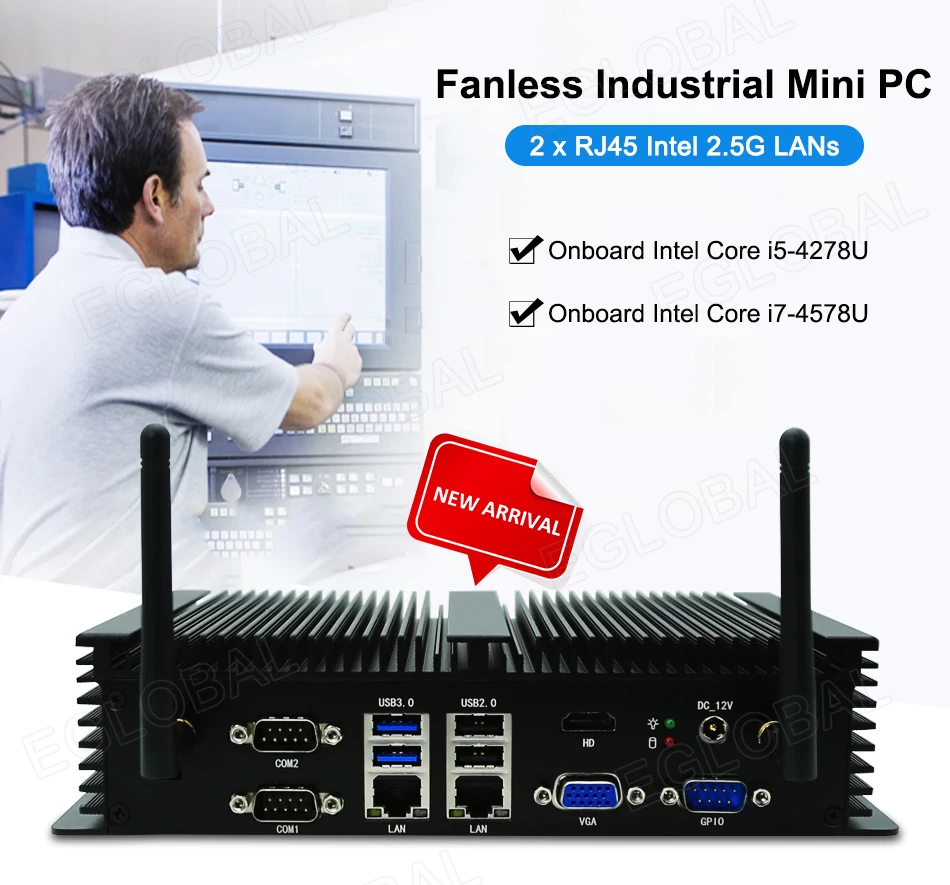

- CPU: Onboard Intel Haswell 22nm CPU Intel Core i7-4578U 3.0GHz Max 3.5GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel Iris Graphics 5100.
-

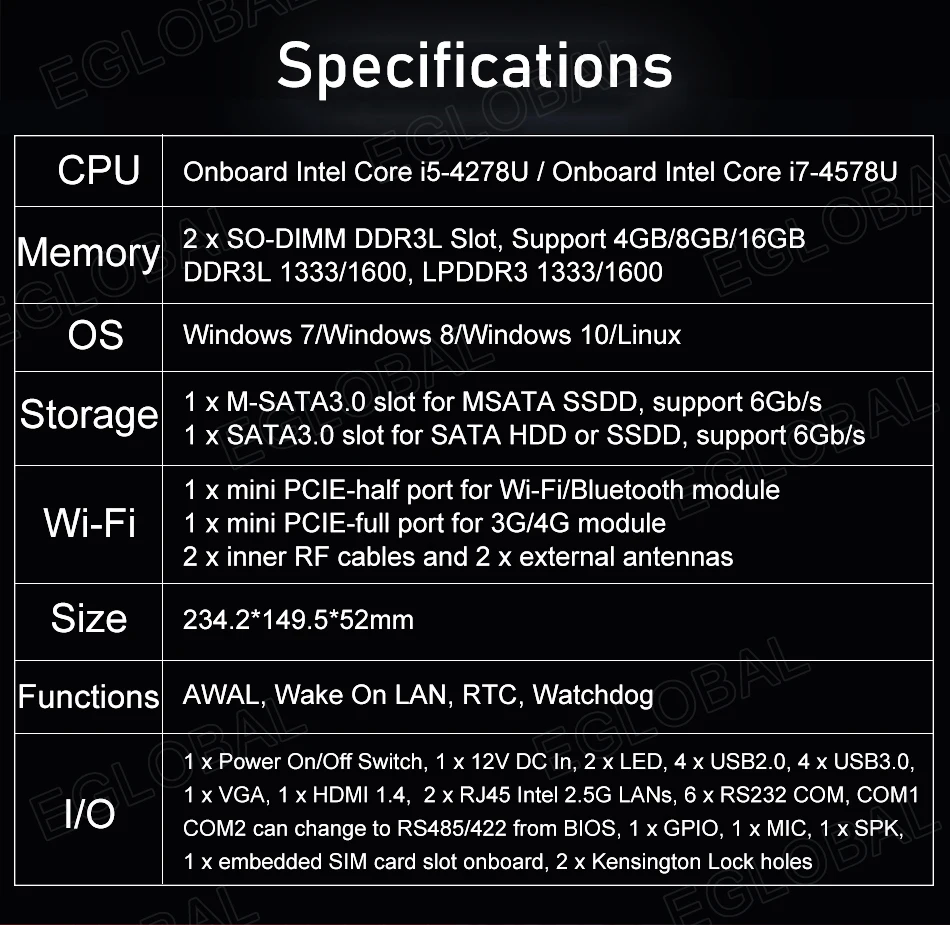

Basic Information: |
|
CPU |
refer to the above Processor |
TDP |
28W |
Motherboard |
14.5 x 14.7 cm |
BIOS |
American Megatrends Inc. 5.6.5 |
Chipset |
Intel Sunrise Point-LP, Intel Skylake-U |
Memory |

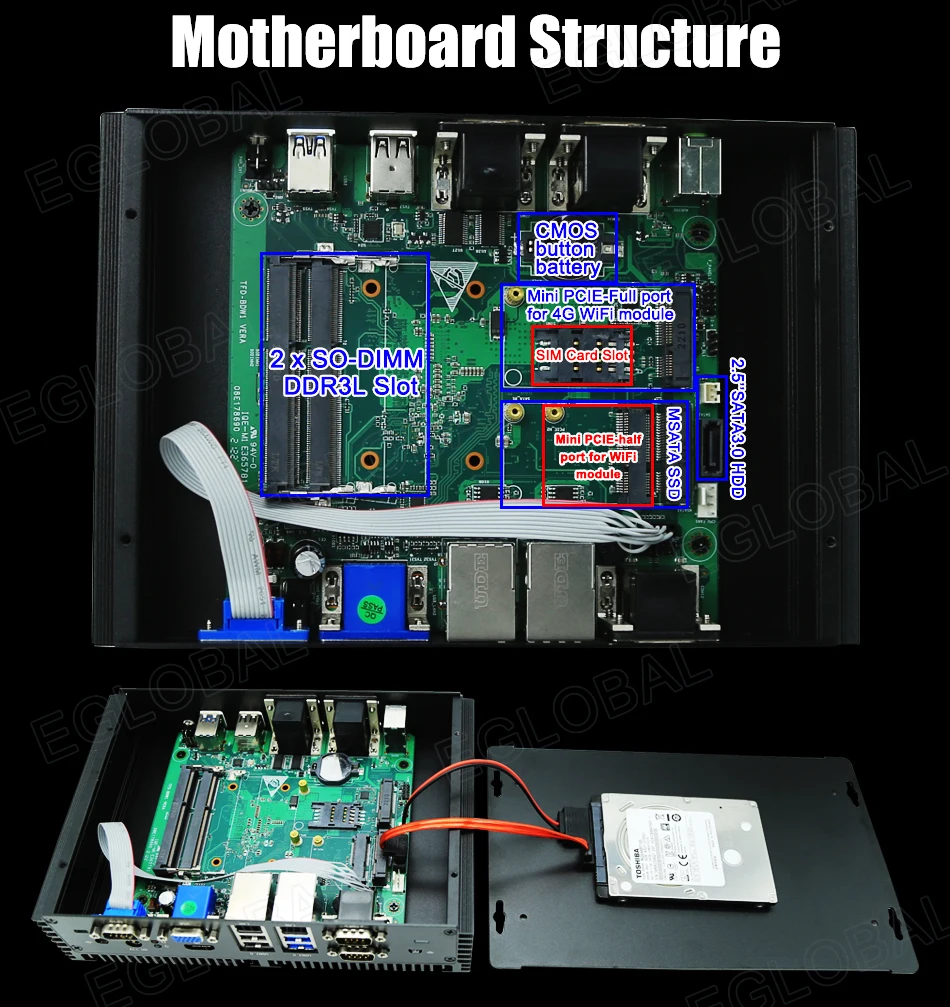

2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB DDR3L 1333/1600, LPDDR3 1333/1600 |
OS |
Windows 7/Windows 8/Windows 10/Linux |

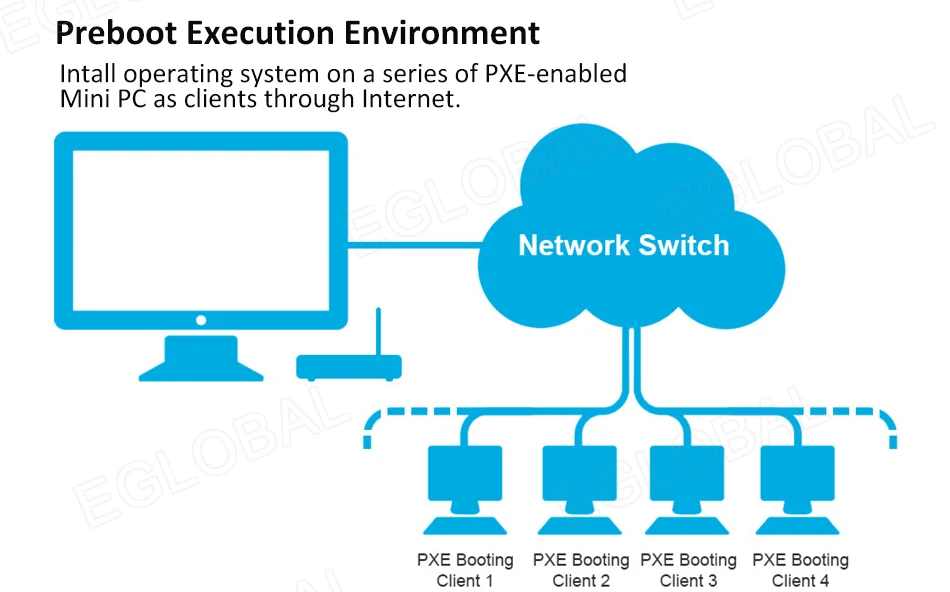

PXE |
YES |
Audio |
Realtek ALC662 @ Intel Sunrise Point-LP PCH – High Definition Audio Controller |
Network |
2 x Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Video |
Intel(R) Iris(R) Graphics 5100 |

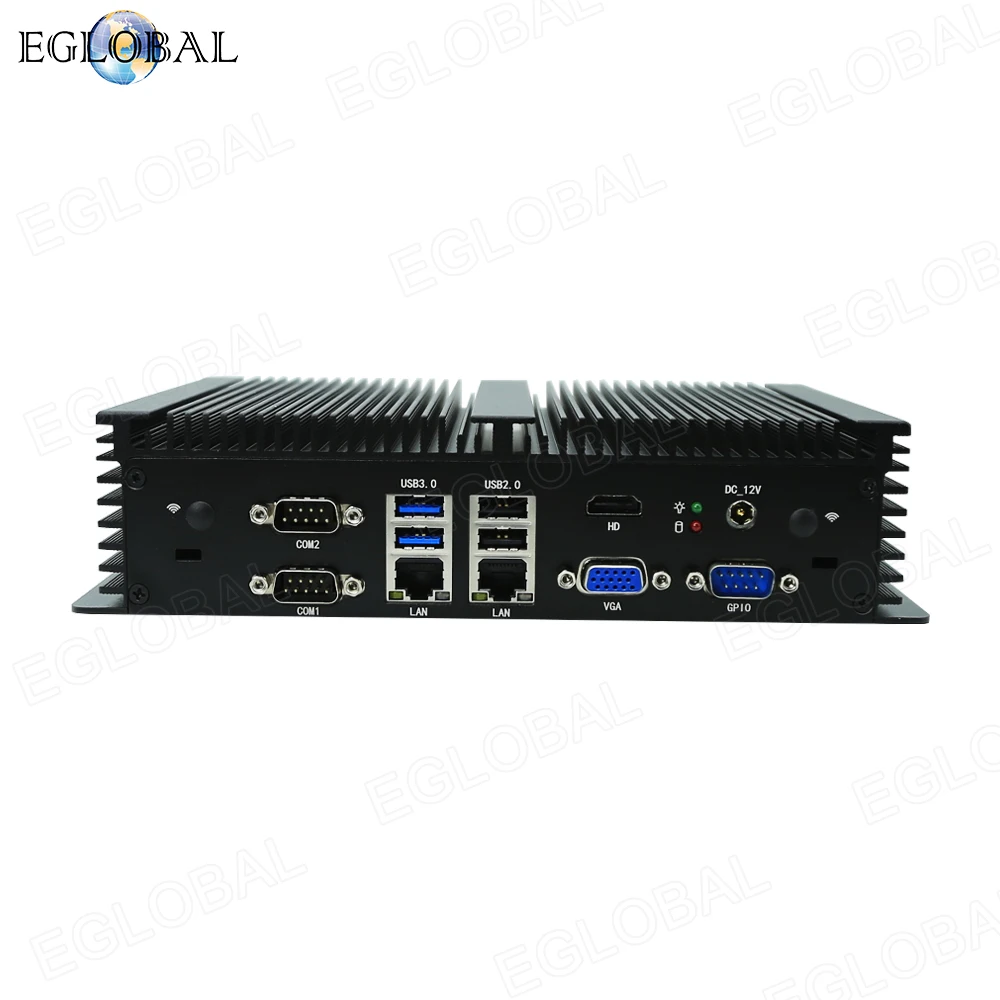

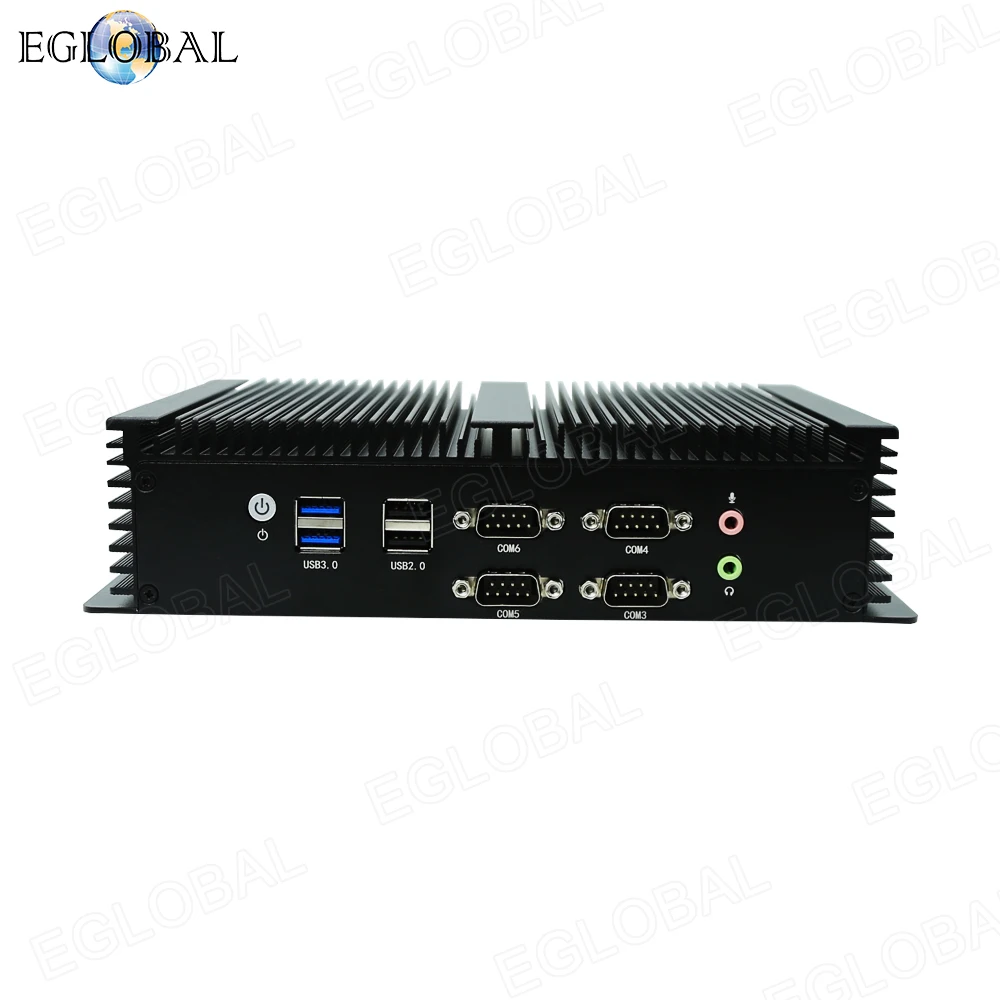

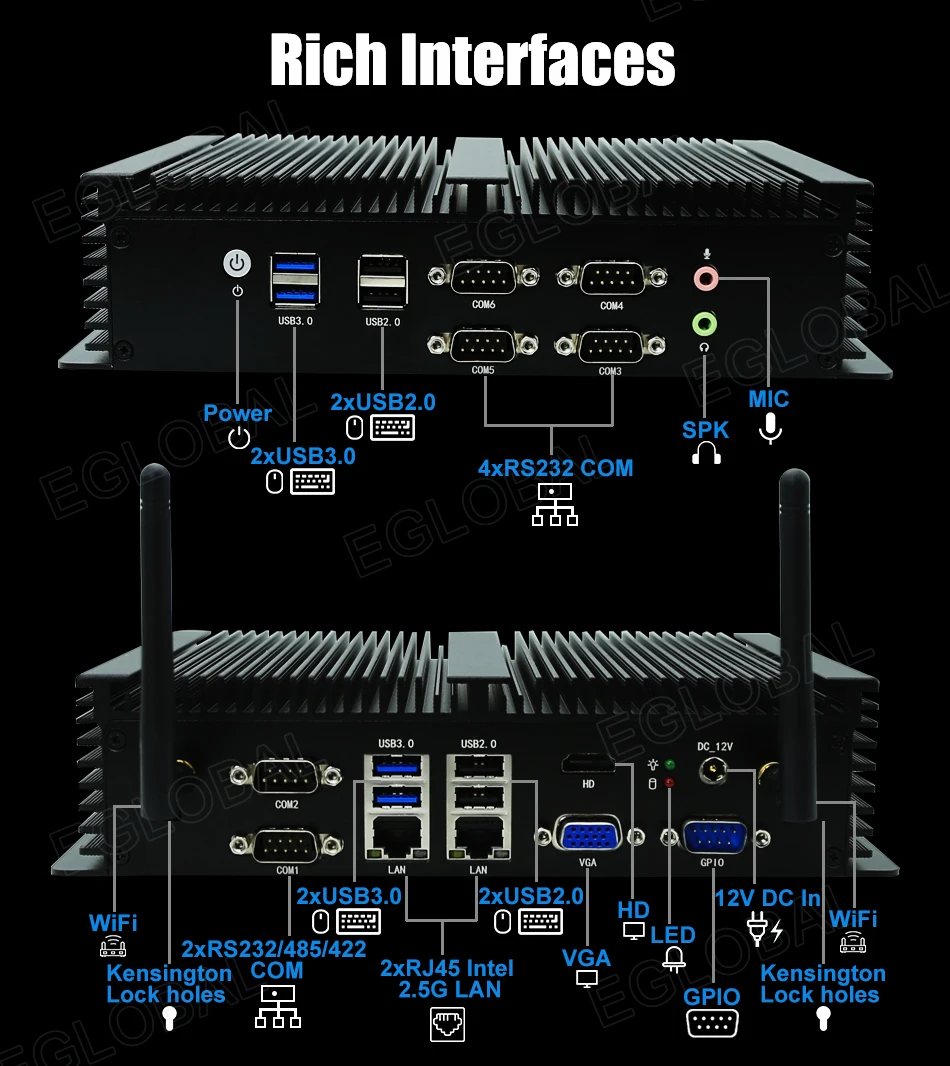

Input/output port |
|
Switch |
1 x Power On/Off Switch |
Power |
1 x 12V DC In |
LED |
2 x LED |
USB |
4 x USB2.0, 4 x USB3.0 |

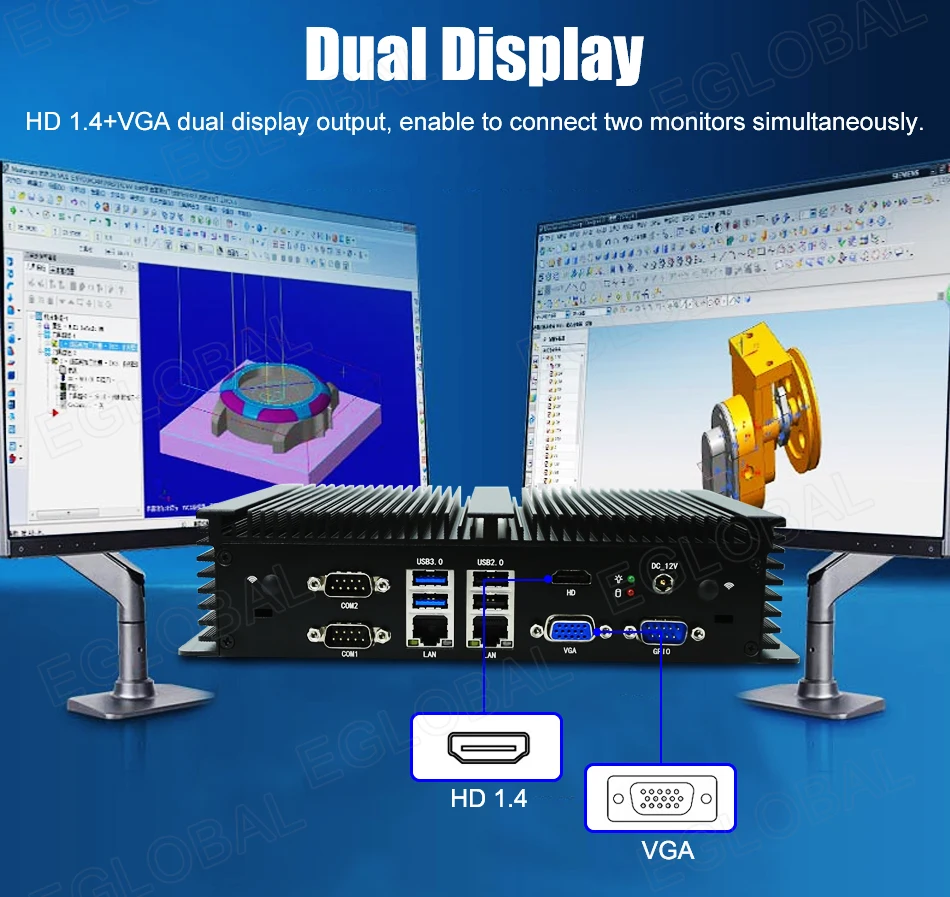

Display |
1 x VGA, 1 x HDMI |
LAN |
2 x RJ45 Intel Giga LAN |
COM |

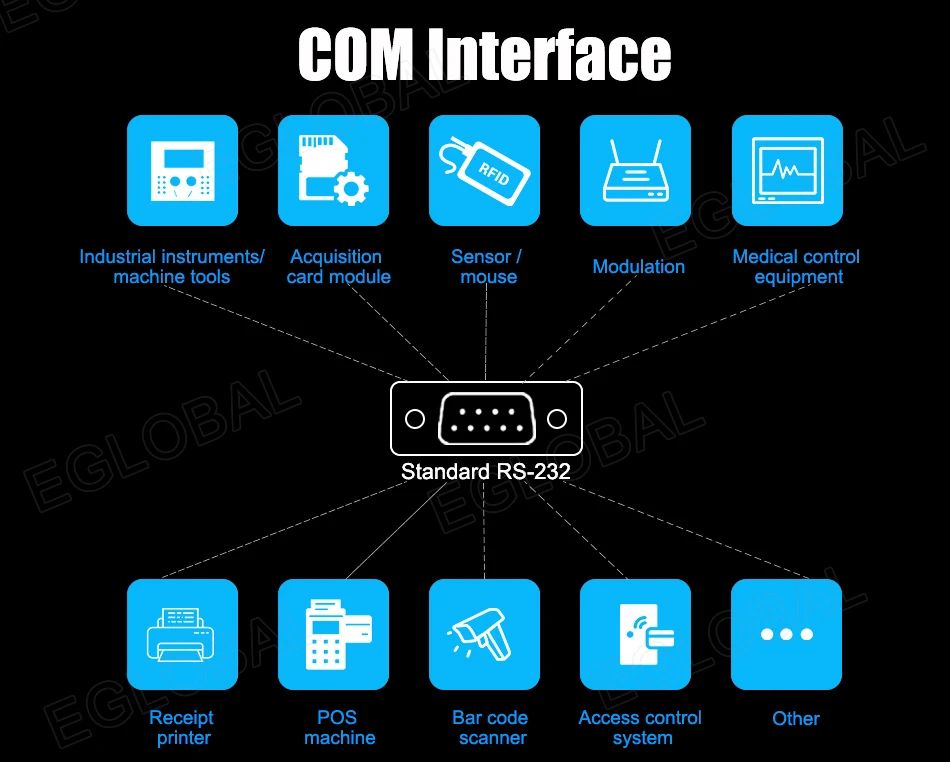

6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS |
SIM |
1 x embedded SIM card slot onboard |
GPIO |
1 x GPIO |
Audio |
1 x MIC, 1 x SPK |
Storage |
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi |
|
Module |

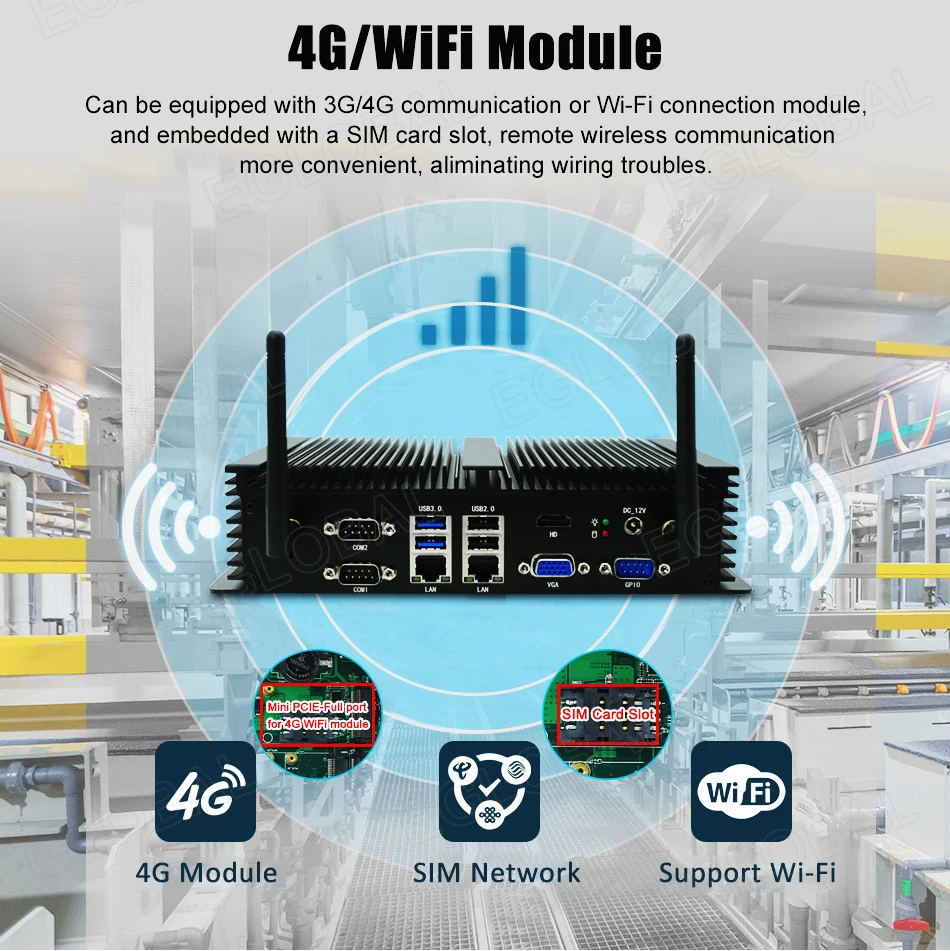

1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G module |
Antenna |
2 x inner RF cables and 2 x external antennas |
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
Output |
DC +12V~+19V, recommend 12V/5A |
Operating Temperature |
-20/+75 Centigrade |
Storage Temperature |
-40/+80 Centigrade |
Relative Humidity |
0%~90% (non-condensing) |
Product Dimension & Details |
|
Size |

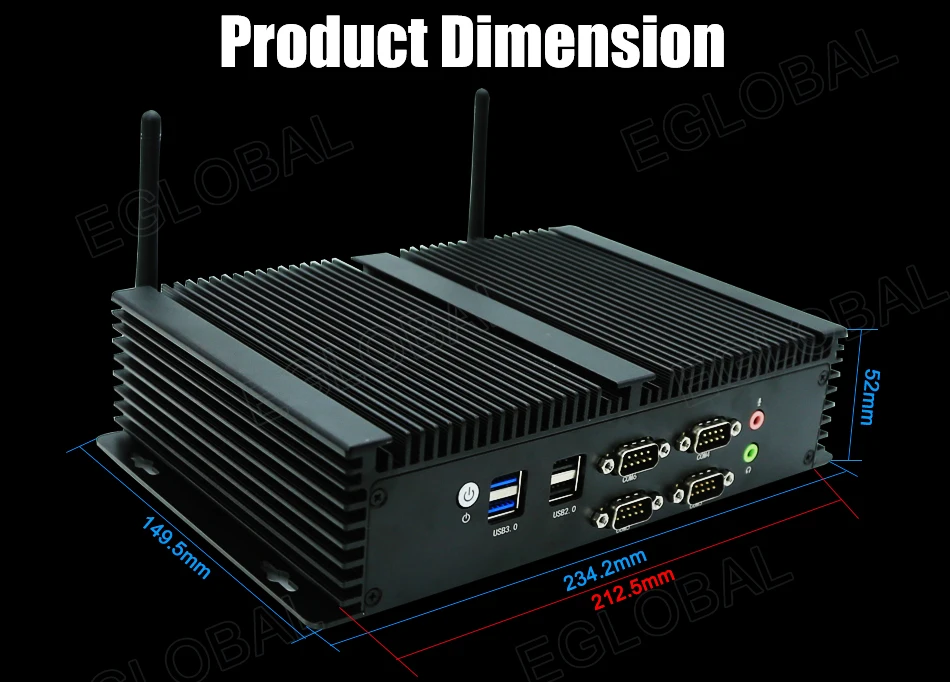

212.5(base: 234.2)*149.5*52mm |
Weight |
Net 1.6kg, Gross 2.5kg |

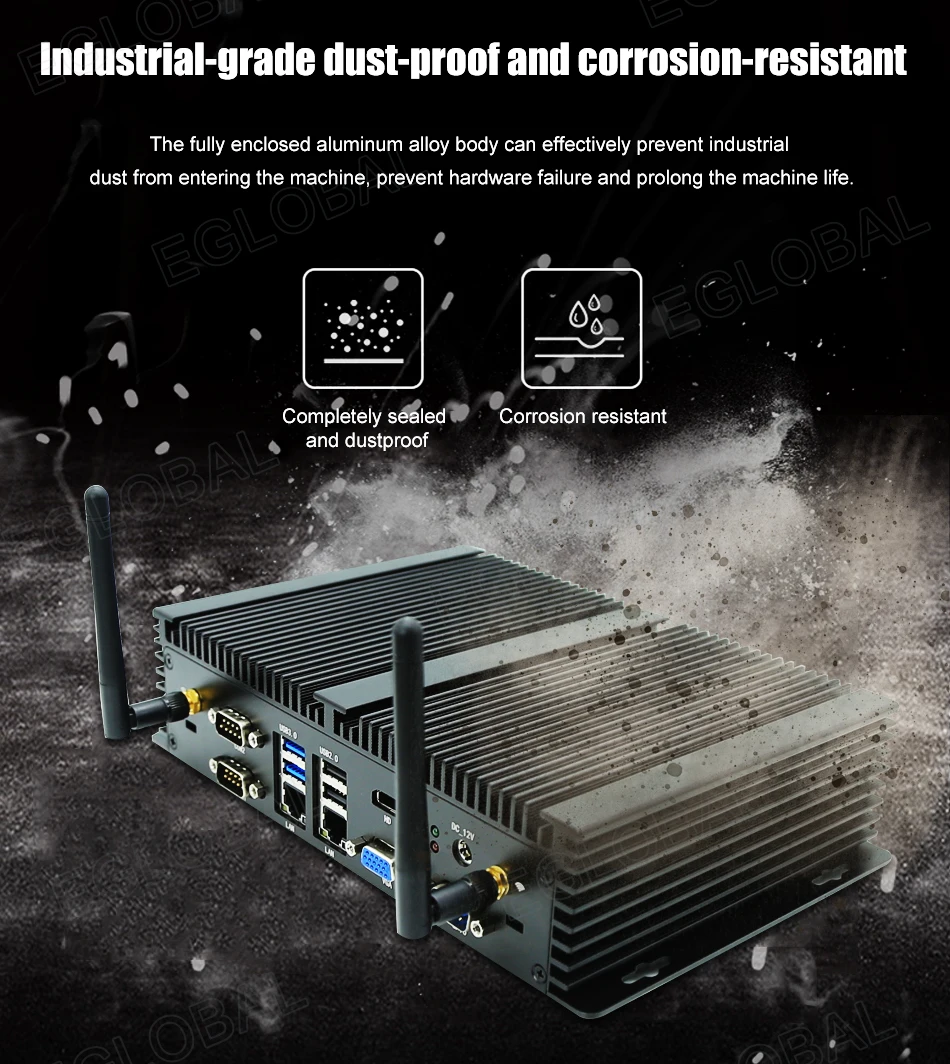

Shell |

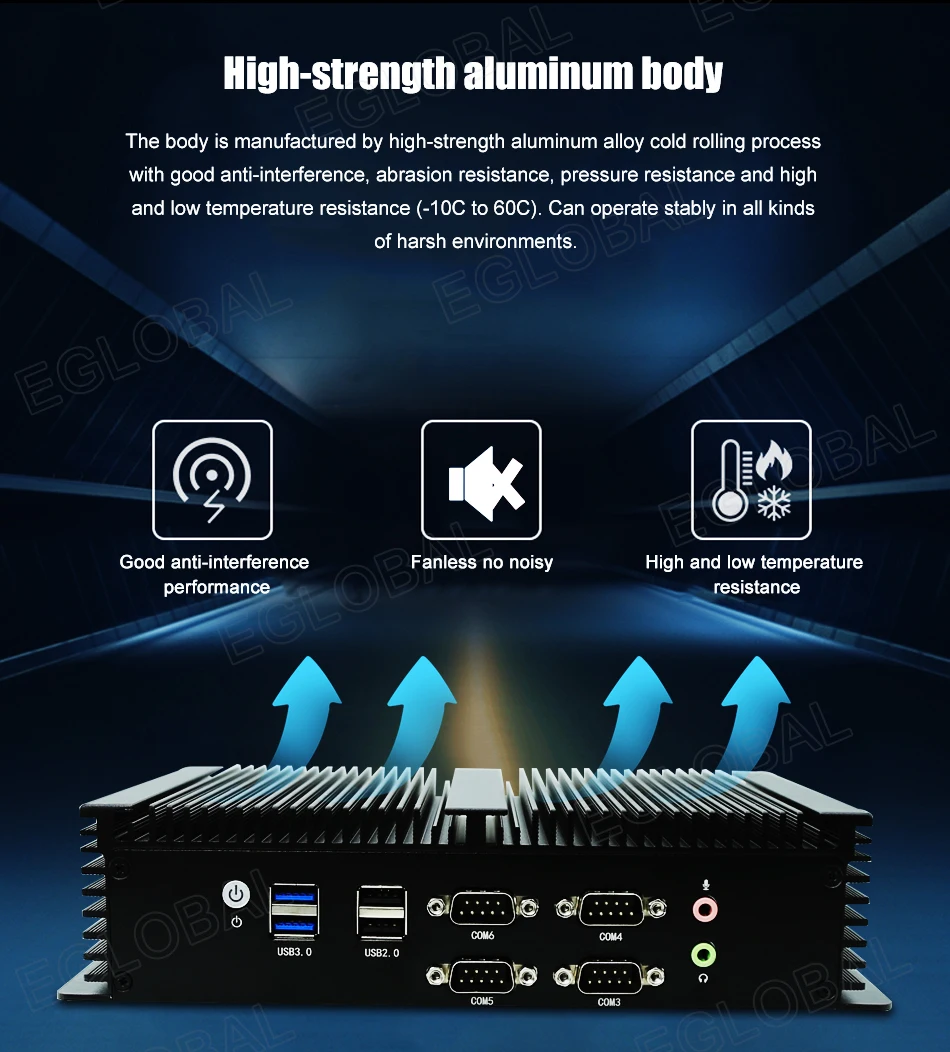

Black color aluminum alloy (any customized color for bulk order) |

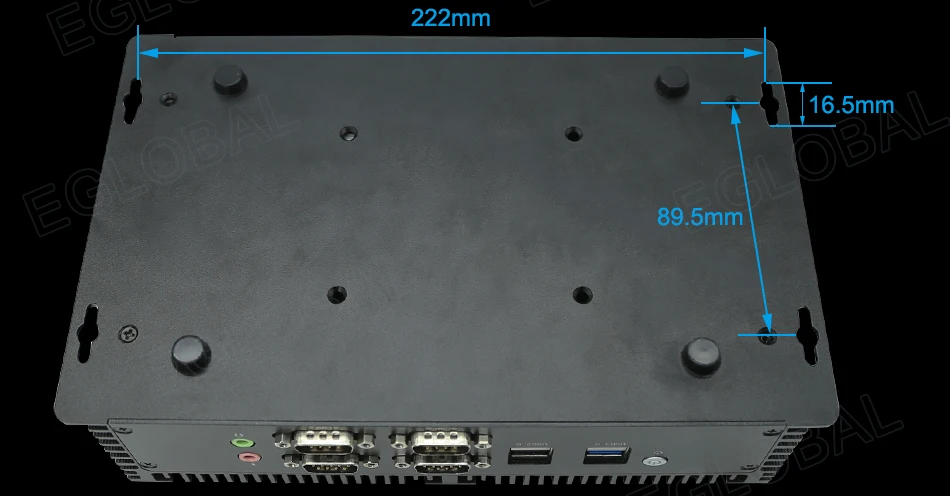

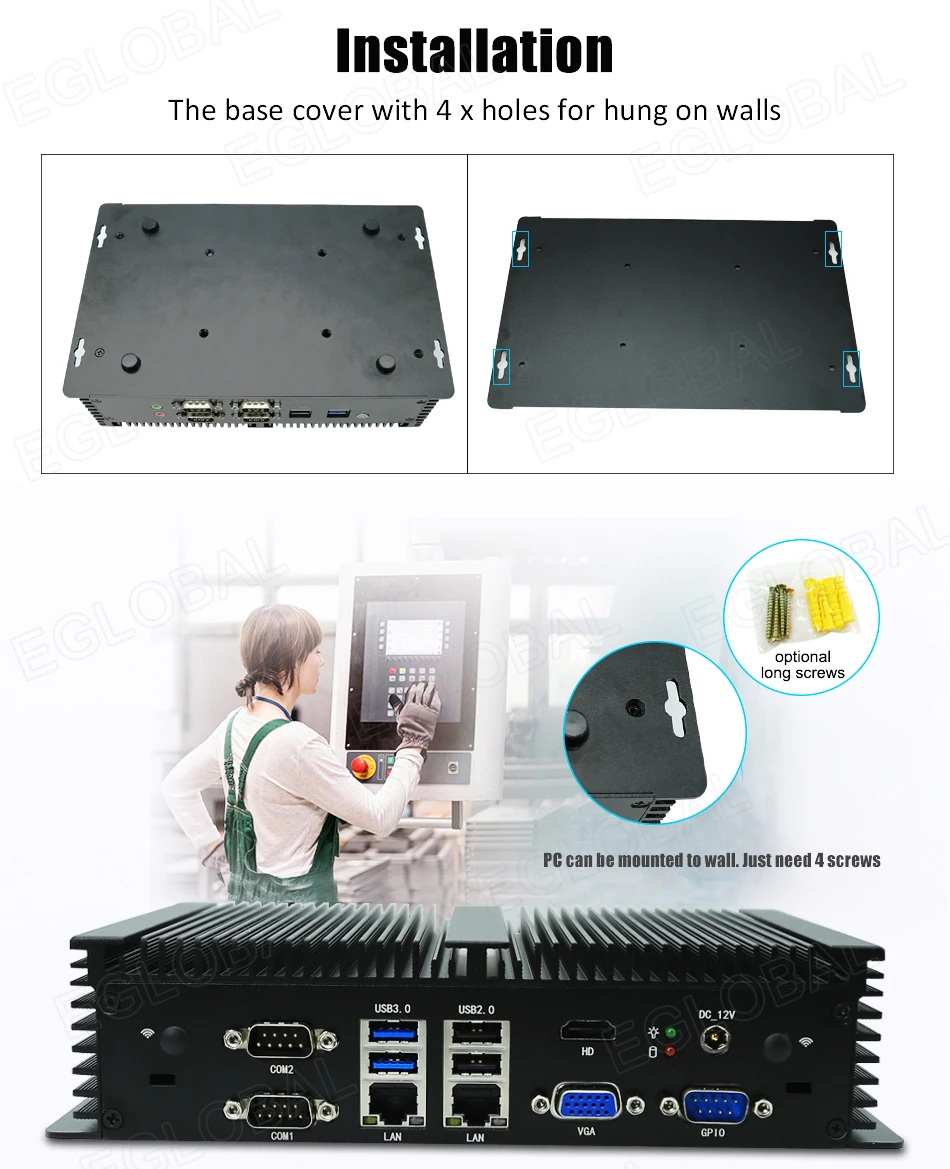

Mounting |
4 Mounting holes on case |
Cooling Mode |
Fanless |
Functions |

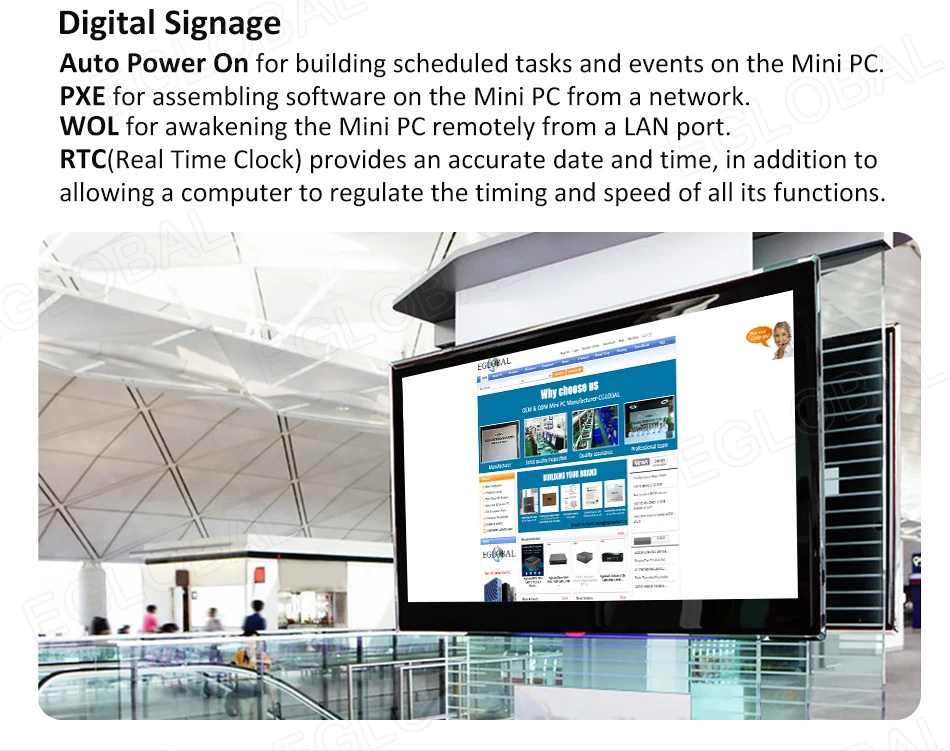

AWAL, Wake On LAN, RTC |

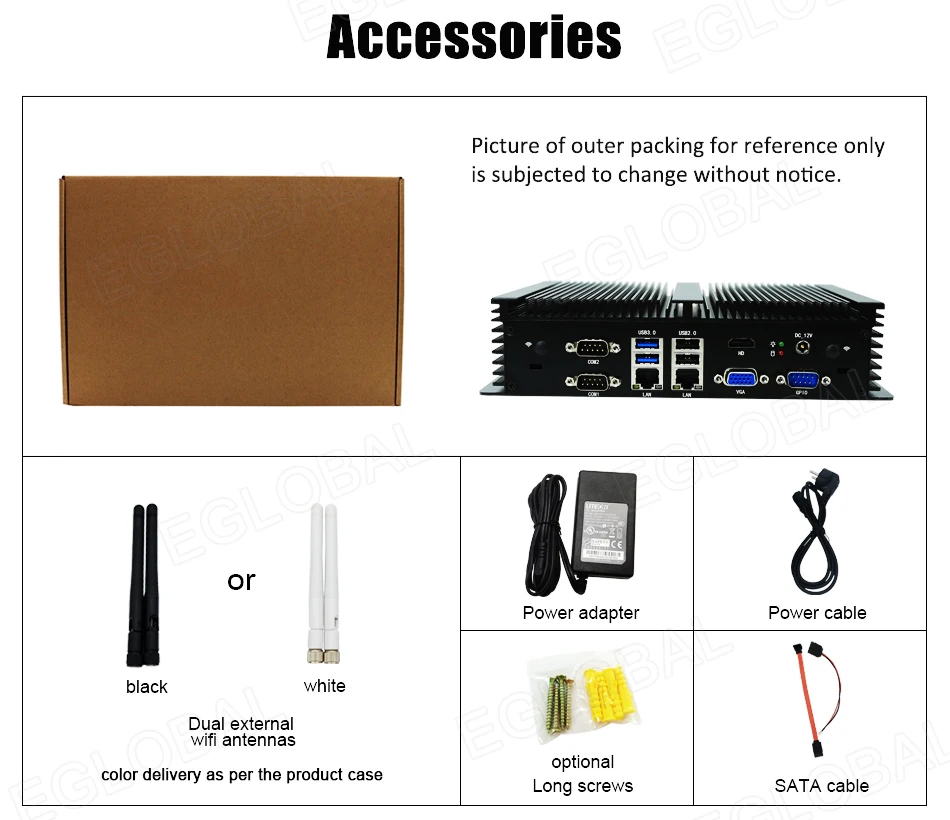

Package Content |
|
Standard |

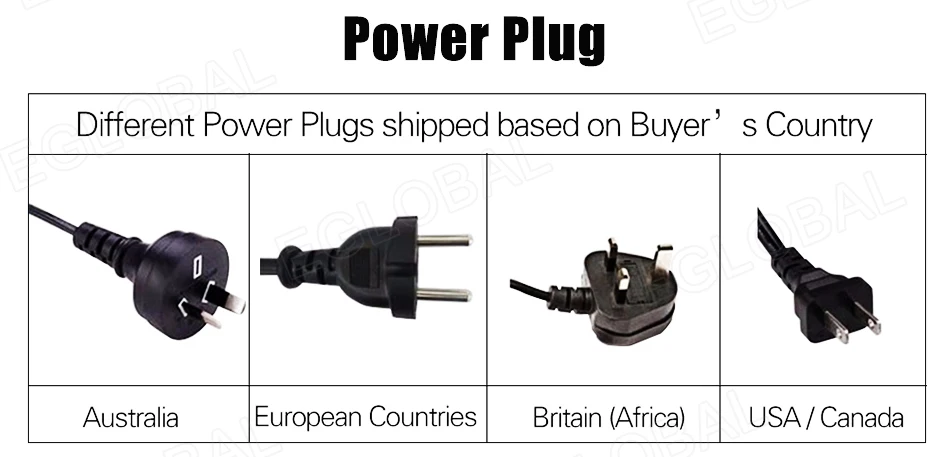

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xHDMI cable(as a gift) 1xScrews Bag |
Optional |
Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag |
