All in one pc computer of Parameter
Brand: Metawesome
Material:Aluminum alloy frame, iron metal back cover
Memory: RAM 4GB/8GB DDR3 System Memory
Storage:64GB/128GB/256GB SDD
System: WIN7/8/10 pro
Graphic: Intel HD Graphics
Color: black (customizable color welcomed)
Weight: about 5Kgs
System Parameter:
Intel Core i7-3517U (Daul cores, 4m high-speed cache, 1.90 GHz, TDP power consumption:17w)
CPU: i3/i5/i7 for option. (If you need, please feel free to contact us in any time)
Parameters of LCD Touch screen:
Touch screen type: Capacitive touch screen (10-points)
Touch screen interface: usb
Light transmittance: 80%
Life expectancy: 35 million times (theoretical value)
Brightness: 300cd/m2
Contrast ratio 500:1
Viewing Angle:Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time:30 (Typ.)(Tr+Td) (ms)
Frame Rate:60Hz
Color system:PAL/ NTSC
power requirement of system:+ 12V DC power input
Power adapter:input:100〜250VAC,50 / 60Hz
output:60W Adapter(12V 5A)
Working temperature:-20°C〜60°C
VISA Hole distance:75*75mm

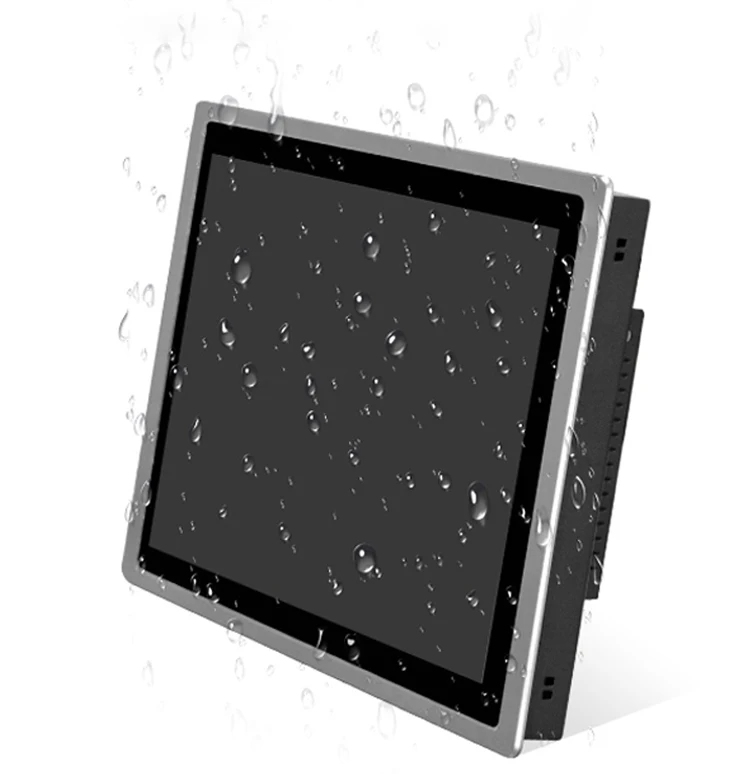

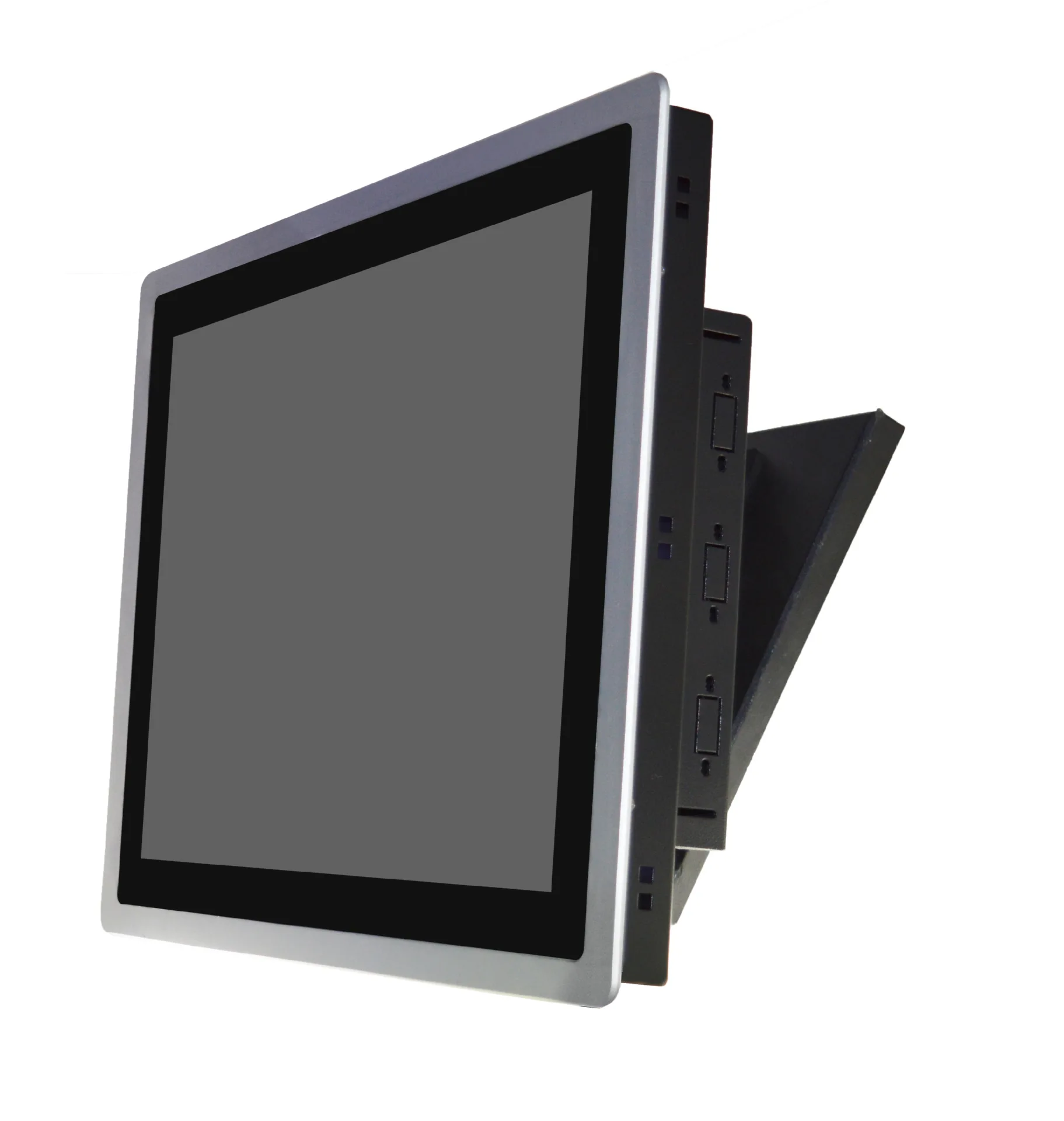

IP65 waterproof pure flat frame and dustproof industrial mini panel pc
The pure flat panel IP65 protection grade design no crack.
Ture flat design effectively dustproof, waterproof and oilproof splashed into the machine.
Highly sensitive capacitive 10 points touch screen style
Tap and touch anywhere with your fingers and it can work quickly.
All aluminum body is more resistant to high and low temperature.
The pure flat frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences.

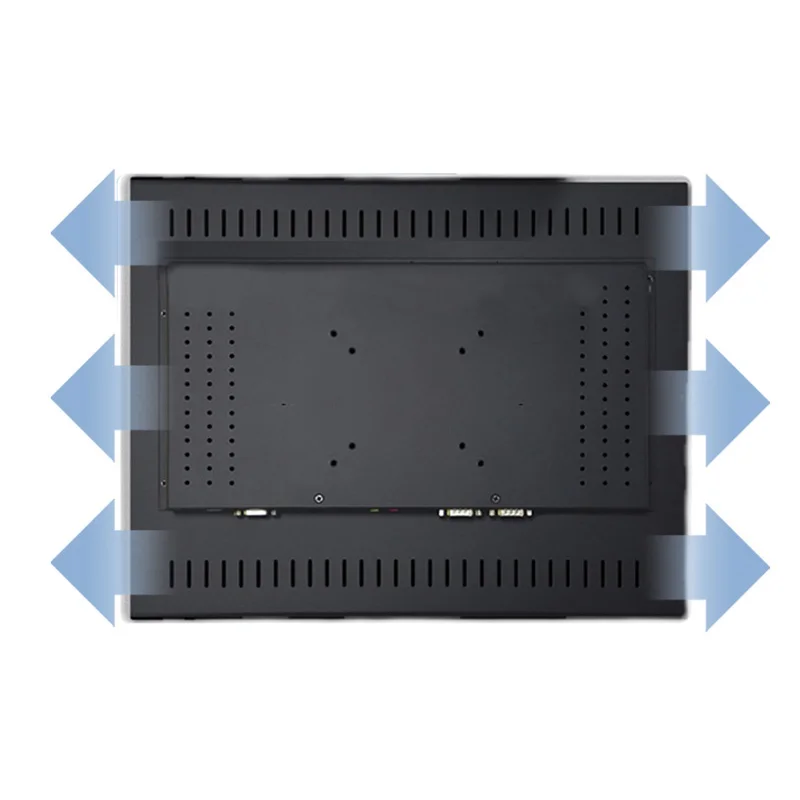

Industrial-grade sheet metal heat dissipation design, with fan cooling.
The motherboard adopts metal back shell for heat dissipation, multiple rows of heat dissipation holes, technological breakthrough, low noise, better heat dissipation, strong stability, and effectively protect the life of the whole machine
More details:
Using new industrial technology, the aluminum alloy/metal shell enhances the product’s water resistance, gloss, hardness, corrosion resistance, and drop resistance.
The stylish arc makes the overall metal texture better. Whether for commercial or industrial use, this will be an enviable piece of craftsmanship.

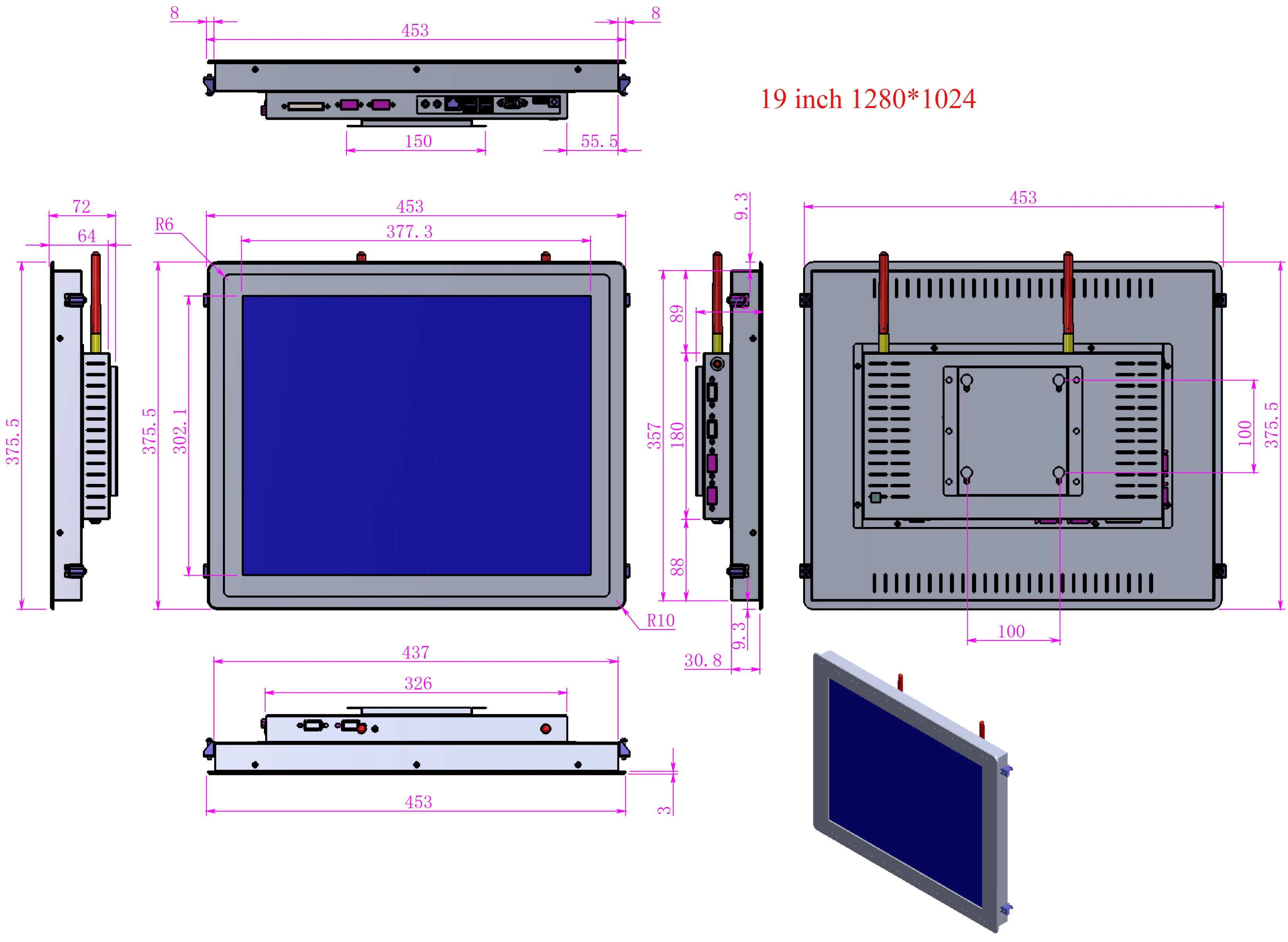

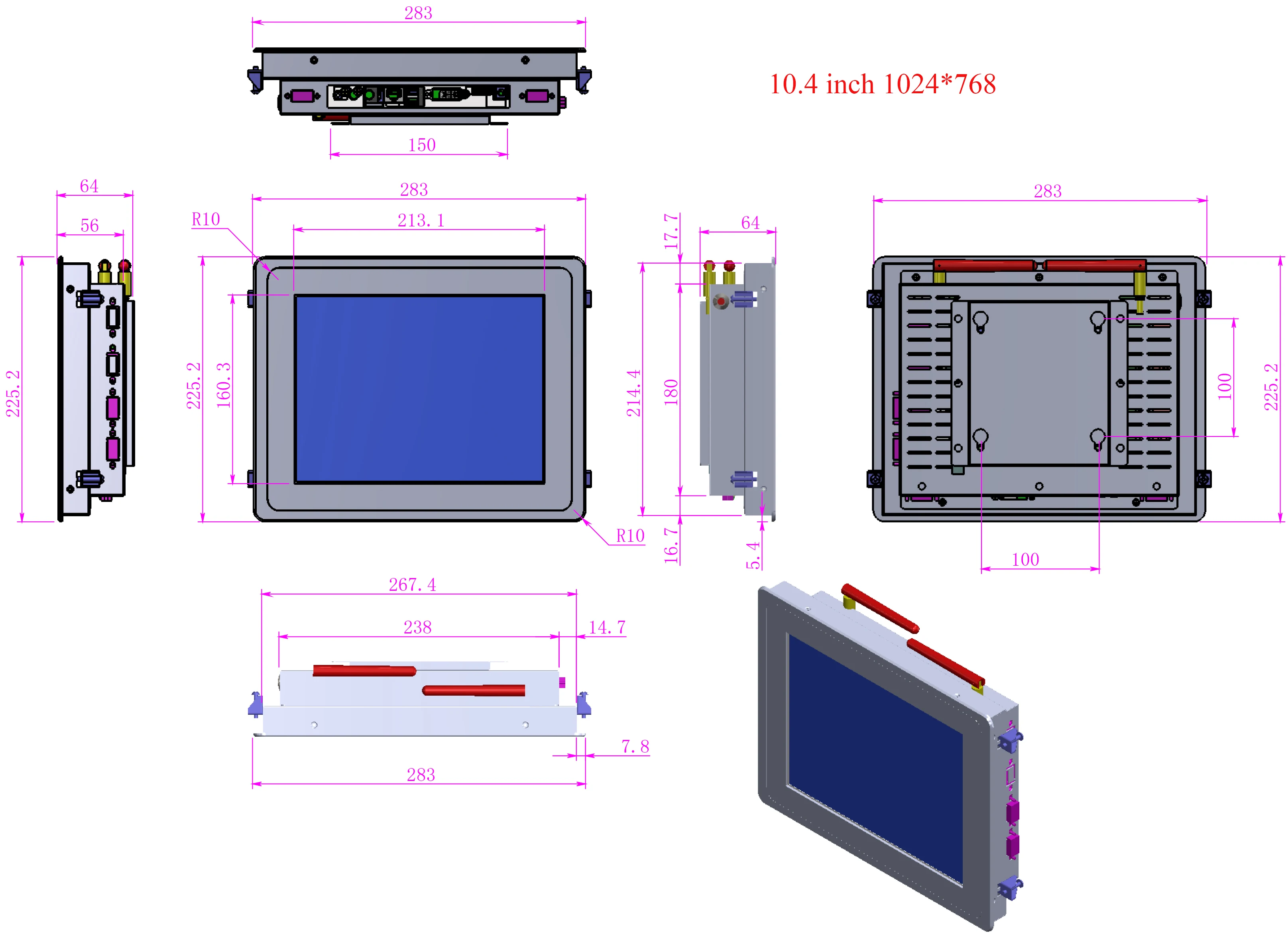

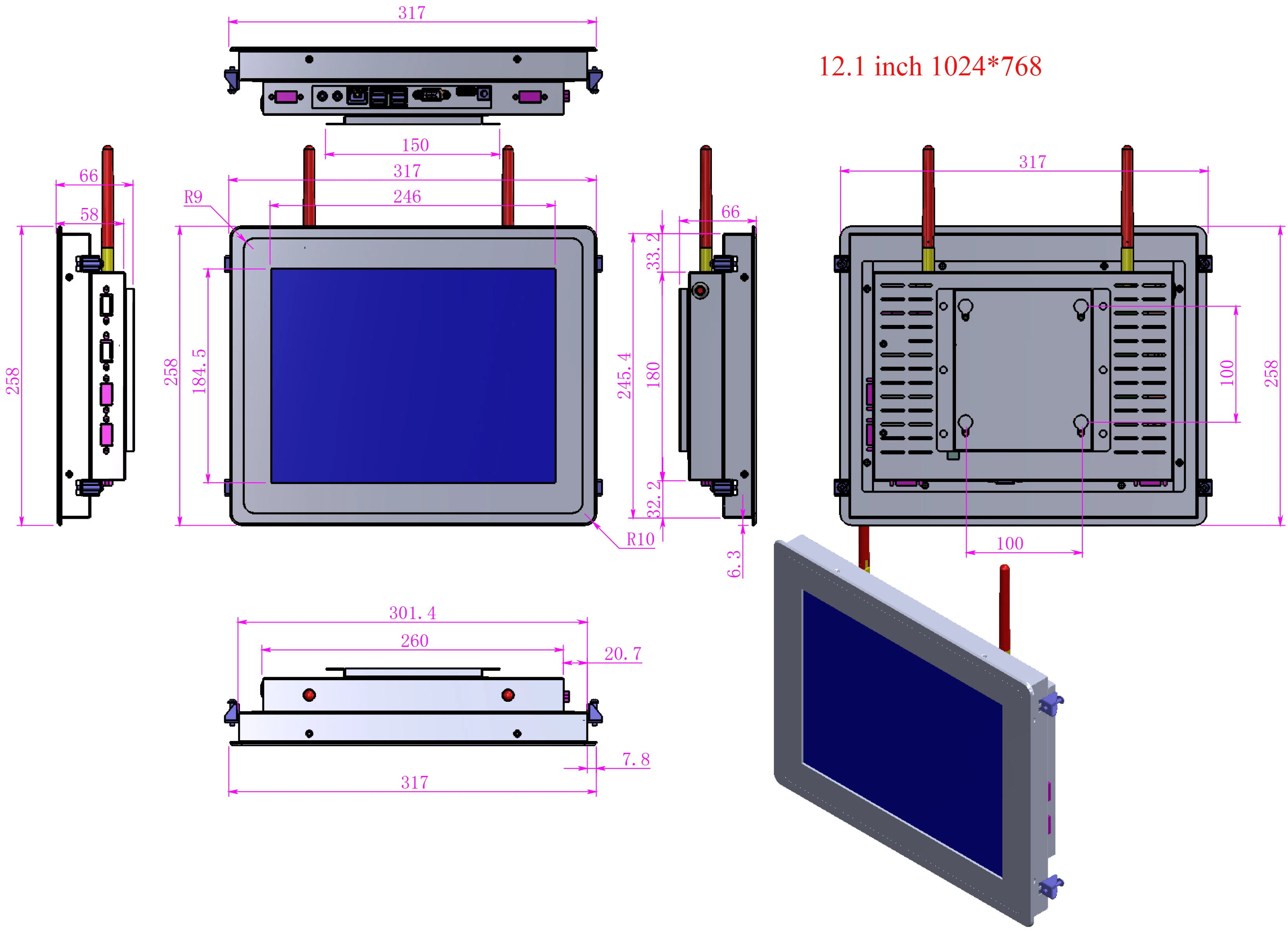

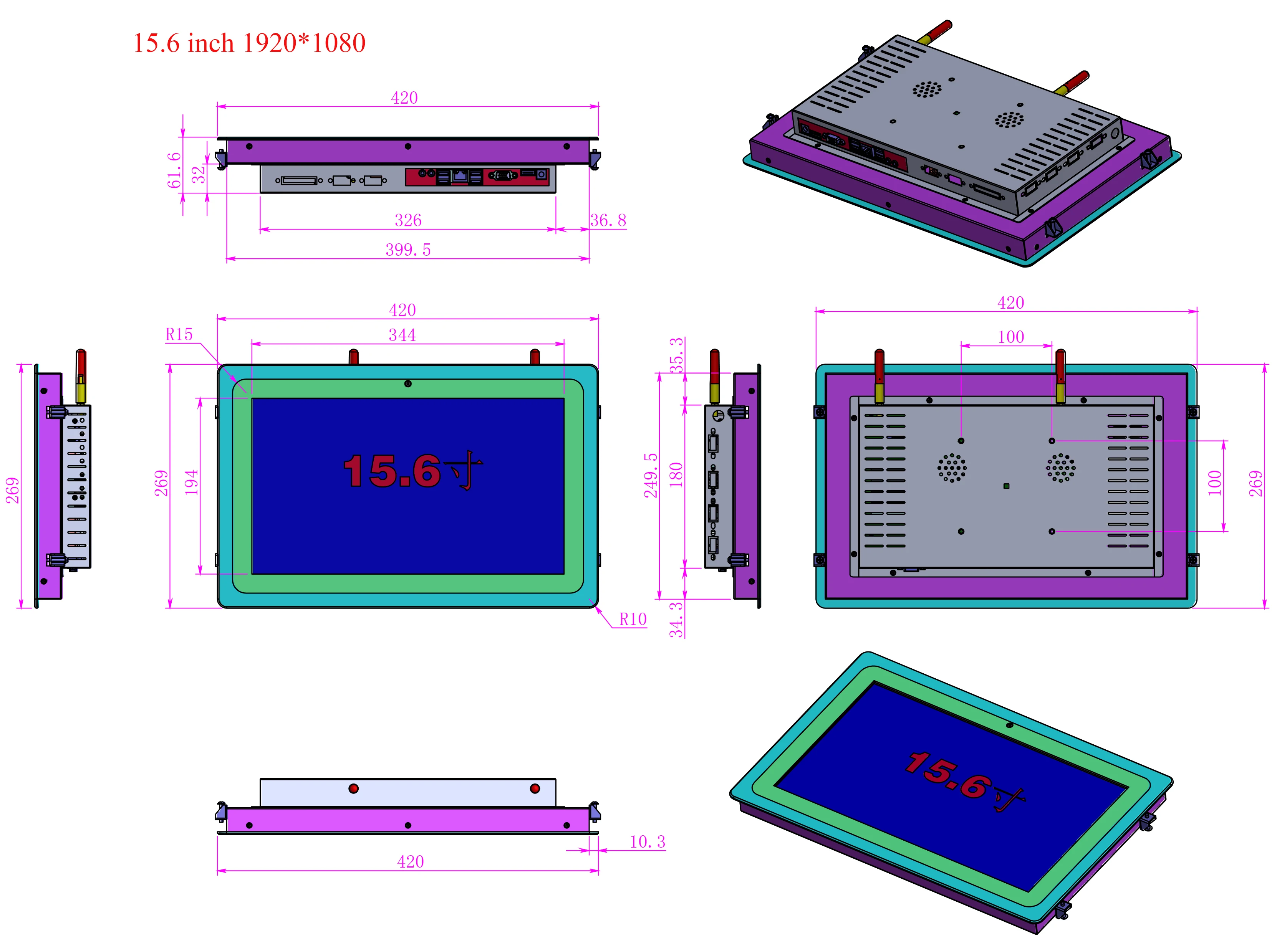

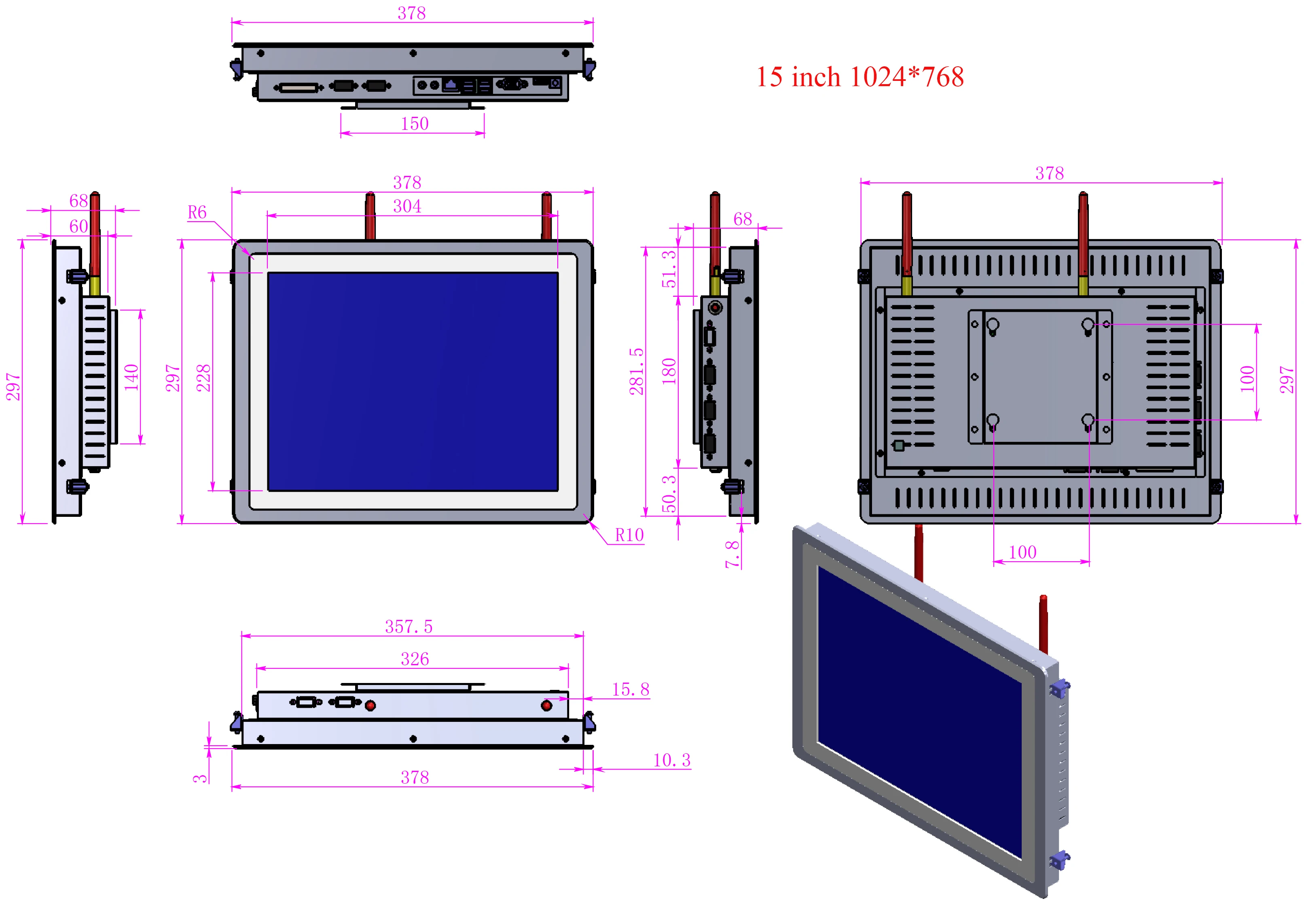

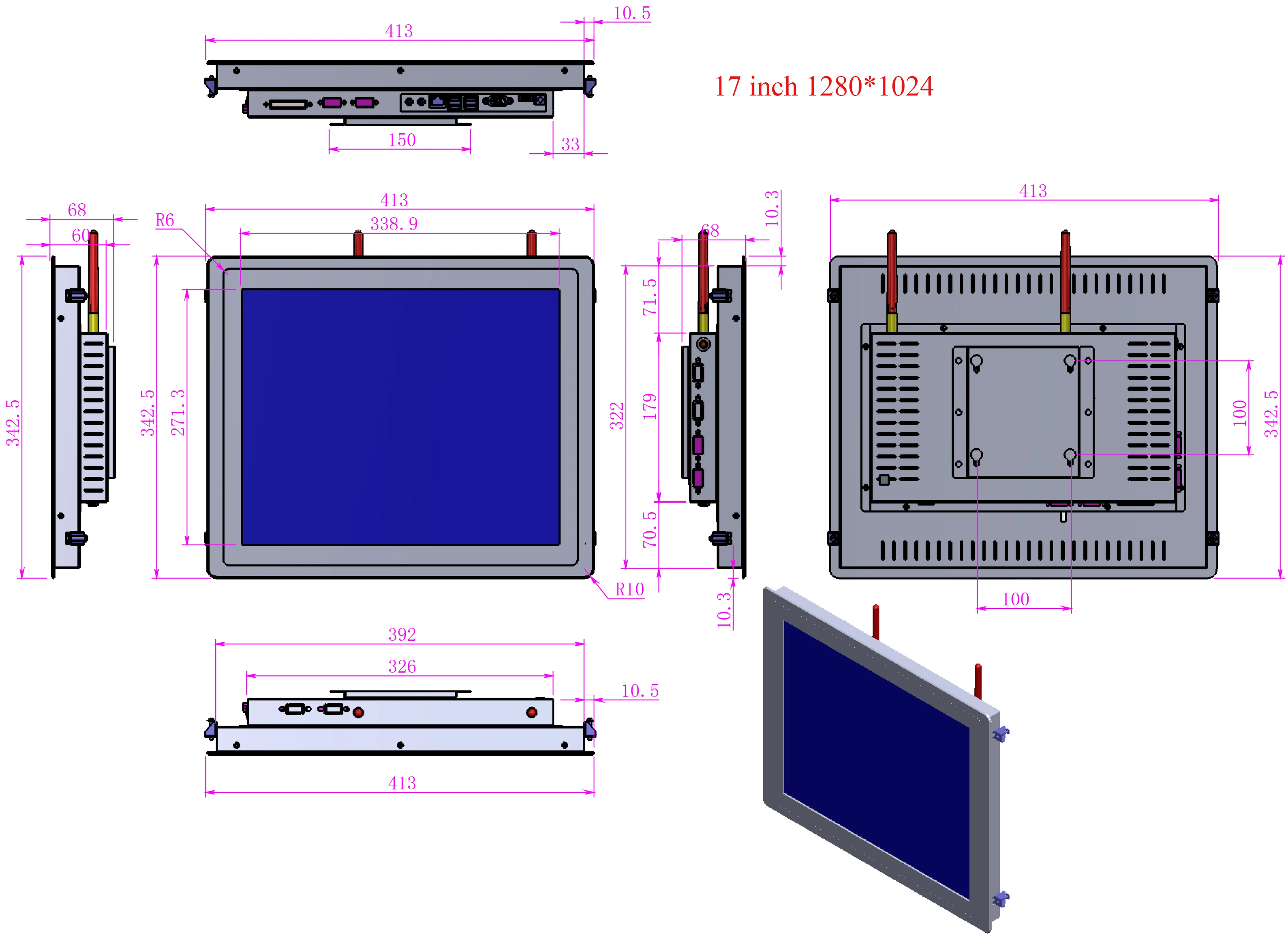

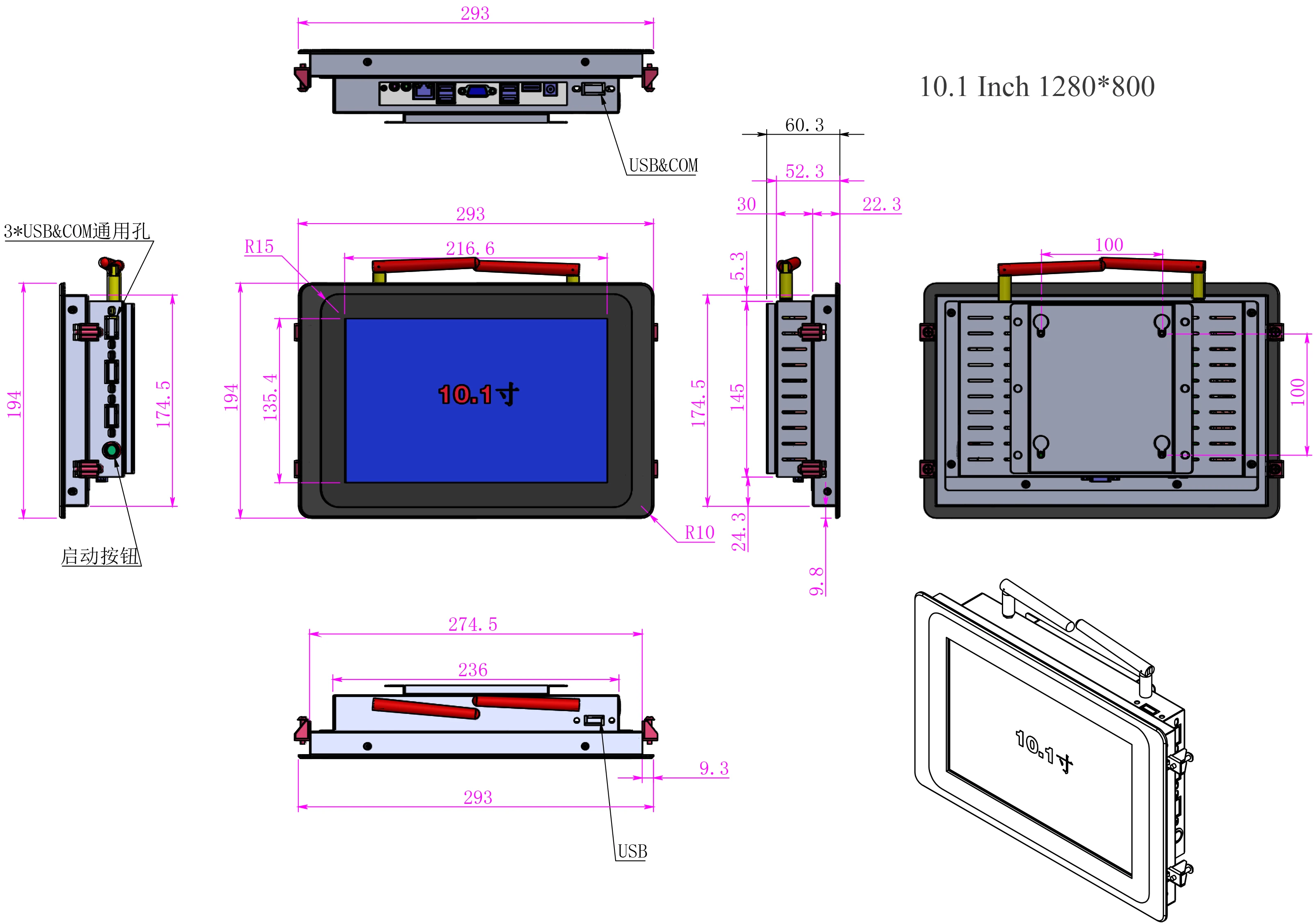

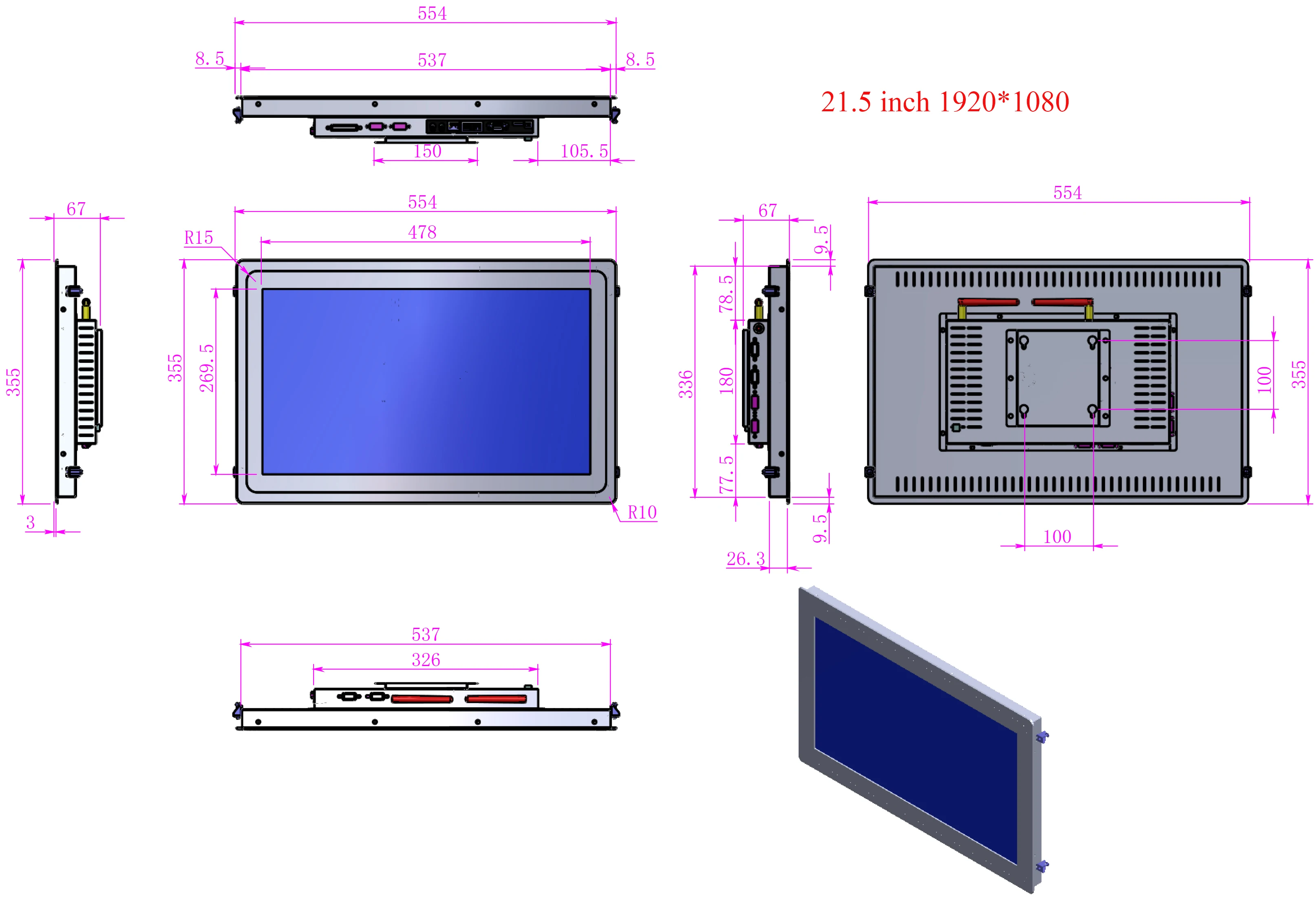

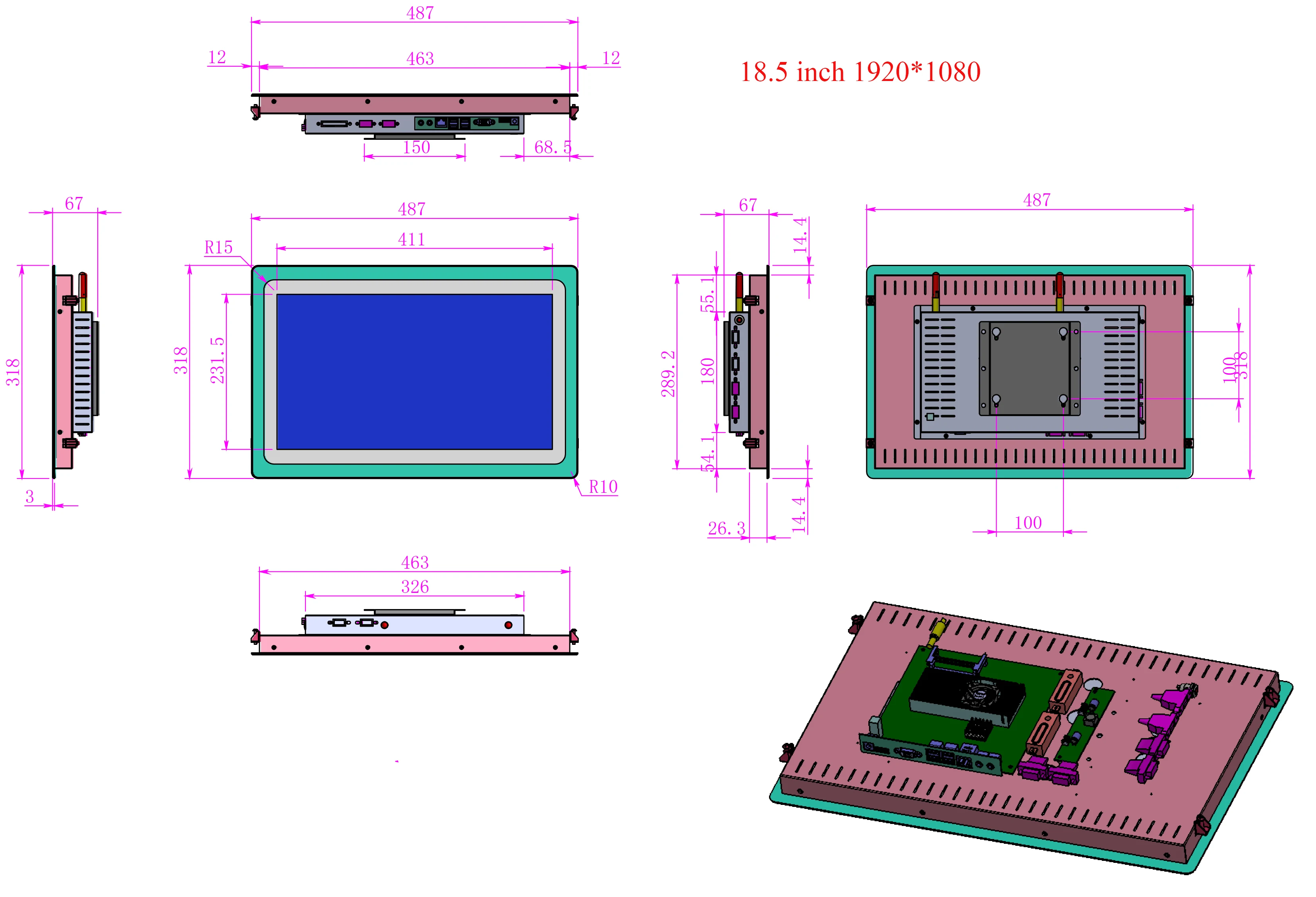

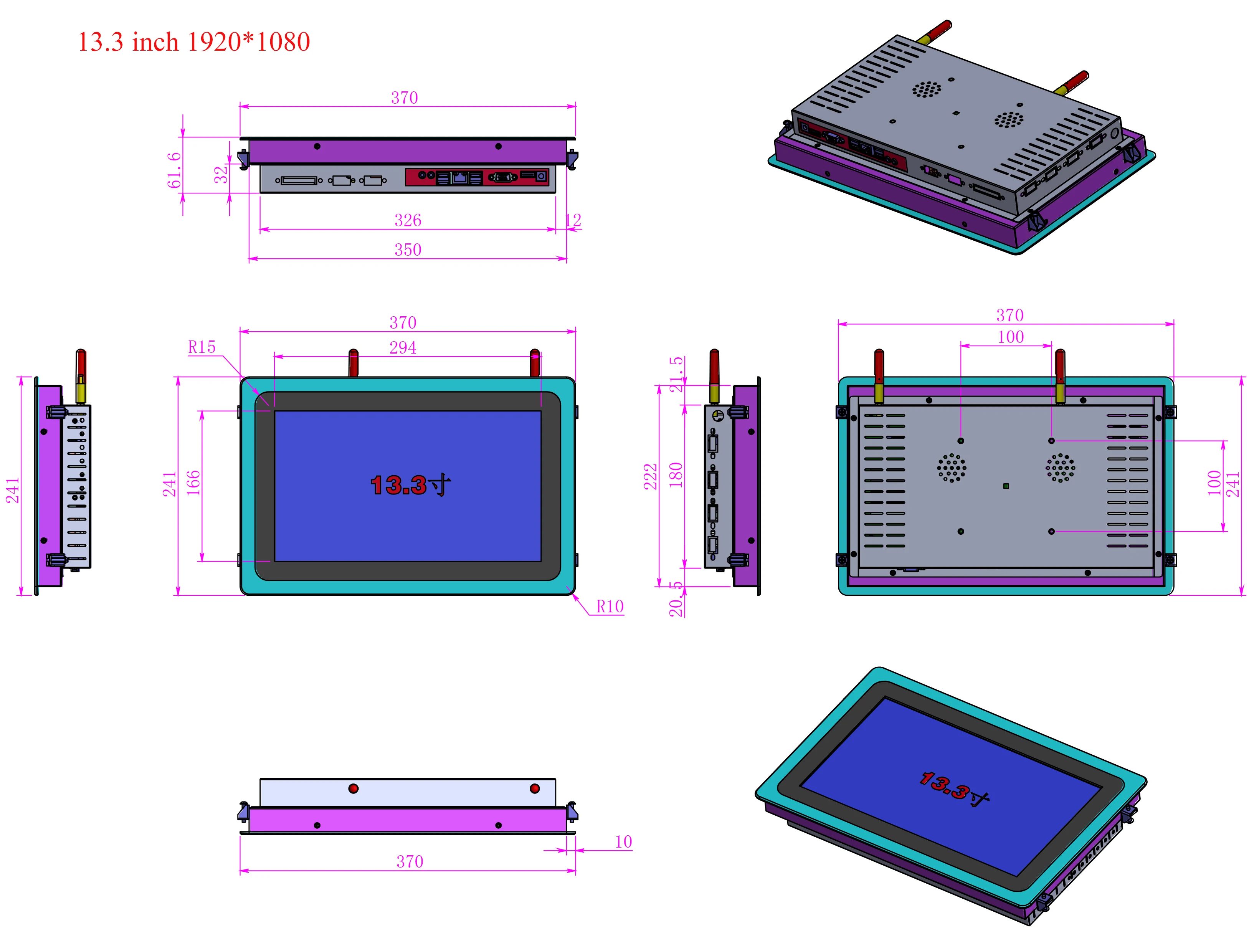

Dimension:

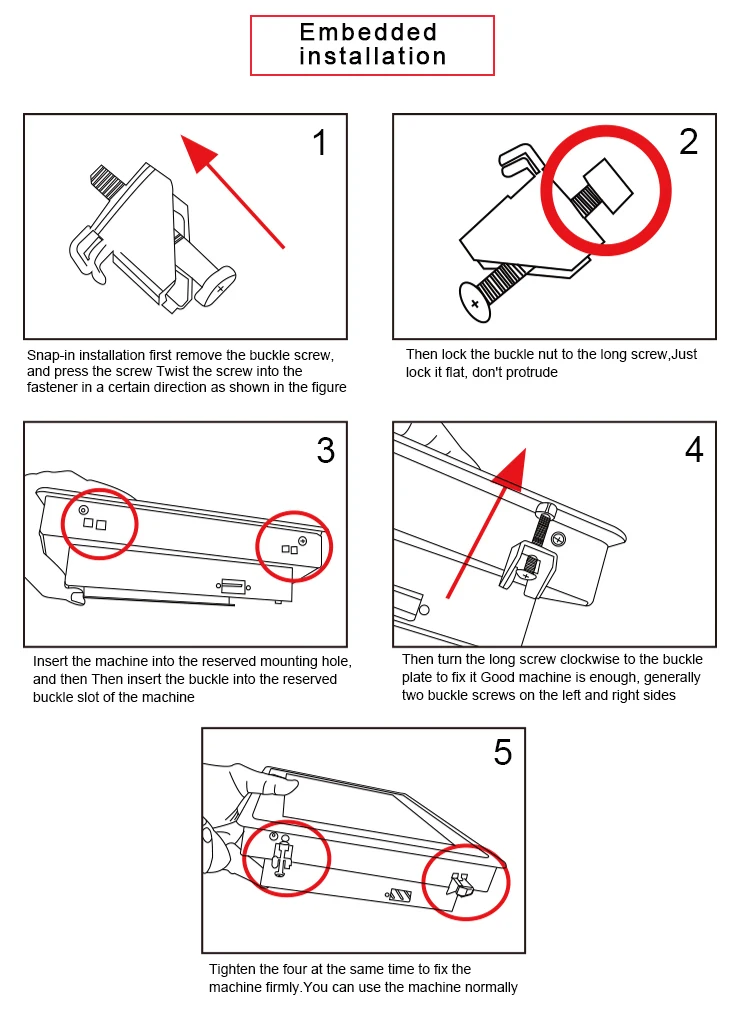

Installation Methods:
Our default installation method is Embedded, if you need other methods, please feel free to contact our customer serive for more details.
