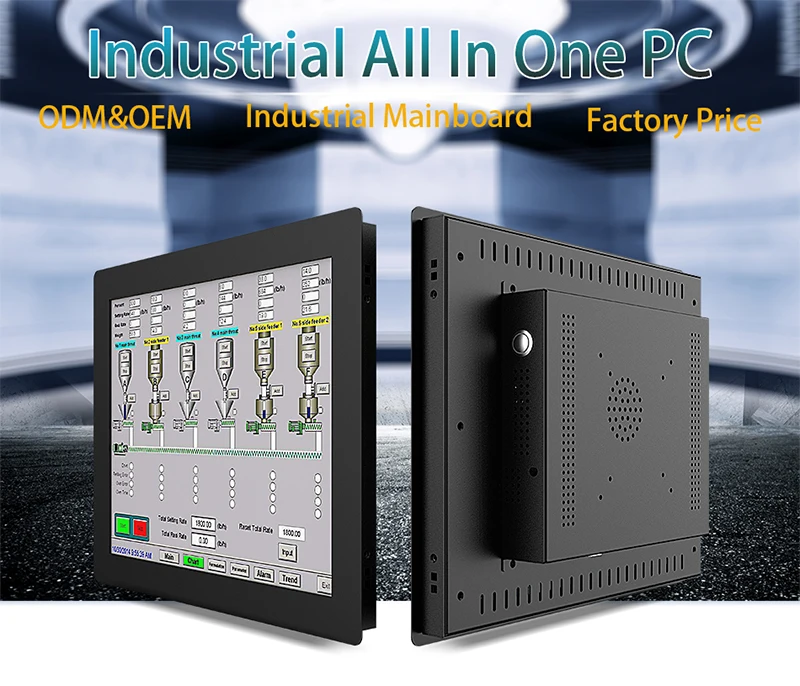

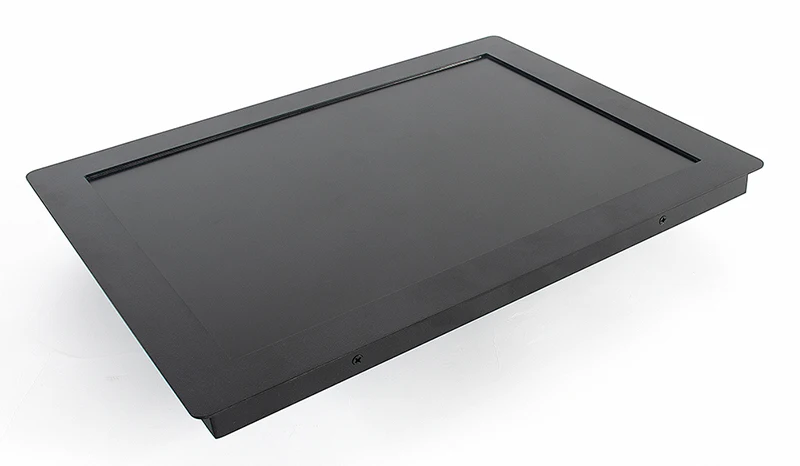

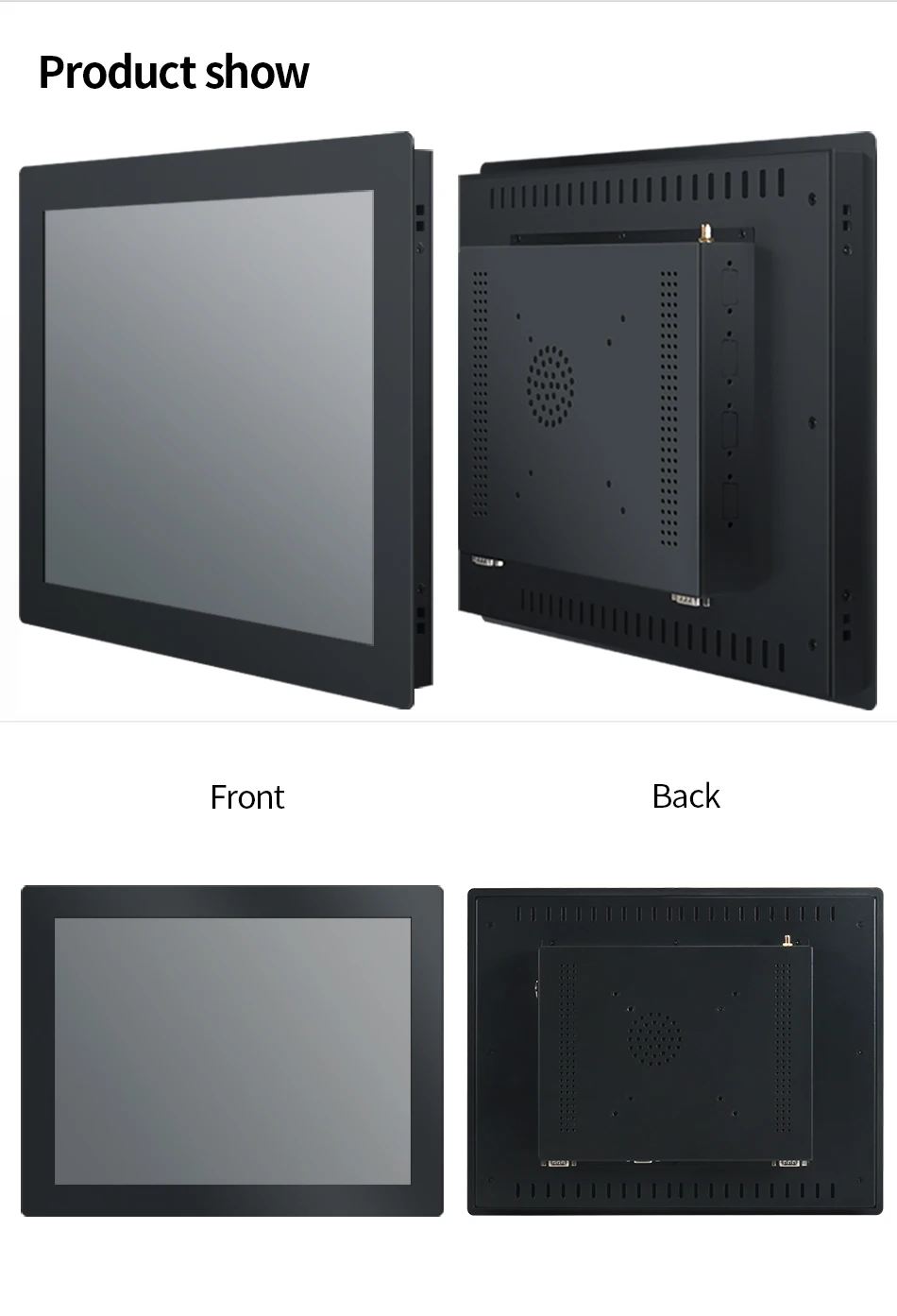

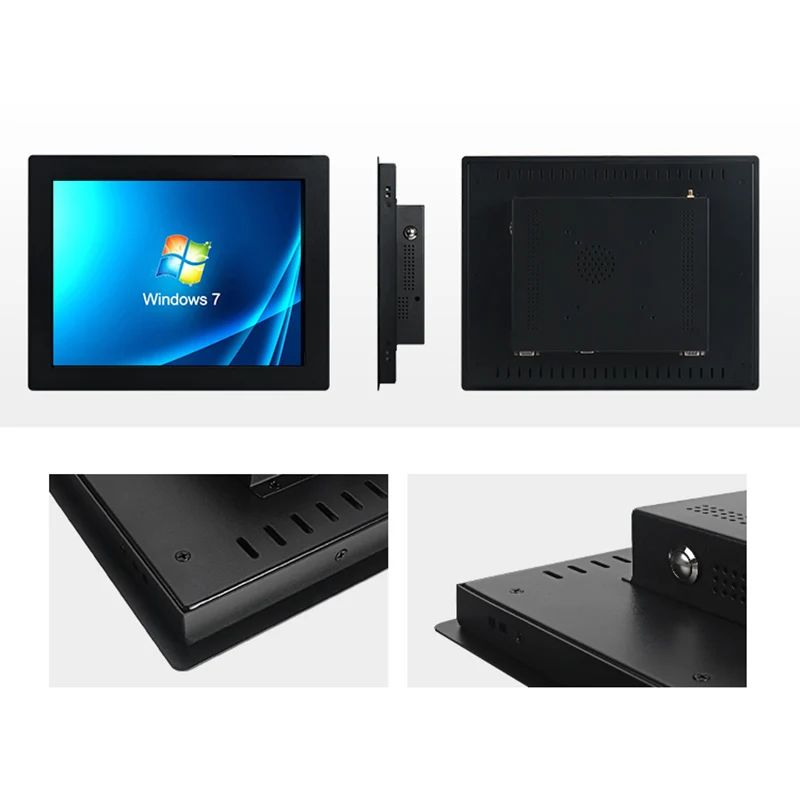

Resistive Industrial Tablet PC of Parameter
Brand: Metawesome
Material: Metal frame, iron metal back cover
Memory: optional RAM 4GB/8GB DDR3 System Memory
Storage:optional 64GB/128GB /256GB SDD
System: WIN7/8/10 pro
Graphic: Intel HD Graphics
Color: black (customizable color welcomed)
Weight: about 6Kgs
Parameter
Intel Celeron-J1800 processor (Dual cores, 1m high-speed L2 cache, 2.41 GHz, up to 2.58 GHz, TDP power consumption:10w)
Intel Celeron-J1900 processor (Quad cores, 2m high-speed L2 cache, 2.00 GHz, up to 2.41 GHz, TDP power consumption:10w)
Intel Celeron-J4125 processor (Quad cores, 4m high-speed cache, 2.00 GHz, up to 2.70 GHz, TDP power consumption:10w)
Intel Core i3-3217U processor (Daul cores, 3m high-speed cache, 1.80 GHz, TDP power consumption:17w)
Intel Core i5-3317U processor (Daul cores, 3m high-speed cache, 1.70 GHz, up to 2.60 GHz, TDP power consumption:17w)
Intel Core i5-3210M processor (Daul cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:18w)
Intel Core i3-4120U processor (Dual cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:15w)
Intel Core i5-4200U processor (Quad cores, 3m high-speed cache, 1.60 GHz, Up to 2.60GHz, TDP power consumption:15w)
Intel Core i5-4300U (Dual cores, 3m high-speed cache, 1.900GHz, TDP power consumption:15w)
Intel Core i7-4600U processor (Dual cores, 4m high-speed L2 cache, 2.10 GHz, Up to 3.30GHz, TDP power consumption:15w)
Intel Core i5-6360U processor (Dual cores, 4m high-speed cache, 2.00 GHz, up to 3.10 GHz, TDP power consumption:15w)
Intel Core i5-8265U processor(Quad cores, 6m high-speed L2 cache, 1.60 GHz, Up to 3.90GHz, TDP power consumption:15w)
Intel Core i7-8565U processor(Quad cores, 8m high-speed L2 cache, 1.80 GHz, Up to 4.60GHz, TDP power consumption:15w)
Intel Core i5-10210U processor (Quad cores, 8m high-speed cache, 1.60 GHz, up to 4.20 GHz, TDP power consumption:15w)
Parameters of LCD Touch screen：
Touch screen type: Resistive touch screen (Single-point touch)
Touch screen interface: sub
Light transmittance: 80%
Life expectancy: 35 million times (theoretical value)
Brightness: 300cd/m2
Contrast ratio 500:1
Viewing Angle Horizontal(left/right): 150° (75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.) (Tr+Td) (MS)
Frame Rate：60Hz
Color system：PAL/ NTSC

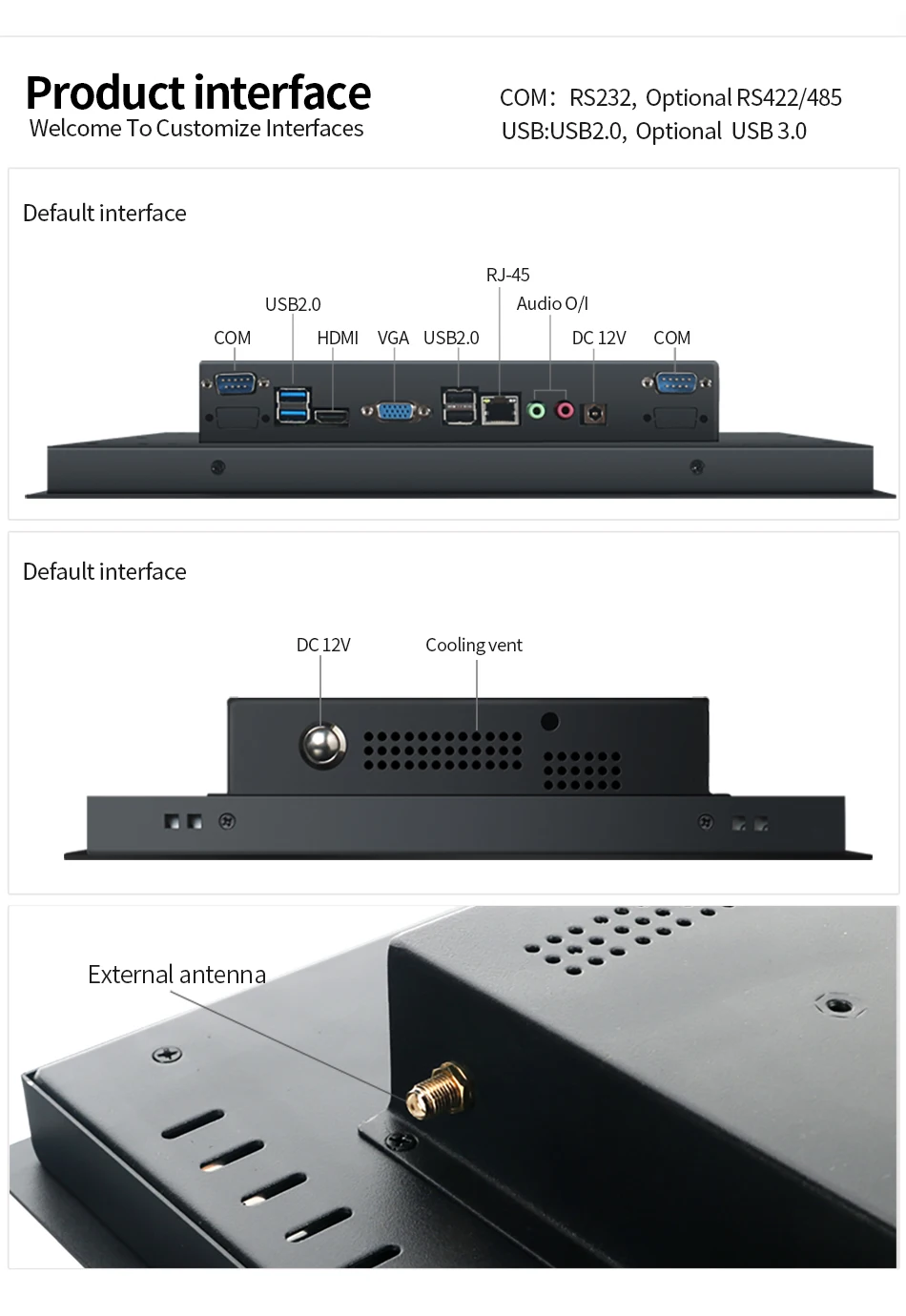

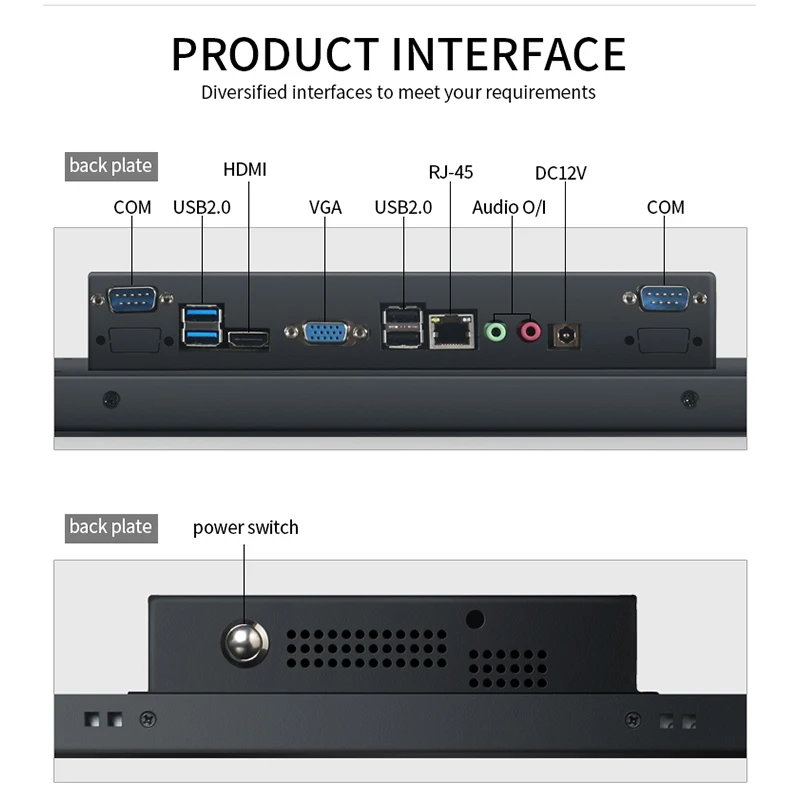

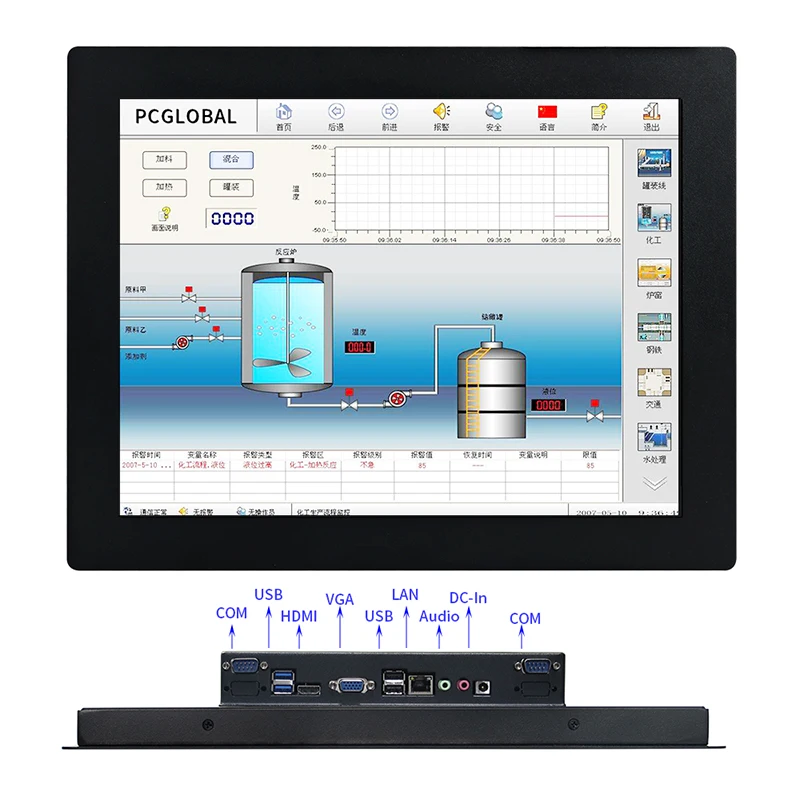

Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages English,Francais,Italiano,Deutsch, Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm

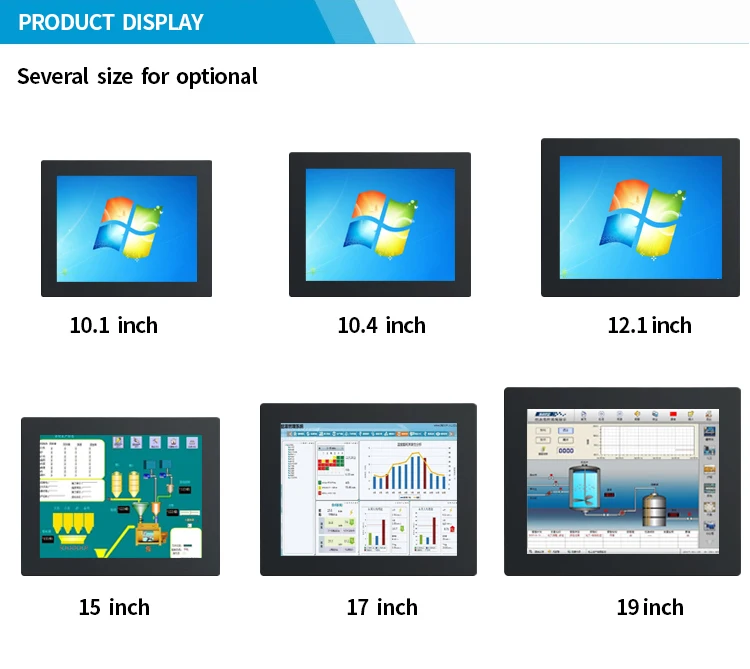

Dimension of Rack mount industrial panel computer

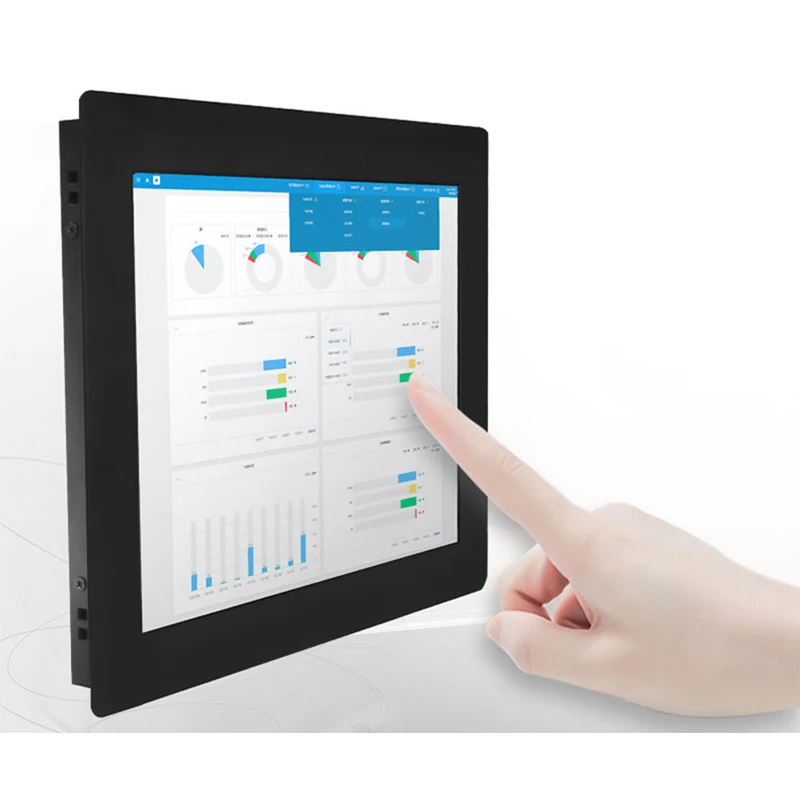

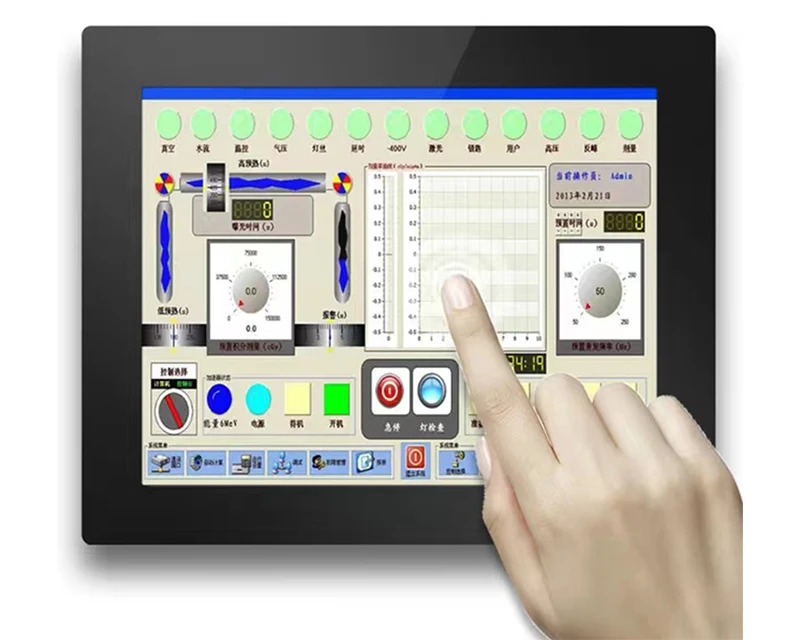

Sensitive resistance touch screen industrial pc computer
Standard Single touch with 5ms reponse time, sensitive touch and no any blind spot.
Super strong current sensing provide with more stable and operation.
With HD LCD Screen, the picture clear, broad version, full of rich color.

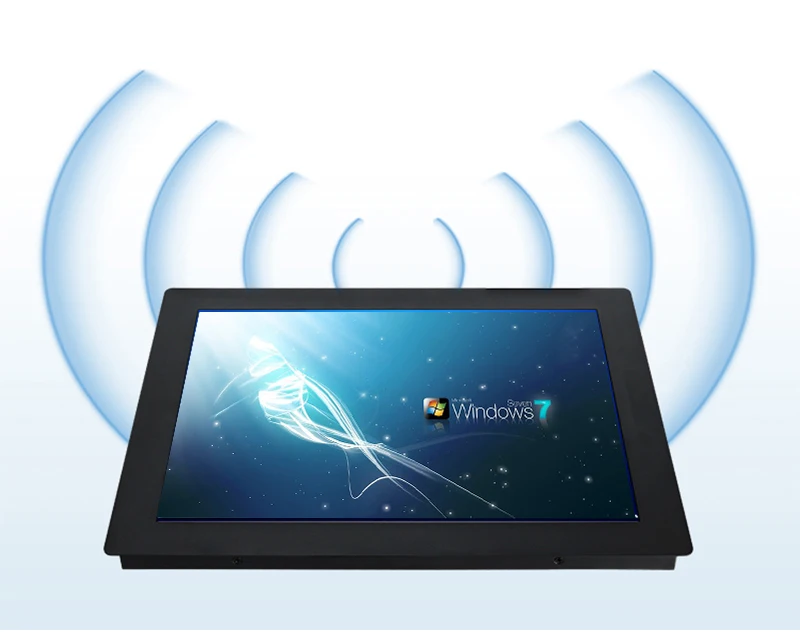

The Industrial pc equied with Built-in WIFI And External WIFI For Option
No cable, to avoid wiring problems, all industrial pc computers are built-in wifi (default), if you need external Wifi, please leave message when ordering or contacu us.

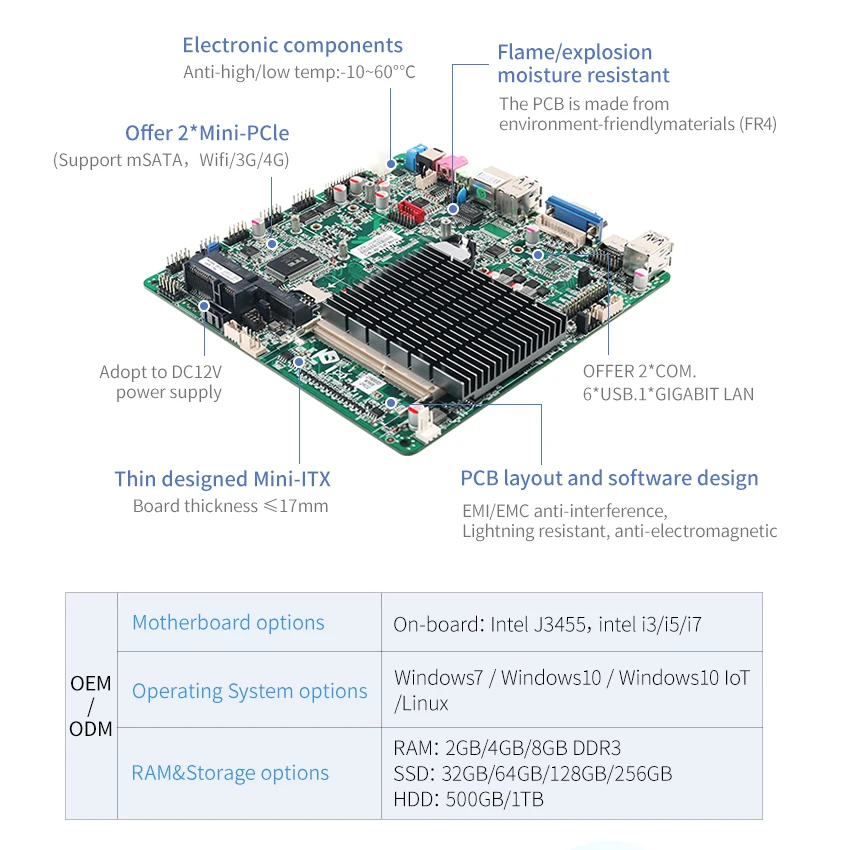

Low-power U series chipset. Energy saving, low consumption
All these motherboards are brand new products, including chips and other accessories with professional industrial grade motherboard, low-power U series chipset. Energy saving, low consumption, the performance of components is stable, suitable for various complex and harsh environments

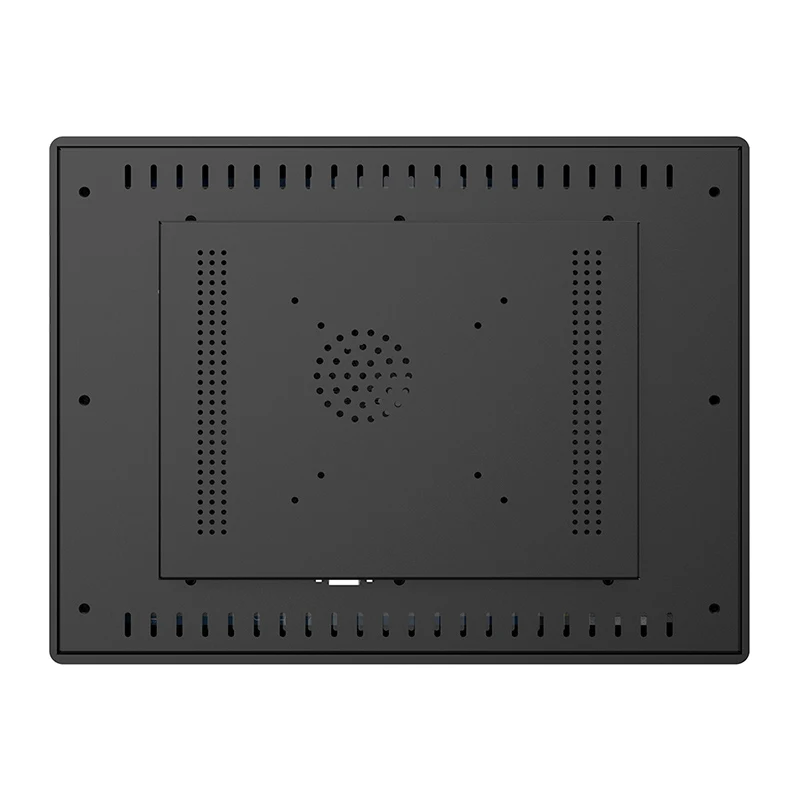

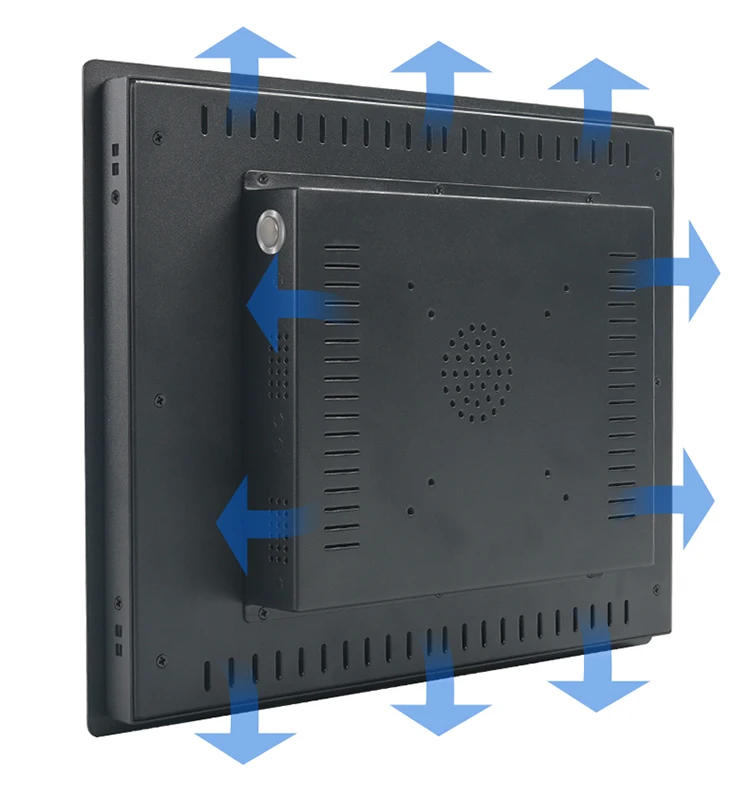

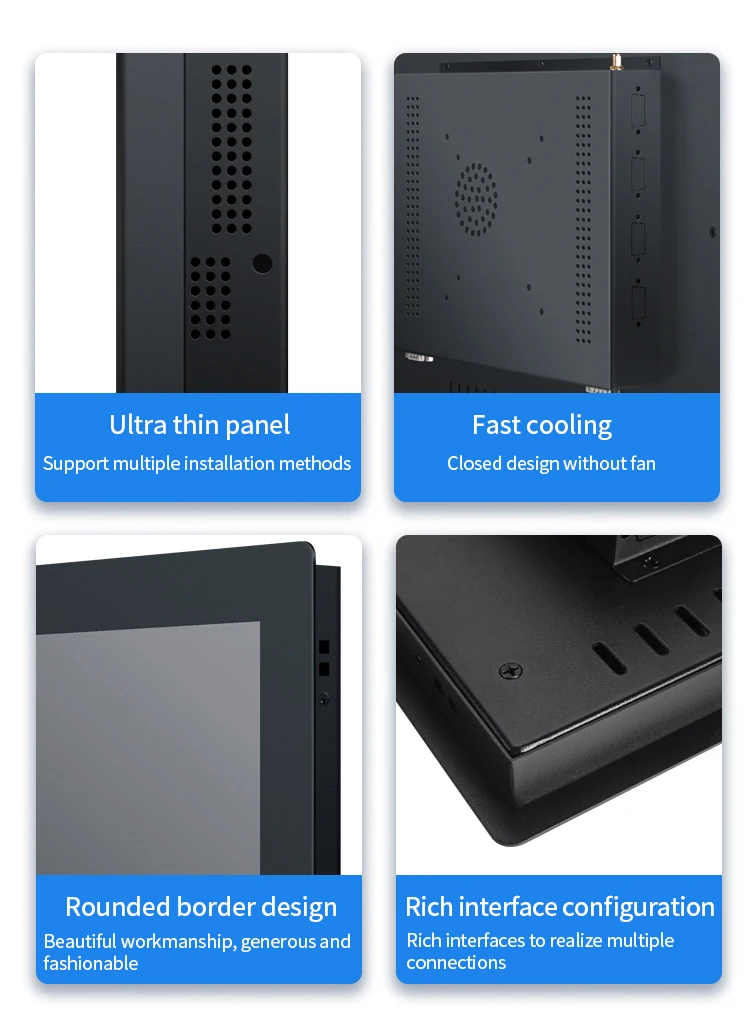

Efficient heat dissipation back cover
Metal frame design, the whole machine is more efficient in heat dissipation, no big noise in operation, and nore intimate in use.
Multi direction scientific cooling holes, cold-rolled sheet metal body and low-power hardware enable the machine to maintain a healthy temperature.

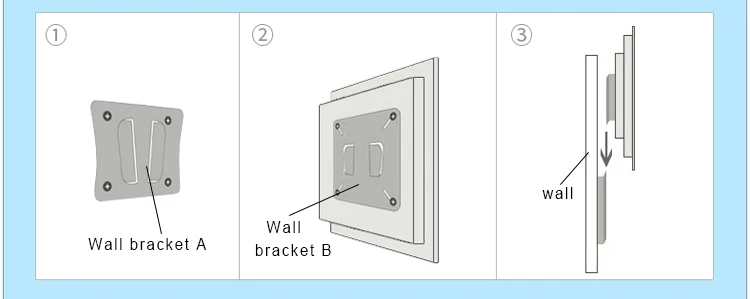

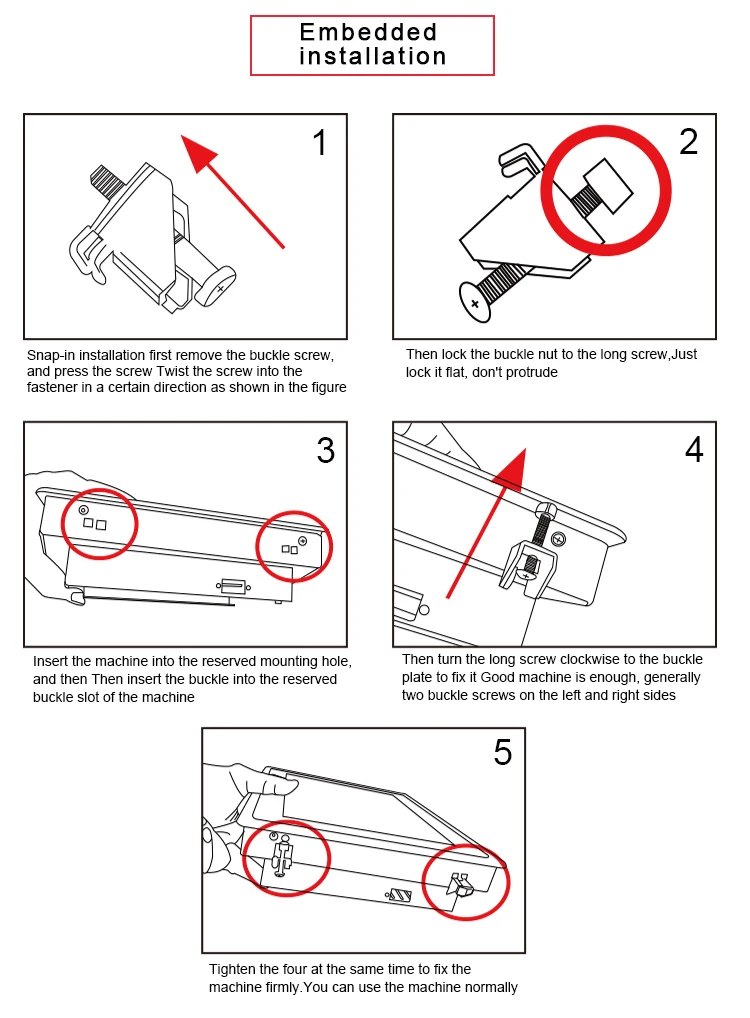

Installation:
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
