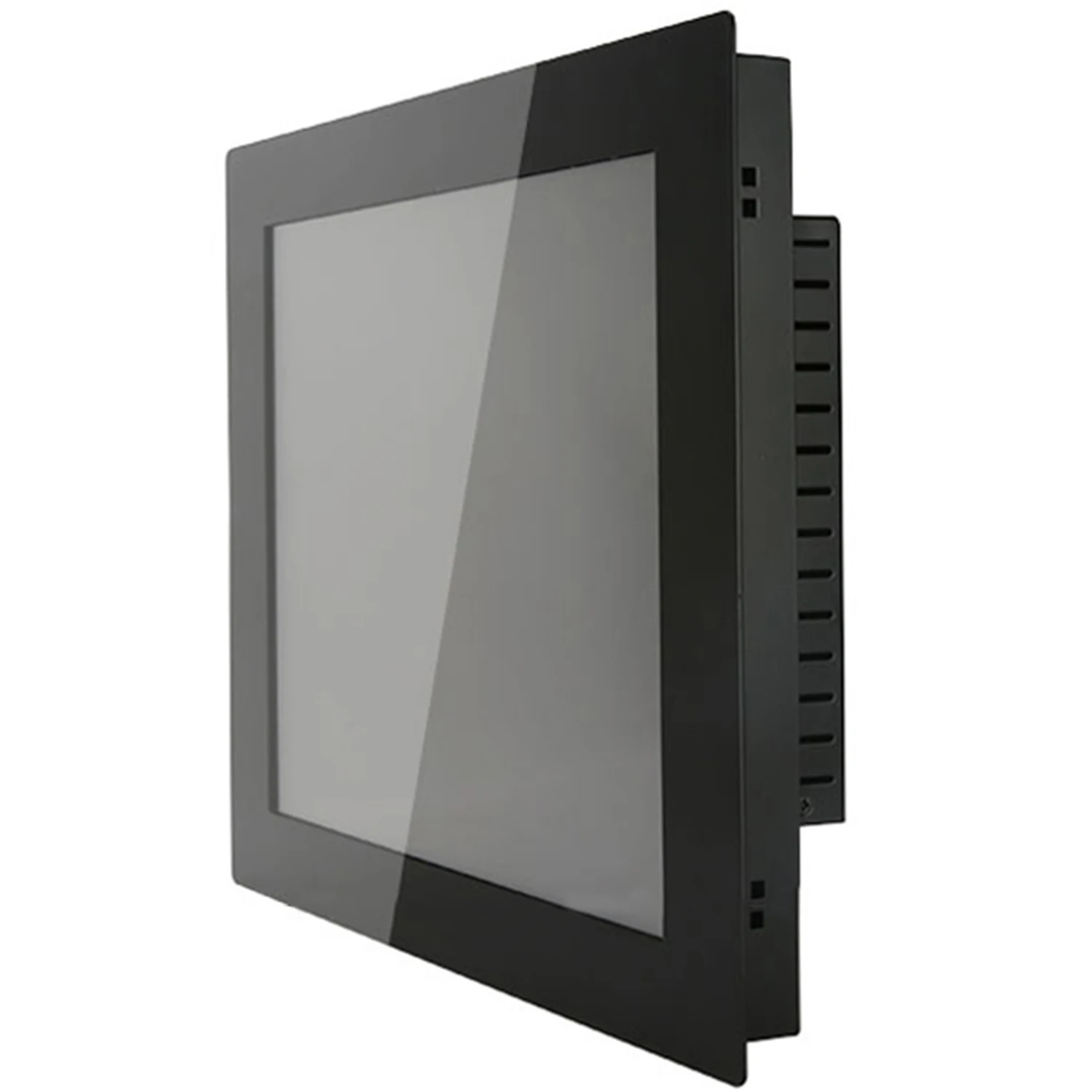

15/17/19 inch industrial Computer With Intel Core i3-3217U Resistive touch Screen Built-in WiFi
“Only monitor”: Indicates that what you have purchased is just a monitor with a VGA+HDMI interface and a resistive touch screen.
Industrial computer parameters
Brand：Balahome
Aterial：Metal
Memory: 4GB/8GB DDR3 System Memory
Storage:Optional 32Gb/64Gb/128Gb/256Gb/512Gb/1 TB
System: WIN7/WIN8/WIN10/Liunx optional(Win10 pro is installed by default)
BIOS: AMI BIOS
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 4-10Kgs
System Parameter：
Configuration ：Intel Core i3-3217U (dual core, 3MB cache, main frequency: 1.80 GHz, TDP TDP power consumption: 17w)
Memory Type Dual Channel DDR3/L/-RS 1333/1600
Integrated Graphics Intel HD Graphics 4000
Parameters of LCD Touch screen：
Brightness：250-350cd/m2
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：AC100〜240V，50 / 60Hz 1.5A MAX
Output：60W Adapter（DC12V — 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc（Default English）
VISA Hole distance：75*75mm
Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).
If you have this demand,please contact us,we will provide you with timely and thoughtful service!

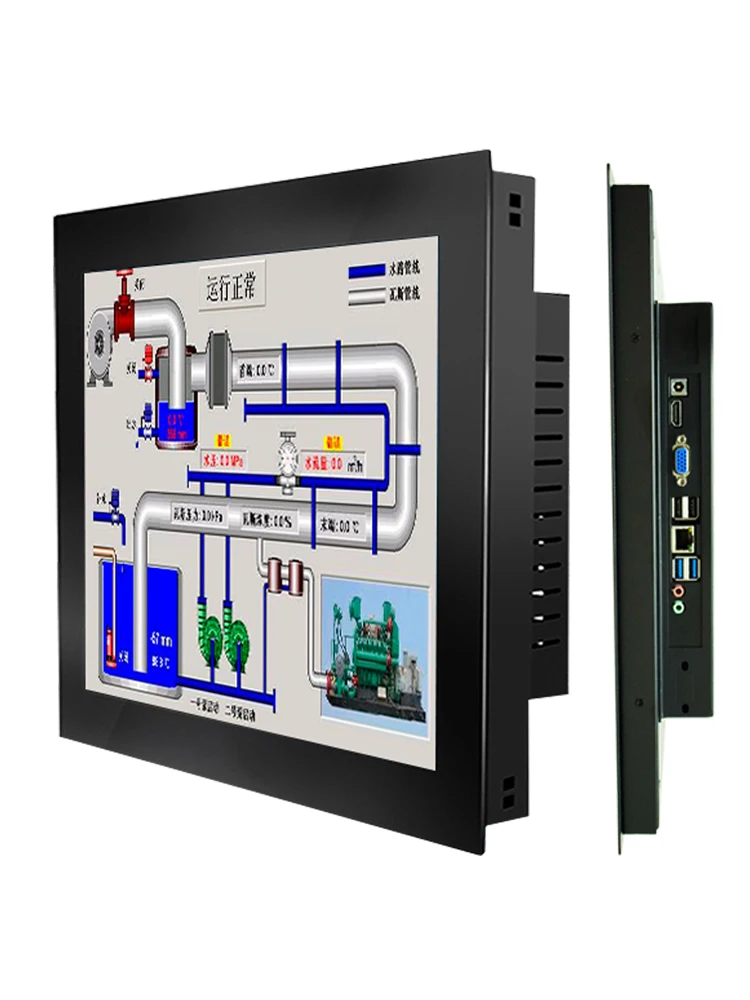

Product interface (support customization)
Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,1*RJ45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 12V power
Remarks: Support customized interfaces: such as DC24V power interface, aviation power interface, 6 Com interfaces, dual LAN network ports, etc. Please contact us for details, thank you.

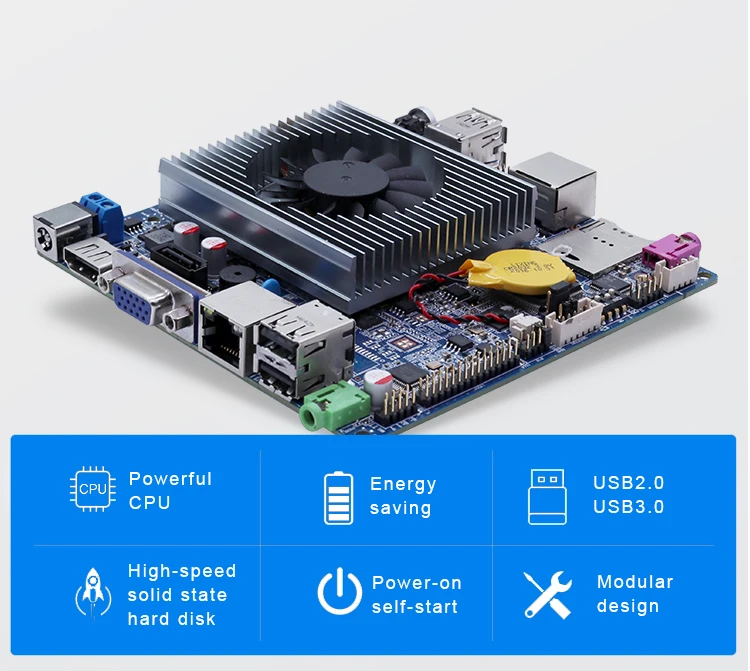

Industrial motherboard performance is more stable
Industrial control-level dedicated motherboard, more stable component performance, low-power chipset to save energy, strong resistance, and stable operation in various complex and harsh environments
Product Size
Size:15 inch Resolution:1024*768 ppi
Size:17 inch Resolution:1280*1024 ppi
Size:19 inch Resolution:1280*1024 ppi
Resistive touch screen, precise touch and sensitive response
High resolution, sensitive surface, smooth and matte surface processing, high stability, mature technology, strong anti-interference, high accuracy and stability of correction, never drifting, touch, no dead corners, long contact life, and can withstand more than 35 million times Safe touch response, rapid touch, no drift
Support power on and run 24 hours a day, 365 days
The whole machine has the ability to run 24 hours a day, and is competent in all walks of life. It can be set to power on through the BIOS. It is suitable for an unstable environment that needs to be continuously powered on.
Industrial-grade sheet metal heat dissipation design
High-standard process metal cold-rolled plate body design Multi-row heat dissipation design brings better industrial use experience Fast and quiet heat dissipation
High and low temperature resistant design
The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences. It has passed controllable high temperature testing. The product adapts to temperature between -20℃~60℃, even in harsh environments, there is no fear
Industrial protection technology
Easily adaptable to operate in a variety of harsh environments and meet high operational standards
Details decide the quality
Installation method

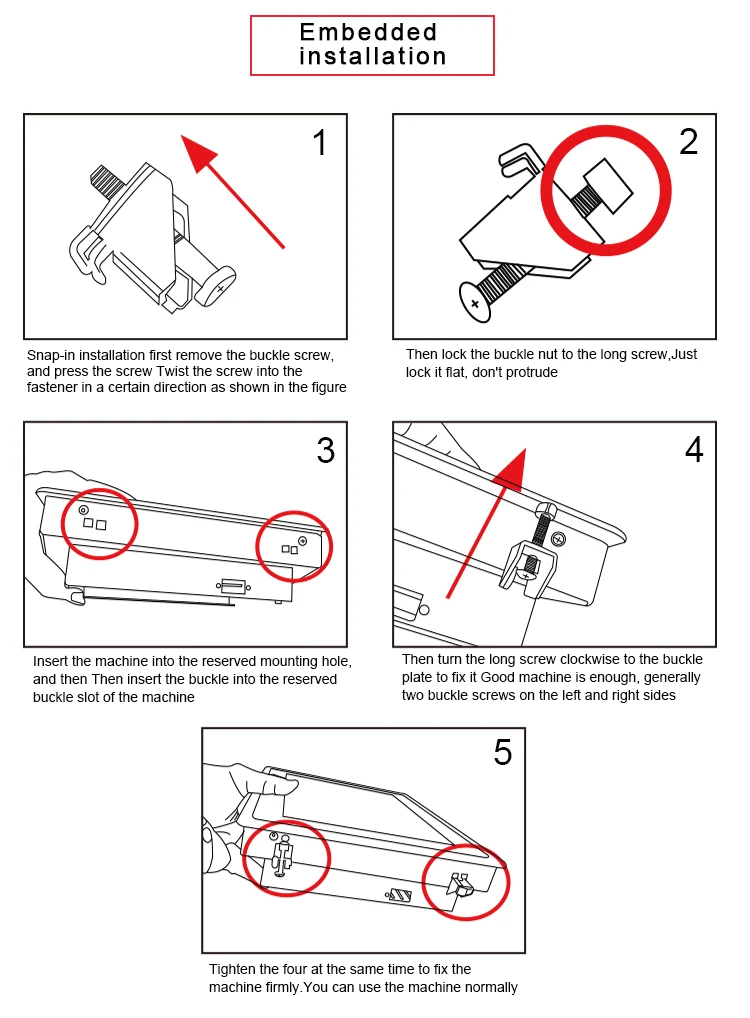

1. Embedded installation
① The cabinet needs to be opened before installation, and the opening size should be slightly larger than the opening size specified by the product.
②Place the product in the embedded installation opening reserved on the installation panel.
③There are two square holes on both sides of the device. When installing, use one end of the buckle to buckle the square hole, and the screw head on the buckle to hold the cabinet.
Then tighten the screws. The installation method of the other three prescription holes is the same to complete the embedded installation.

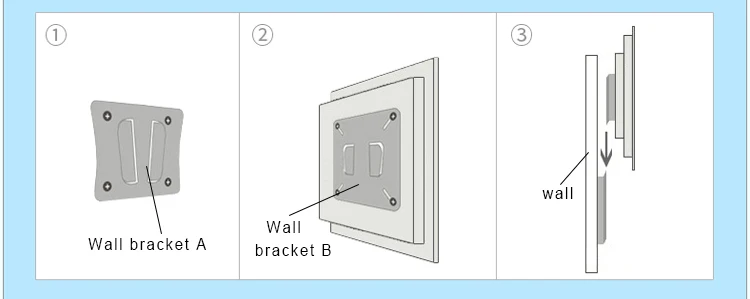

2. Wall-mounted installation
① Fix the wall bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one with screws.
③ Insert the back bracket of the all-in-one into the wall bracket to complete the installation.
About usage:
This product is widely used in industrial production workshop/engineering machinery/NC equipment/medical equipment/video surveillance/factory automation equipment/self-service terminal/vehicle advertising machine and other scenes or fields.
Delivery time
Usually we choose DHL, UPS, Federal and other express companies to ship. The delivery preparation period is 2-7 days, and the express delivery time is 5-20 working days (except for special circumstances).
1~5 pieces: 1~5 working days delivery time + express delivery time.
10~100 pieces: 2~7 working days delivery time + express delivery time.
More than 100 pieces: 5~15 working days delivery time + express delivery time.
FAQ (Frequently Asked Questions)
Q: Does the machine need to install the touch driver?
A: The touch driver needs to be installed.
Q: Where can I install the touch driver?
A: www.EETI.com
Q: How to install the touch calibration program?
A: After power on, download the corresponding touch driver from the website according to your host system, and then follow the prompts to install the touch driver. After successful installation, perform program screen calibration.
Q: Is the machine waterproof?
A: It is not waterproof, please contact us for the machine that needs waterproof.
Q: What is the standard installation method?
A: Embedded, wall-mounted.
Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand.
