10/12/15 inch industrial computer capacitive touch
“Only monitor”: Indicates that what you have purchased is just a monitor with a VGA+HDMI interface and a capacitance touch screen.
industrial computer parameters
Brand：Balahome
Aterial：Metal
Memory: 2GB DDR3 System Memory (4GB/8GB/16GB optional)
Storage:32G SSD(64Gb/128Gb/256Gb optional)
System: WIN7/WIN8/WIN10/Liunx optional
BIOS: AMI BIOS
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 4-8Kgs
System Parameter：
1.Celeron Processor J1800（Dual core, 1MB cache up to 2.41 ≤ 2.58 GHz，TDP power consumption：10w）
2.Celeron Processor J1900（4 cores, 2m cache, up to 2.00 ≤ 2.41 GHz,TDP power consumption:10w）
3.Intel Core i3-3217U（Dual core, 3MB cache, 1.80 GHz，TDP power consumption：17w）
4.Intel Core i5-3337U（Dual core, 3MB cache, 1.80 GHz，TDP power consumption:17w）
5.Core i7-3537U（Dual core, 4MB cache, 2.00 GHz，TDP power consumption:17w）
6.Intel Core i3-4120U（Dual-core, 3MB cache, 2.0 GHz，TDP power consumption:15w）
7.Intel Core i3-5010U（Dual-core, 3MB cache, 2.1 GHz，TDP power consumption:15w）
8.Intel Core i5-5200U（Dual-core, 3MB cache, 2.2-2.7 GHz，TDP power consumption:15w）
9.Intel Core i7-5500U（Dual-core, 4MB cache, 2.4-3.0 GHz，TDP power consumption:15w）
10.Intel Core i3-6100U（Dual-core, 3MB cache, 2.3 GHz，TDP power consumption:15w）
11.Intel Core i5-6200U（Dual-core, 3MB cache, 2.3-2.8 GHz，TDP power consumption:15w）
12.Intel Core i7-6500U（Dual-core,4MB cache, 2.5-3.1 GHz，TDP power consumption:15w）
Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,
1*RJ-45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 24V power
interface
Operating system: Windows 7, Windows 8, Windows 10, Linux, XP
Motherboard size: 170mm*170mm
Parameters of LCD Touch screen：
Touch screen parameters
Touch technology: capacitive technology (ten points)
Effective touch recognition: >1.5mm
Communication method: Full-speed USB 2.0, 3.0
Theoretical clicks: more than 50 million times
Touch principle: current sensing
Surface hardness: Physically toughened, Mohs grade 7 explosion-proof glass
Brightness：500-600cd/m2（There is a higher brightness display, please contact us）
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 24V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm
Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

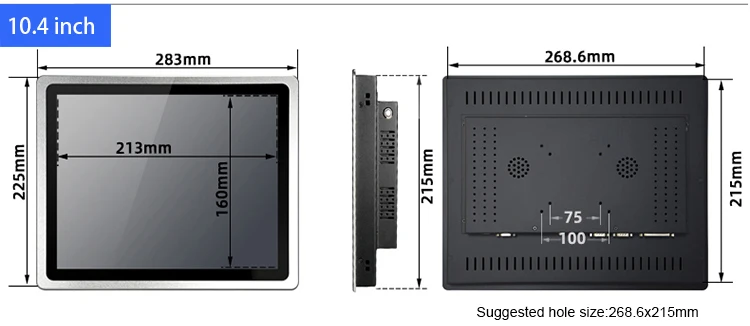

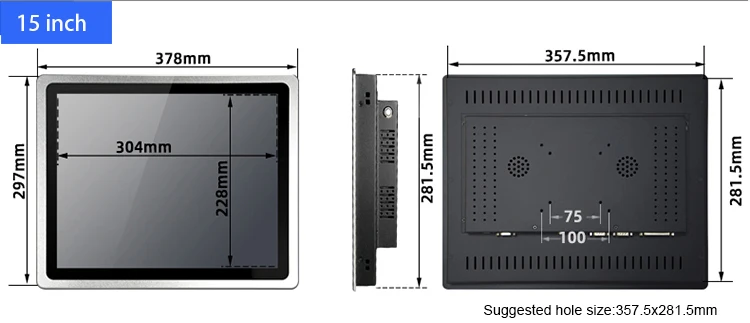

Size
Resolution: 10.4 inch(1024*768 ppi)/12.1 inch(1024*768 ppi)/15 inch(1024*768 ppi)
Unit of measure: mm

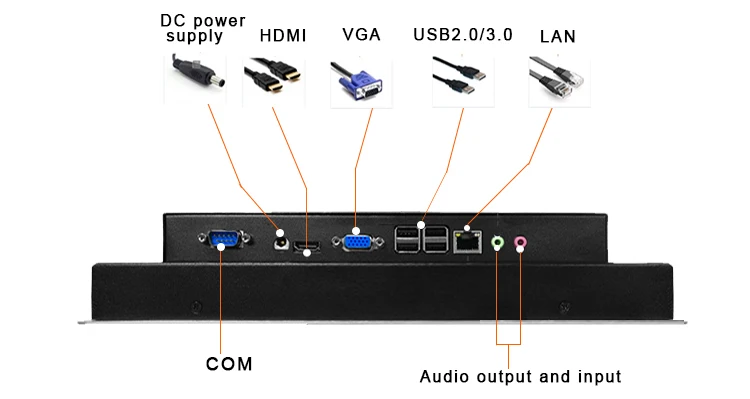

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

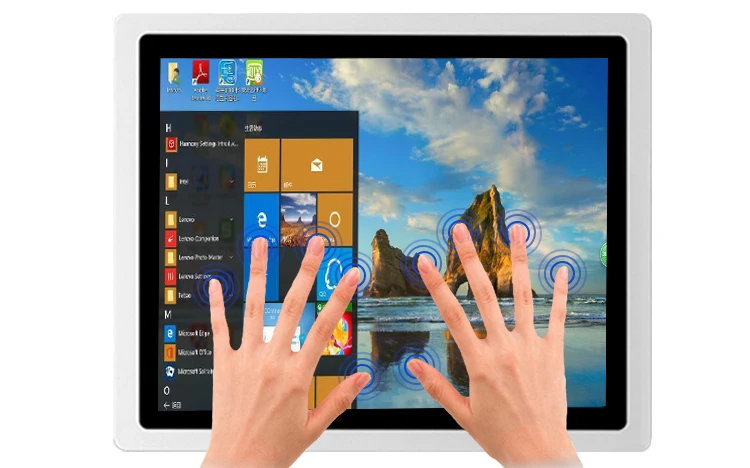

Sensitive Touch Rapid Response
Capacitive touch (multi point touch, induction by current )
Capacitive touch times > 50 million times, backlight life 50000h

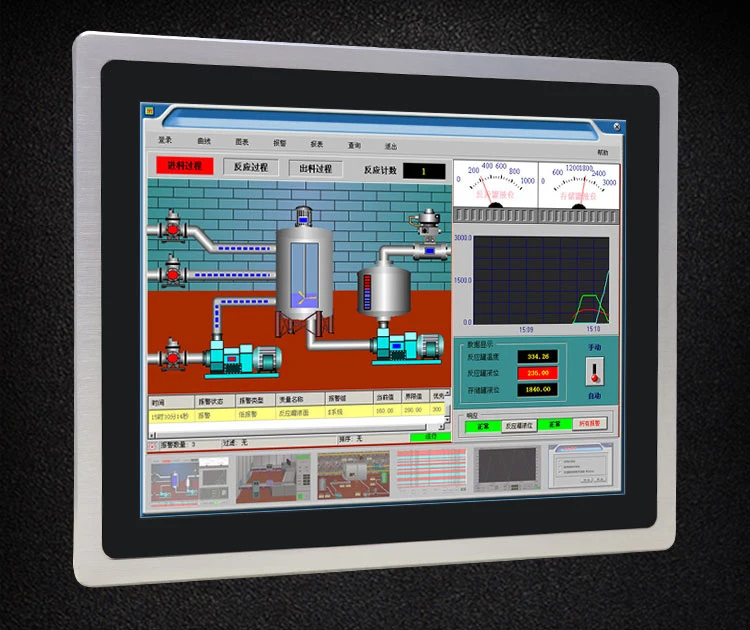

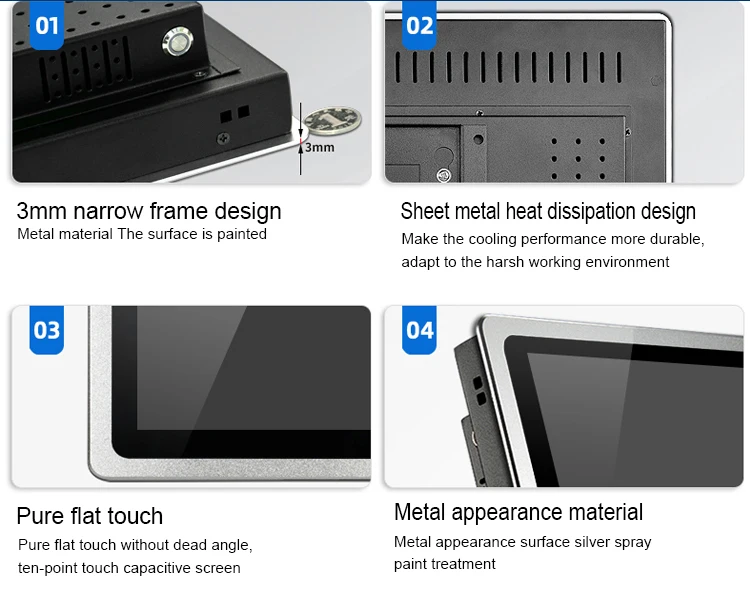

Show details
Due to the difference between the shooting and the monitor, there may be color difference, please refer to the actual product
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.
About customization
Please contact customer service to state your needs.
Support logo, shell, color, function, interface and other customization, please contact us for the best price

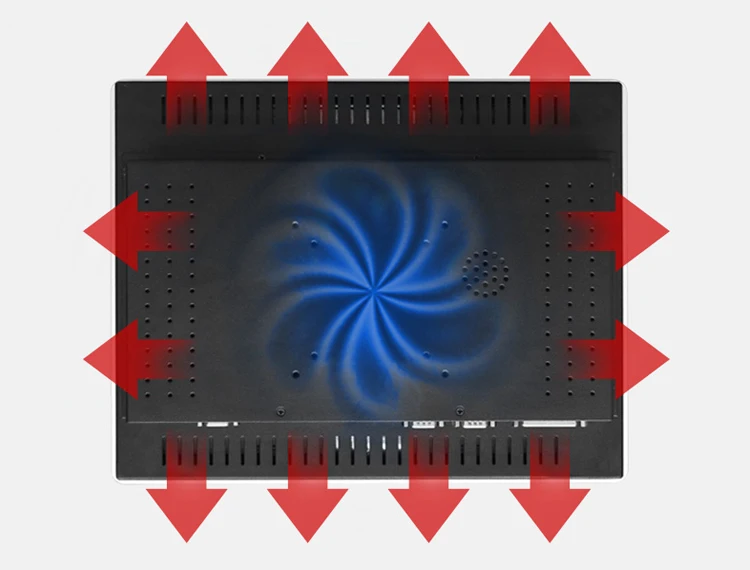

Aluminum alloy shell/fanless cooling/waterproof/dustproof
24/7 stable operation
Efficient work for a long time, fanless cooling
Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.
Can effectively adapt to stable work in harsh environments
Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
Installation method

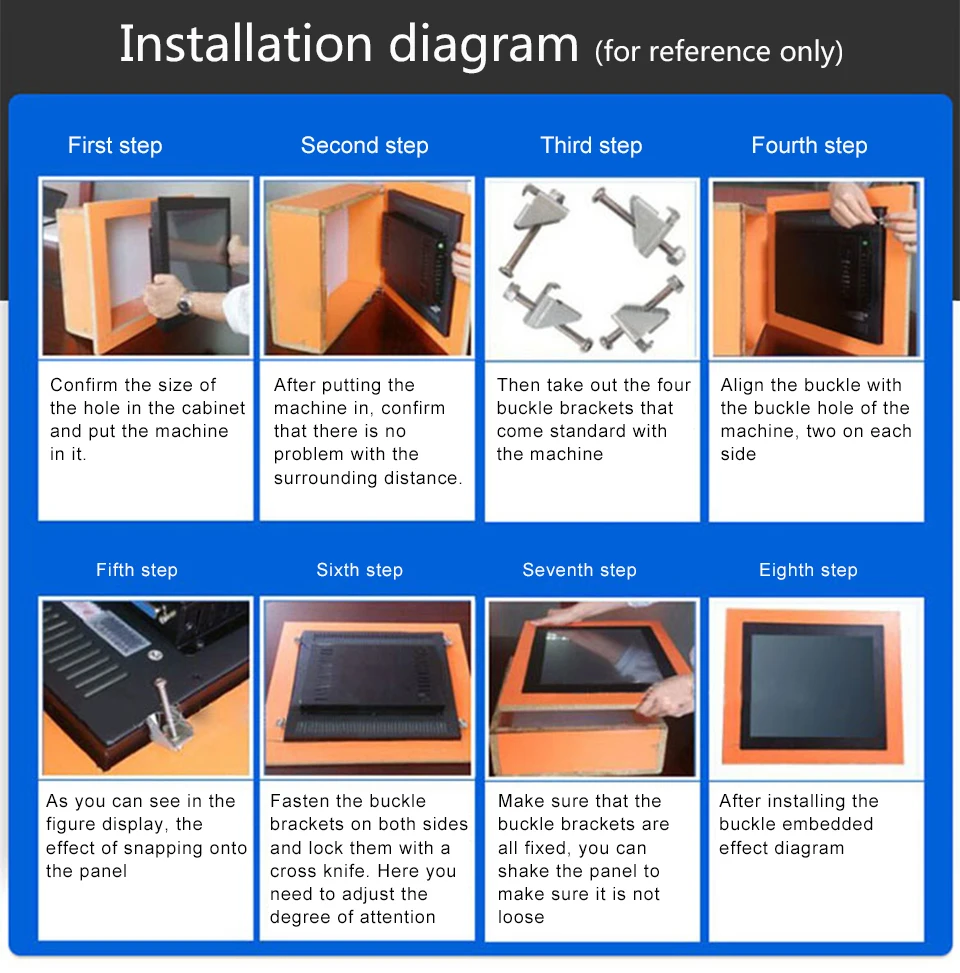

1. Embedded installation
①The cabinet needs to be opened before installation, and the opening size should be slightly larger than the opening size specified by the product.
②Place the product in the embedded installation opening reserved on the installation panel.
③There are two square holes on both sides of the equipment. When installing, use one end of the buckle to buckle the square hole, and the screw head on the buckle to hold the cabinet.
Then tighten the screws, the installation method of the other three prescription holes is the same, and the embedded installation can be completed.

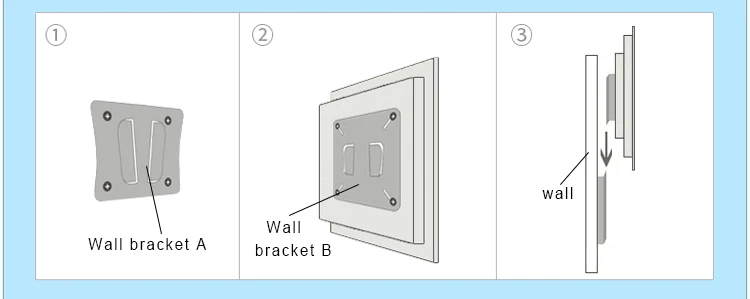

2. Wall-mounted installation
① Fix the wall bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one with screws.
③The back bracket of the all-in-one is inserted into the wall bracket to complete the installation.
Product application field display
Products are widely used in industrial control CNC industry, medical industry, factory production workshop,
Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
